Pinpoint Test K: DTC B2351 - Steering Column Switch Signal Circuit Failure

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

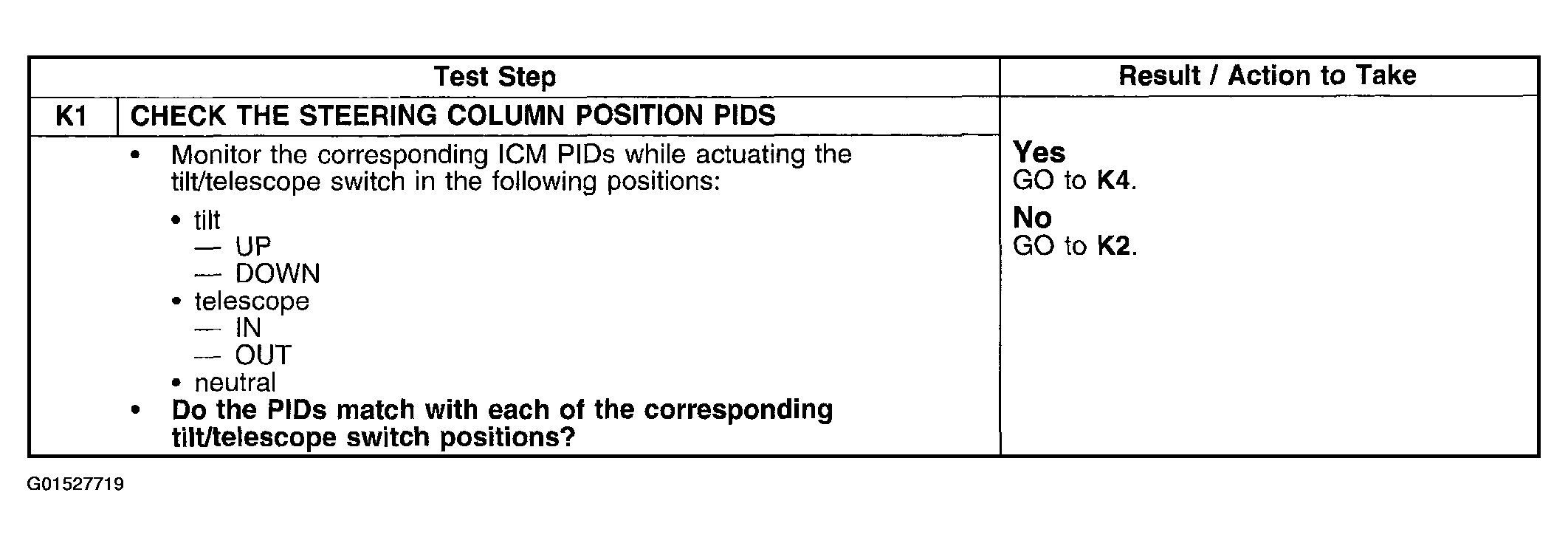

Fig 1: Diagnosis Procedure - DTC B2351 - Steering Column Switch Signal Circuit Failure (K1)

Courtesy of FORD MOTOR CO.

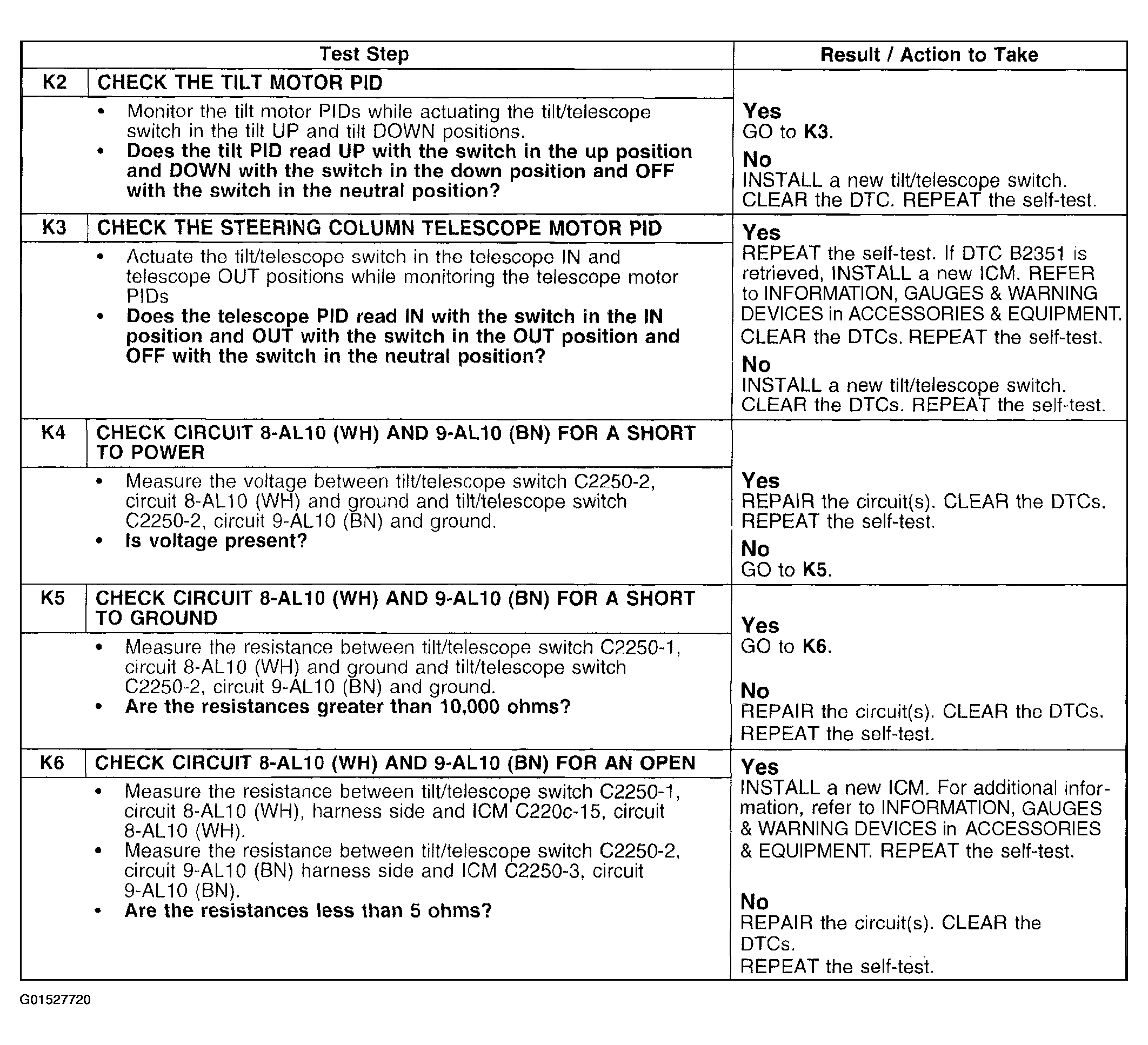

Fig 2: Diagnosis Procedure - DTC B2351 - Steering Column Switch Signal Circuit Failure (K2-K5)

Courtesy of FORD MOTOR CO.
