Item 7: Reverse Servo Piston O-Ring Assembly Note

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Try not to roll the seal onto the housing when installing the seal or damage to the seal can occur.

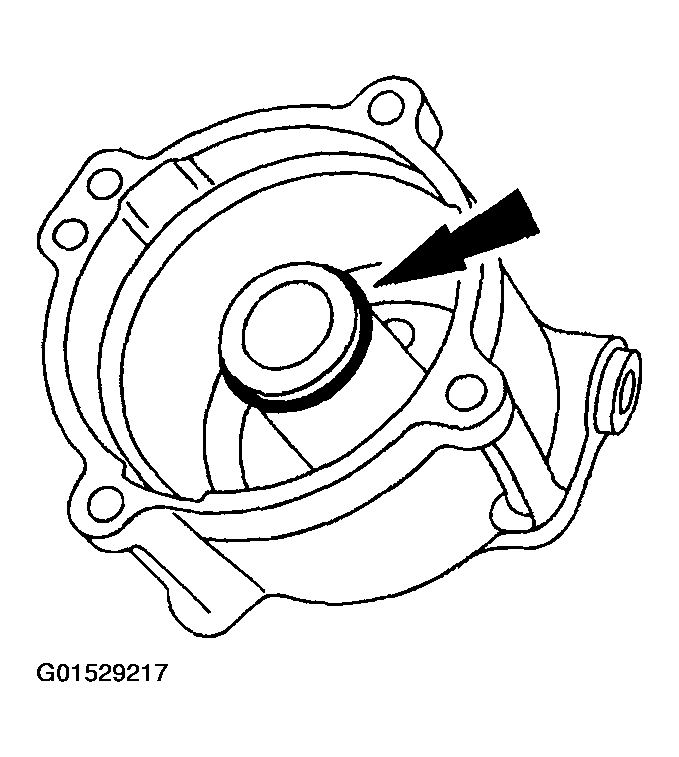

    Fig 1: Identifying Reverse Servo Piston Seal
    G01529217Courtesy of FORD MOTOR CO.
  1. Lubricate and install a new reverse servo piston seal.
