Speed Control Switch

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver air bag. For additional information, refer to AIR BAG RESTRAINT SYSTEMS
  2. Remove the components in the order indicated in the figure below.

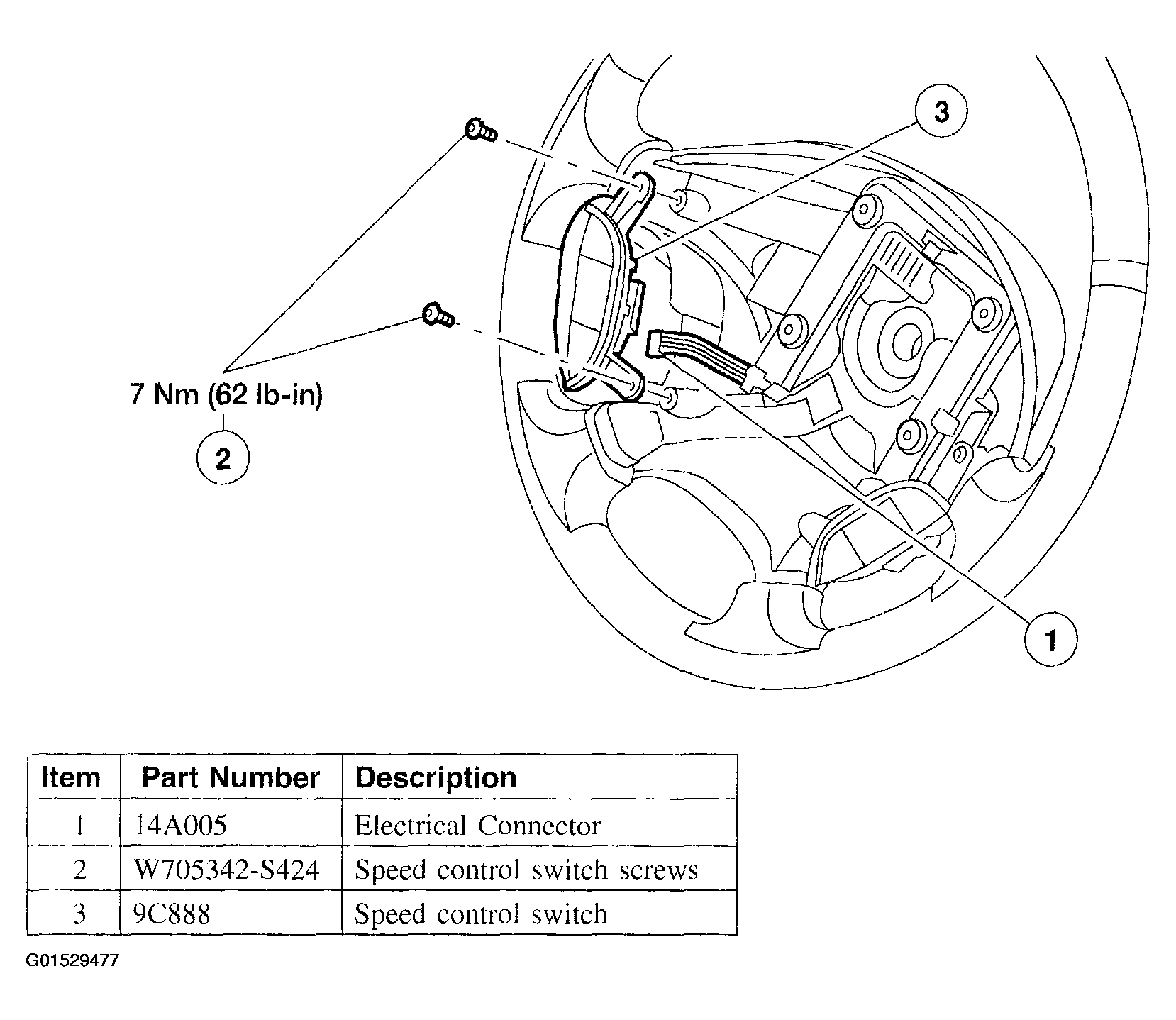

    Fig 1: Speed Control Switch Component Removal Sequence
    G01529477Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
