A/C Compressor Clutch Relay

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

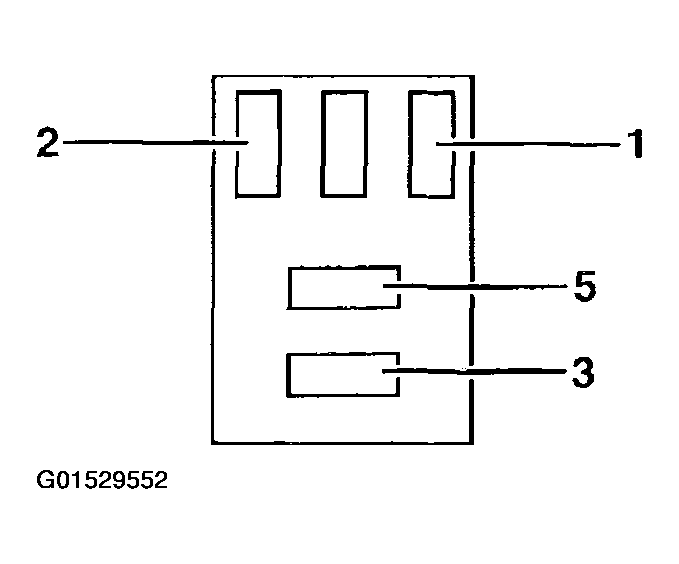

Fig 1: A/C Compressor Clutch Relay Connector Terminals
G01529552Courtesy of FORD MOTOR CO.

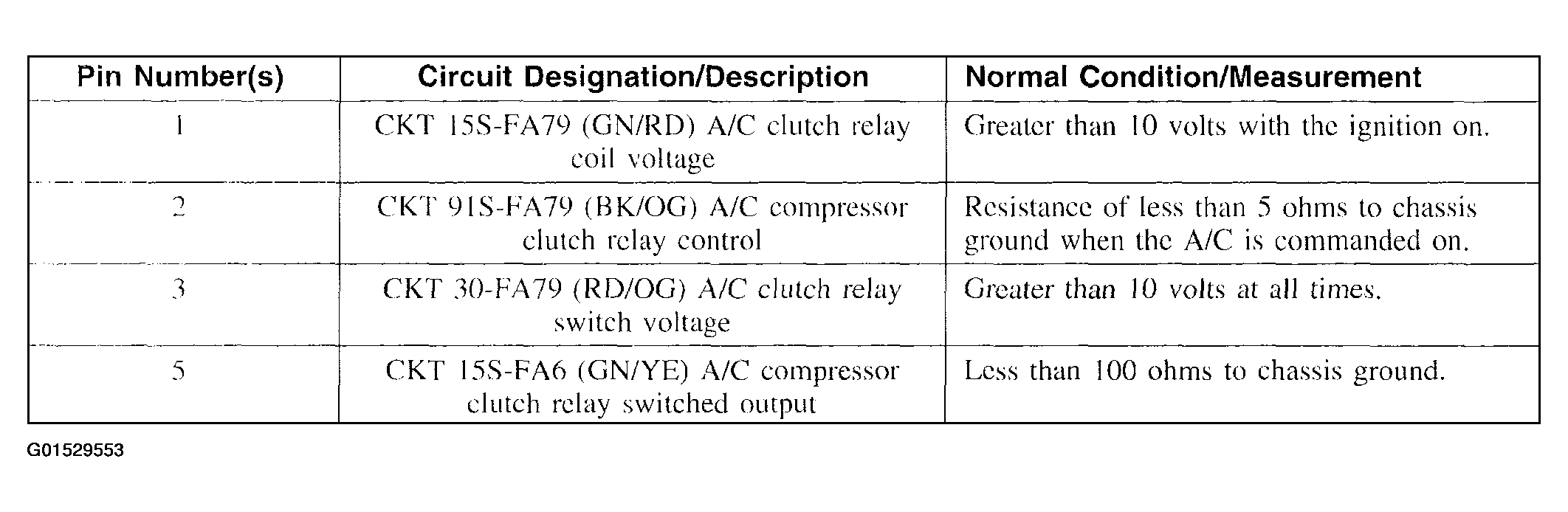

Fig 2: A/C Compressor Clutch Relay Circuit Description Chart
G01529553Courtesy of FORD MOTOR CO.
