WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

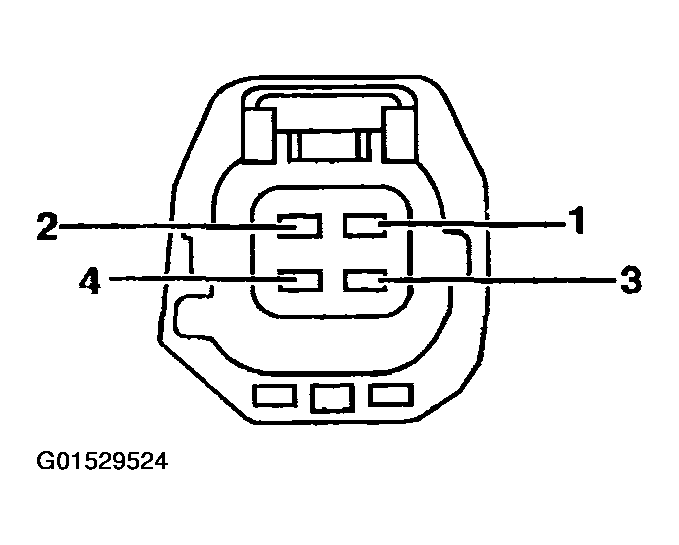

Fig 1: Blower Motor Speed Control Module C297 Connector Terminals
Courtesy of FORD MOTOR CO.

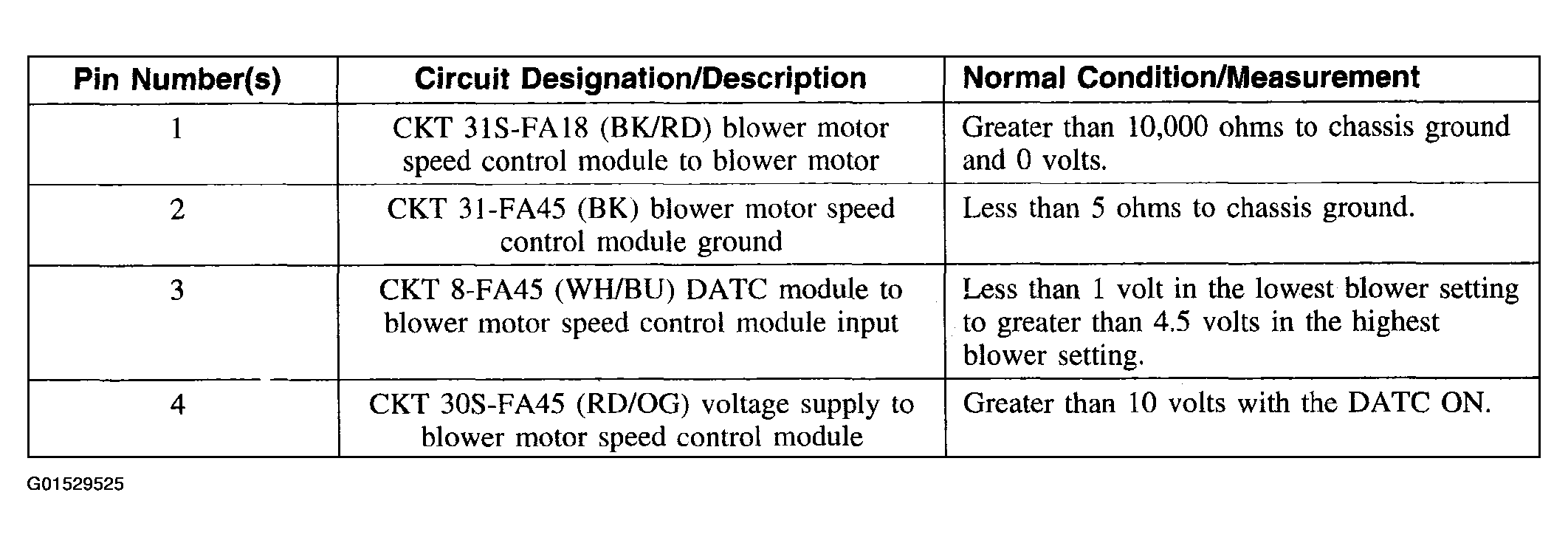

Fig 2: Blower Motor Speed Control Module C297 Circuit Description Chart
