DATC Module C228b

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

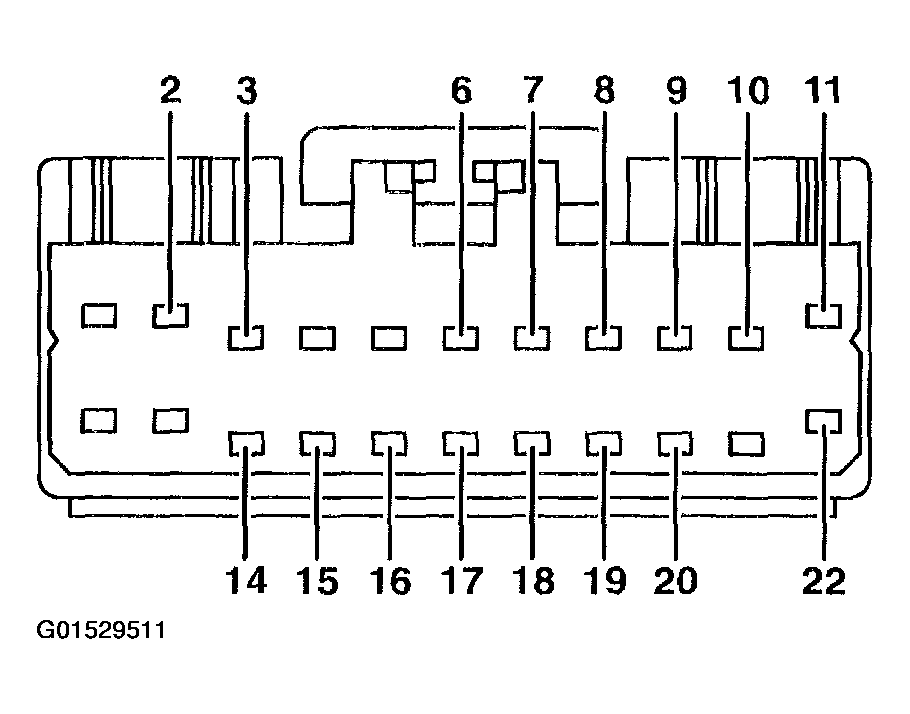

Fig 1: DATC Module C228b Connector Terminals

Courtesy of FORD MOTOR CO.

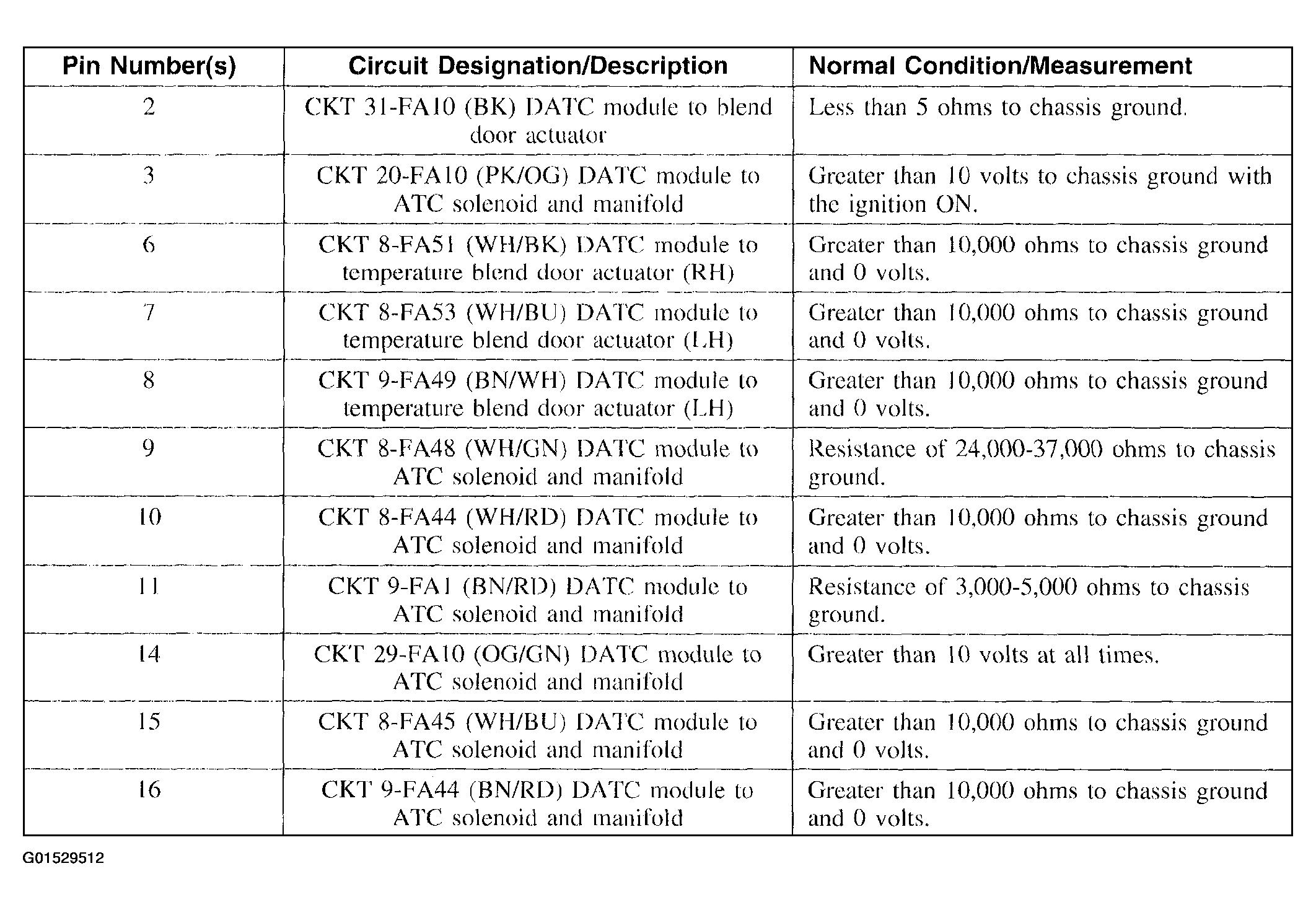

Fig 2: DATC Module C228b Circuit Description Chart (2-16)

Courtesy of FORD MOTOR CO.

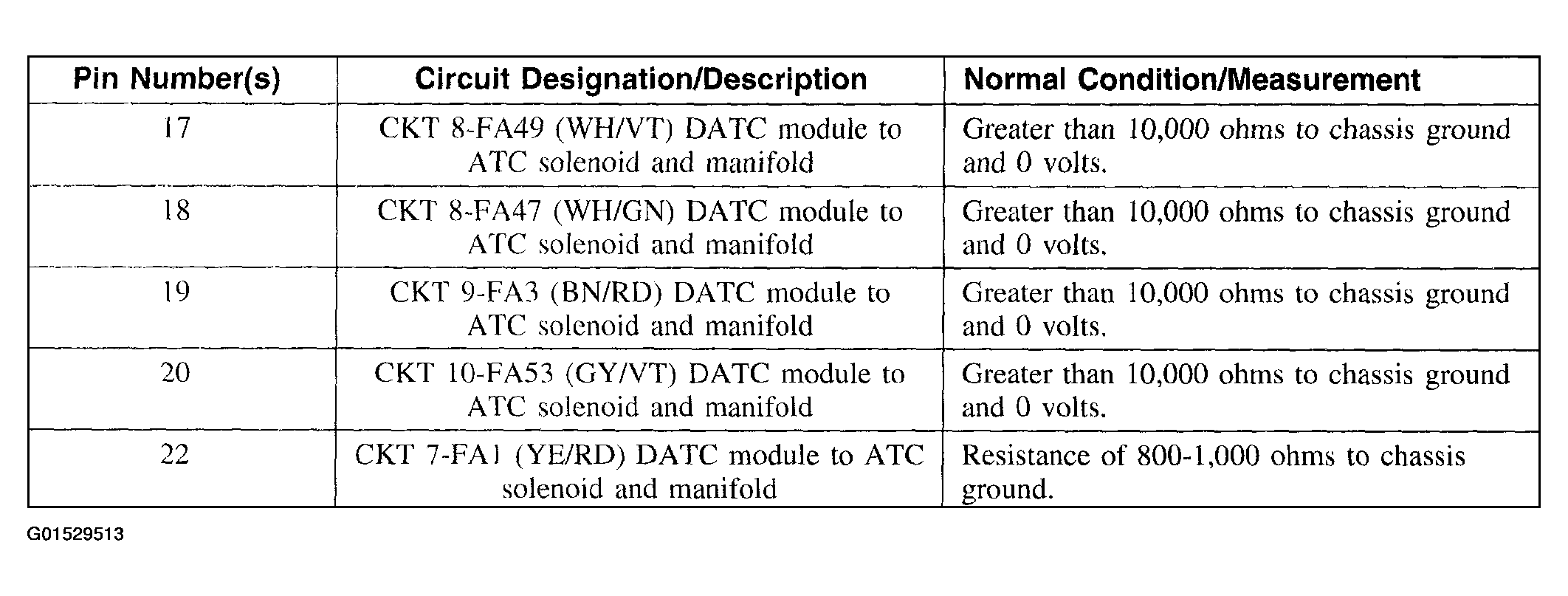

Fig 3: DATC Module C228b Circuit Description Chart (17-22)

Courtesy of FORD MOTOR CO.
