Climate Control Assembly

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new climate control assembly (DATC module), the new module must be configured for the vehicle. For additional information, refer to MODULE COMMUNICATIONS NETWORK .

Remove the components in the order indicated in the following illustration.

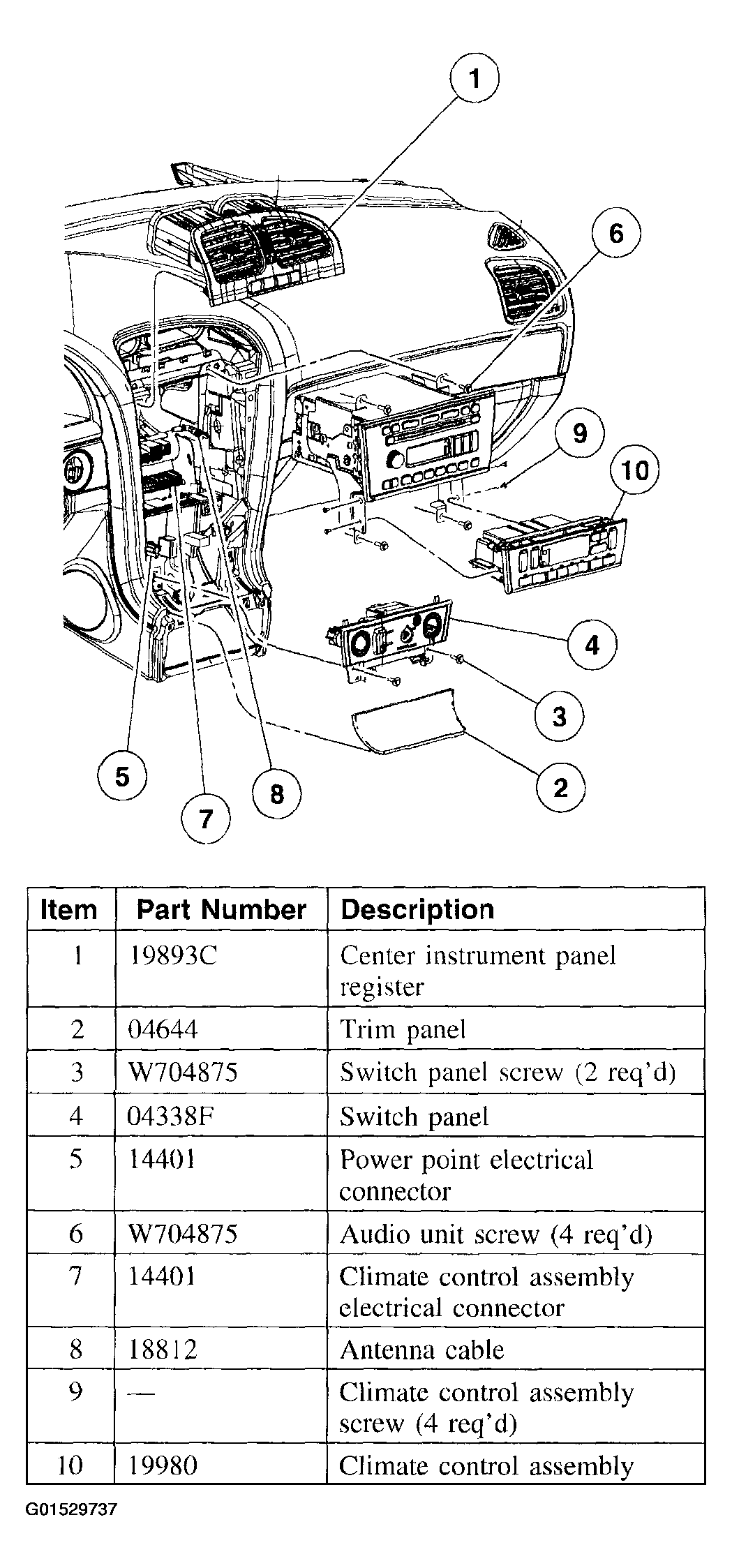

Fig 1: Climate Control Assembly Component Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
