Rear Axle Speed Sensor C455

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

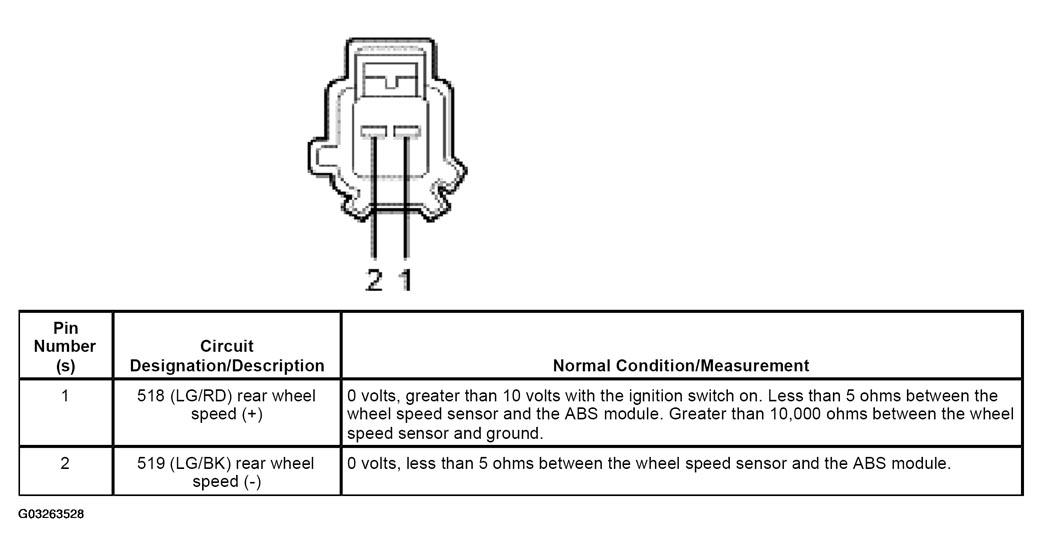

Fig 1: Identifying Rear Axle Speed Sensor C455 Connector Terminal Specifications
G03263528Courtesy of FORD MOTOR CO.

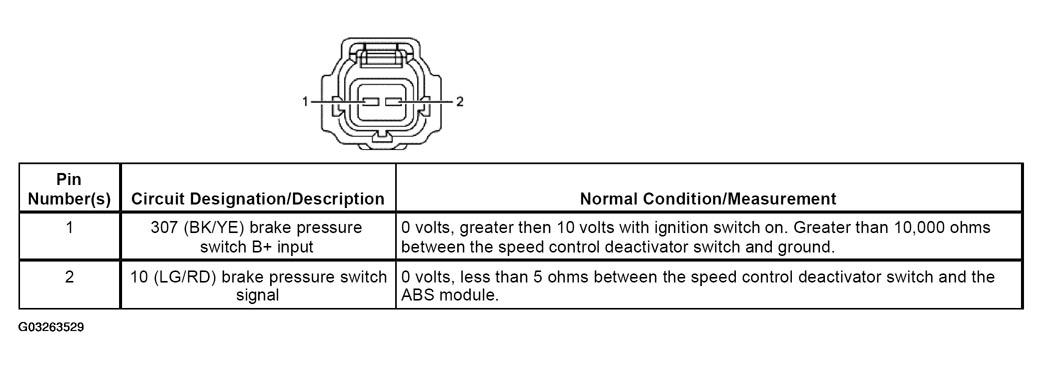

Fig 2: Identifying Speed Control Deactivator Switch C1025 Connector Terminal Specifications
G03263529Courtesy of FORD MOTOR CO.
