Steering Wheel Rotation Sensor C226

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

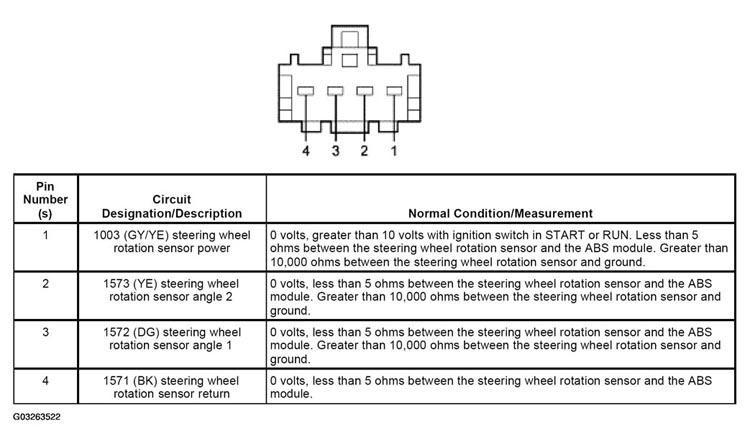

Fig 1: Identifying Steering Wheel Rotation Sensor C226 Connector Terminal Specifications
G03263522Courtesy of FORD MOTOR CO.
