Disassembly And Assembly Of Subassemblies: Piston: Notes
WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
MATERIALS
| Item |
Specification |
| SAE 5W-20 Super Premium Synthetic Blend Engine Oil XO-5W20-QSP or equivalent |
WSS-M2C153-H |

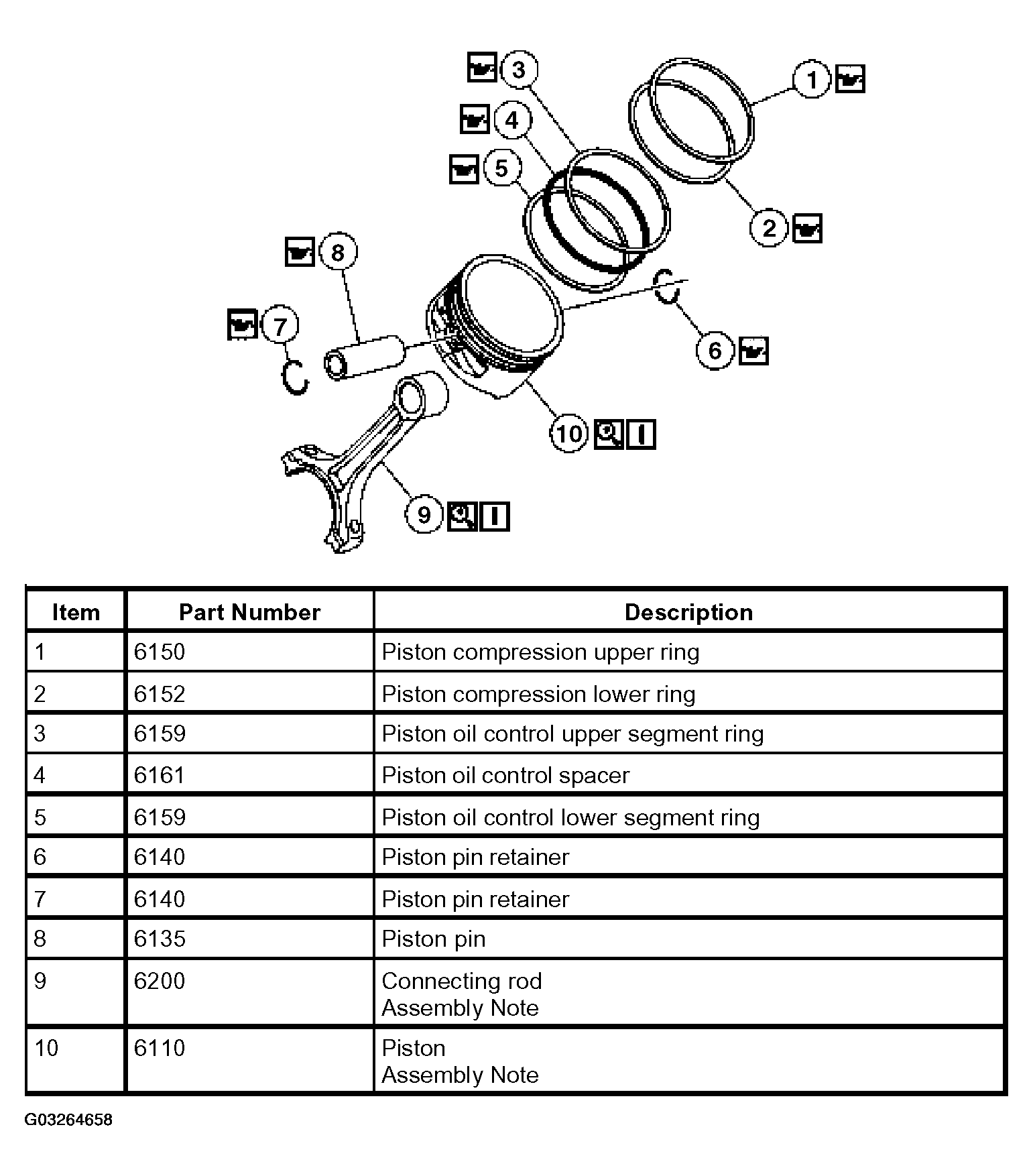

- Remove the parts in the order indicated in the following illustration and table.
Courtesy of FORD MOTOR CO.
- To assemble, reverse the disassembly procedure.
