Digital TR Sensor C167

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

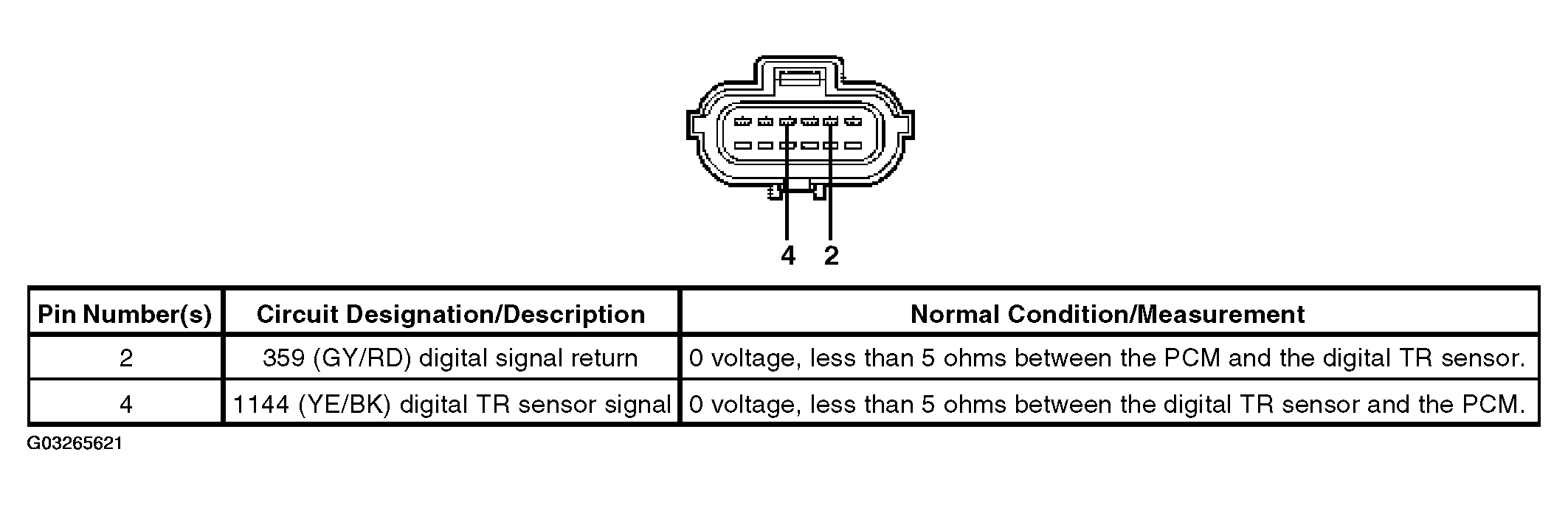

Fig 1: Identifying Digital TR Sensor C167 Connector Pins
G03265621Courtesy of FORD MOTOR CO.
