Speed Control Cable: Notes

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parts in the order indicated in the following illustration and table.

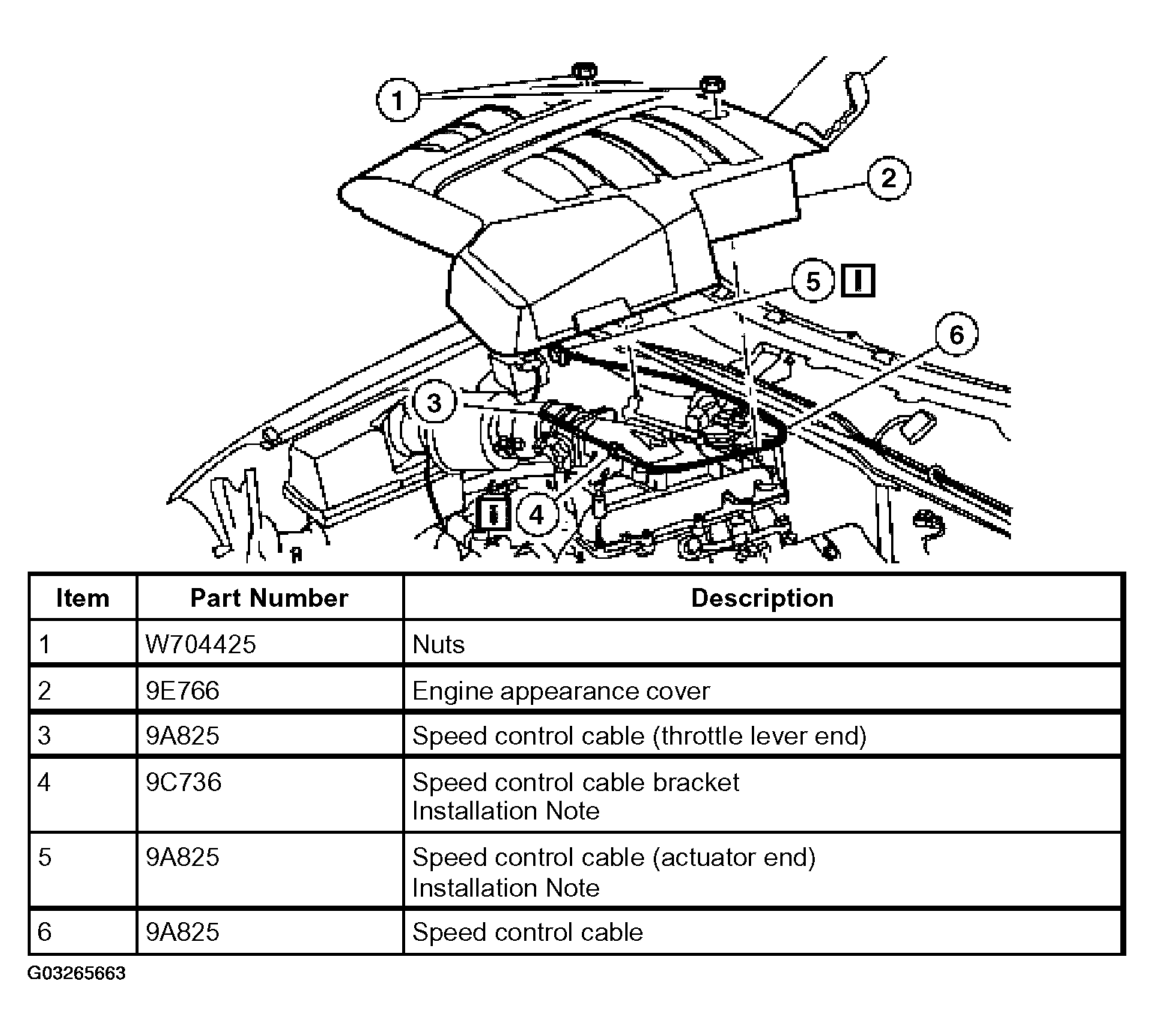

    Fig 1: Removing Speed Control Cable Components (Items 1-6)
    G03265663Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
