Auxiliary Climate Control Housing

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

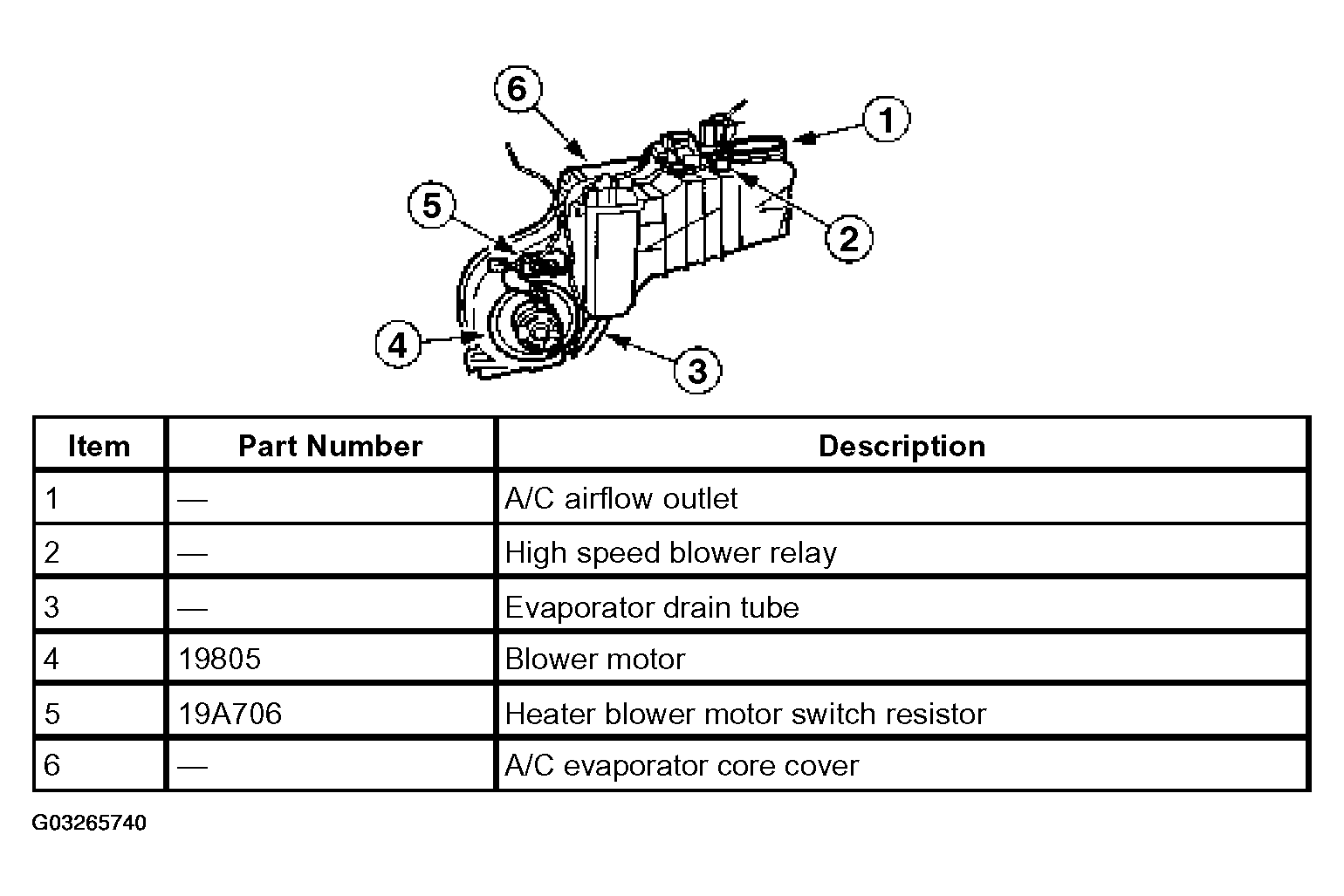

Fig 1: Identifying Auxiliary Climate Control Housing Components
G03265740Courtesy of FORD MOTOR CO.
