Front Auxiliary Climate Control Assembly
WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

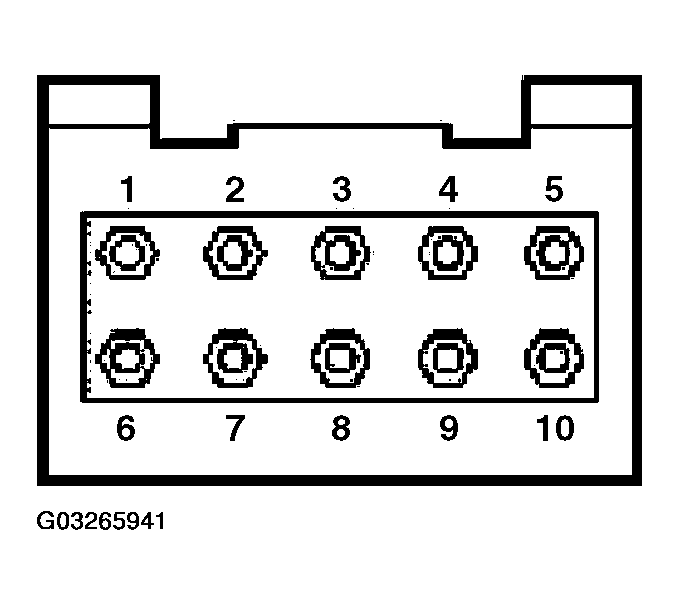

FRONT AUXILIARY CLIMATE CONTROL ASSEMBLY CONTINUITY
| Blower Mode | Airflow Mode | Continuity between pins |
|---|---|---|
| HIGH | FLOOR | 4 and 9, 2 and 10 |
| HIGH | PANEL | 4 and 10, 2 and 9 |
| REAR | FLOOR/PANEL | 10 and 7, 4 and 5 |
| REAR | FLOOR/PANEL | 2 and 1, 3 and 8 |
RESISTANCE RANGE
| Resistance between pins | Resistance range (approx.) |
|---|---|
| 3 and 9 | 50 ohms (WARM) -3,000 ohms (COOL) |
| 3 and 10 | 50 ohms (COOL) -3,000 ohms (WARM) |
