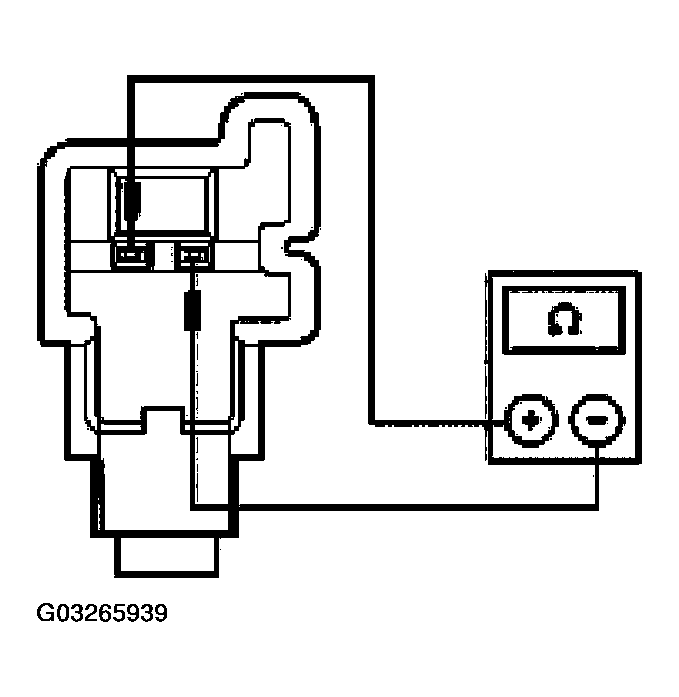

In-Vehicle Temperature Sensor
WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. IN-VEHICLE TEMPERATURE SENSOR RESISTANCE
| Temperature |
Resistance |
| 10-20°C (50-68°F) |
37,000-58,000 ohms |
| 20-30°C (68-86°F) |
24,000-37,000 ohms |
| 30-40°C (86-104°F) |
16,000-24,000 ohms |
