Rear Auxiliary Climate Control Assembly
WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

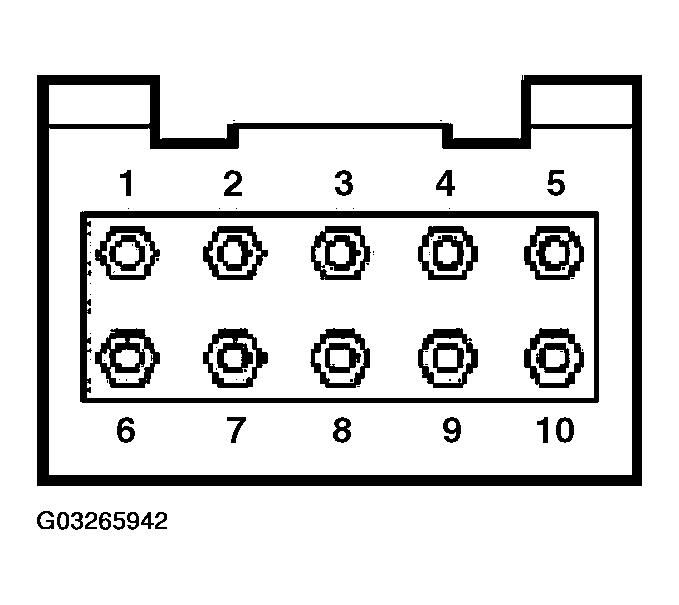

Courtesy of FORD MOTOR CO. REAR AUXILIARY CLIMATE CONTROL ASSEMBLY CONTINUITY
| Airflow Mode |
Continuity between pins |
| FLOOR |
4 and 9, 2 and 10 |
| PANEL |
4 and 10, 2 and 9 |
RESISTANCE RANGE
| Resistance between pins |
Resistance range (approx.) |
| 3 and 9 |
50 ohms (WARM) -3,000 ohms (COOL) |
| 3 and 10 |
50 ohms (COOL) -3,000 ohms (WARM) |
