Steering Wheel Control Switch
WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

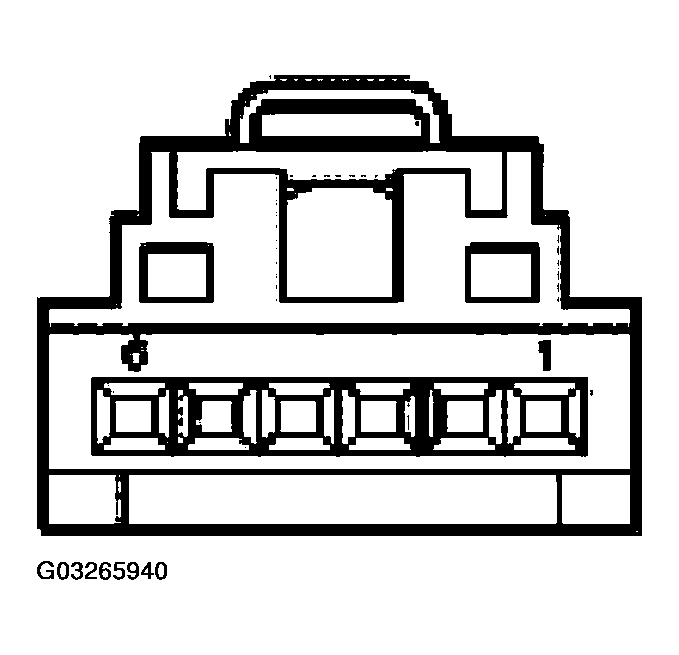

- Measure the resistance between pins 2 and 4 while pressing the buttons below.
STEERING WHEEL CONTROL SWITCH RESISTANCE
| Switch |
Resistance (ohms) |
| TEMP UP |
382-410 |
| TEMP DOWN |
1688-1810 |
| FAN UP |
789-847 |
| FAN DOWN |
125-135 |
