Powertrain Control Module (PCM) C175a

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

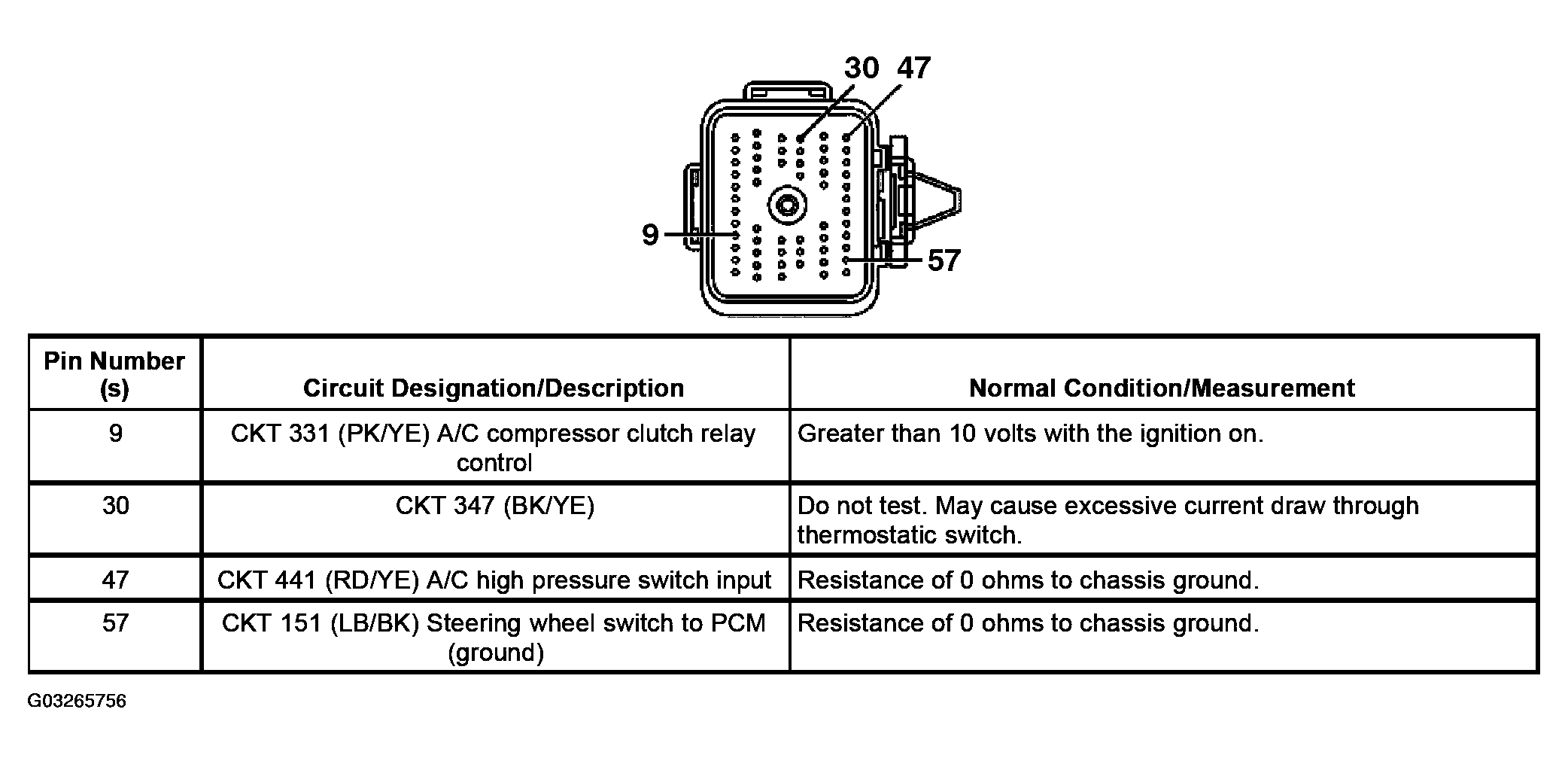

Fig 1: Identifying Powertrain Control Module (PCM) C175a Connector Pins
G03265756Courtesy of FORD MOTOR CO.
