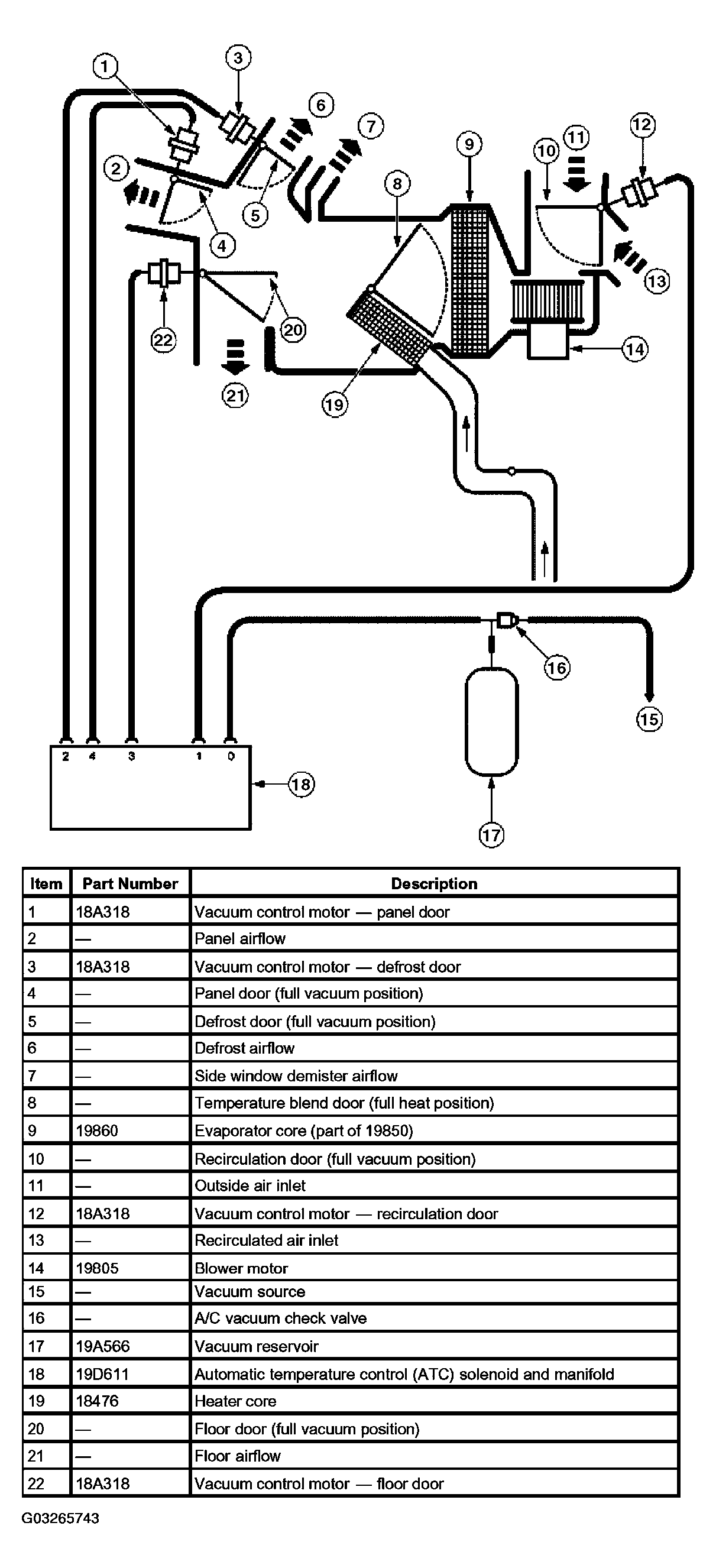

Vacuum Schematic - Dual Automatic Temperature Control System

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
