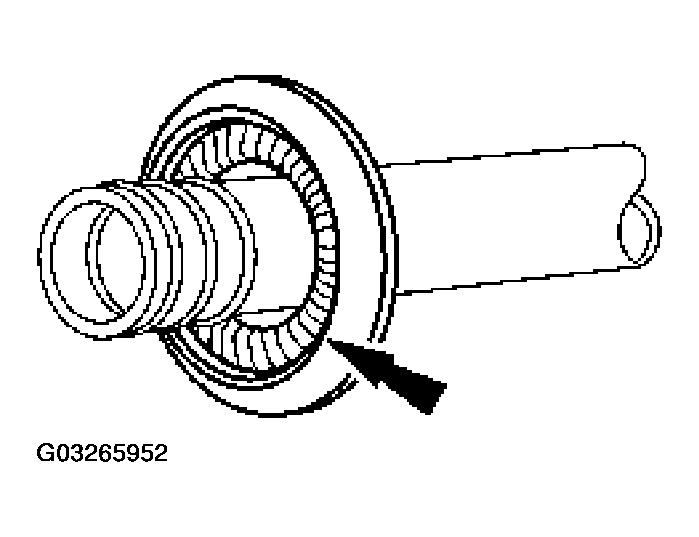

Install the spring lock coupling spring.

Fig 1: Installing Spring Lock Coupling Spring
Courtesy of FORD MOTOR CO.

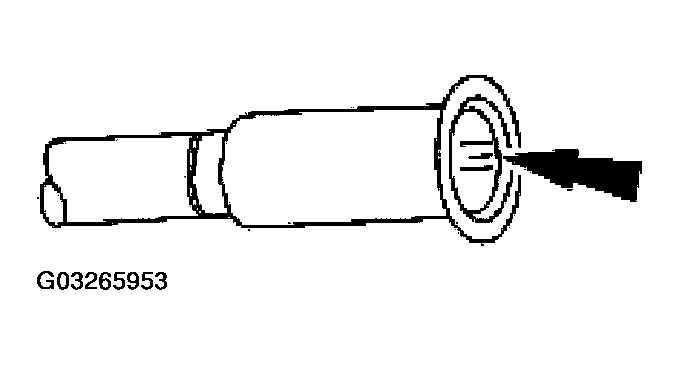

Lubricate the inside of the coupling with mineral oil.

Fig 2: Lubricating Inside Of Coupling With Mineral Oil
Courtesy of FORD MOTOR CO.

CAUTION: Use only the new O-ring seals. The use of any O -ring seals other than those specified in the Ford Master Parts Catalog may result in intermittent leakage during vehicle operation.

Fig 3: Installing O-Ring Seals

Courtesy of FORD MOTOR CO.

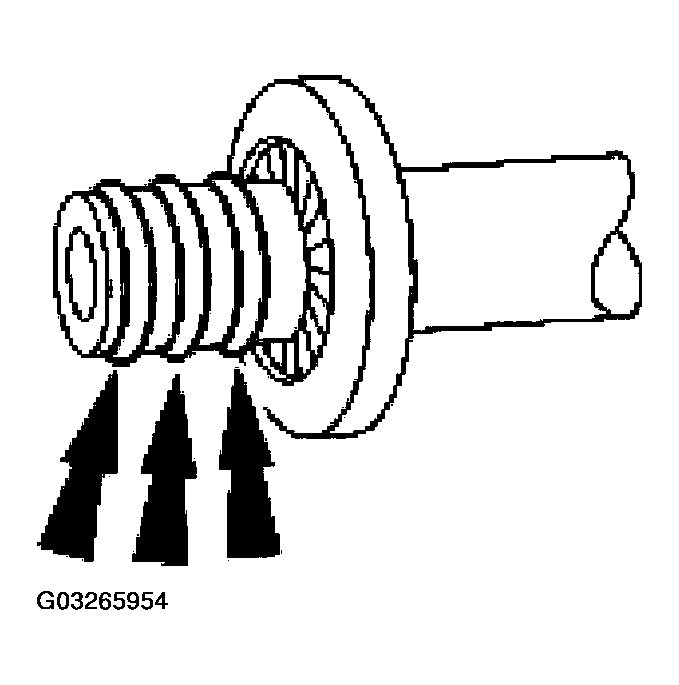

Install the O-ring seals.
- Lubricate the O-ring seals with mineral oil.

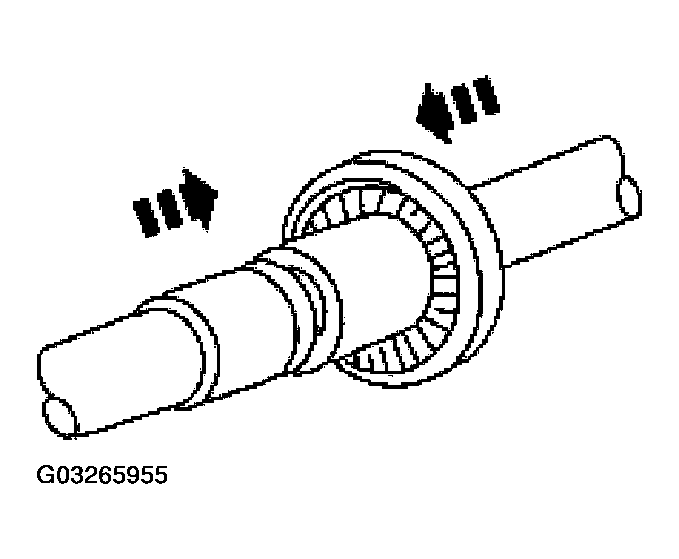

Connect the spring lock coupling fittings with a twisting motion until the spring lock coupling spring snaps over the flared end of the female fitting.

Fig 4: Connecting Spring Lock Coupling Fittings
Courtesy of FORD MOTOR CO.
Install the spring lock coupling clip.
