Climate Control Assembly: Notes
WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument panel center cover. For additional information, refer to BODY SYSTEM - INTERIOR .

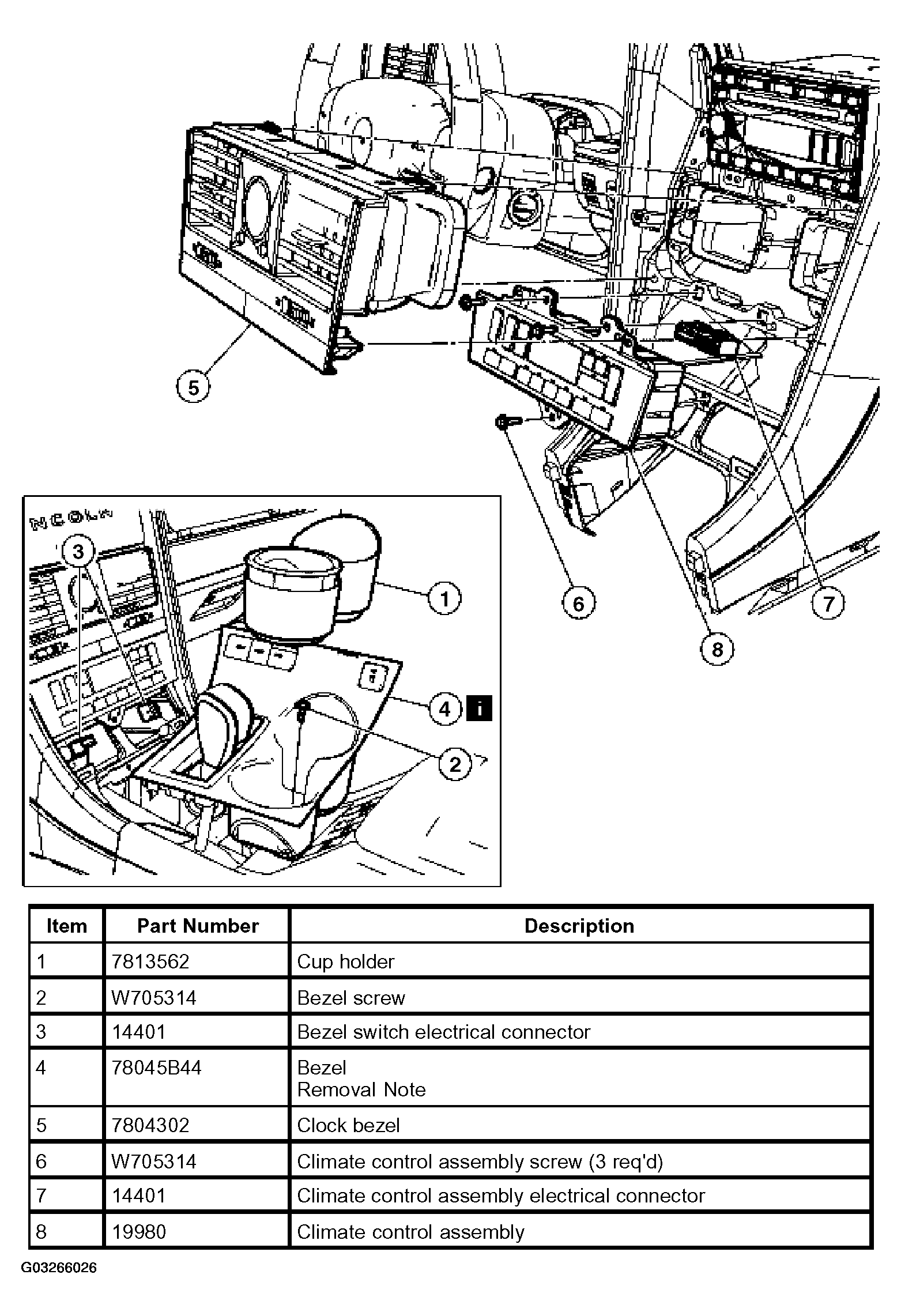

- Remove the parts in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
