Section 588 (Component Testing)
>>
Component Testing
>>
Driver front door lock switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver front door lock switch
WARNING:
This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

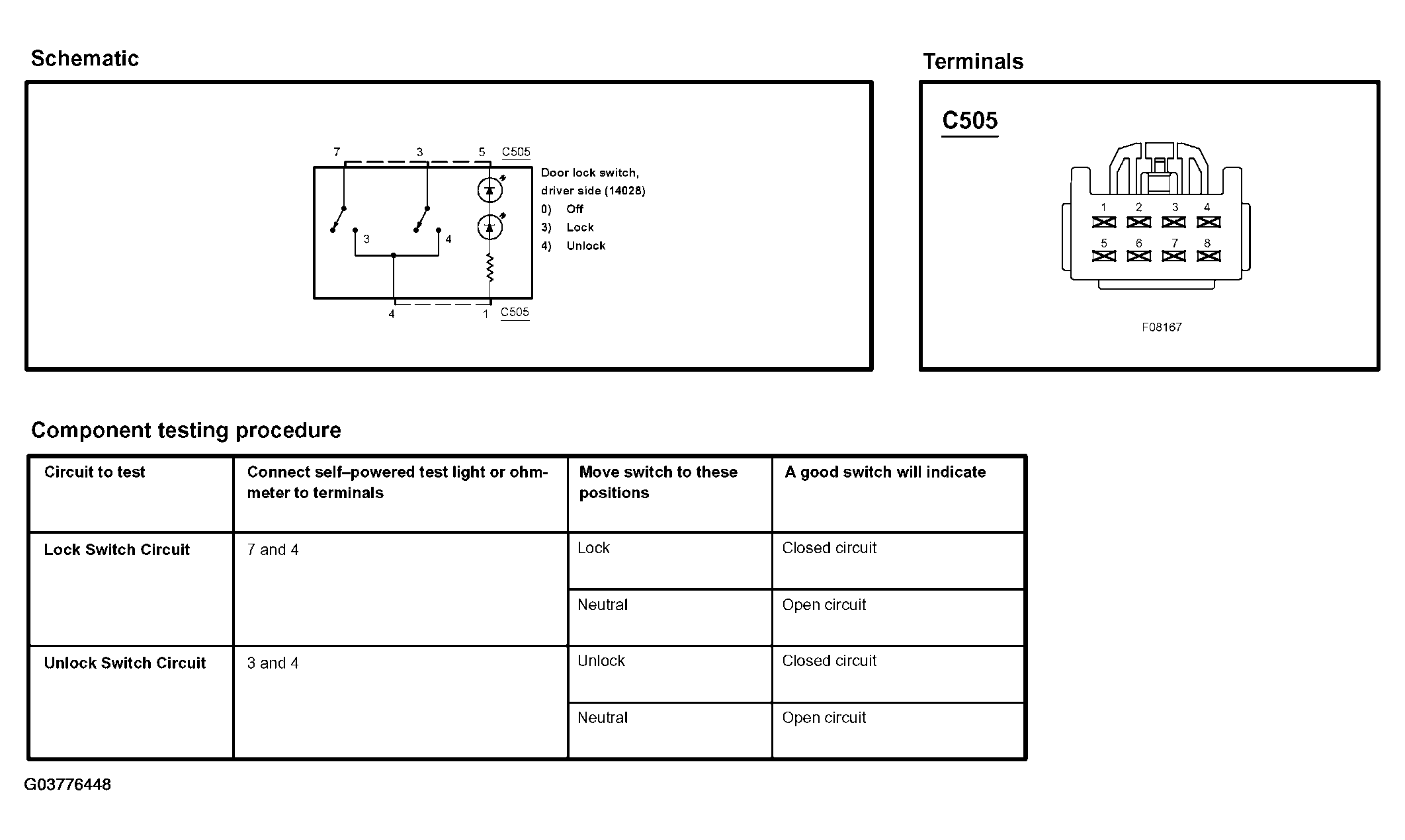

Fig 1: Testing Driver Front Door Lock Switch
Courtesy of FORD MOTOR CO.
