Power window switch, passenger side

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

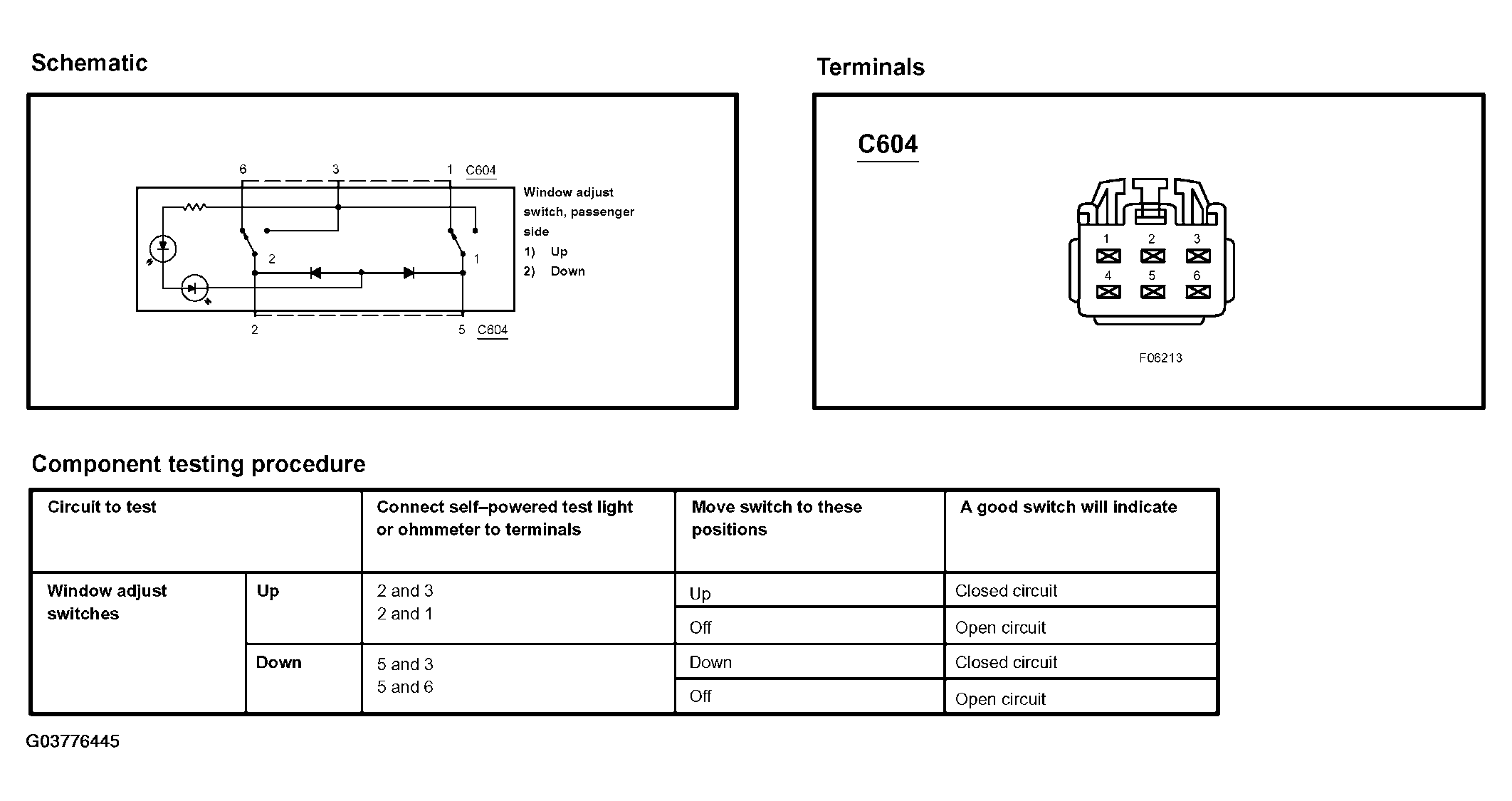

Fig 1: Testing Power Window Switch - Passenger Side
G03776445Courtesy of FORD MOTOR CO.
