Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)
G07839716Courtesy of FORD MOTOR CO.

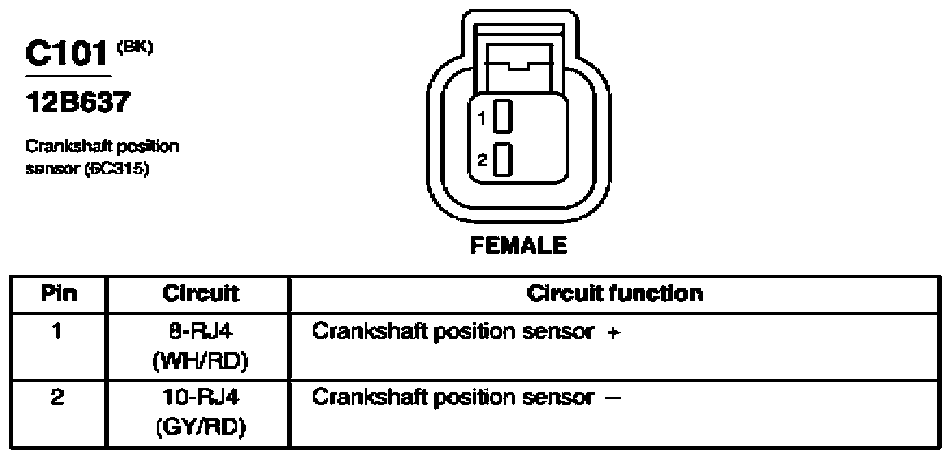

Fig 2: Crankshaft Position Sensor Connector End View (C101)
G07839717Courtesy of FORD MOTOR CO.
Fig 3: Generator Connector End View (C102a)
G07839718Courtesy of FORD MOTOR CO.

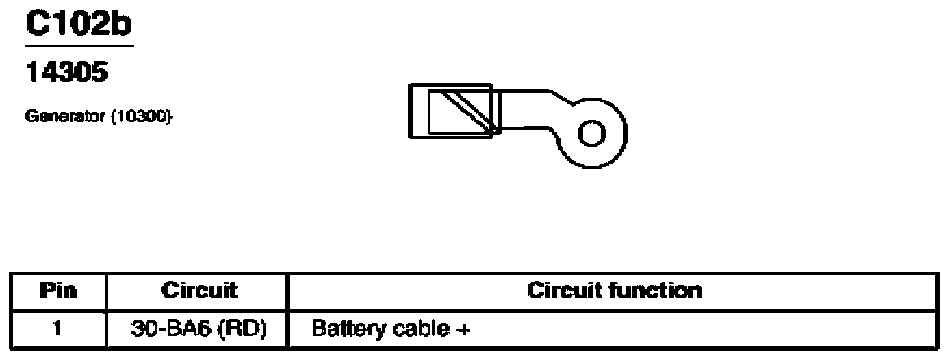

Fig 4: Generator Connector End View (C102b)
G07839719Courtesy of FORD MOTOR CO.

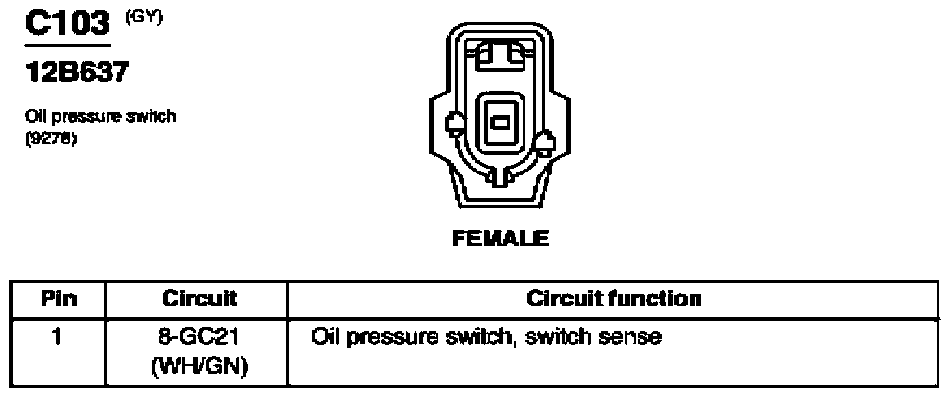

Fig 5: Oil Pressure Switch Connector End View (C103)
G07839720Courtesy of FORD MOTOR CO.

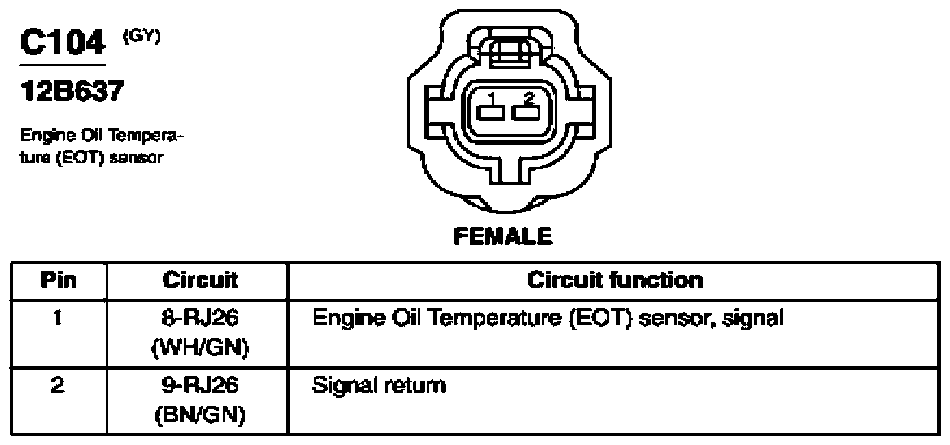

Fig 6: Engine Oil Temperature (EOT) Sensor Connector End View (C104)
G07839721Courtesy of FORD MOTOR CO.
Fig 7: Fuel Rail Pressure Transducer Sensor Connector End View (C106)
G07839722Courtesy of FORD MOTOR CO.

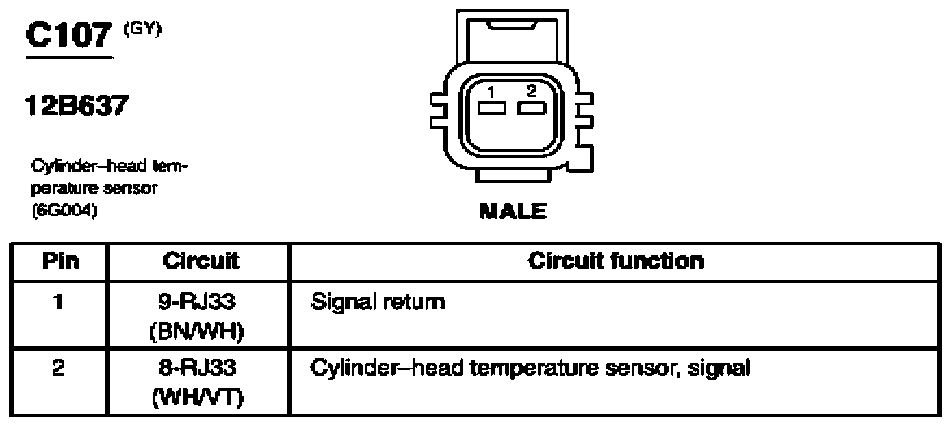

Fig 8: Cylinder-Head Temperature Sensor Connector End View (C107)
G07839723Courtesy of FORD MOTOR CO.

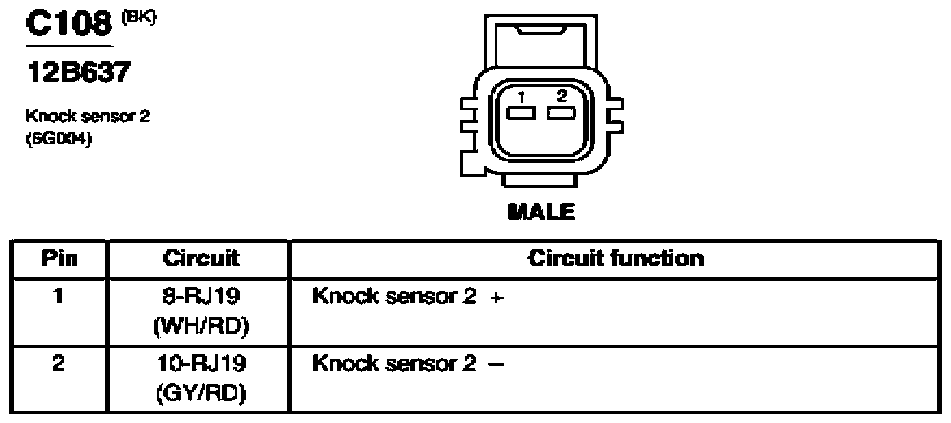

Fig 9: Knock Sensor 2 Connector End View (C108)
G07839724Courtesy of FORD MOTOR CO.

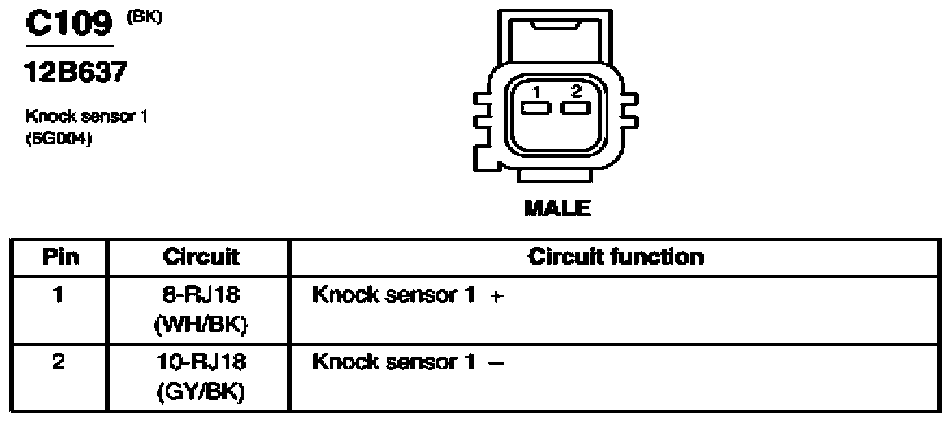

Fig 10: Knock Sensor 1 Connector End View (C109)
G07839725Courtesy of FORD MOTOR CO.

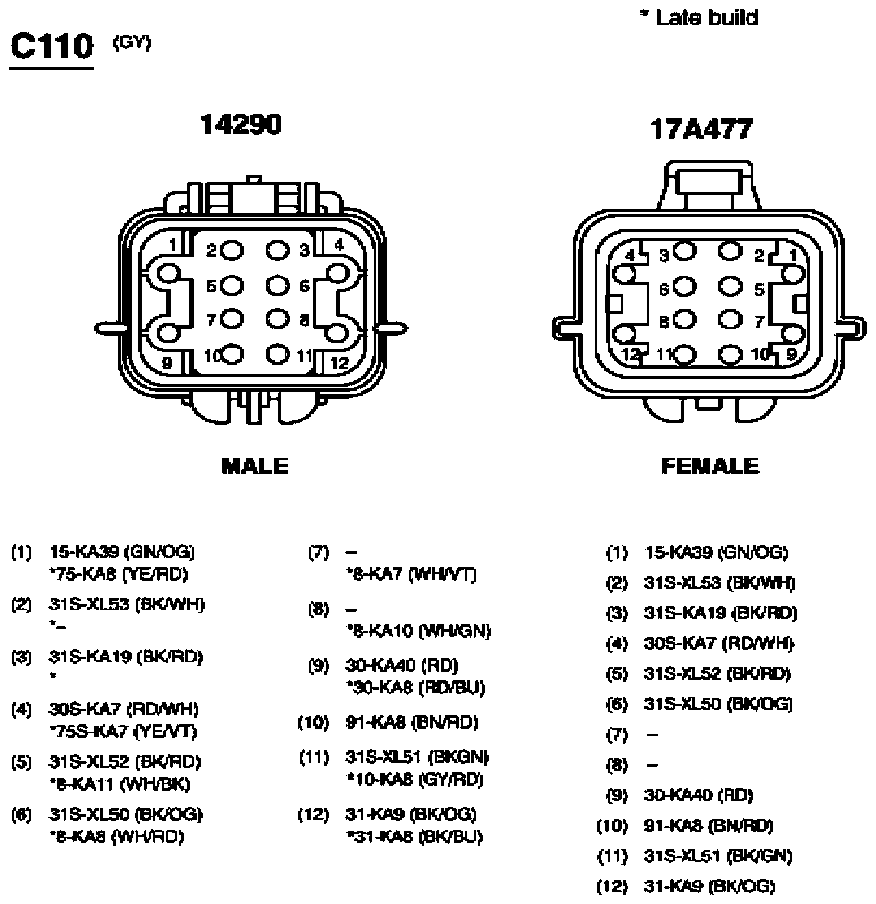

Fig 11: Inline Connector End View (C110)
G07839726Courtesy of FORD MOTOR CO.

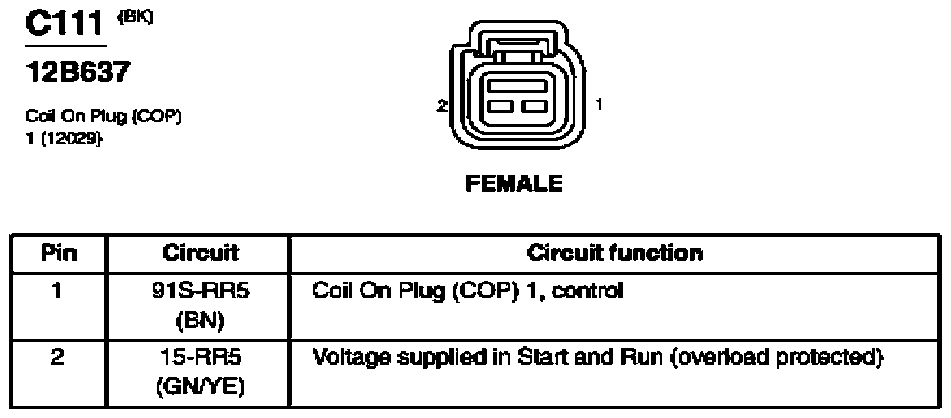

Fig 12: Coil On Plug (COP) 1 Connector End View (C111)
G07839727Courtesy of FORD MOTOR CO.
Fig 13: Coil On Plug (COP) 2 Connector End View (C112)
G07839728Courtesy of FORD MOTOR CO.

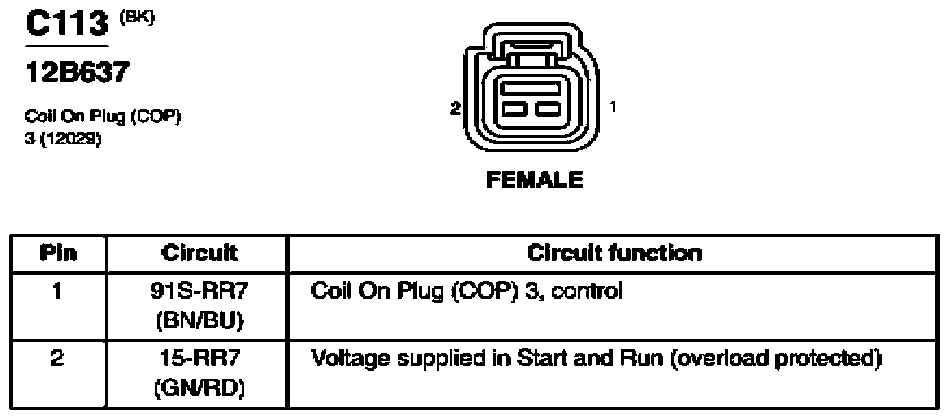

Fig 14: Coil On Plug (COP) 3 Connector End View (C113)
G07839729Courtesy of FORD MOTOR CO.
Fig 15: Coil On Plug (COP) 4 Connector End View (C114)
G07839730Courtesy of FORD MOTOR CO.

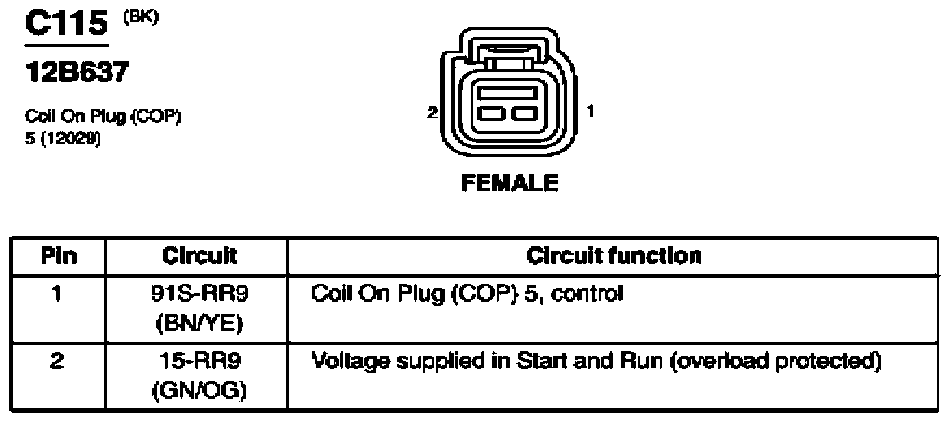

Fig 16: Coil On Plug (COP) 5 Connector End View (C115)
G07839731Courtesy of FORD MOTOR CO.
Fig 17: Coil On Plug (COP) 6 Connector End View (C116)
G07839732Courtesy of FORD MOTOR CO.

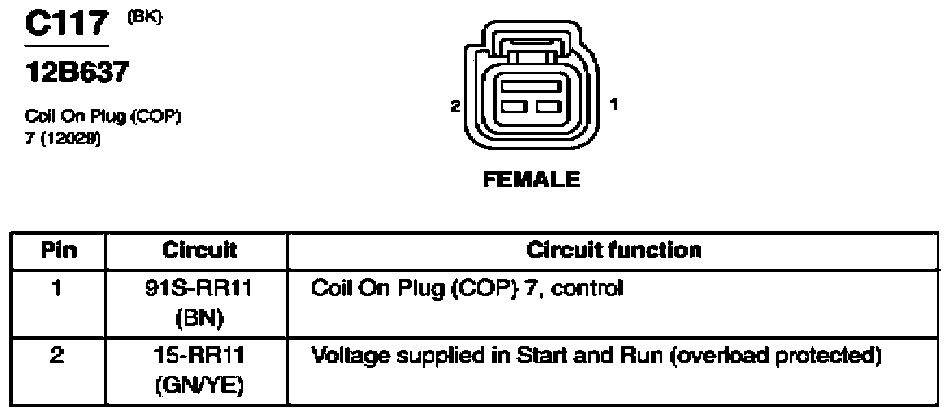

Fig 18: Coil On Plug (COP) 7 Connector End View (C117)
G07839733Courtesy of FORD MOTOR CO.
Fig 19: Coil On Plug (COP) 8 Connector End View (C118)
G07839734Courtesy of FORD MOTOR CO.

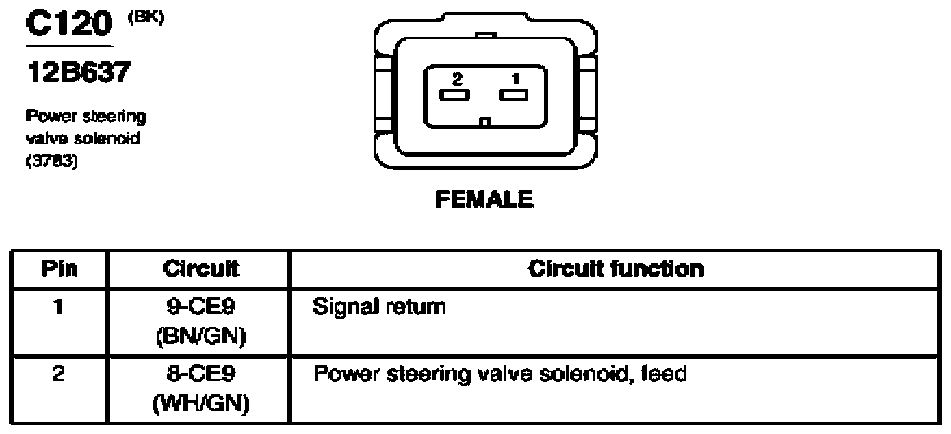

Fig 20: Power Steering Valve Solenoid Connector End View (C120)
G07839735Courtesy of FORD MOTOR CO.
Fig 21: Power Steering Pressure Switch Connector End View (C121)
G07839736Courtesy of FORD MOTOR CO.
Fig 22: EVAP Canister Purge Valve Connector End View (C123)
G07839737Courtesy of FORD MOTOR CO.

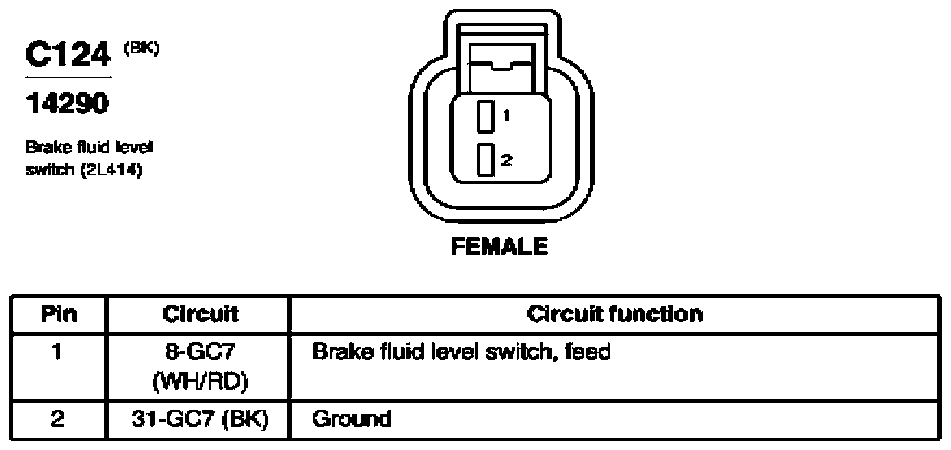

Fig 23: Brake Fluid Level Switch Connector End View (C124)
G07839738Courtesy of FORD MOTOR CO.

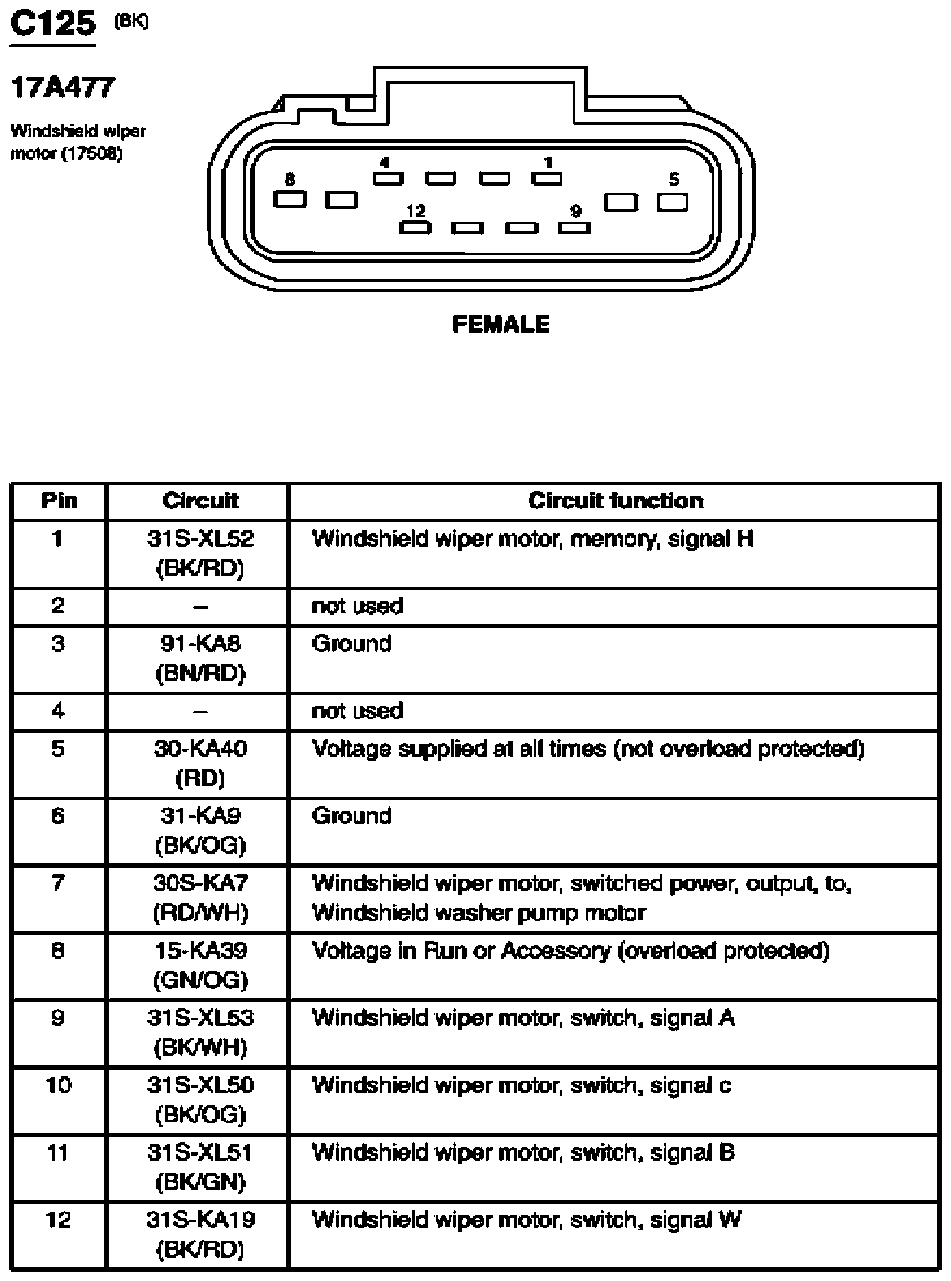

Fig 24: Windshield Wiper Motor Connector End View (C125)
G07839739Courtesy of FORD MOTOR CO.

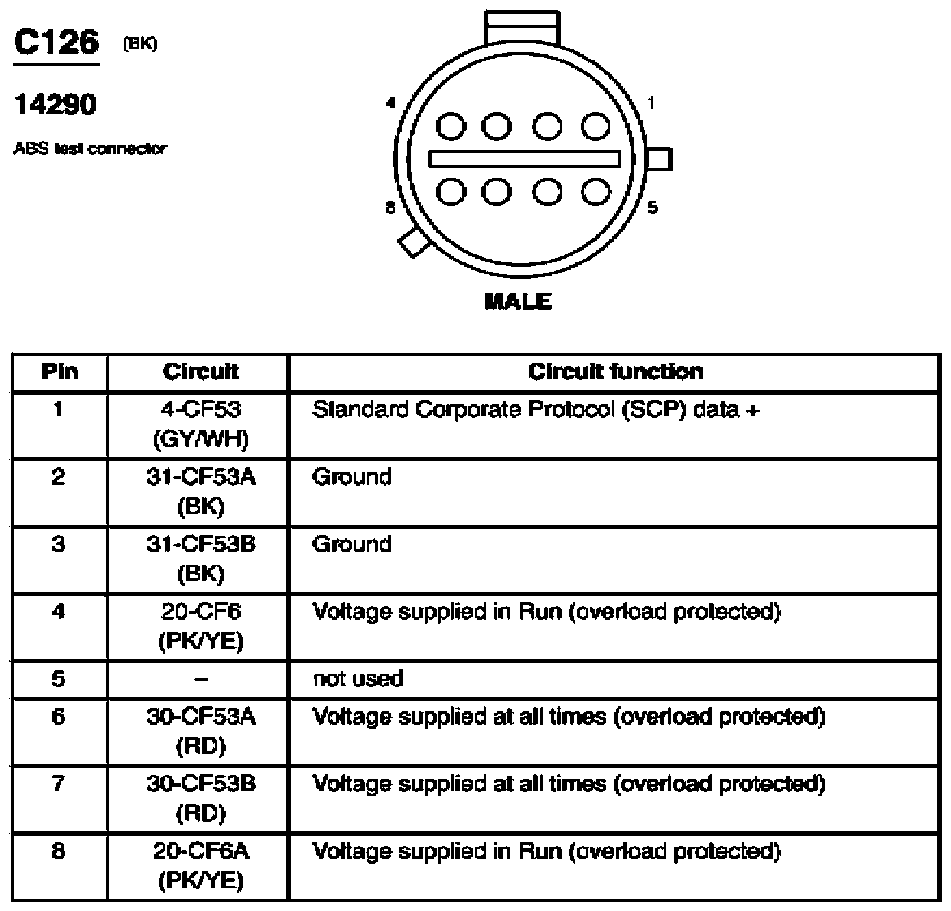

Fig 25: ABS Test Connector End View (C126)
G07839740Courtesy of FORD MOTOR CO.
Fig 26: Anti-Theft Hood Switch Connector End View (C127)
G07839741Courtesy of FORD MOTOR CO.

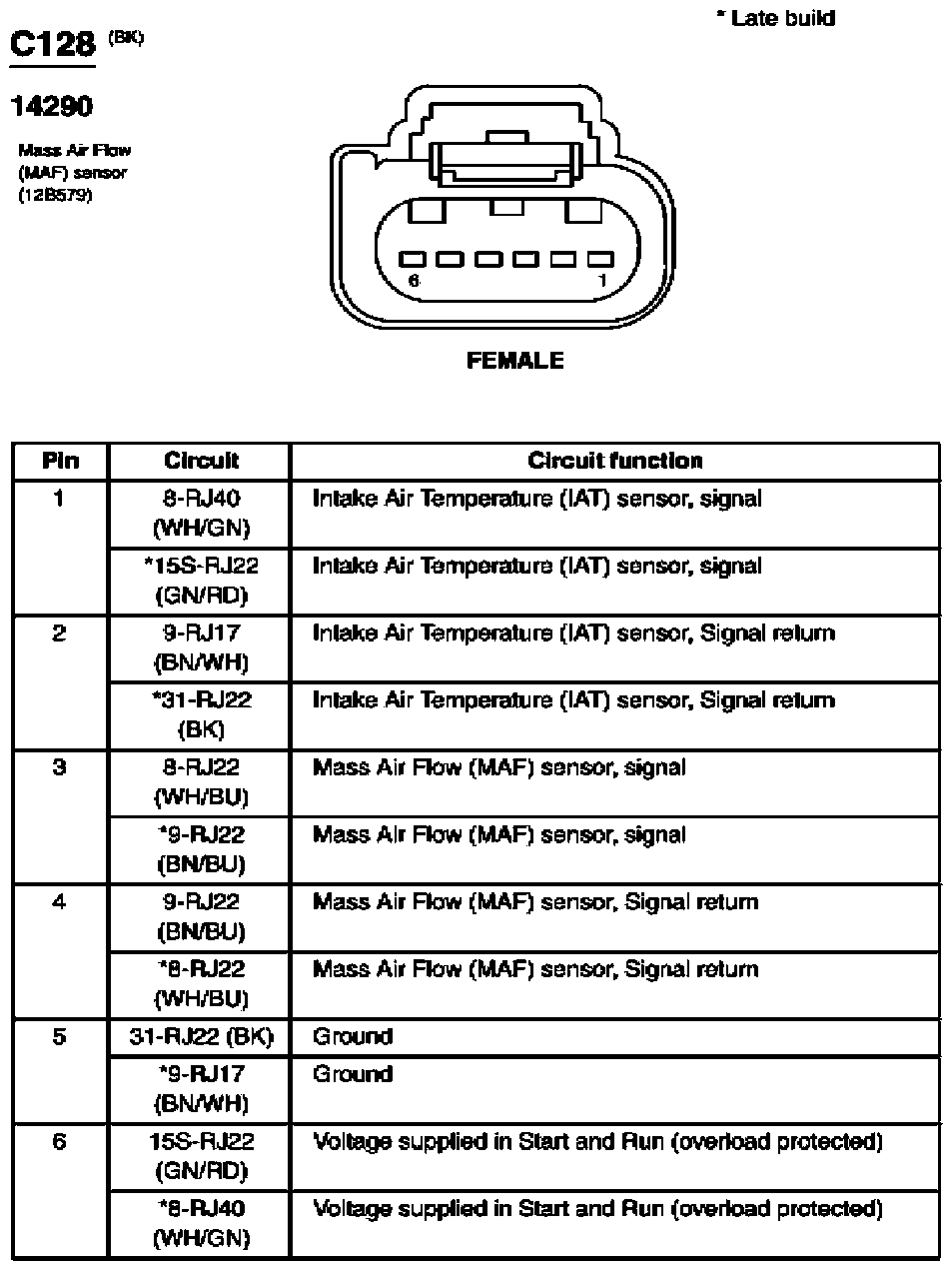

Fig 27: Mass Air Flow (MAF) Sensor Connector End View (C128)
G07839742Courtesy of FORD MOTOR CO.
Fig 28: Horn Connector End View (C131)
G07839743Courtesy of FORD MOTOR CO.

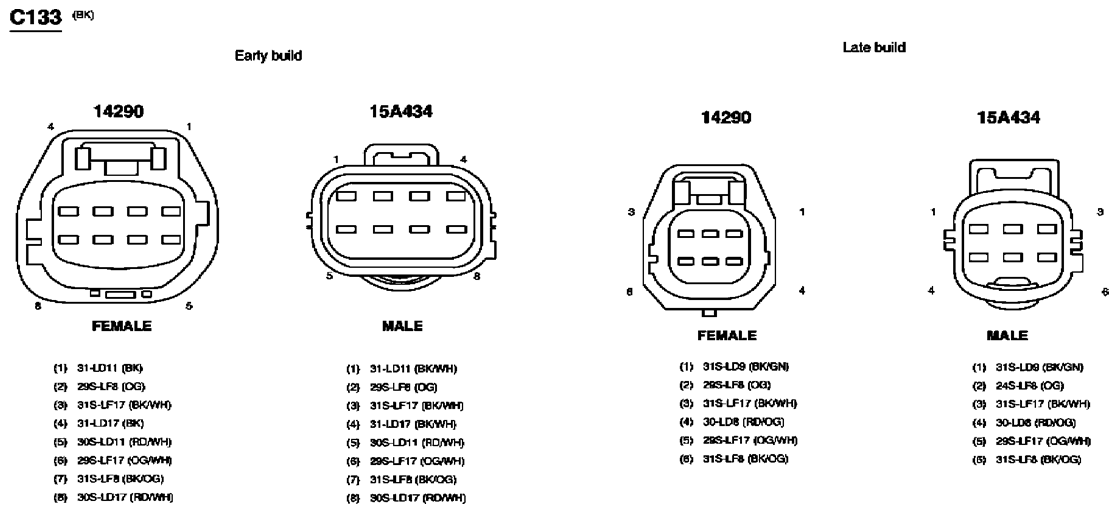

Fig 29: Inline Connector End View (C133)
G07839744Courtesy of FORD MOTOR CO.
Fig 30: Inline Connector End View (C134)
G07839745Courtesy of FORD MOTOR CO.
Fig 31: ABS Control Module Connector End View (C135)
G03779083Courtesy of FORD MOTOR CO.
Fig 32: Auxiliary Junction Box (AJB), Underhood Connector End View (C136)
G07839746Courtesy of FORD MOTOR CO.
Fig 33: Windshield Washer Pump Motor Connector End View (C137)
G07839747Courtesy of FORD MOTOR CO.
Fig 34: Washer Fluid Level Switch Connector End View (C138)
G07839748Courtesy of FORD MOTOR CO.
Fig 35: Inline Connector End View (C139)
G07839749Courtesy of FORD MOTOR CO.

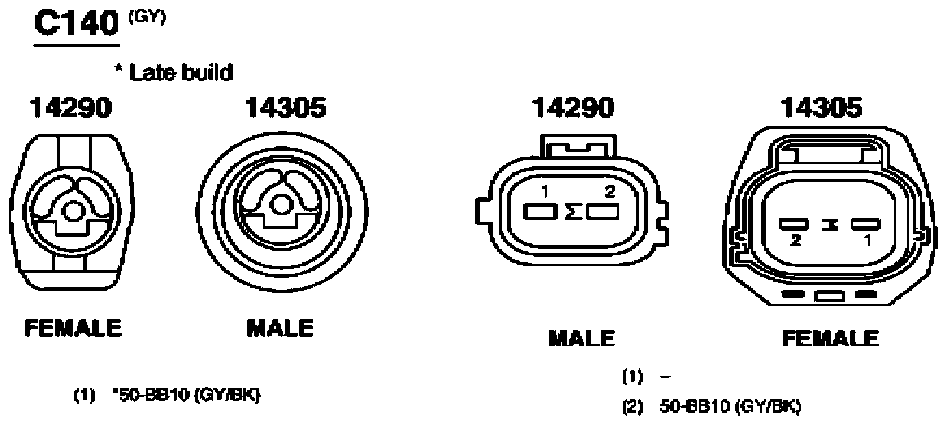

Fig 36: Inline Connector End View (C140)
G07839750Courtesy of FORD MOTOR CO.

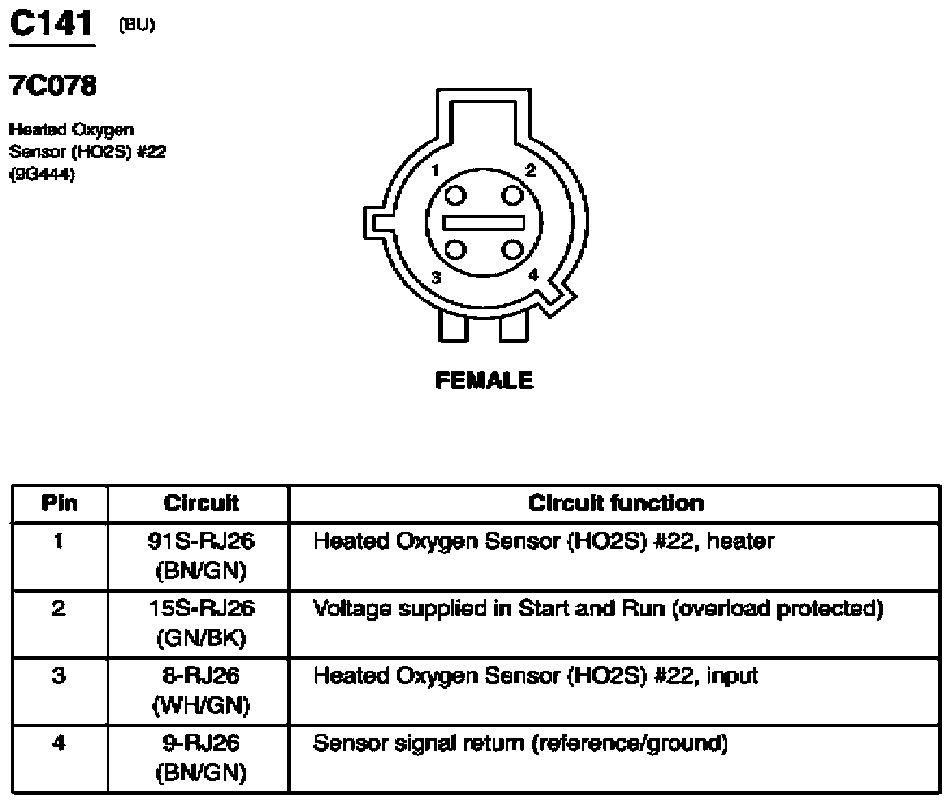

Fig 37: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
G07839751Courtesy of FORD MOTOR CO.

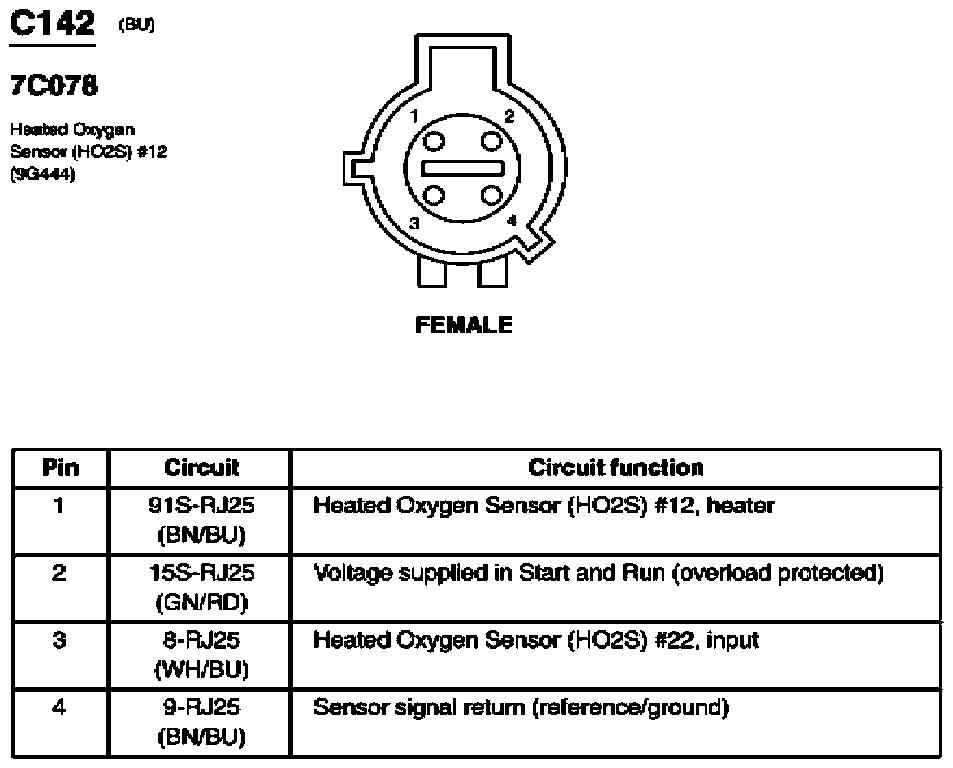

Fig 38: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
G07839752Courtesy of FORD MOTOR CO.

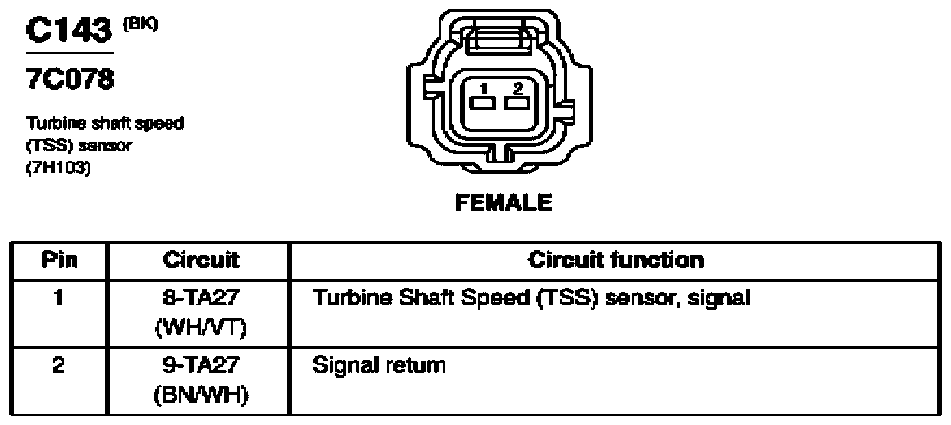

Fig 39: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
G07839753Courtesy of FORD MOTOR CO.

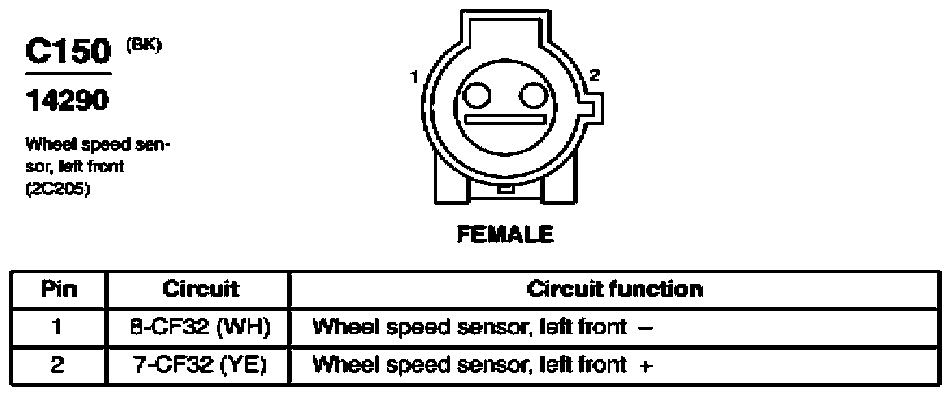

Fig 40: Wheel Speed Sensor, Left Front Connector End View (C150)
G07839754Courtesy of FORD MOTOR CO.
Fig 41: Side Lamp, Left Front Connector End View (C151)
G07839755Courtesy of FORD MOTOR CO.

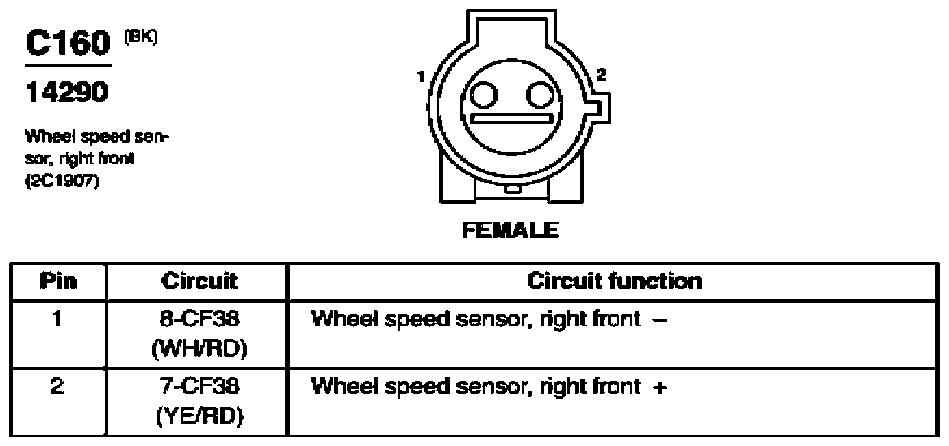

Fig 42: Wheel Speed Sensor, Right Front Connector End View (C160)
G07839756Courtesy of FORD MOTOR CO.

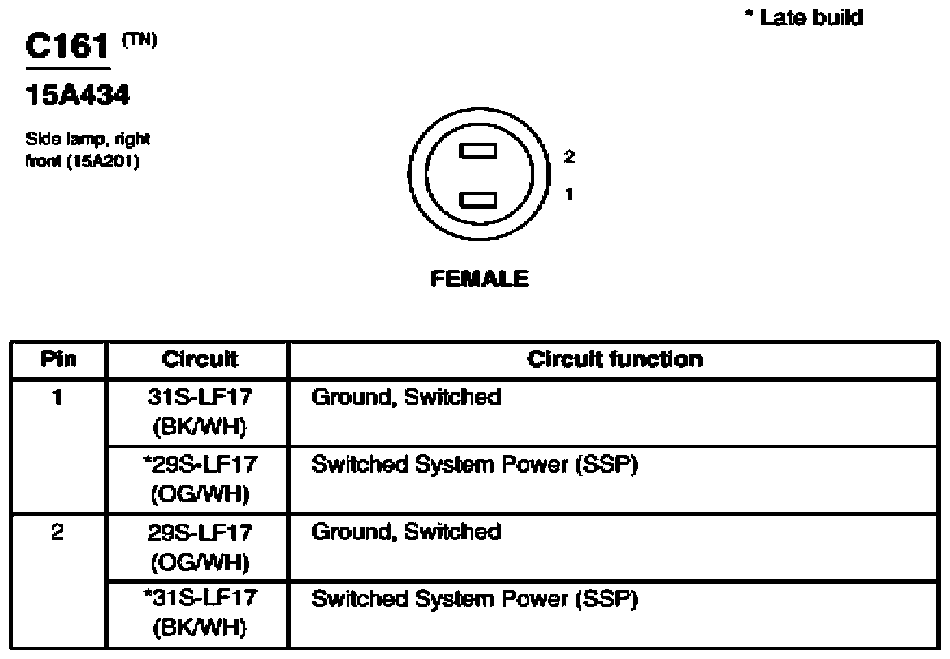

Fig 43: Side Lamp, Right Front Connector End View (C161)
G07839757Courtesy of FORD MOTOR CO.

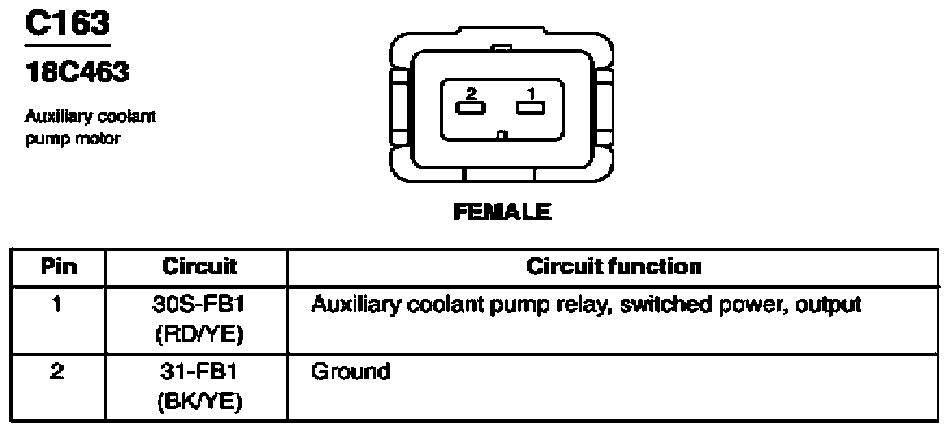

Fig 44: Auxiliary Coolant Pump Motor Connector End View (C163)
G07839758Courtesy of FORD MOTOR CO.

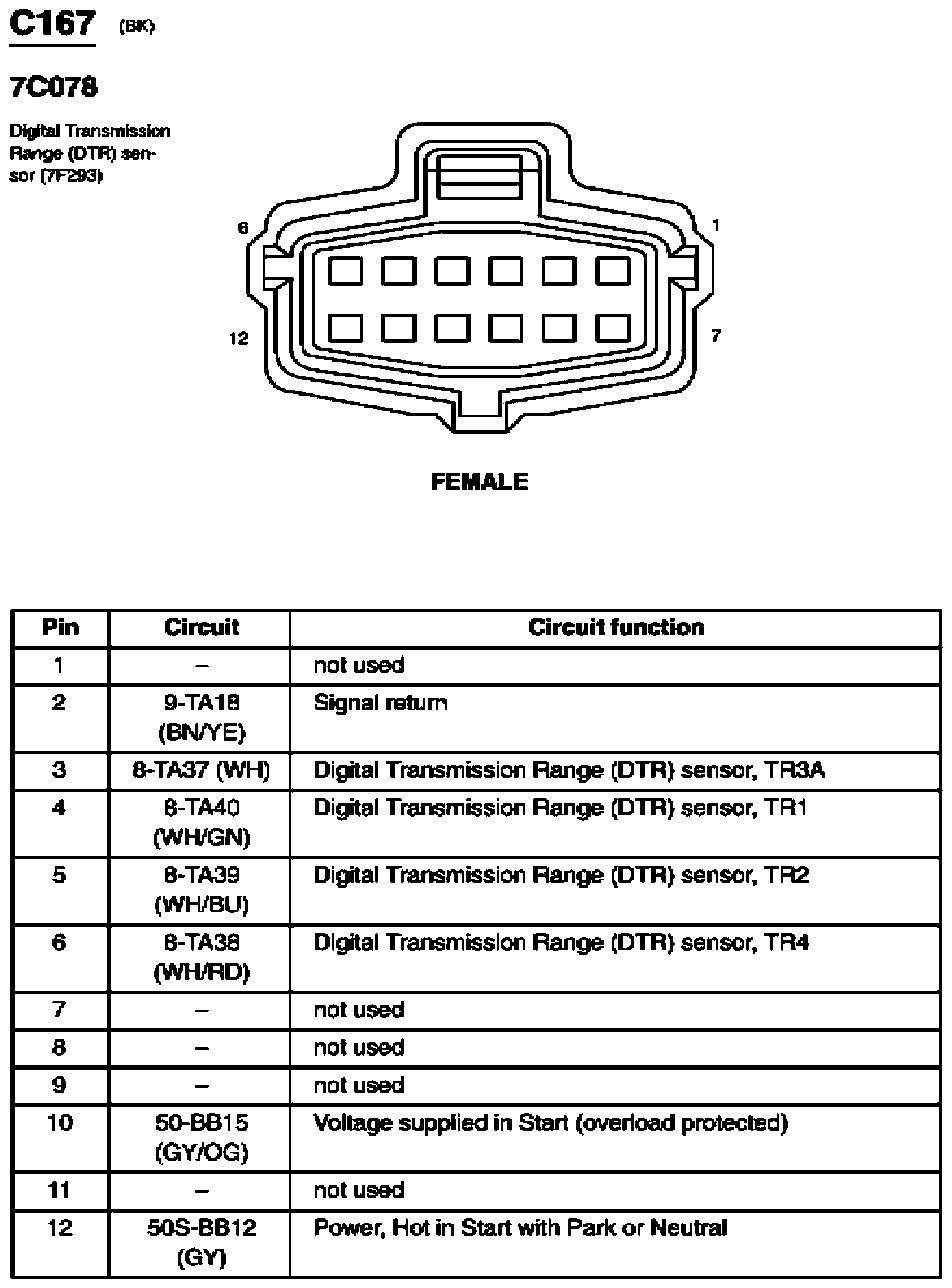

Fig 45: Digital Transmission Range (DTR) Sensor Connector End View (C167)
G07839759Courtesy of FORD MOTOR CO.
Fig 46: Intermediate Shaft Speed (ISS) Sensor Connector End View (C164)
G07839760Courtesy of FORD MOTOR CO.
Fig 47: Automatic Transmission Connector End View (C168)
G07839761Courtesy of FORD MOTOR CO.

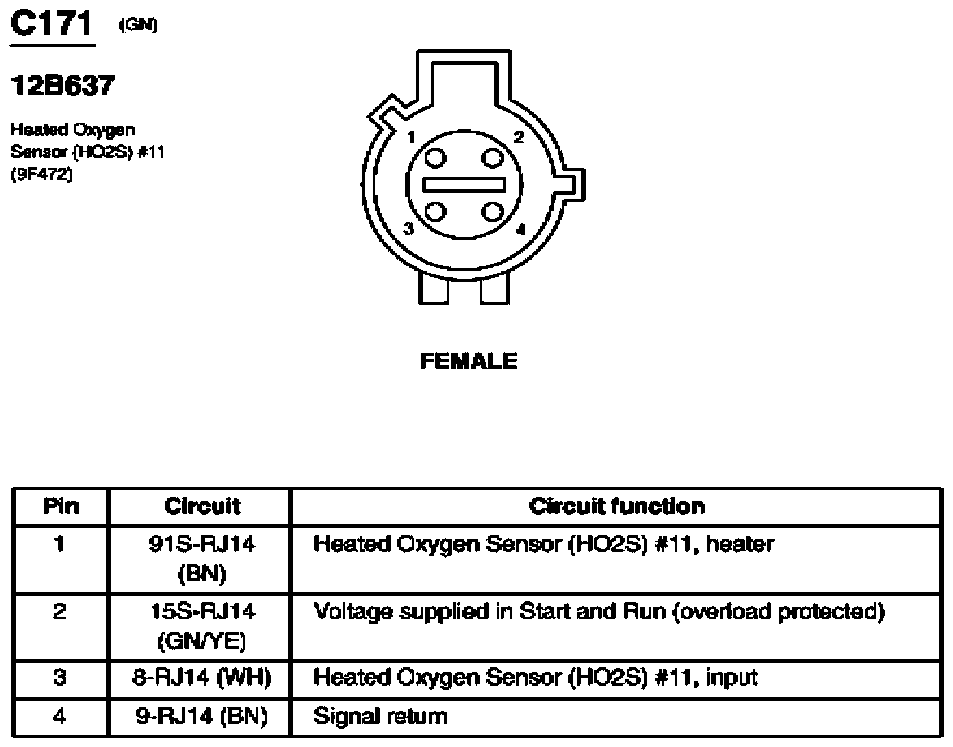

Fig 48: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
G07839762Courtesy of FORD MOTOR CO.

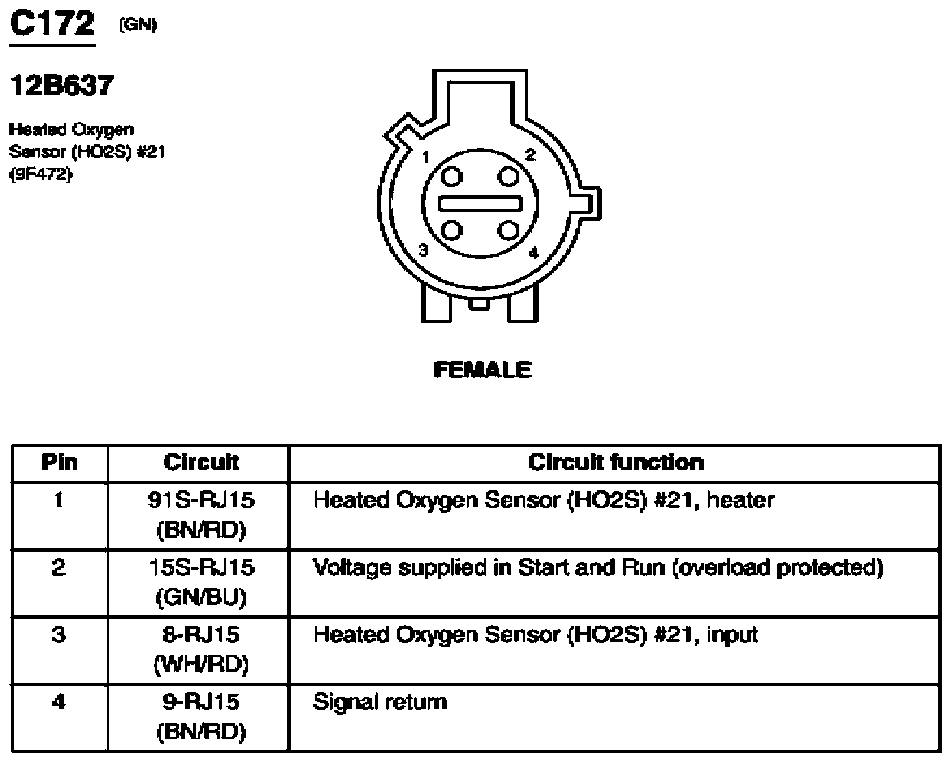

Fig 49: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
G07839763Courtesy of FORD MOTOR CO.
Fig 50: Ignition Transformer Capacitor 1 Connector End View (C174)
G07839764Courtesy of FORD MOTOR CO.

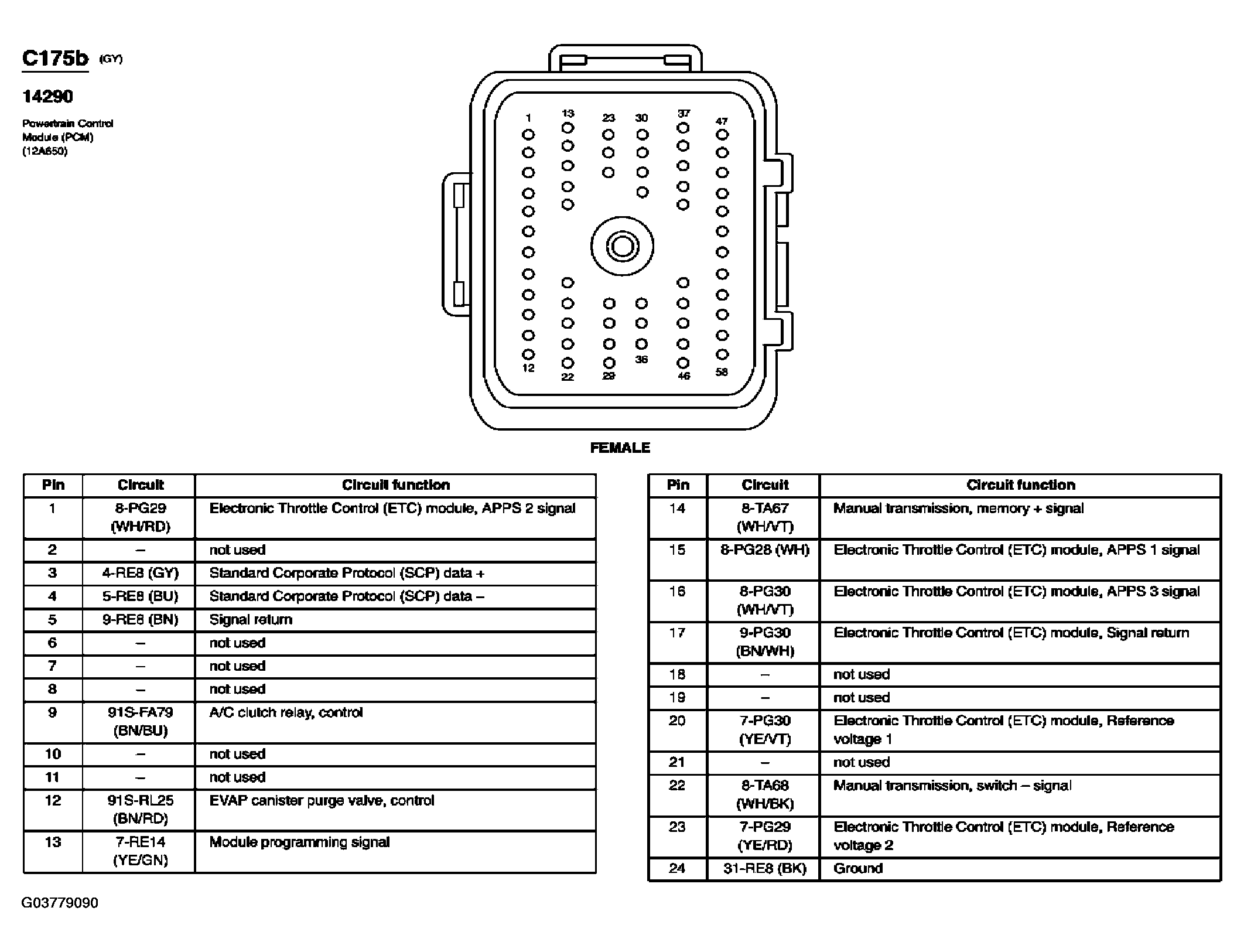

Fig 51: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)
G03779090Courtesy of FORD MOTOR CO.

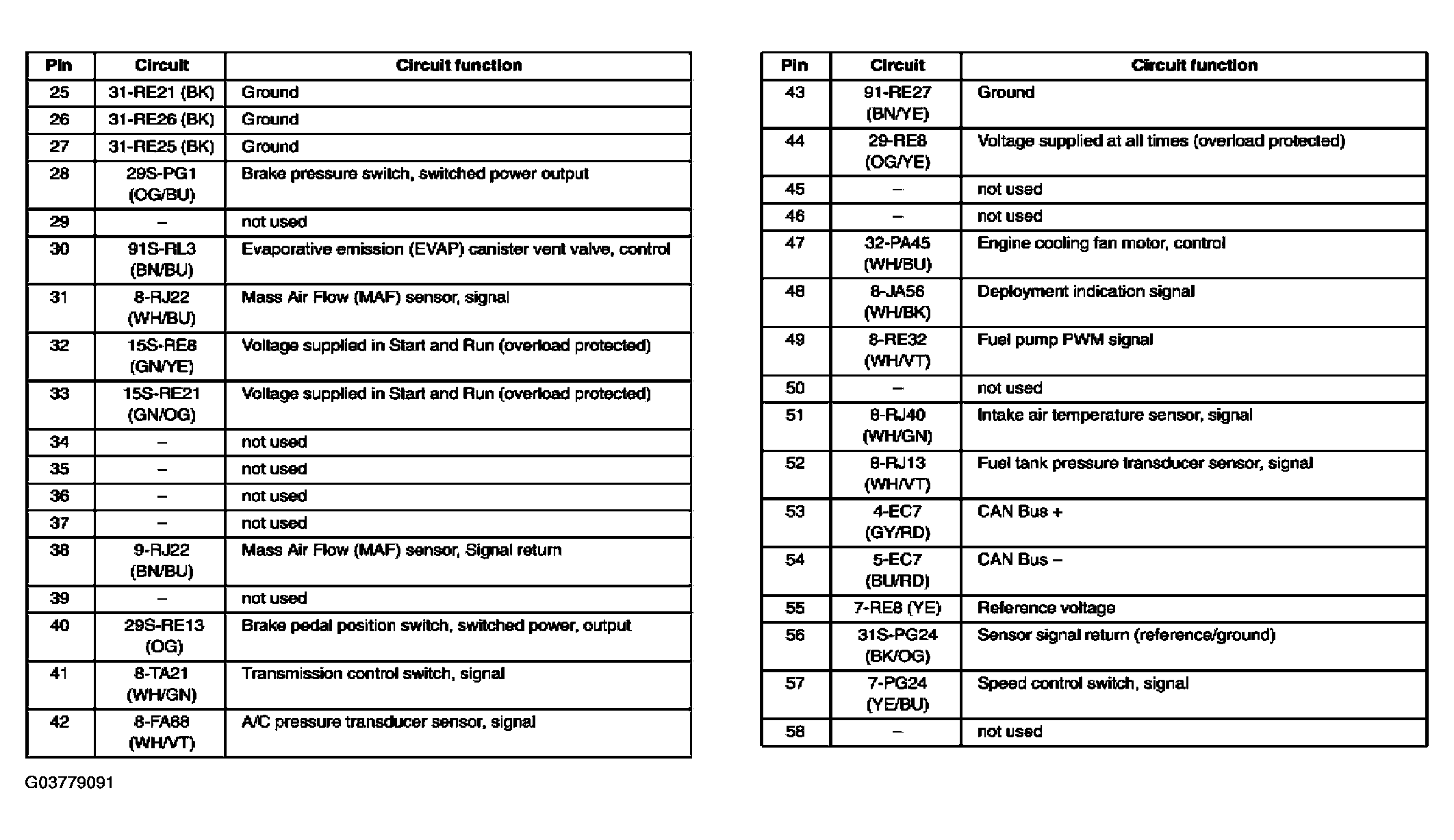

Fig 52: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)
G03779091Courtesy of FORD MOTOR CO.
Fig 53: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)
G03779092Courtesy of FORD MOTOR CO.
Fig 54: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)
G03779093Courtesy of FORD MOTOR CO.
Fig 55: Powertrain Control Module (PCM) Connector End View (C175t)
G03779094Courtesy of FORD MOTOR CO.

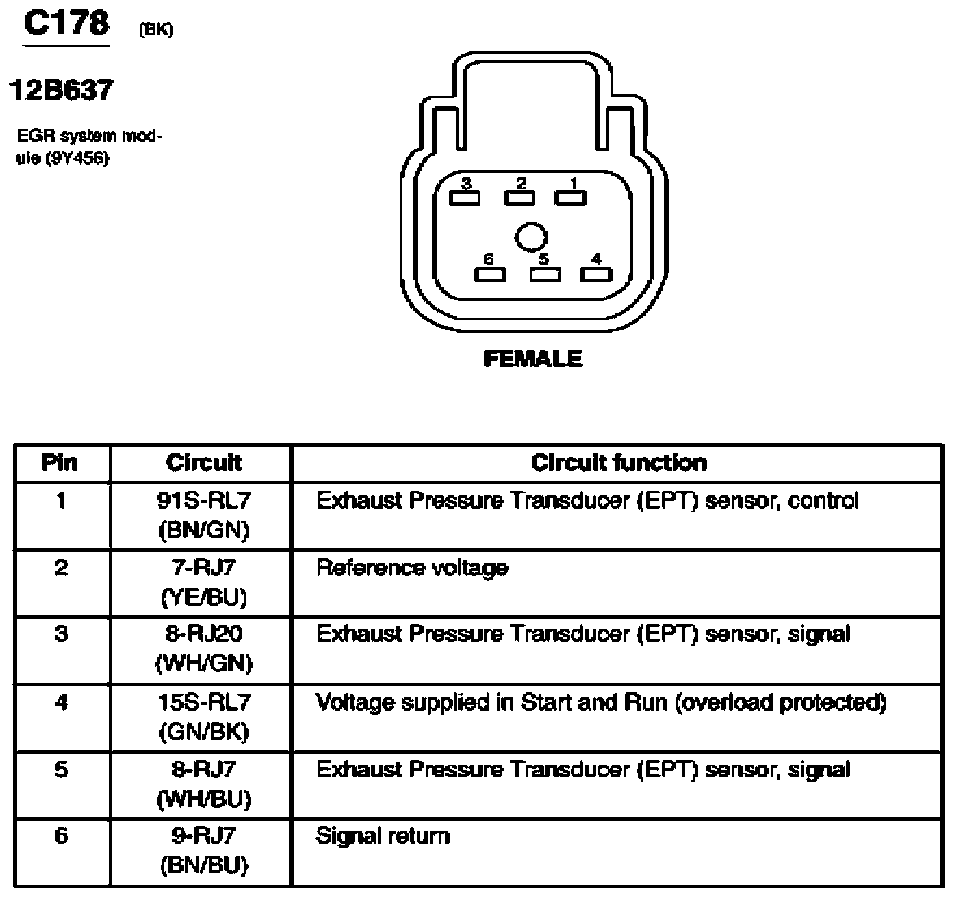

Fig 56: EGR System Module Connector End View (C178)
G07839765Courtesy of FORD MOTOR CO.

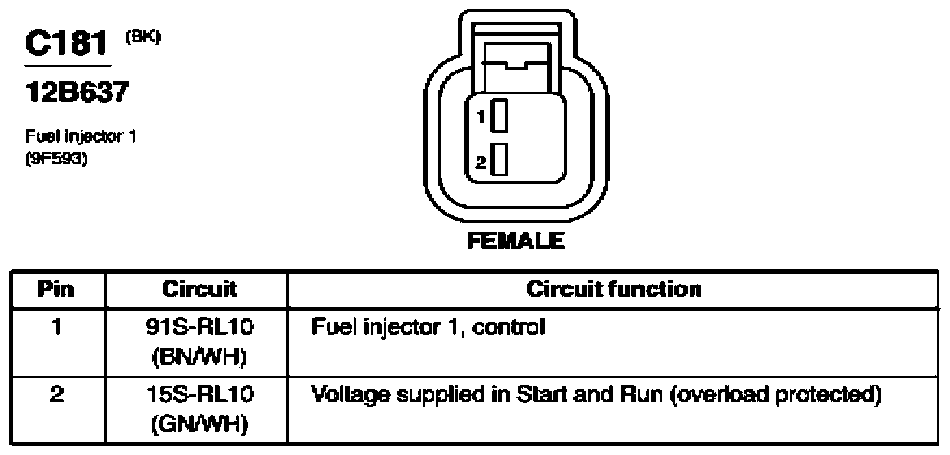

Fig 57: Fuel Injector 1 Connector End View (C181)
G07839766Courtesy of FORD MOTOR CO.
Fig 58: Fuel Injector 2 Connector End View (C182)
G07839767Courtesy of FORD MOTOR CO.
Fig 59: Fuel Injector 3 Connector End View (C183)
G07839768Courtesy of FORD MOTOR CO.
Fig 60: Fuel Injector 4 Connector End View (C184)
G07839769Courtesy of FORD MOTOR CO.
Fig 61: Fuel Injector 5 Connector End View (C185)
G07839770Courtesy of FORD MOTOR CO.

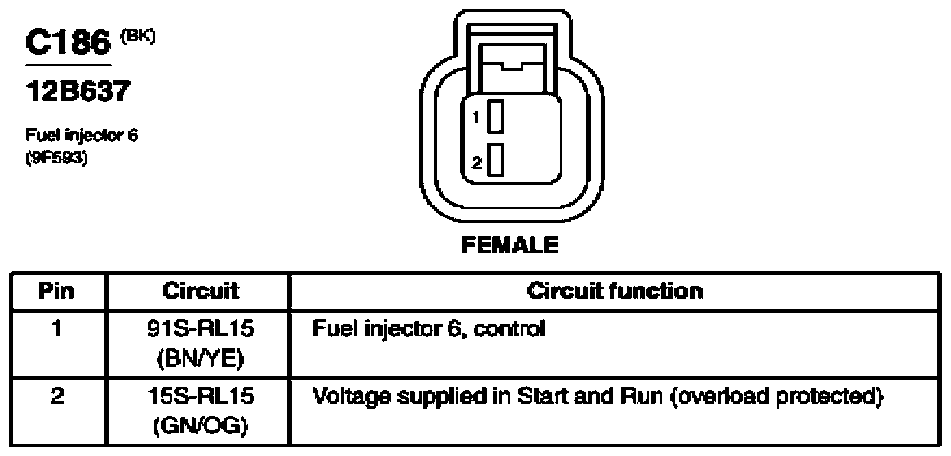

Fig 62: Fuel Injector 6 Connector End View (C186)
G07839771Courtesy of FORD MOTOR CO.

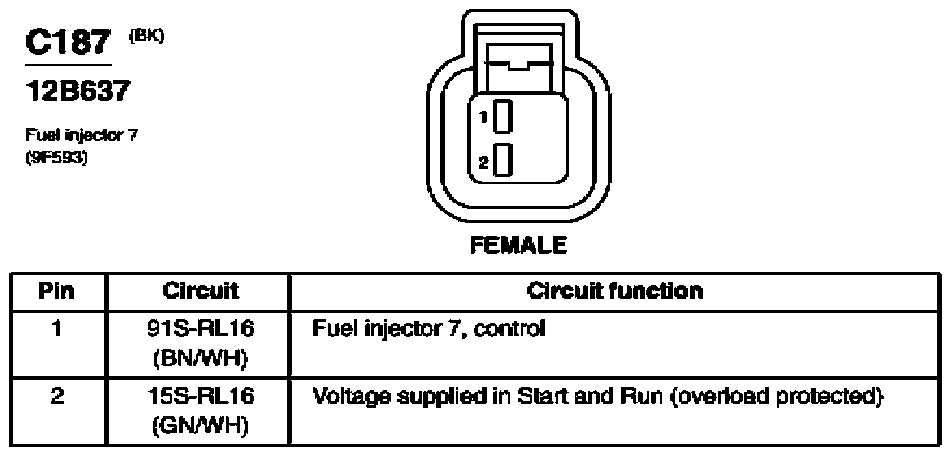

Fig 63: Fuel Injector 7 Connector End View (C187)
G07839772Courtesy of FORD MOTOR CO.
Fig 64: Fuel Injector 8 Connector End View (C188)
G07839773Courtesy of FORD MOTOR CO.
Fig 65: Output Shaft Speed (OSS) Sensor Connector End View (C193)
G07839774Courtesy of FORD MOTOR CO.

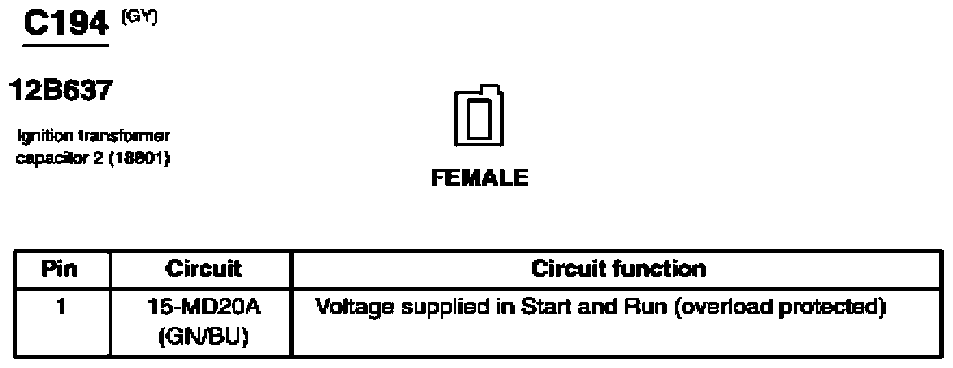

Fig 66: Ignition Transformer Capacitor 2 Connector End View (C194)
G07839775Courtesy of FORD MOTOR CO.

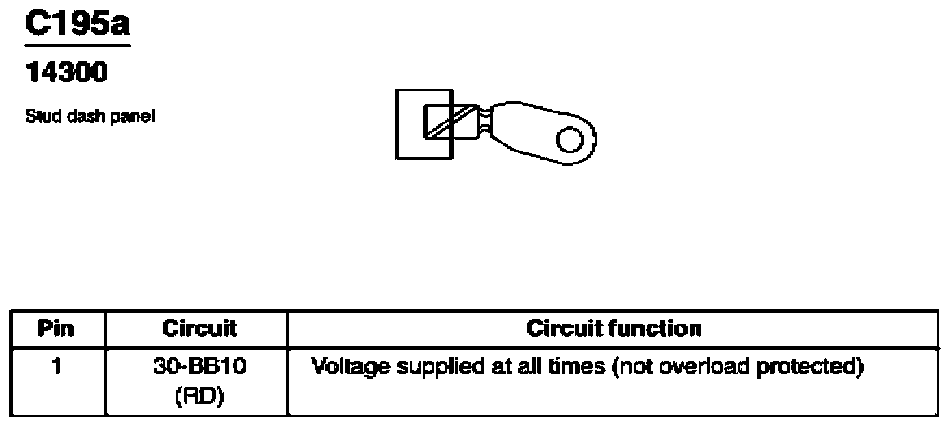

Fig 67: Stud Dash Panel Connector End View (C195a)
G07839776Courtesy of FORD MOTOR CO.

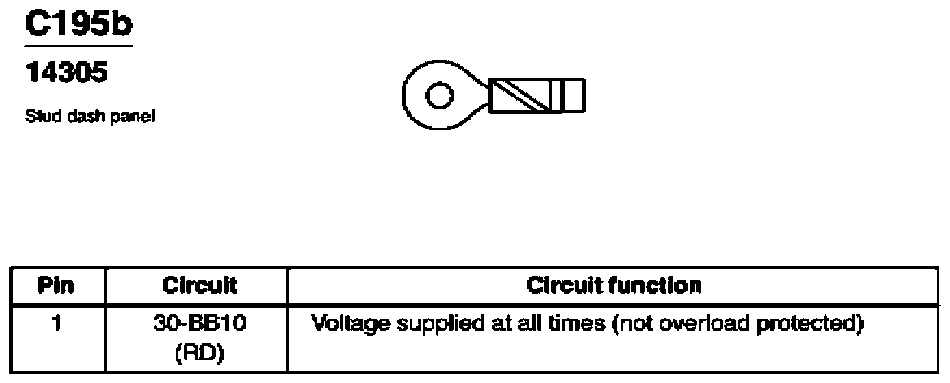

Fig 68: Stud Dash Panel Connector End View (C195b)
G07839777Courtesy of FORD MOTOR CO.
Fig 69: Starter Motor Connector End View (C197a)
G07839778Courtesy of FORD MOTOR CO.
Fig 70: Starter Motor Connector End View (C197b)
G07839779Courtesy of FORD MOTOR CO.

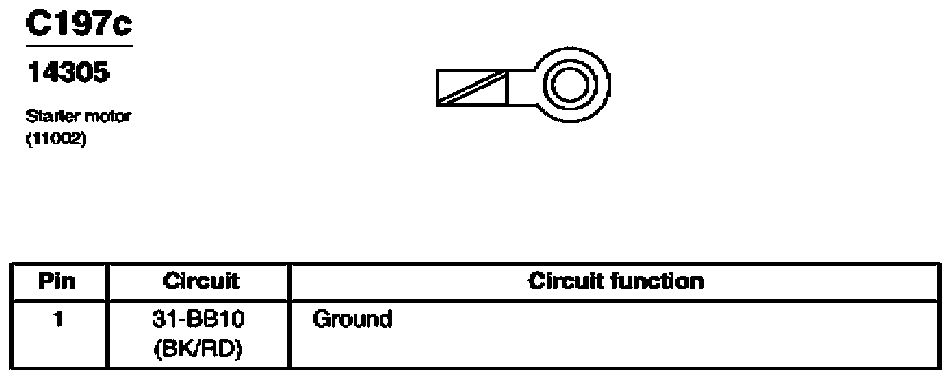

Fig 71: Starter Motor Connector End View (C197c)
G07839780Courtesy of FORD MOTOR CO.
Fig 72: Outside Temperature Sensor Connector End View (C198)
G07839781Courtesy of FORD MOTOR CO.

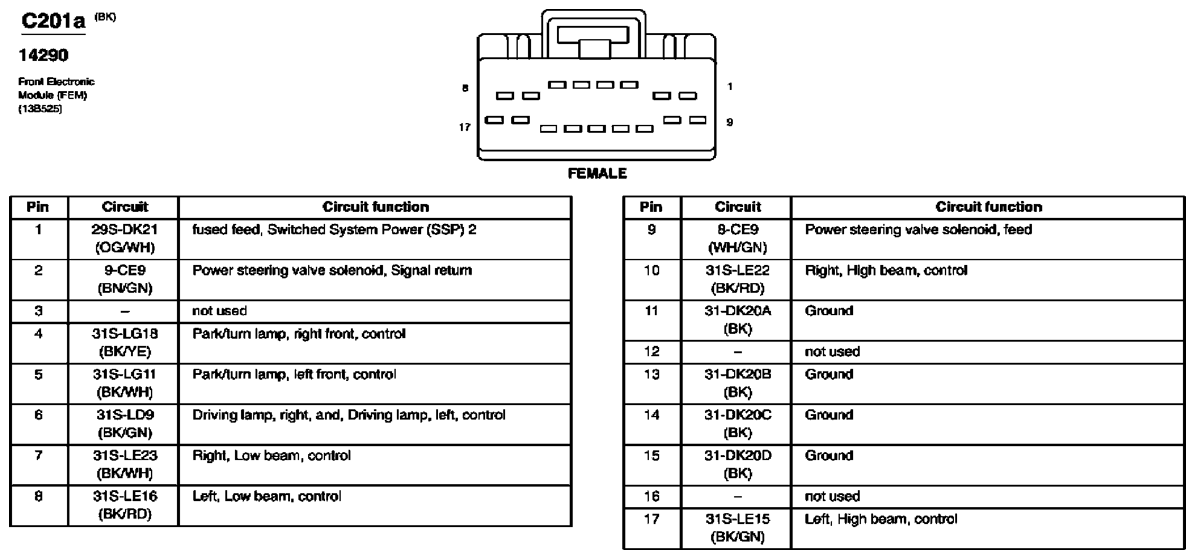

Fig 73: Front Electronic Module (FEM) Connector End View (C201a)
G03779098Courtesy of FORD MOTOR CO.

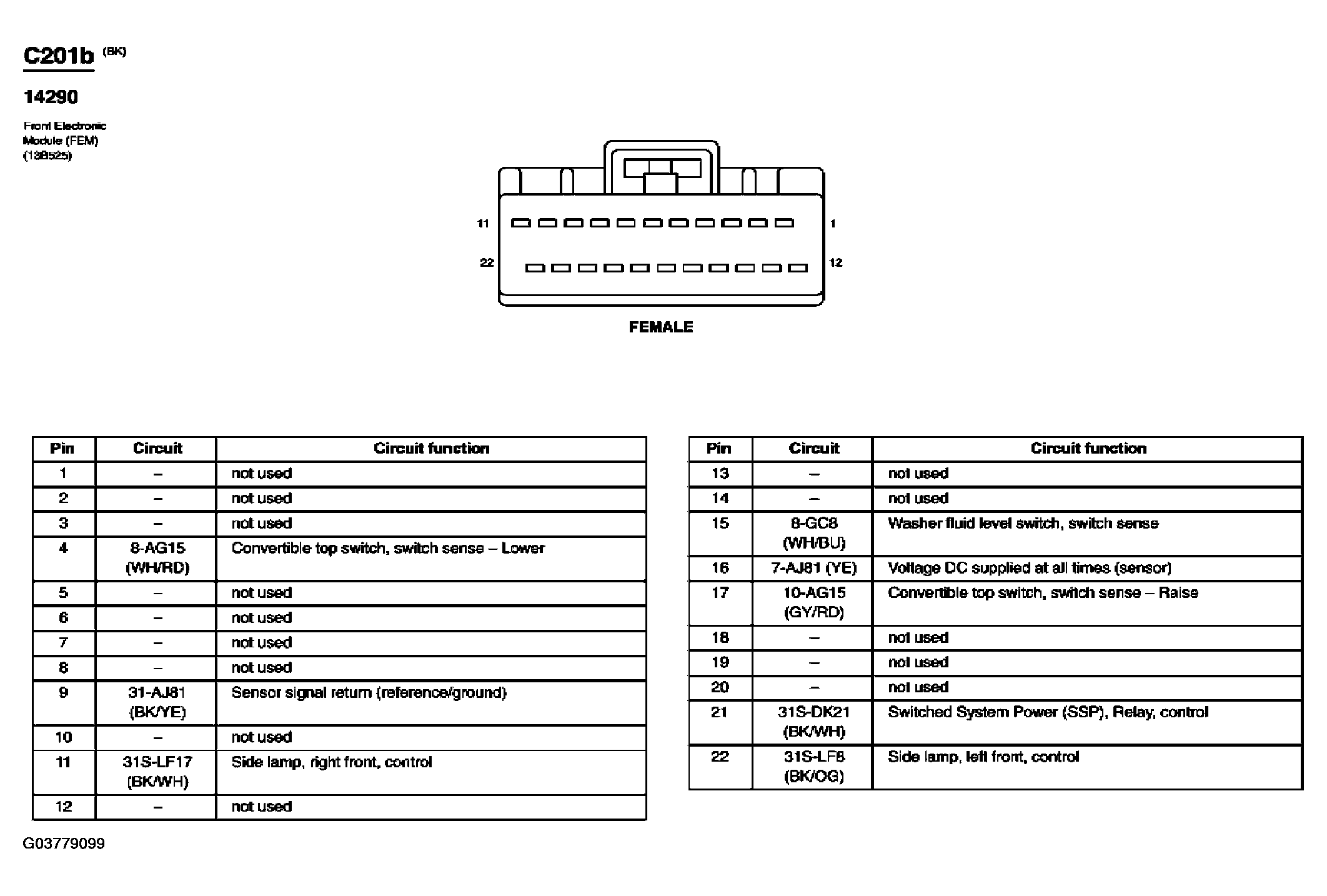

Fig 74: Front Electronic Module (FEM) Connector End View (C201b)
G03779099Courtesy of FORD MOTOR CO.
Fig 75: Front Electronic Module (FEM) Connector End View (C201c)
G03779100Courtesy of FORD MOTOR CO.

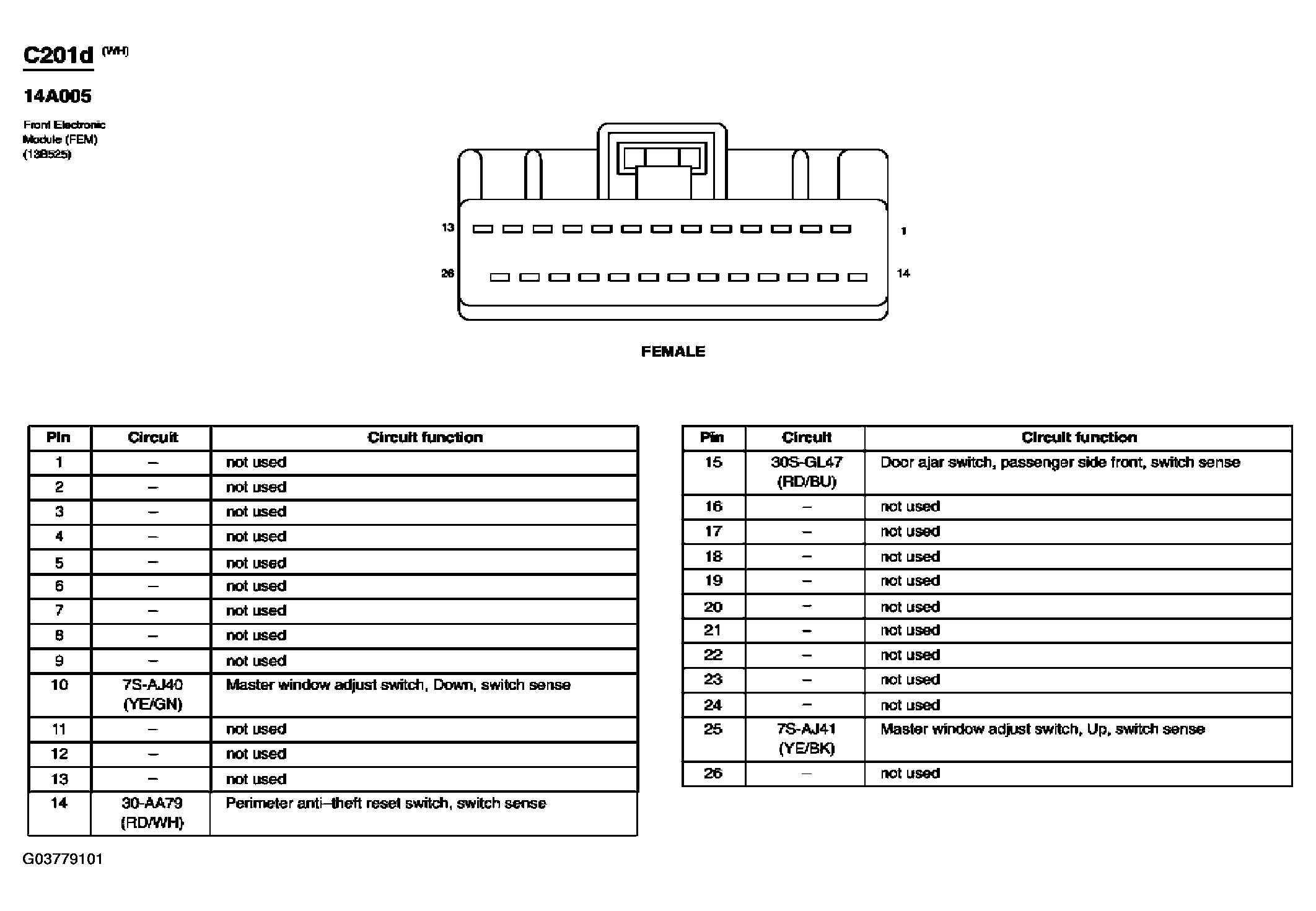

Fig 76: Front Electronic Module (FEM) Connector End View (C201d)
G03779101Courtesy of FORD MOTOR CO.

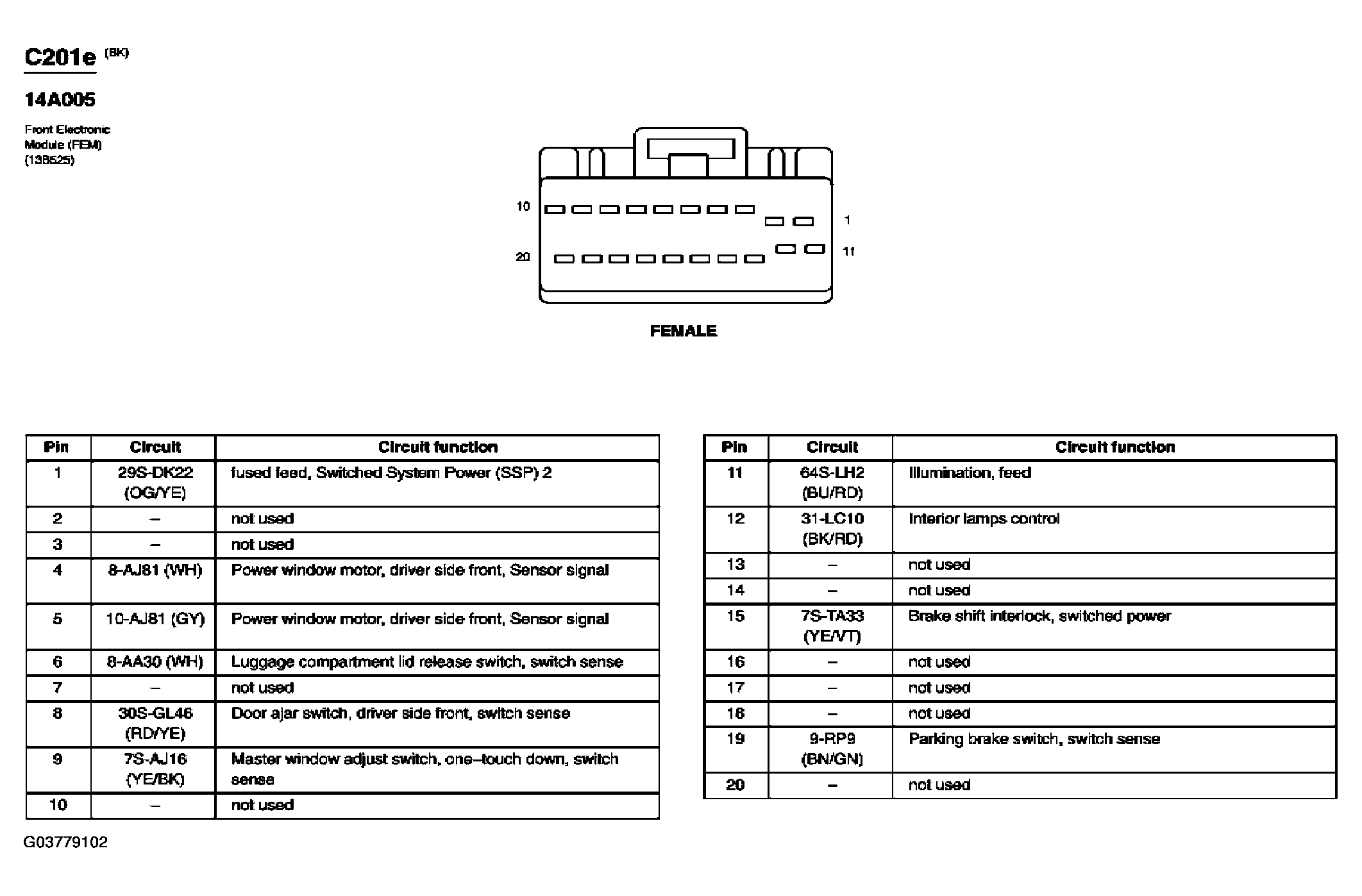

Fig 77: Front Electronic Module (FEM) Connector End View (C201e)
G03779102Courtesy of FORD MOTOR CO.
Fig 78: Front Electronic Module (FEM) Connector End View (C201g)
G03779103Courtesy of FORD MOTOR CO.
Fig 79: Multifunction Switch Connector End View (C202)
G03779104Courtesy of FORD MOTOR CO.

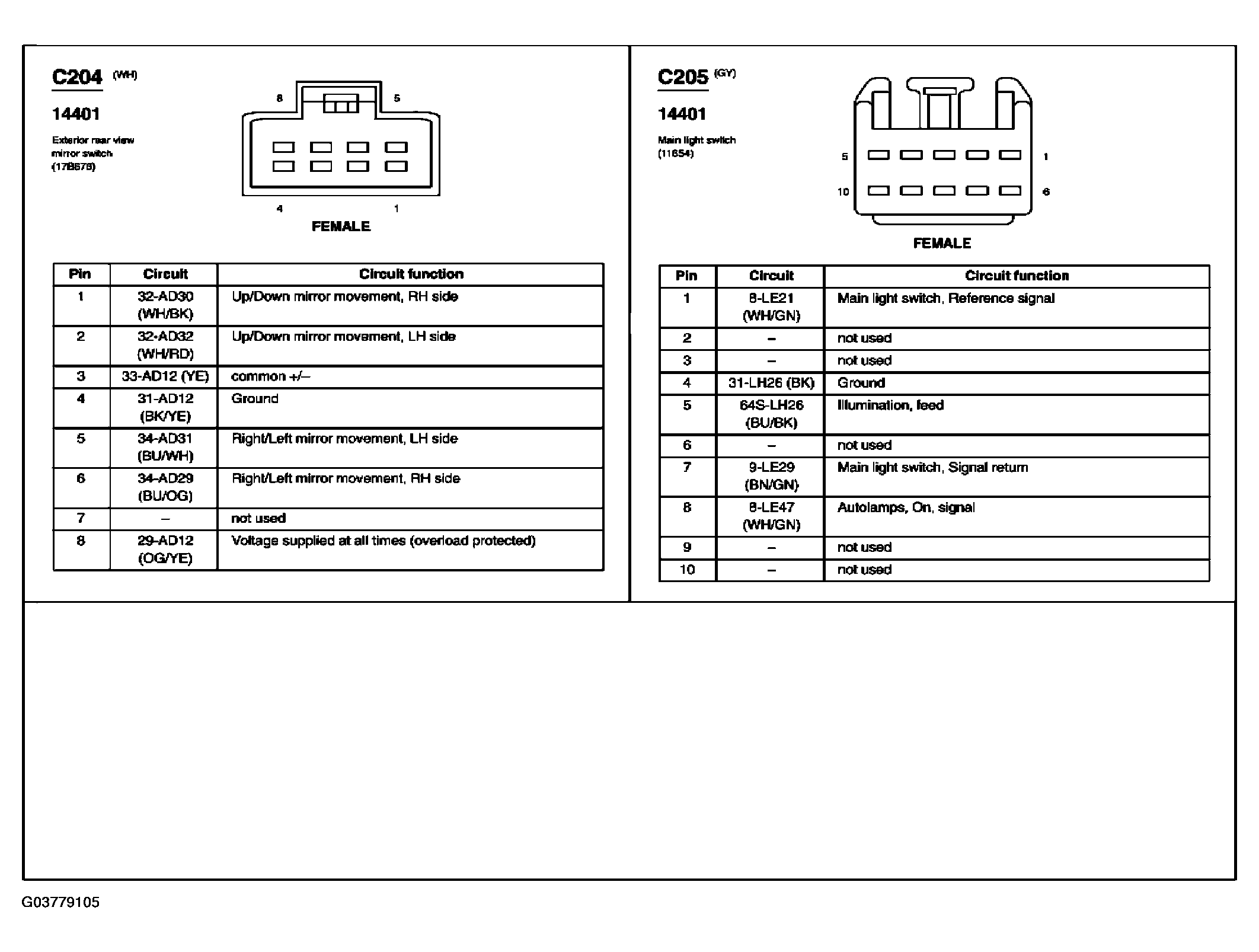

Fig 80: Exterior Rear View Mirror Switch Connector End View (C204)
G03779105Courtesy of FORD MOTOR CO.
Fig 81: Instrument Panel Dimming Module Connector End View (C206)
G07839782Courtesy of FORD MOTOR CO.

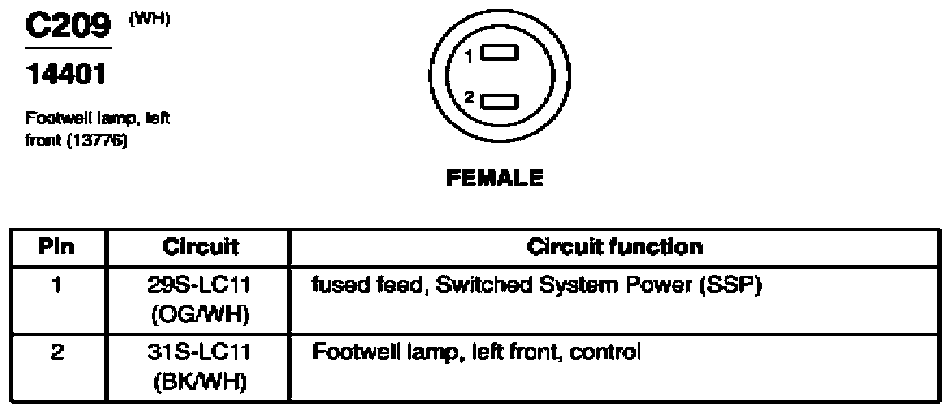

Fig 82: Footwell Lamp, Left Front Connector End View (C209)
G07839783Courtesy of FORD MOTOR CO.

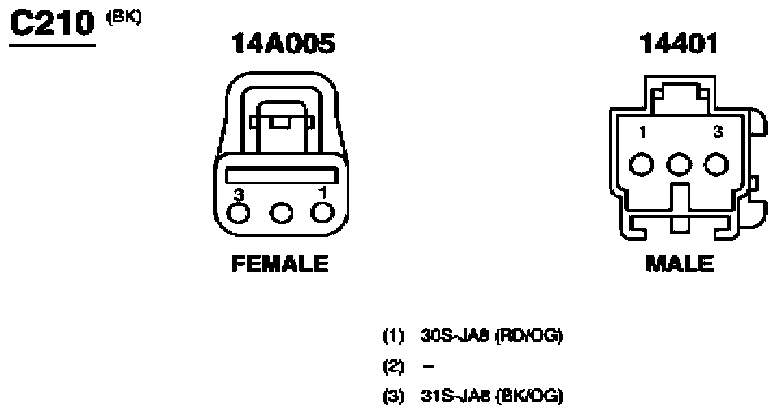

Fig 83: Inline Connector End View (C210)
G07839784Courtesy of FORD MOTOR CO.

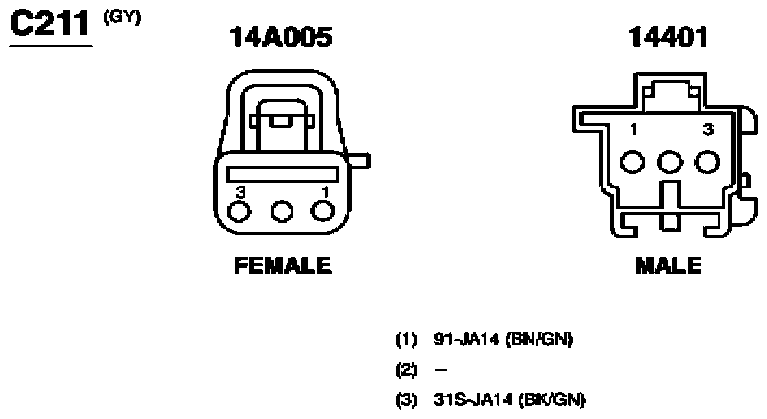

Fig 84: Inline Connector End View (C211)
G07839785Courtesy of FORD MOTOR CO.

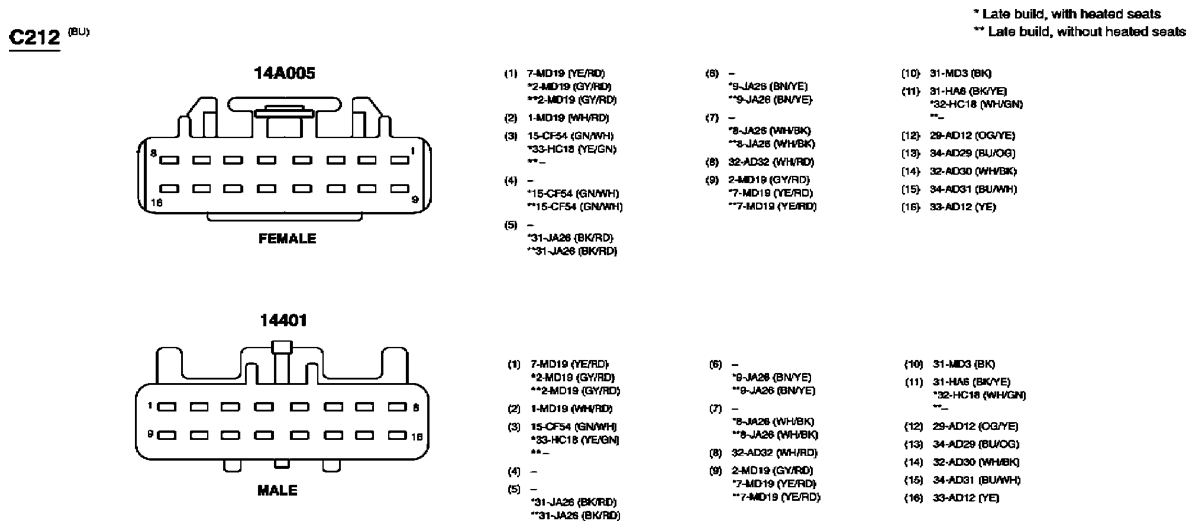

Fig 85: Inline Connector End View (C212)
G03779107Courtesy of FORD MOTOR CO.

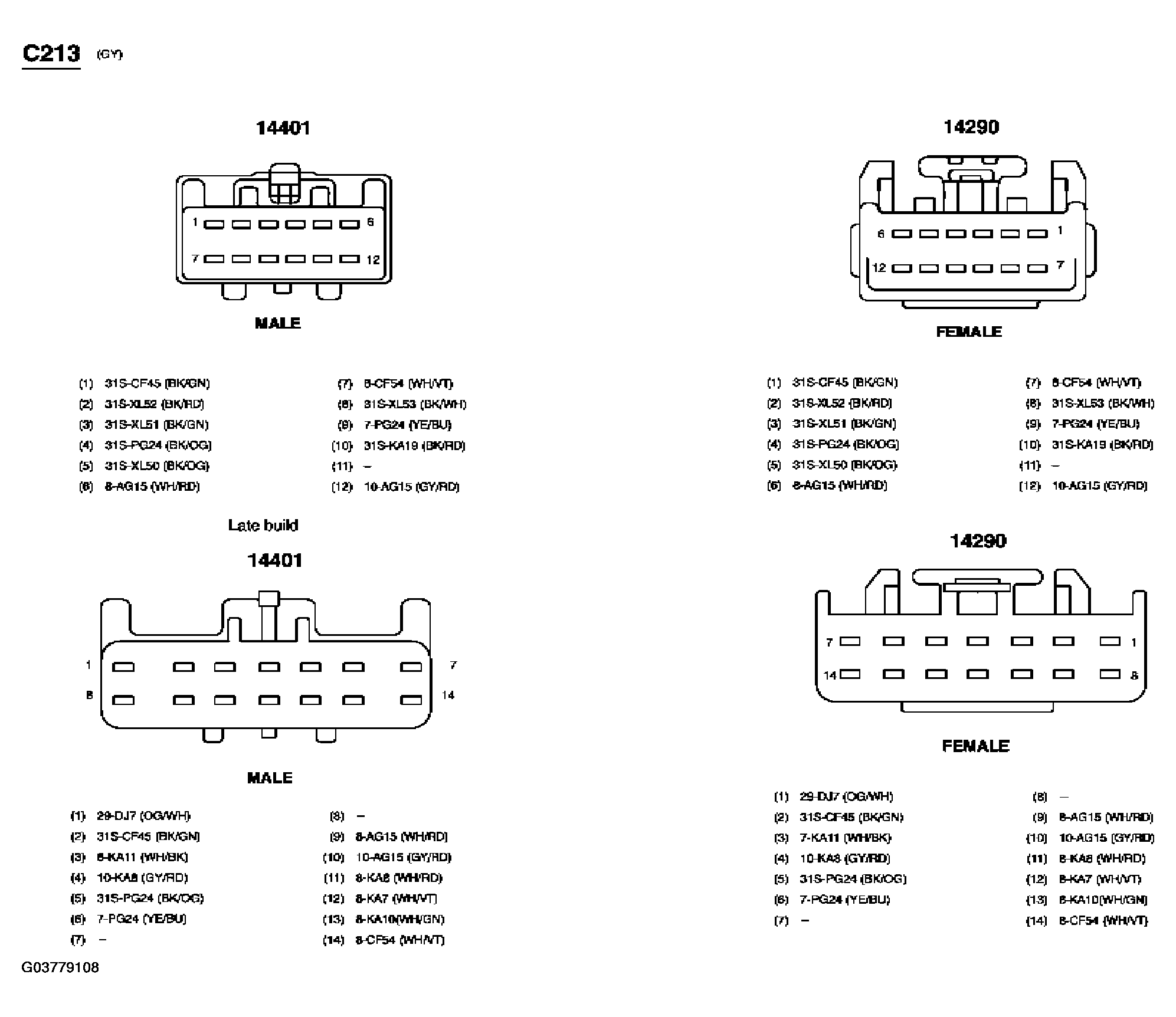

Fig 86: Inline Connector End View (C213)
G03779108Courtesy of FORD MOTOR CO.
Fig 87: Inline Connector End View (C214)
G03779109Courtesy of FORD MOTOR CO.

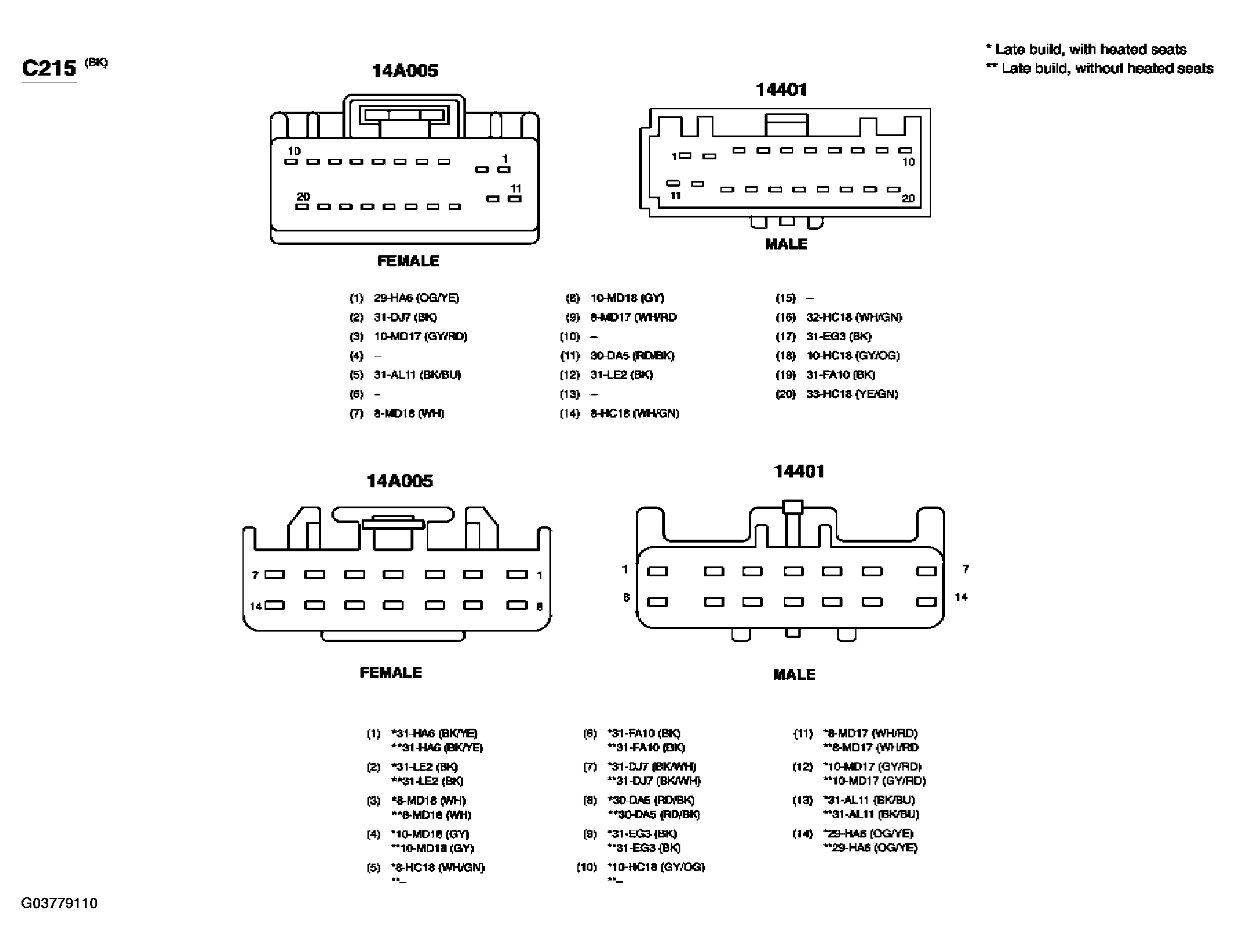

Fig 88: Inline Connector End View (C215)
G03779110Courtesy of FORD MOTOR CO.
Fig 89: Sheering Wheel Sensor Connector End View (C218a)
G07839786Courtesy of FORD MOTOR CO.

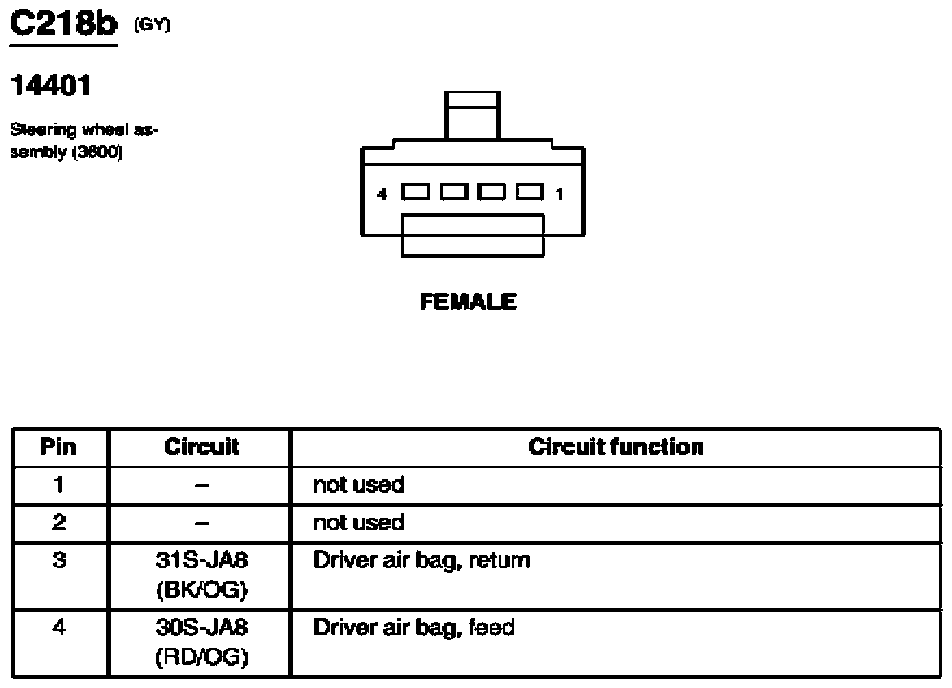

Fig 90: Steering Wheel Assembly Connector End View (C218b)
G07839787Courtesy of FORD MOTOR CO.
Fig 91: Inline Connector End View (C219)
G03779112Courtesy of FORD MOTOR CO.

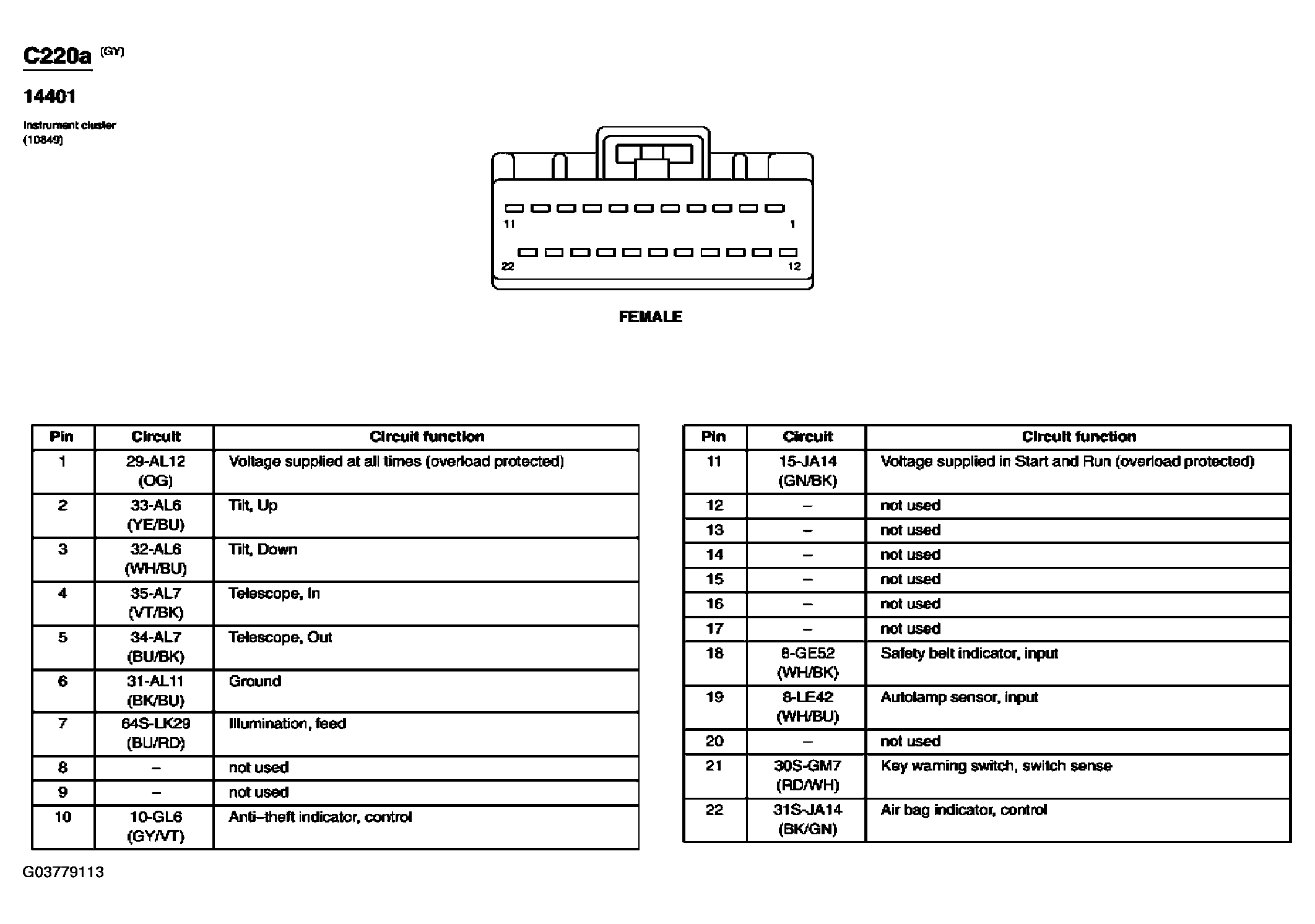

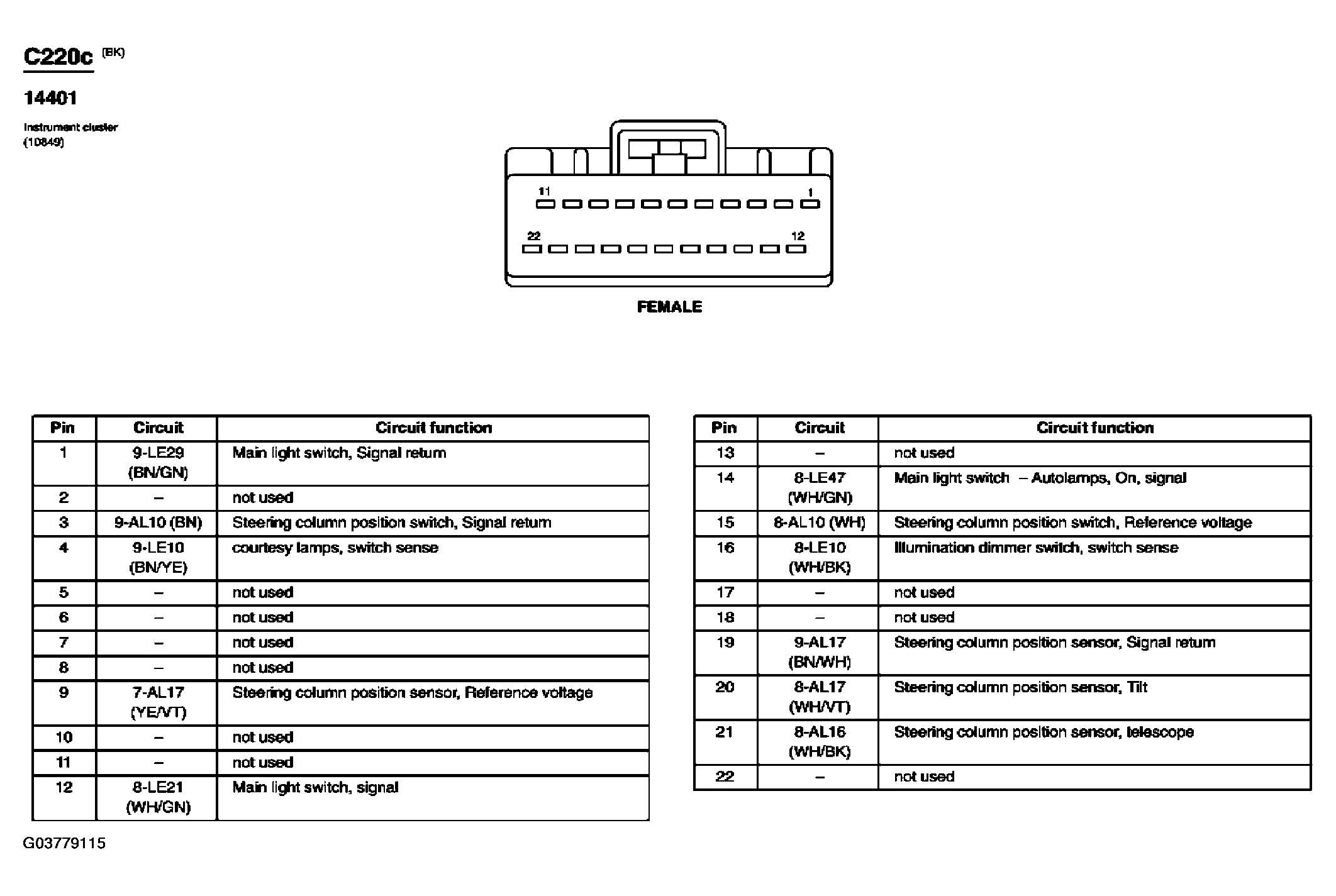

Fig 92: Instrument Cluster Connector End View (C220a)
G03779113Courtesy of FORD MOTOR CO.
Fig 93: Instrument Cluster Connector End View (C220b)
G03779114Courtesy of FORD MOTOR CO.
Fig 94: Instrument Cluster Connector End View (C220c)
G03779115Courtesy of FORD MOTOR CO.
Fig 95: Steering Column Position Sensor Connector End View (C222)
G07839788Courtesy of FORD MOTOR CO.

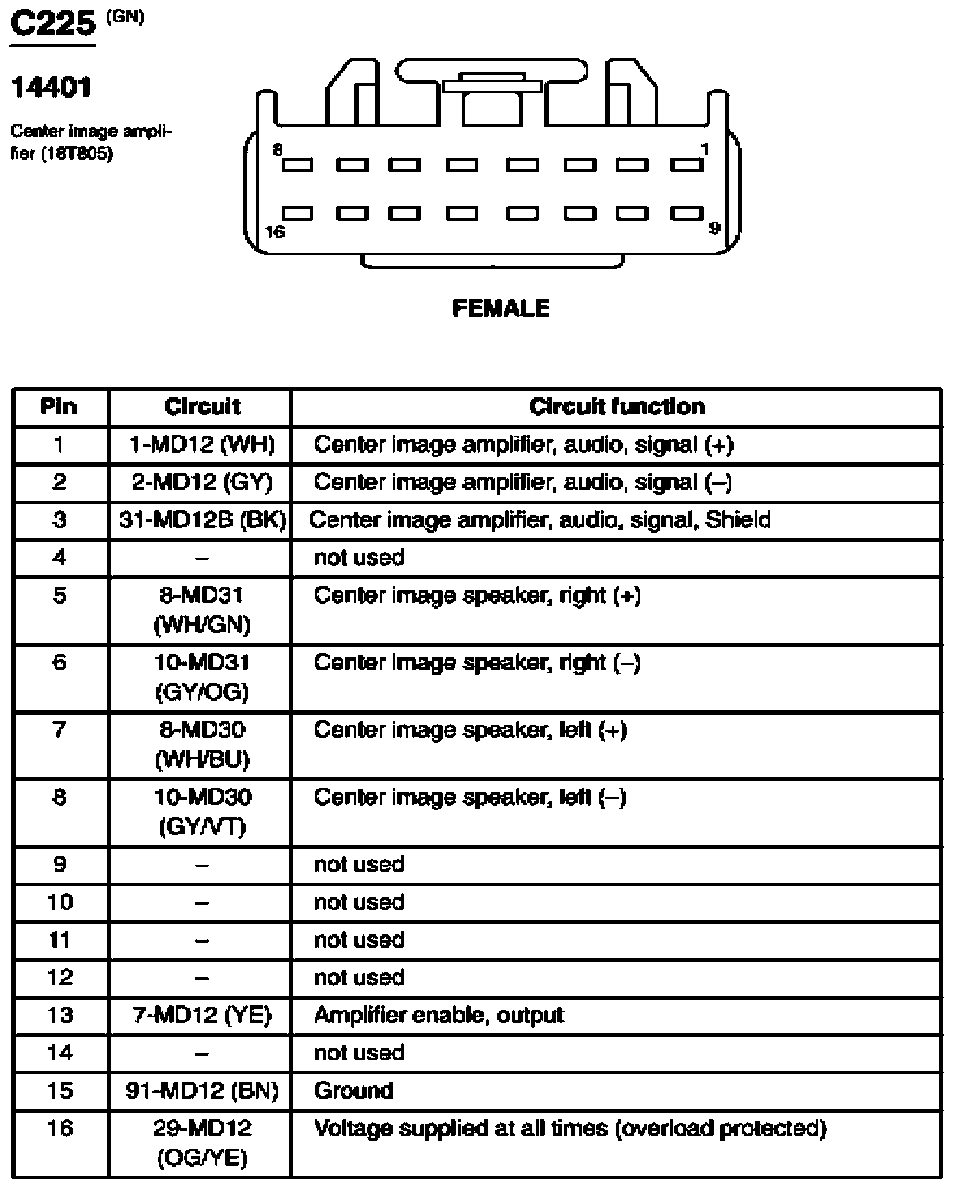

Fig 96: Center Image Amplifier Connector End View (C225)
G07839789Courtesy of FORD MOTOR CO.

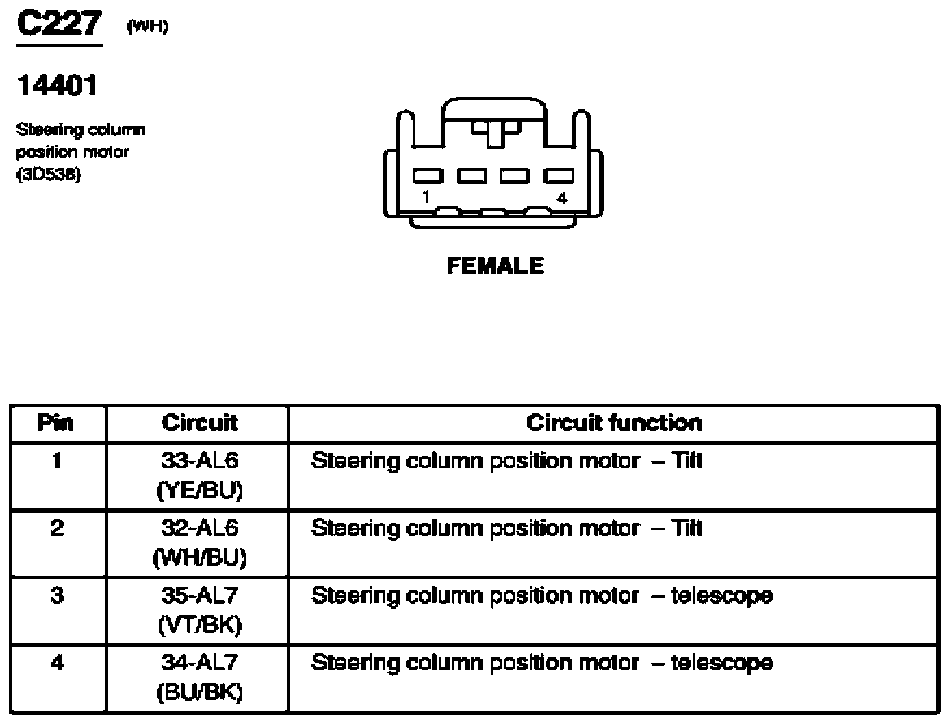

Fig 97: Steering Column Position Motor Connector End View (C227)
G03779117Courtesy of FORD MOTOR CO.

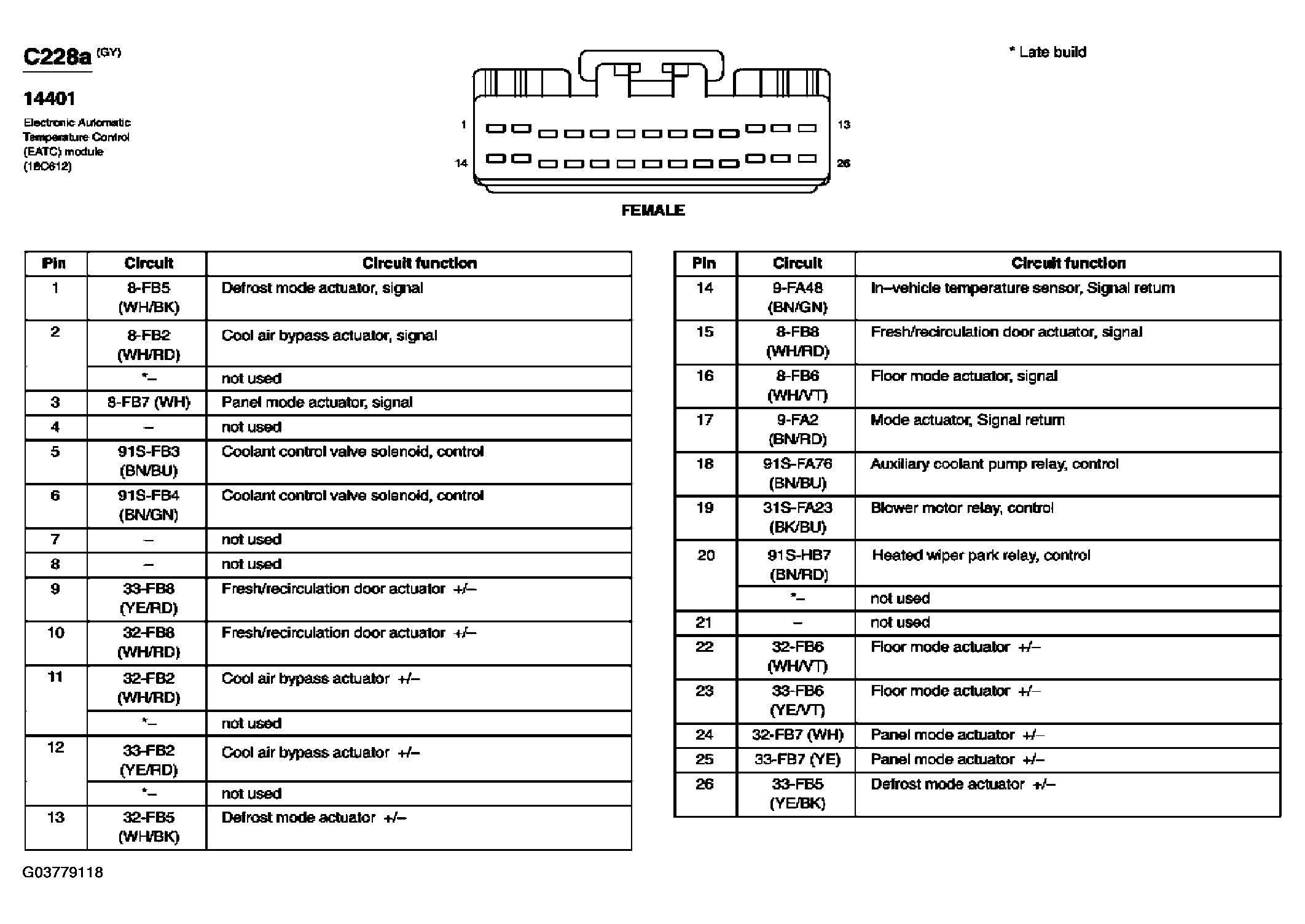

Fig 98: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)
G03779118Courtesy of FORD MOTOR CO.

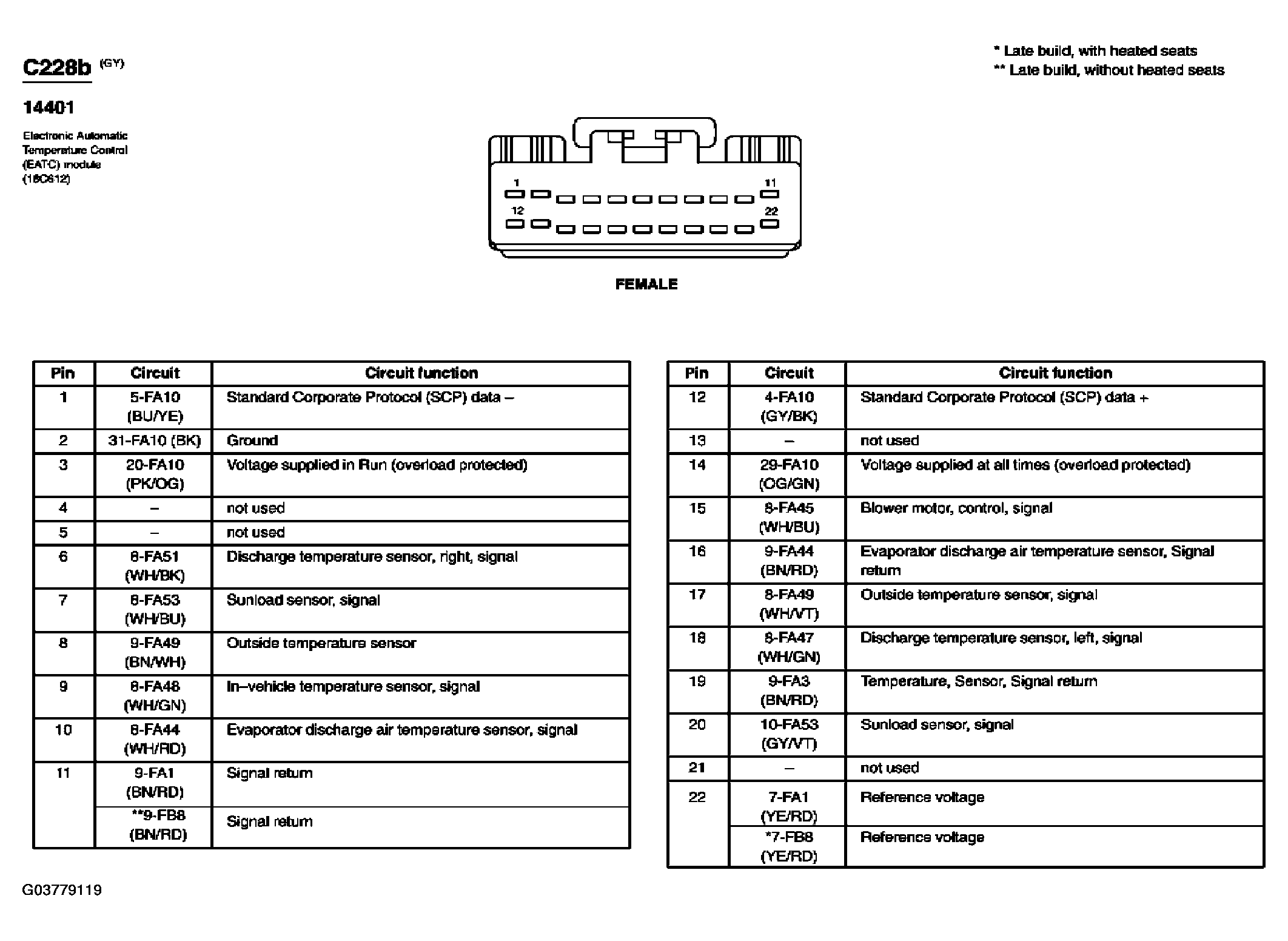

Fig 99: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)
G03779119Courtesy of FORD MOTOR CO.

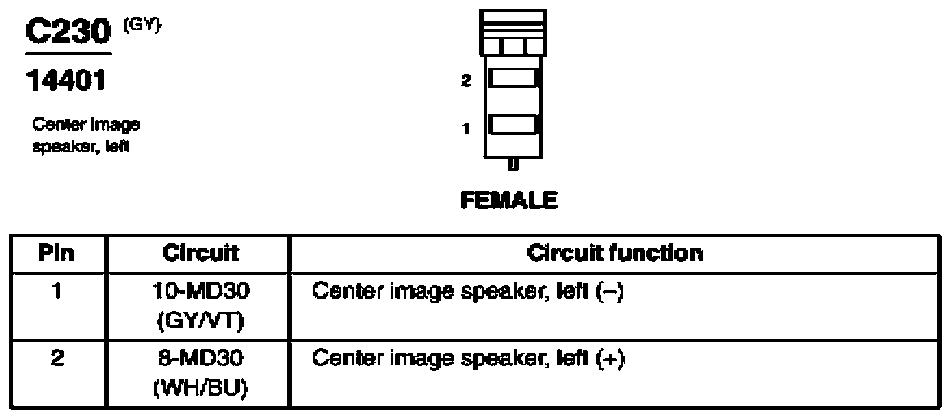

Fig 100: Center Image Speaker, Left Connector End View (C230)
G07839790Courtesy of FORD MOTOR CO.

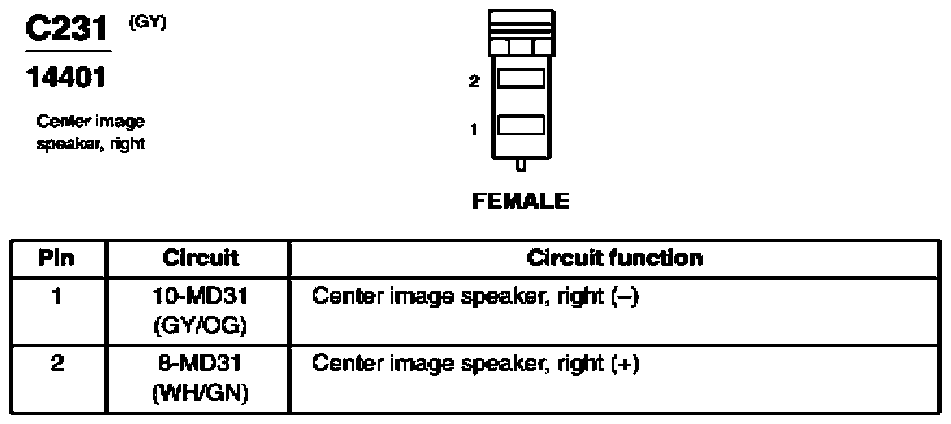

Fig 101: Center Image Speaker, Right Connector End View (C231)
G07839791Courtesy of FORD MOTOR CO.

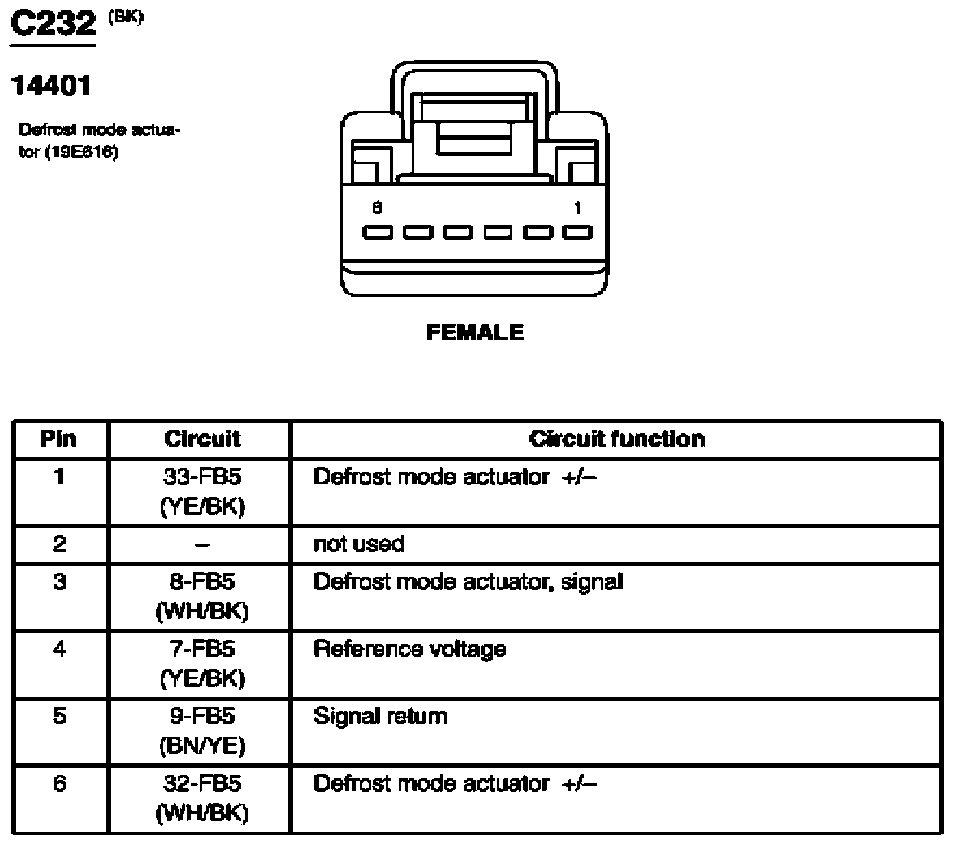

Fig 102: Defrost Mode Actuator Connector End View (C232)
G07839792Courtesy of FORD MOTOR CO.

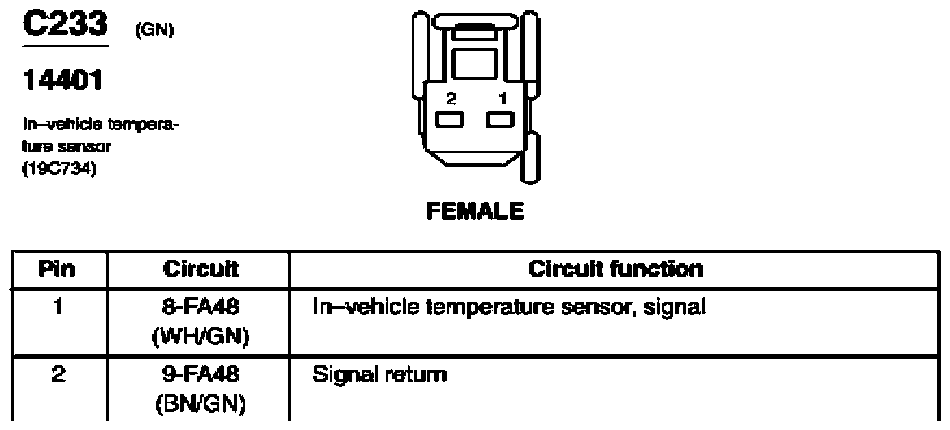

Fig 103: In-Vehicle Temperature Sensor Connector End View (C233)
G07839793Courtesy of FORD MOTOR CO.

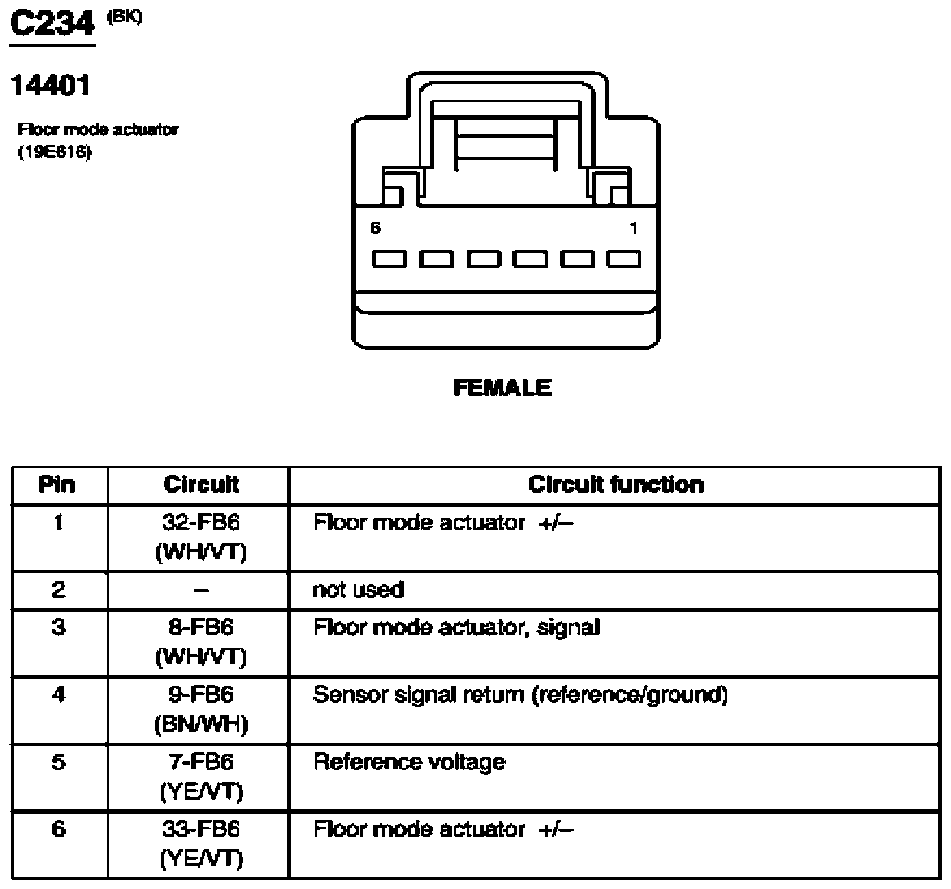

Fig 104: Floor Mode Actuator Connector End View (C234)
G07839794Courtesy of FORD MOTOR CO.
Fig 105: Discharge Temperature Sensor, Left Connector End View (C235)
G07839795Courtesy of FORD MOTOR CO.

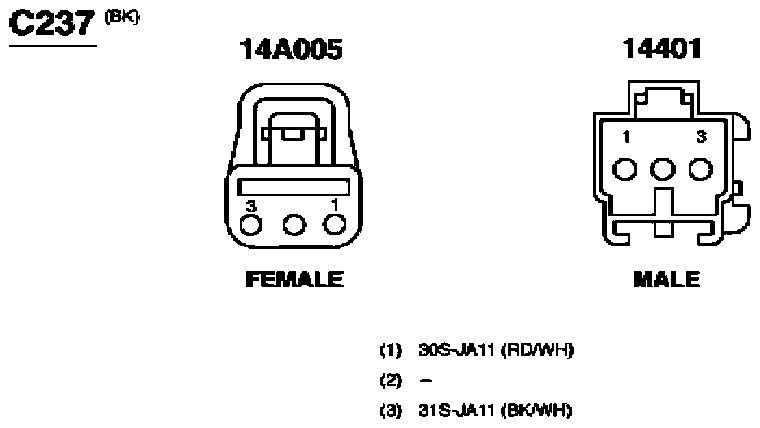

Fig 106: Inline Connector End View (C237)
G07839796Courtesy of FORD MOTOR CO.
Fig 107: Panel Mode Actuator Connector End View (C236)
G07839797Courtesy of FORD MOTOR CO.

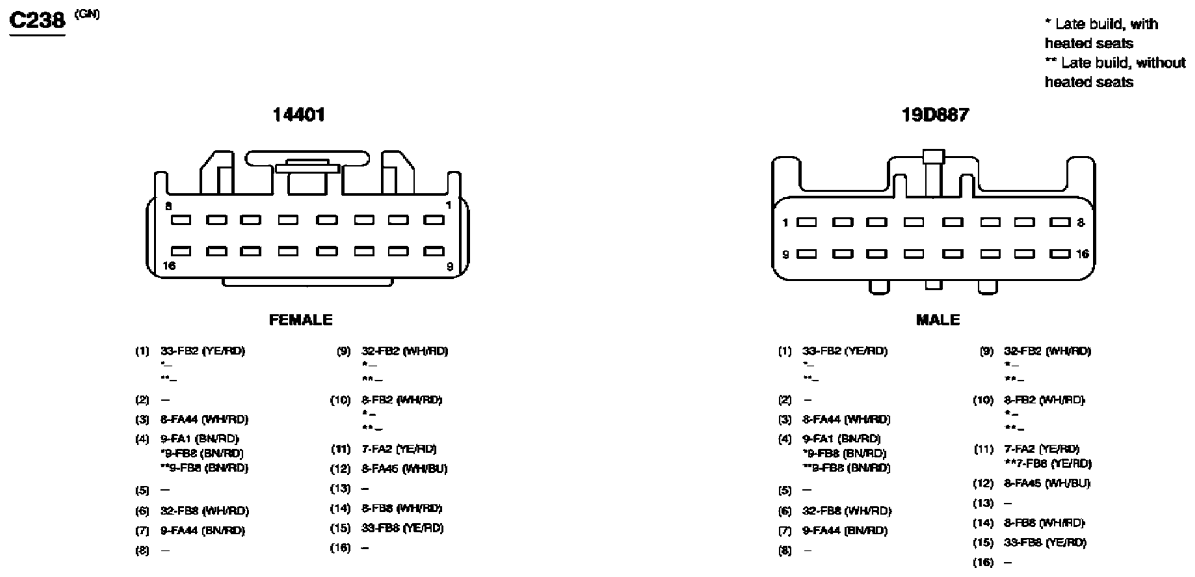

Fig 108: Inline Connector End View (C238)
G03779122Courtesy of FORD MOTOR CO.

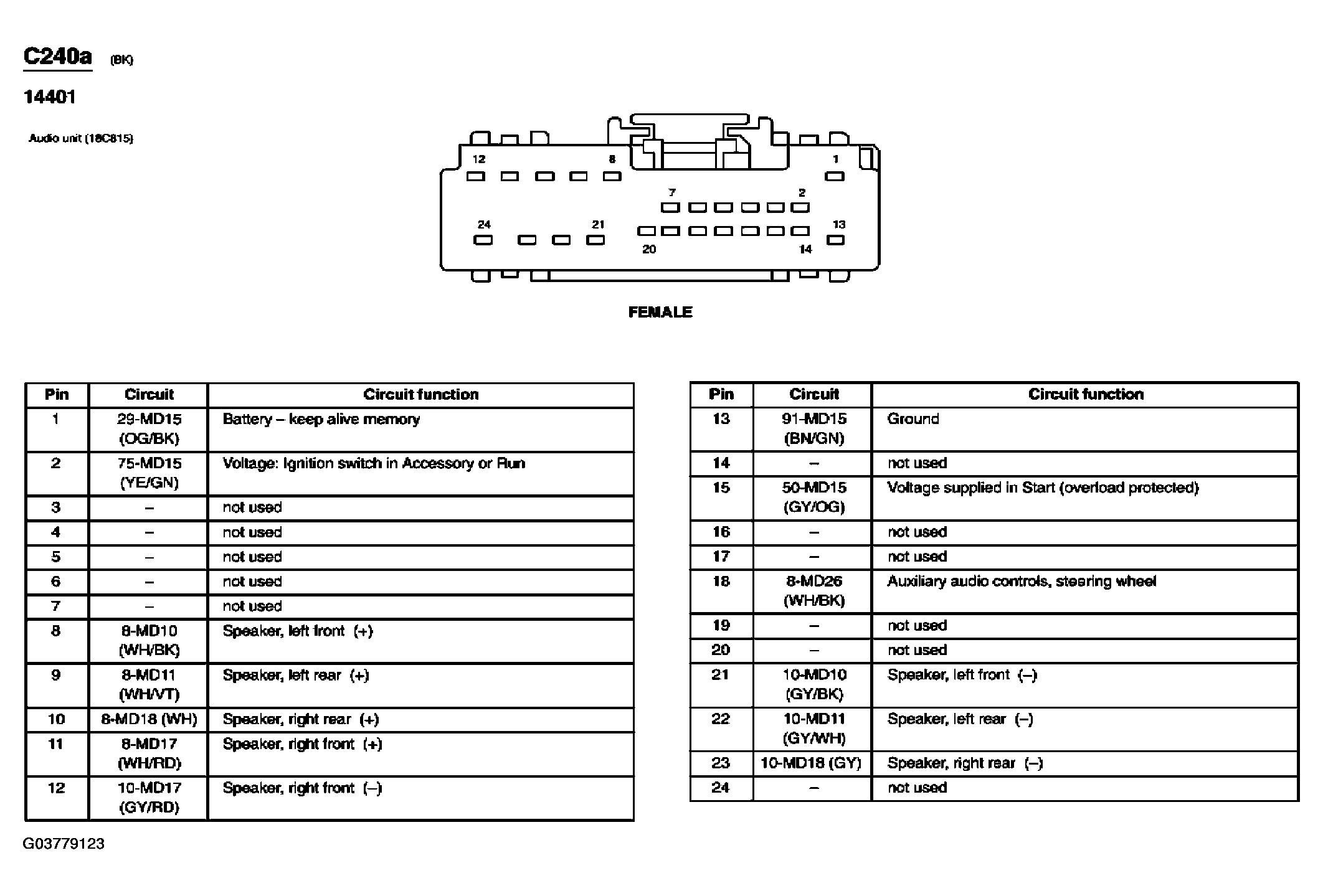

Fig 109: Audio Unit Connector End View (C240a)
G03779123Courtesy of FORD MOTOR CO.
Fig 110: Audio Unit Connector End View (C240b)
G07839798Courtesy of FORD MOTOR CO.
Fig 111: Audio Unit Connector End View (C240c)
G07839799Courtesy of FORD MOTOR CO.
Fig 112: Inline Connector End View (C248)
G03779125Courtesy of FORD MOTOR CO.
Fig 113: Ignition Switch Connector End View (C250)
G07839800Courtesy of FORD MOTOR CO.

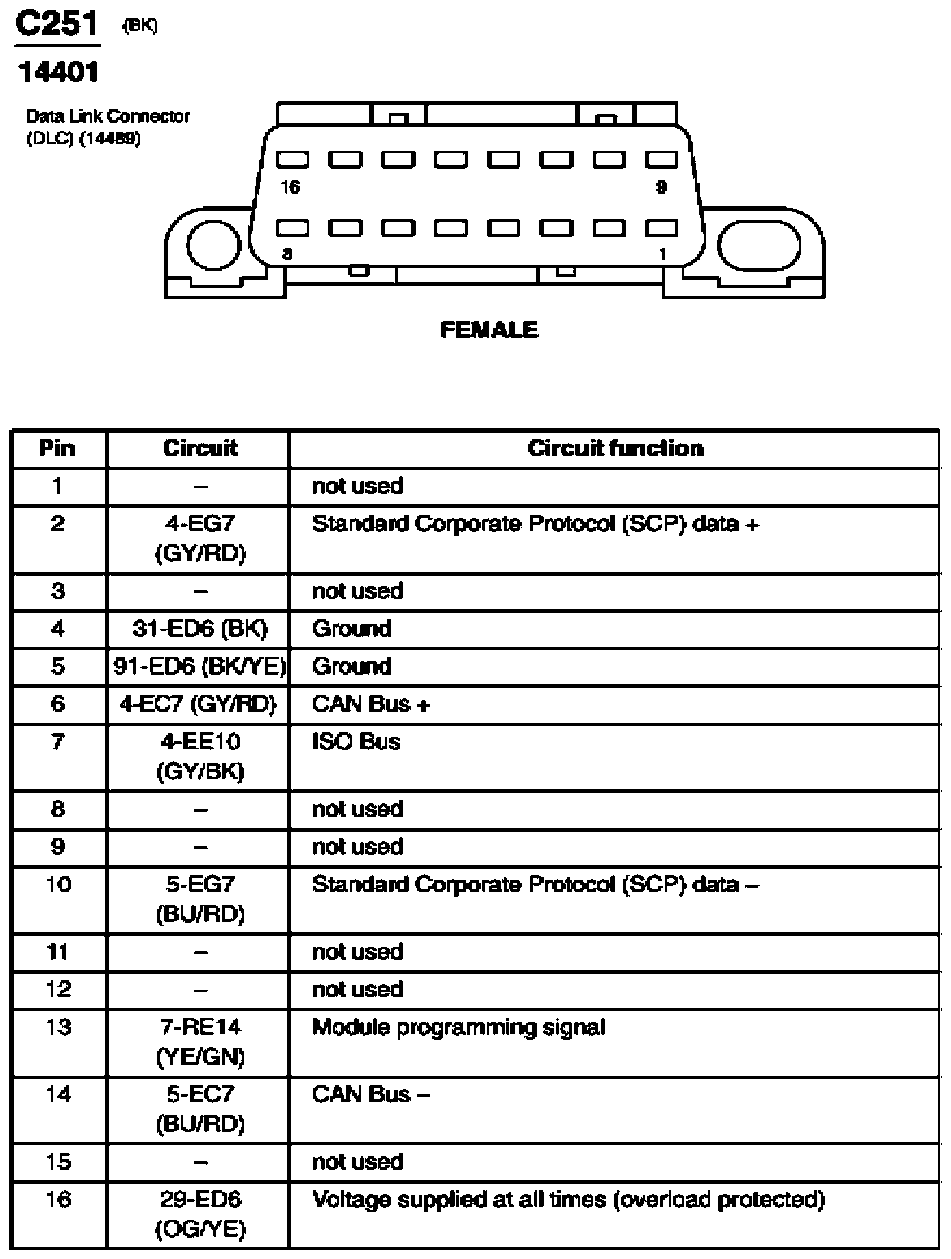

Fig 114: Data Link Connector (DLC) Connector End View (C251)
G07839801Courtesy of FORD MOTOR CO.

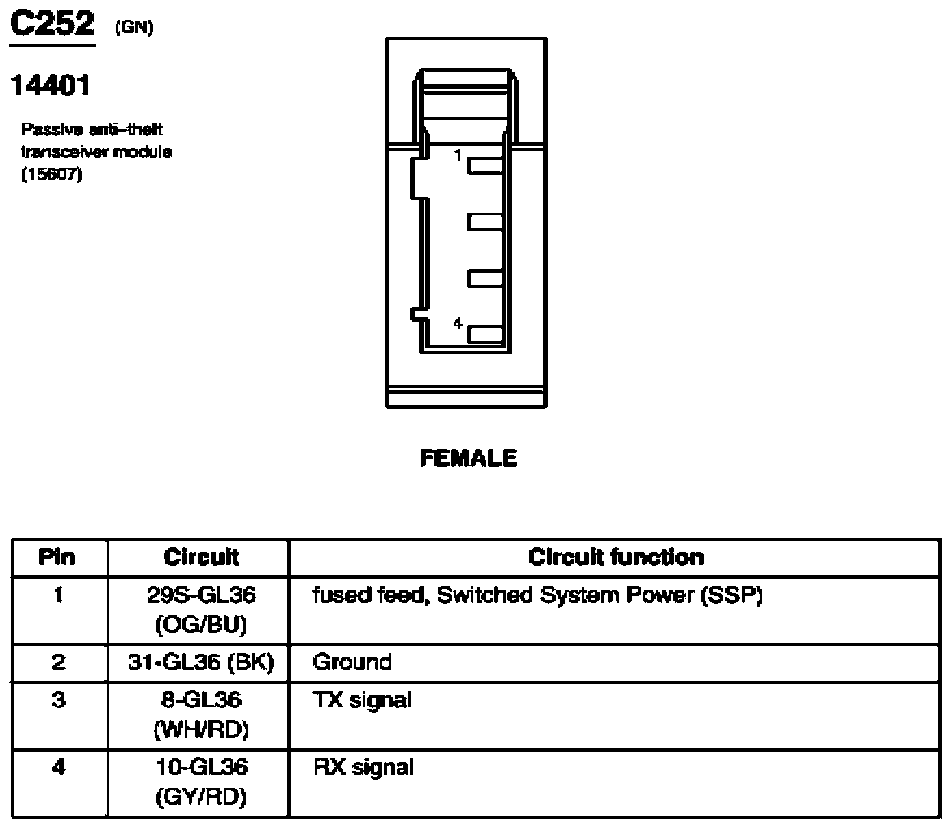

Fig 115: Passive Anti-Theft Transceiver Module Connector End View (C252)
G07839802Courtesy of FORD MOTOR CO.
Fig 116: Glove Box Lamp Connector End View (C254)
G07839803Courtesy of FORD MOTOR CO.
Fig 117: Discharge Temperature Sensor, Right Connector End View (C255)
G07839804Courtesy of FORD MOTOR CO.

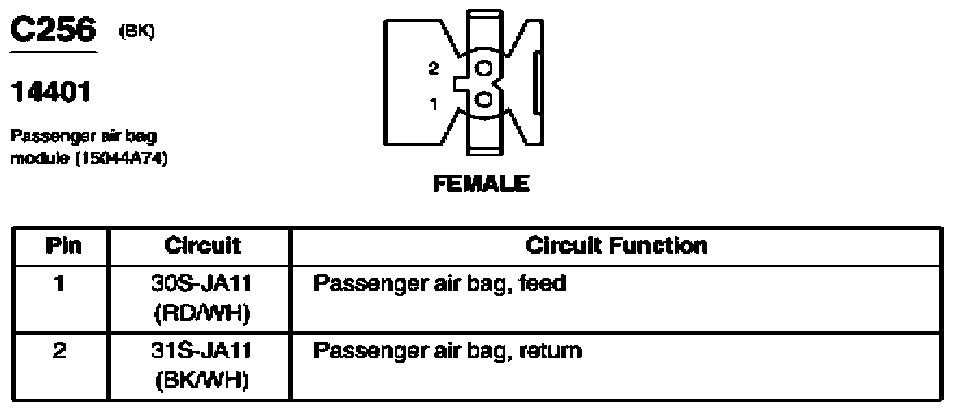

Fig 118: Passenger Air Bag Module Connector End View (C256)
G07839805Courtesy of FORD MOTOR CO.

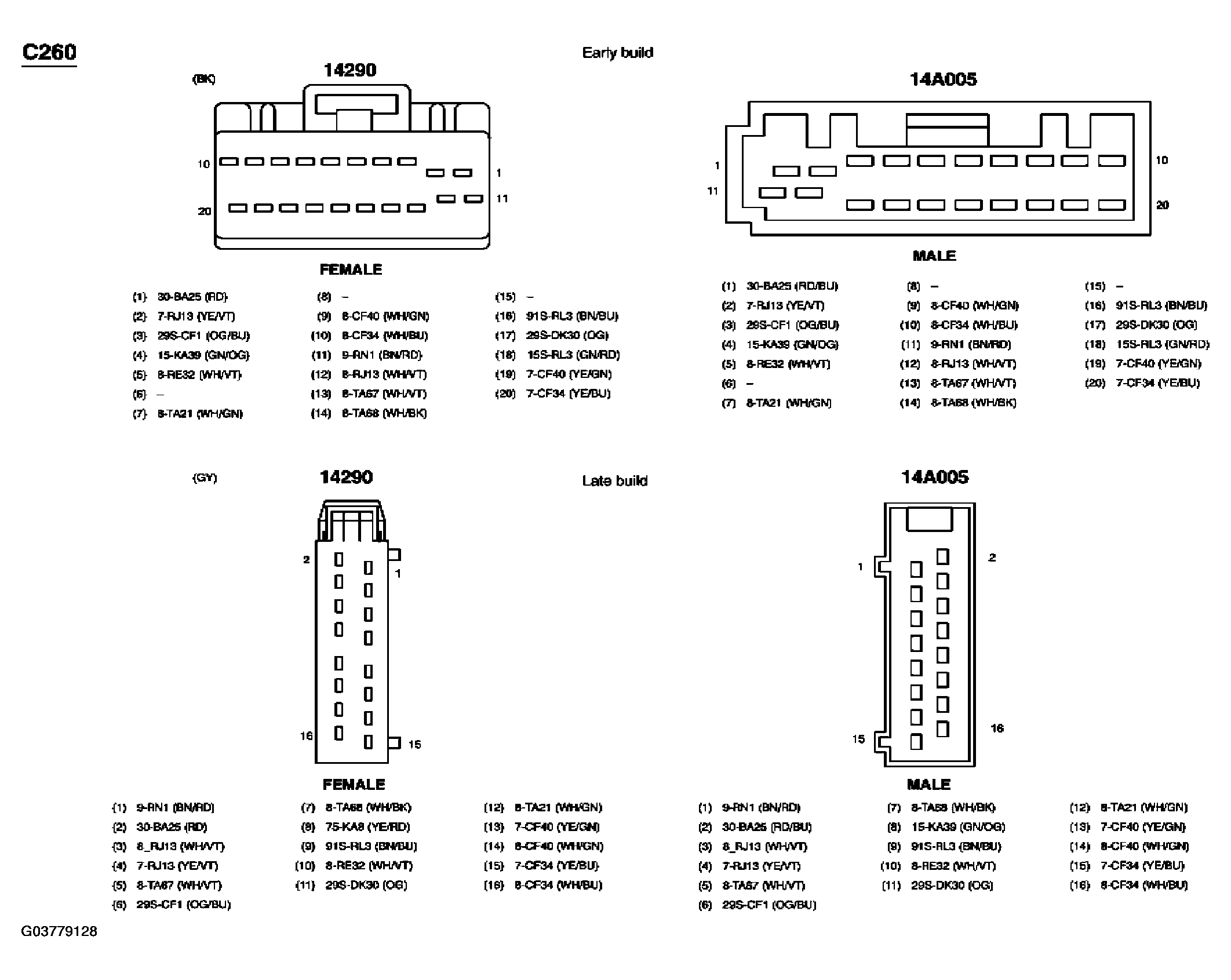

Fig 119: Inline Connector End View (C260)
G03779128Courtesy of FORD MOTOR CO.

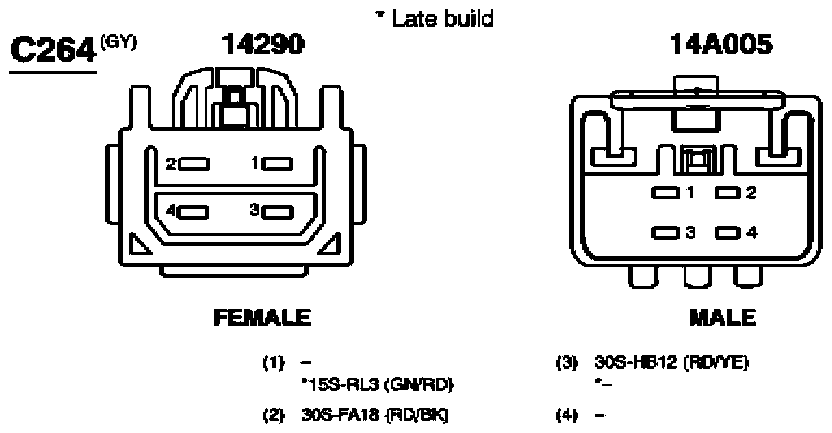

Fig 120: Inline Connector End View (C264)
G07839806Courtesy of FORD MOTOR CO.
Fig 121: Stud, Junction Box Connector End View (C265a)
G07839807Courtesy of FORD MOTOR CO.

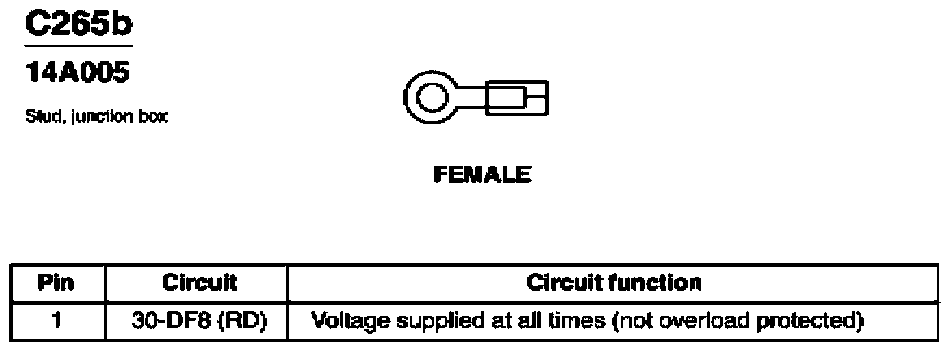

Fig 122: Stud, Junction Box Connector End View (C265b)
G07839808Courtesy of FORD MOTOR CO.

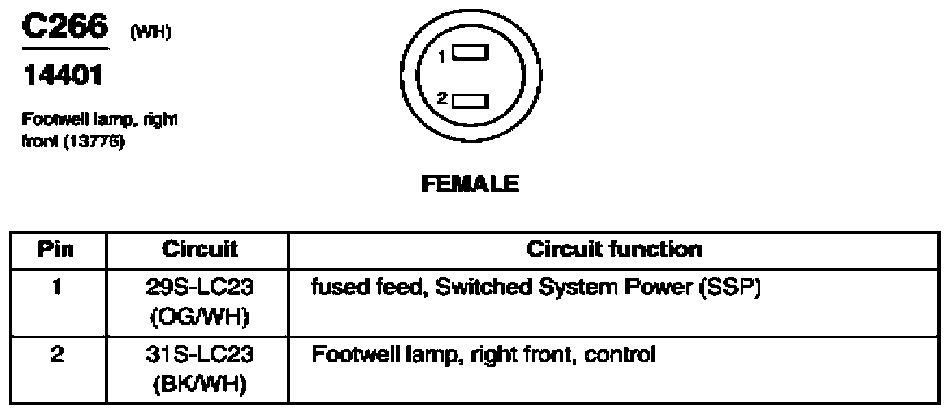

Fig 123: Footwell Lamp, Right Front Connector End View (C266)
G07839809Courtesy of FORD MOTOR CO.
Fig 124: Inline Connector End View (C268)
G07839810Courtesy of FORD MOTOR CO.
Fig 125: Central Junction Box (CJB) Connector End View (C270a)
G03779130Courtesy of FORD MOTOR CO.
Fig 126: Central Junction Box (CJB) Connector End View (C270b)
G03779131Courtesy of FORD MOTOR CO.
Fig 127: Central Junction Box (CJB) Connector End View (C270c)
G07839811Courtesy of FORD MOTOR CO.
Fig 128: Central Junction Box (CJB) Connector End View (C270d)
G07839812Courtesy of FORD MOTOR CO.

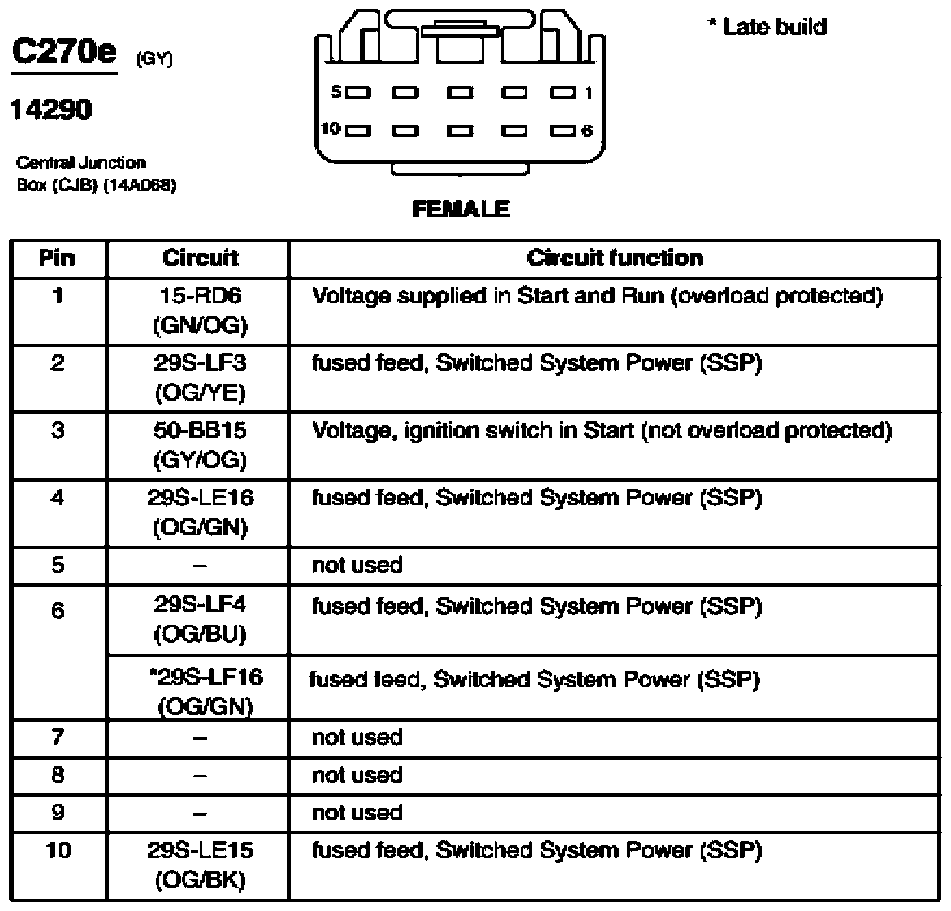

Fig 129: Central Junction Box (BJB) Connector End View (C270e)
G07839813Courtesy of FORD MOTOR CO.

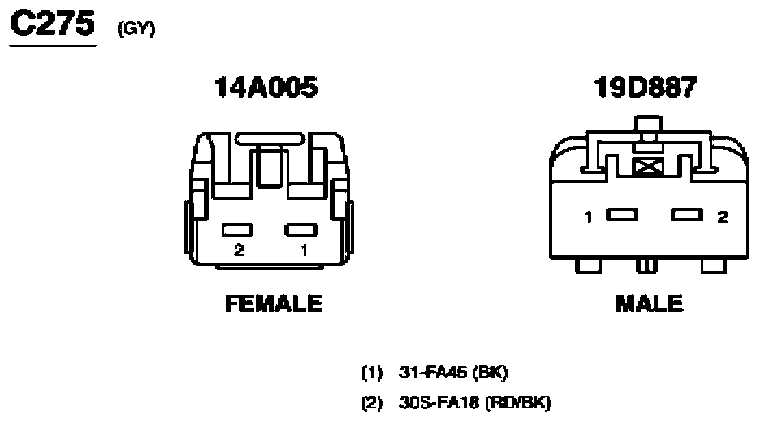

Fig 130: Inline Connector End View (C275)
G07839814Courtesy of FORD MOTOR CO.

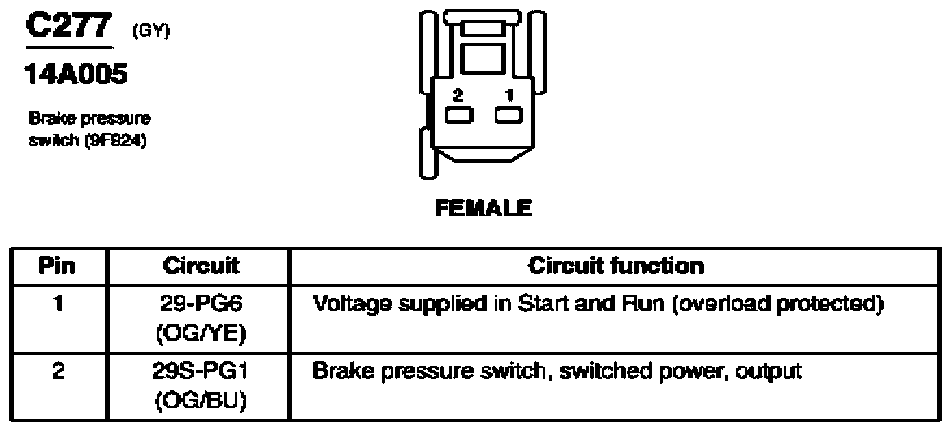

Fig 131: Brake Pressure Switch Connector End View (C277)
G07839815Courtesy of FORD MOTOR CO.
Fig 132: Brake Pedal Position Switch Connector End View (C278)
G07839816Courtesy of FORD MOTOR CO.
Fig 133: Traction Control Switch Connector End View (C280)
G07839817Courtesy of FORD MOTOR CO.

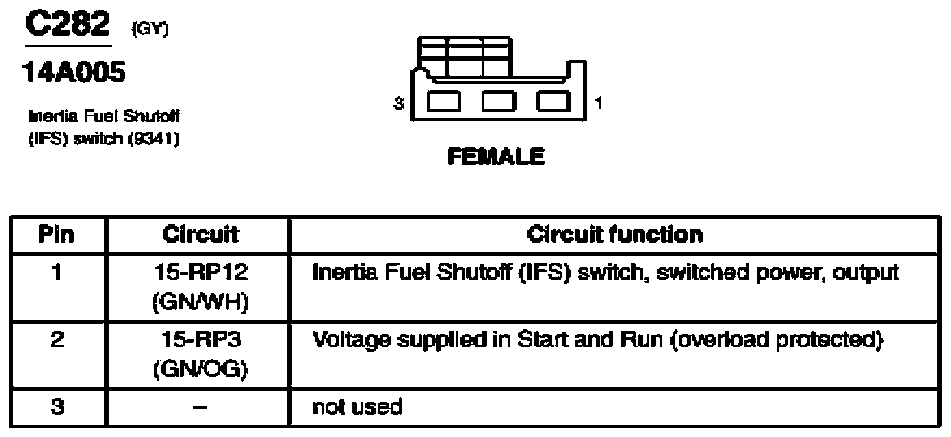

Fig 134: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)
G07839818Courtesy of FORD MOTOR CO.

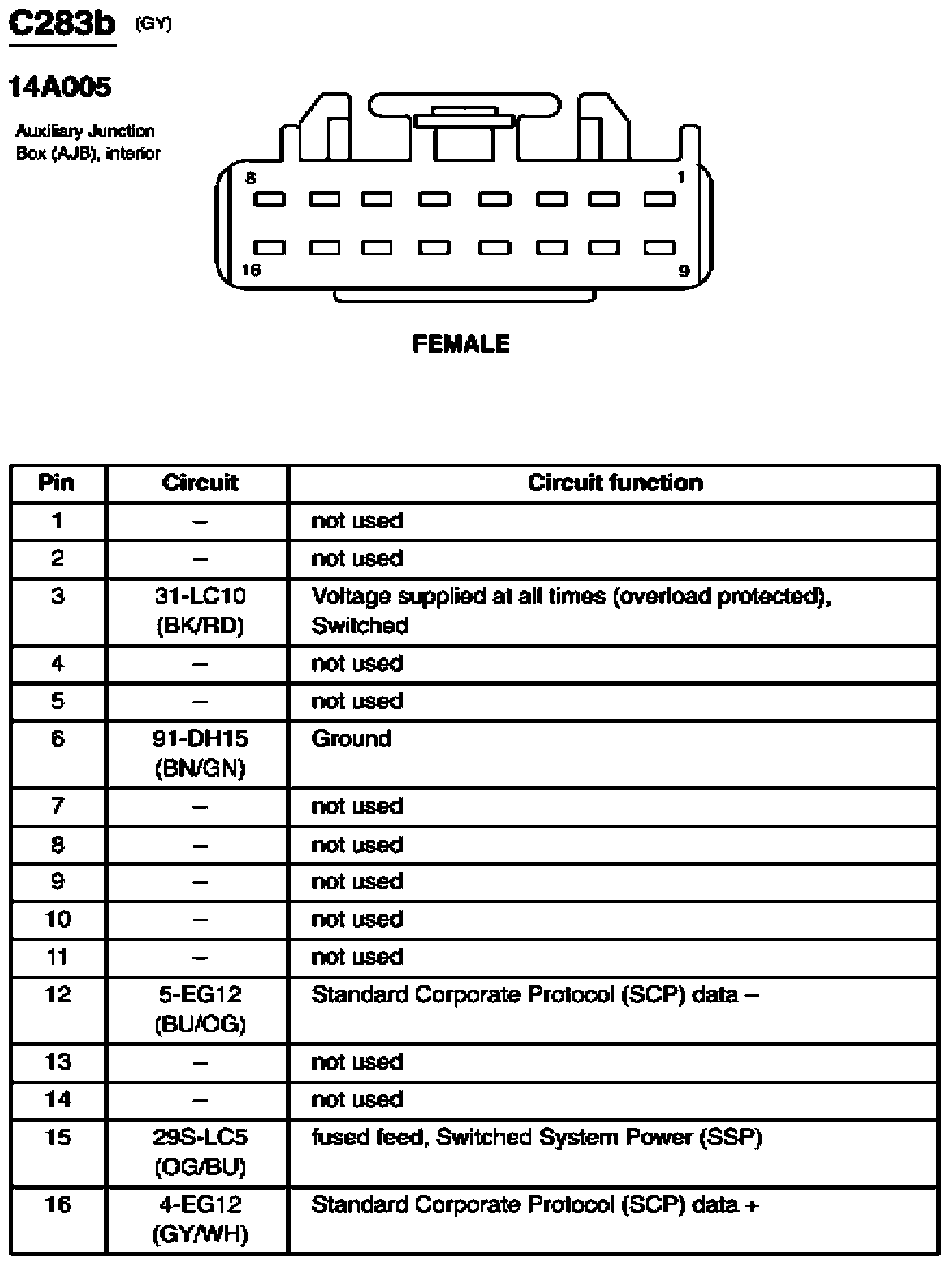

Fig 135: Auxiliary Junction Box (AJB), Interior Connector End View (C283a)
G07839819Courtesy of FORD MOTOR CO.
Fig 136: Auxiliary Junction Box (AJB), Interior Connector End View (C283b)
G07839820Courtesy of FORD MOTOR CO.
Fig 137: Auxiliary Junction Box (AJB), Interior Connector End View (C283c)
G07839821Courtesy of FORD MOTOR CO.

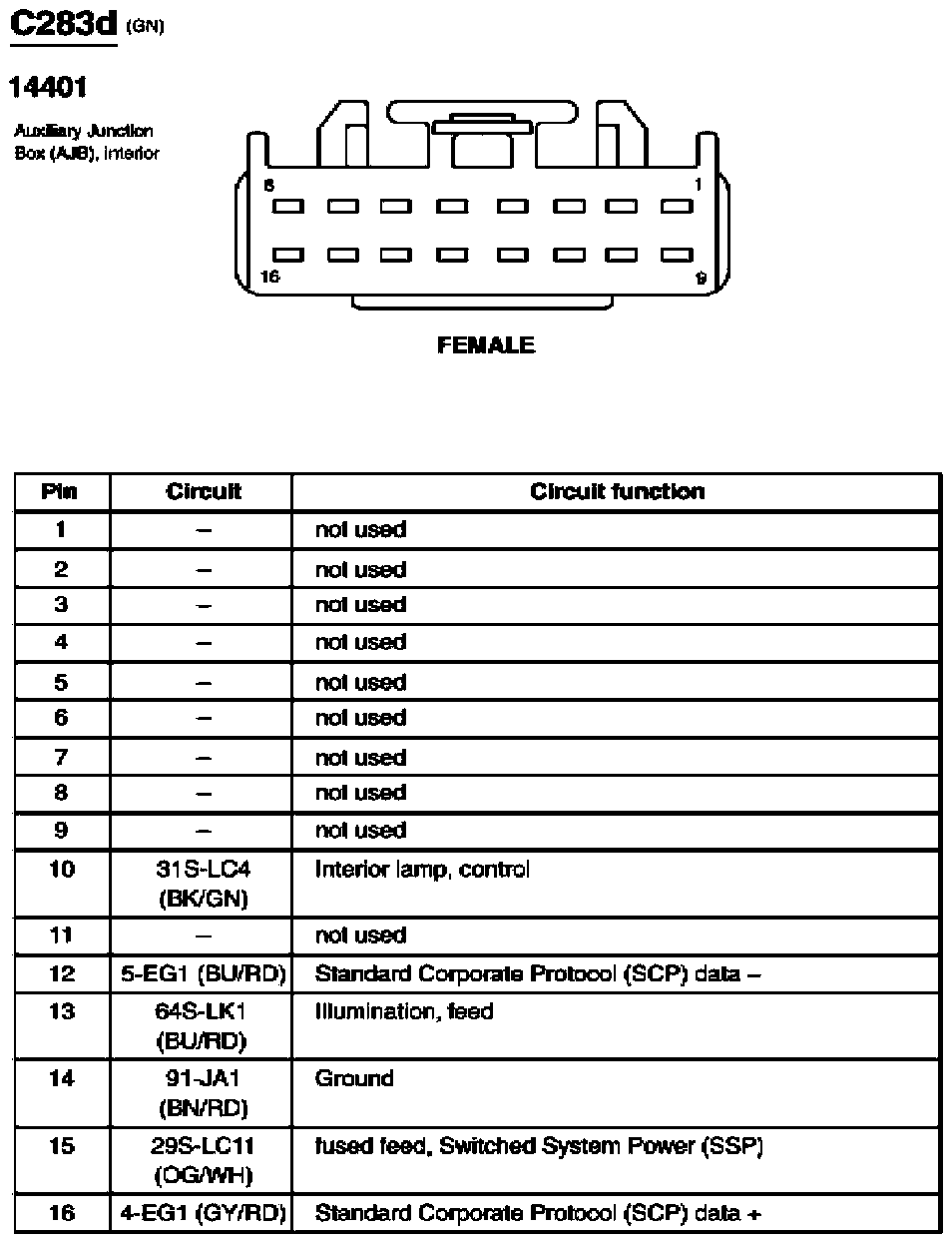

Fig 138: Auxiliary Junction Box (AJB), Interior Connector End View (C283d)
G07839822Courtesy of FORD MOTOR CO.

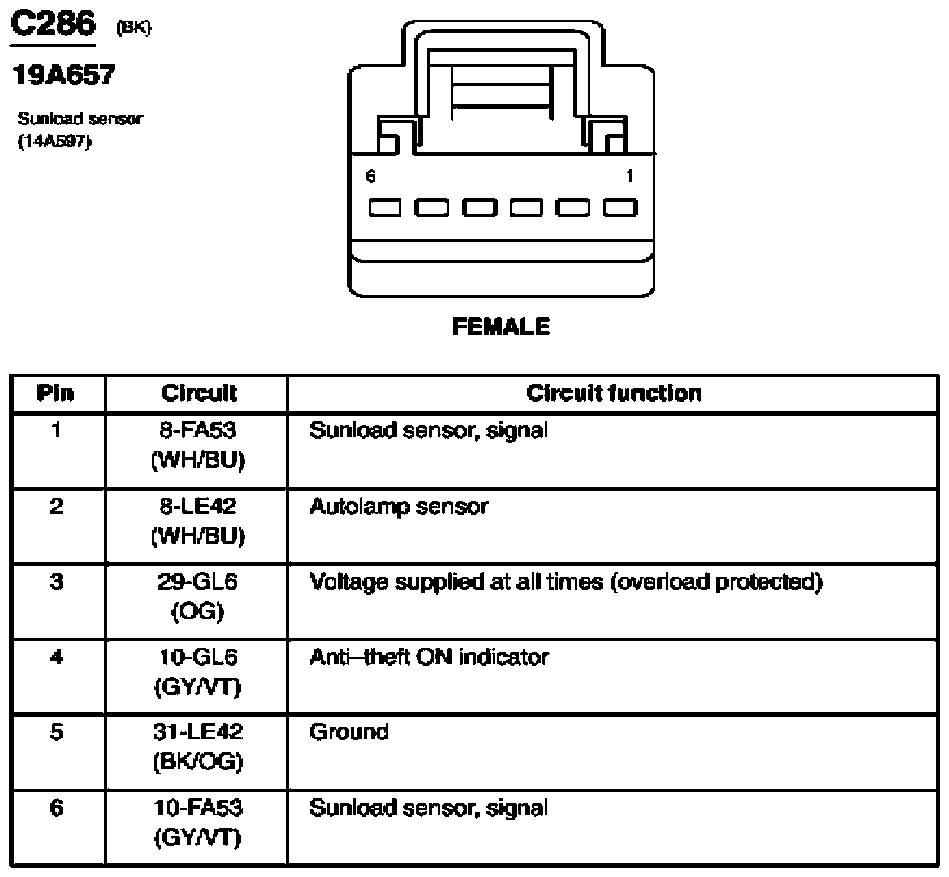

Fig 139: Sunload Sensor Connector End View (C286)
G07839823Courtesy of FORD MOTOR CO.
Fig 140: Heater Blower Motor Connector End View (C288)
G07839824Courtesy of FORD MOTOR CO.
Fig 141: Fresh/Recirculation Door Actuator Connector End View (C289)
G07839825Courtesy of FORD MOTOR CO.
Fig 142: Cool Air Bypass Actuator Connector End View (C295)
G07839826Courtesy of FORD MOTOR CO.

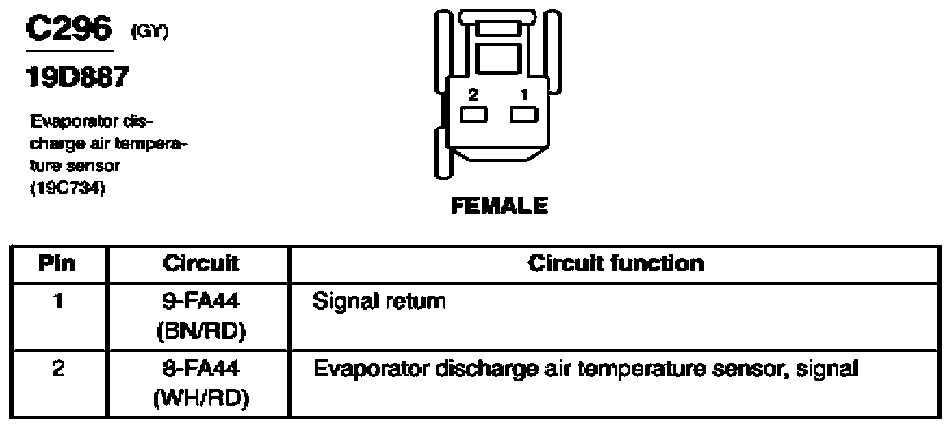

Fig 143: Evaporator Discharge Air Temperature Sensor Connector End View (C296)
G07839827Courtesy of FORD MOTOR CO.

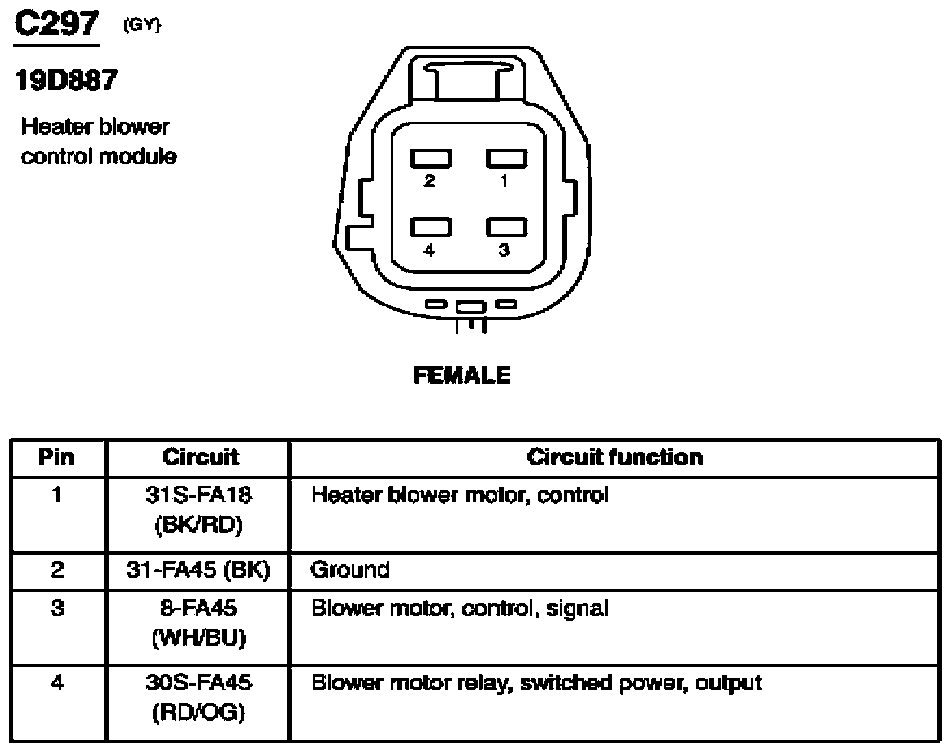

Fig 144: Heater Blower Control Module Connector End View (C297)
G07839828Courtesy of FORD MOTOR CO.

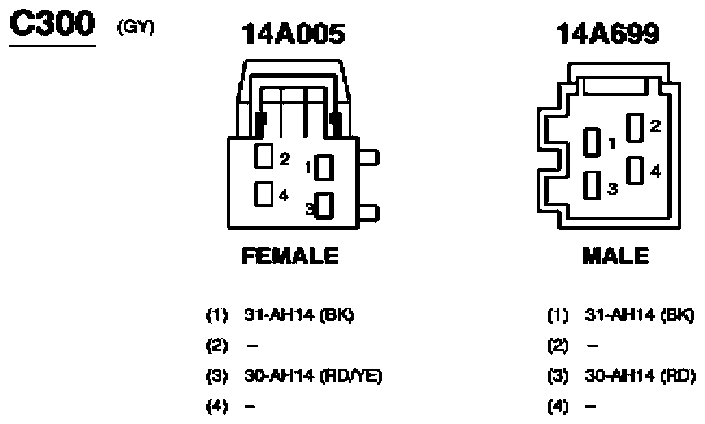

Fig 145: Inline Connector End View (C300)
G07839829Courtesy of FORD MOTOR CO.
Fig 146: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
G07839830Courtesy of FORD MOTOR CO.
Fig 147: Side Impact Sensor, Right Connector End View (C304)
G07839831Courtesy of FORD MOTOR CO.
Fig 148: Side Impact Sensor, Left Connector End View (C305)
G07839832Courtesy of FORD MOTOR CO.

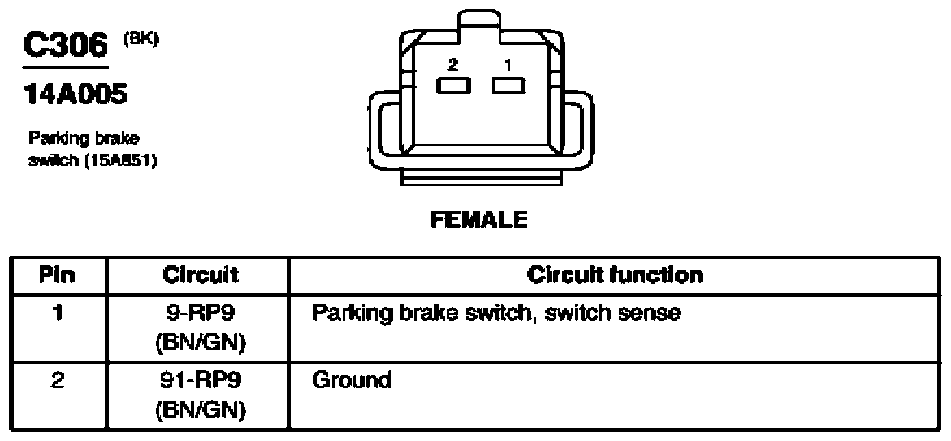

Fig 149: Parking Brake Switch Connector End View (C306)
G07839833Courtesy of FORD MOTOR CO.
Fig 150: Transmission Shift Selector Connector End View (C307)
G07839834Courtesy of FORD MOTOR CO.
Fig 151: Restraints Control Module Connector End View (C310a)
G03779140Courtesy of FORD MOTOR CO.
Fig 152: Restraints Control Module Connector End View (C310b)
G07839835Courtesy of FORD MOTOR CO.

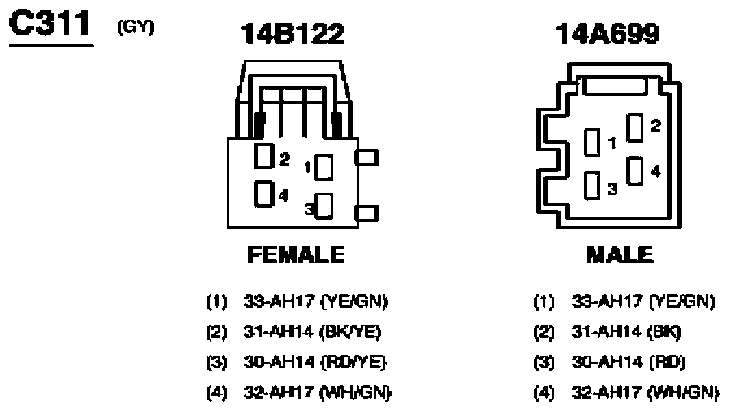

Fig 153: Inline Connector End View (C311)
G07839836Courtesy of FORD MOTOR CO.

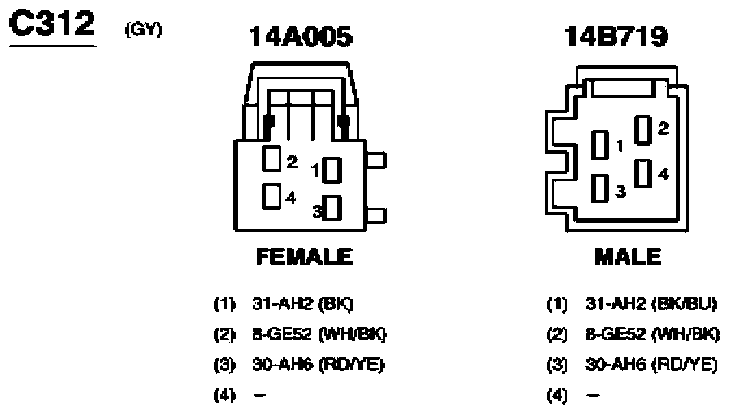

Fig 154: Inline Connector End View (C312)
G07839837Courtesy of FORD MOTOR CO.
Fig 155: Inline Connector End View (C313)
G07839838Courtesy of FORD MOTOR CO.

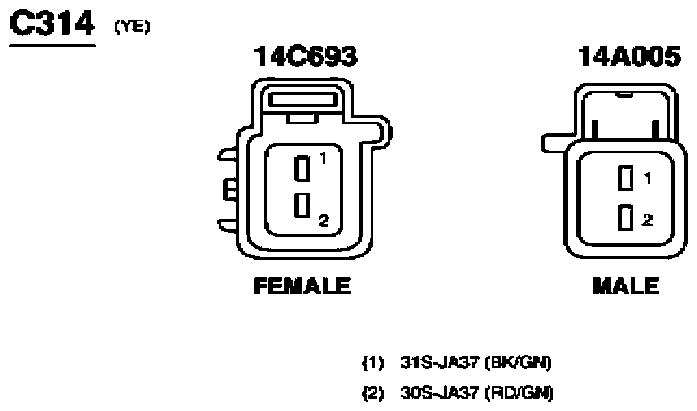

Fig 156: Inline Connector End View (C314)
G07839839Courtesy of FORD MOTOR CO.
Fig 157: Inline Connector End View (C315)
G07839840Courtesy of FORD MOTOR CO.

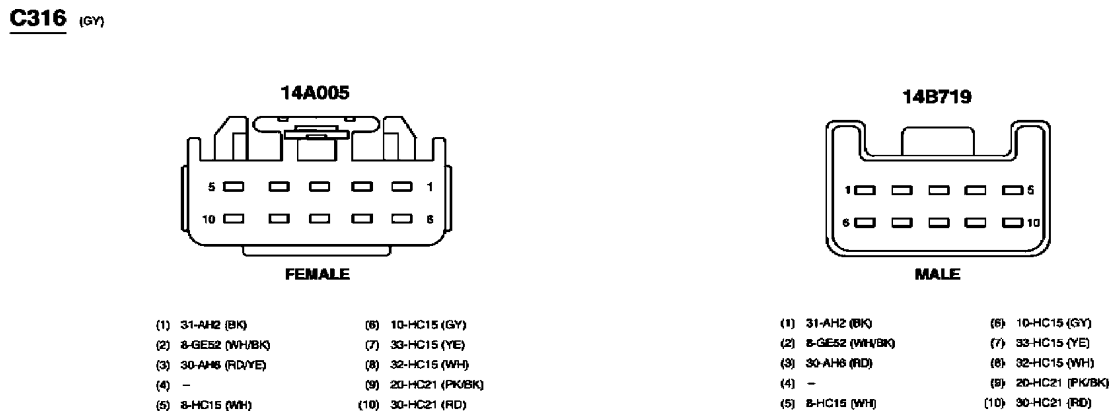

Fig 158: Inline Connector End View (C316)
G07839841Courtesy of FORD MOTOR CO.
Fig 159: Safety Belt Buckle Switch Connector End View (C323)
G07839842Courtesy of FORD MOTOR CO.

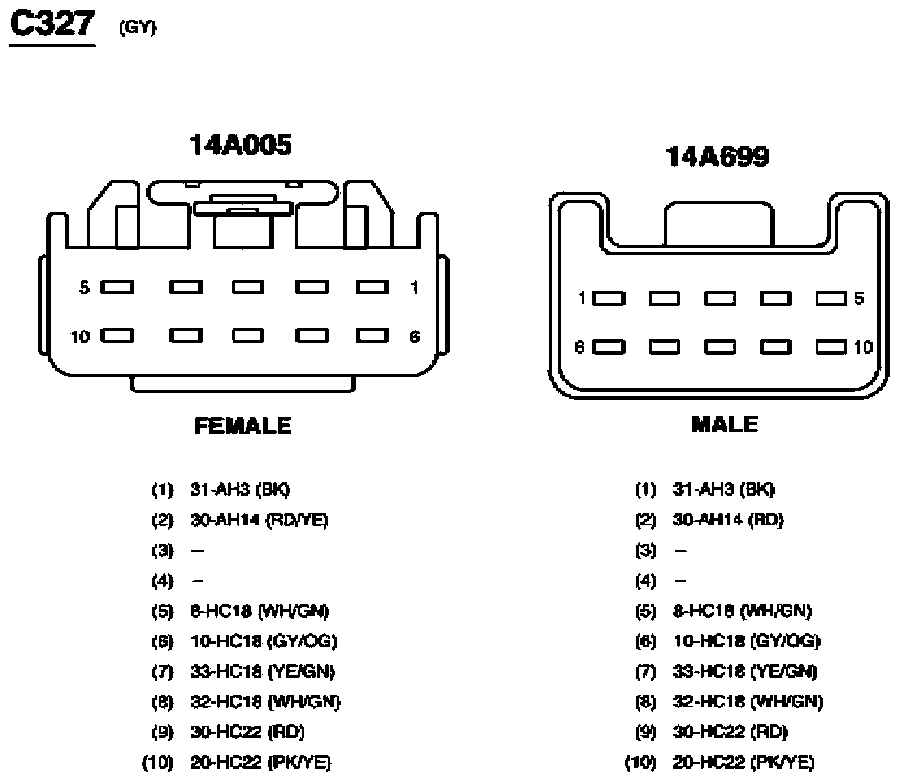

Fig 160: Inline Connector End View (C327)
G07839843Courtesy of FORD MOTOR CO.

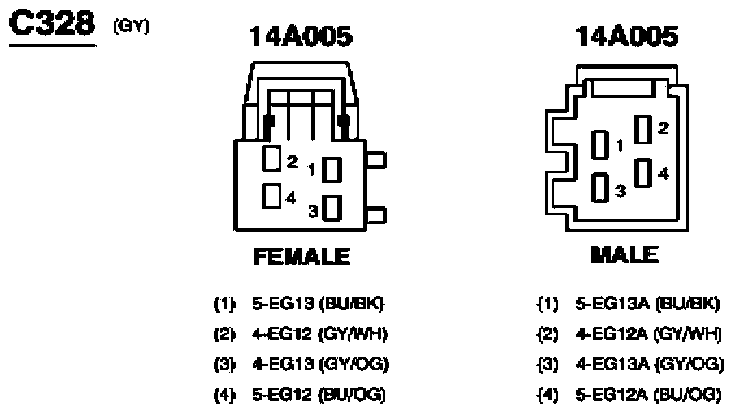

Fig 161: Inline Connector End View (C328)
G07839844Courtesy of FORD MOTOR CO.

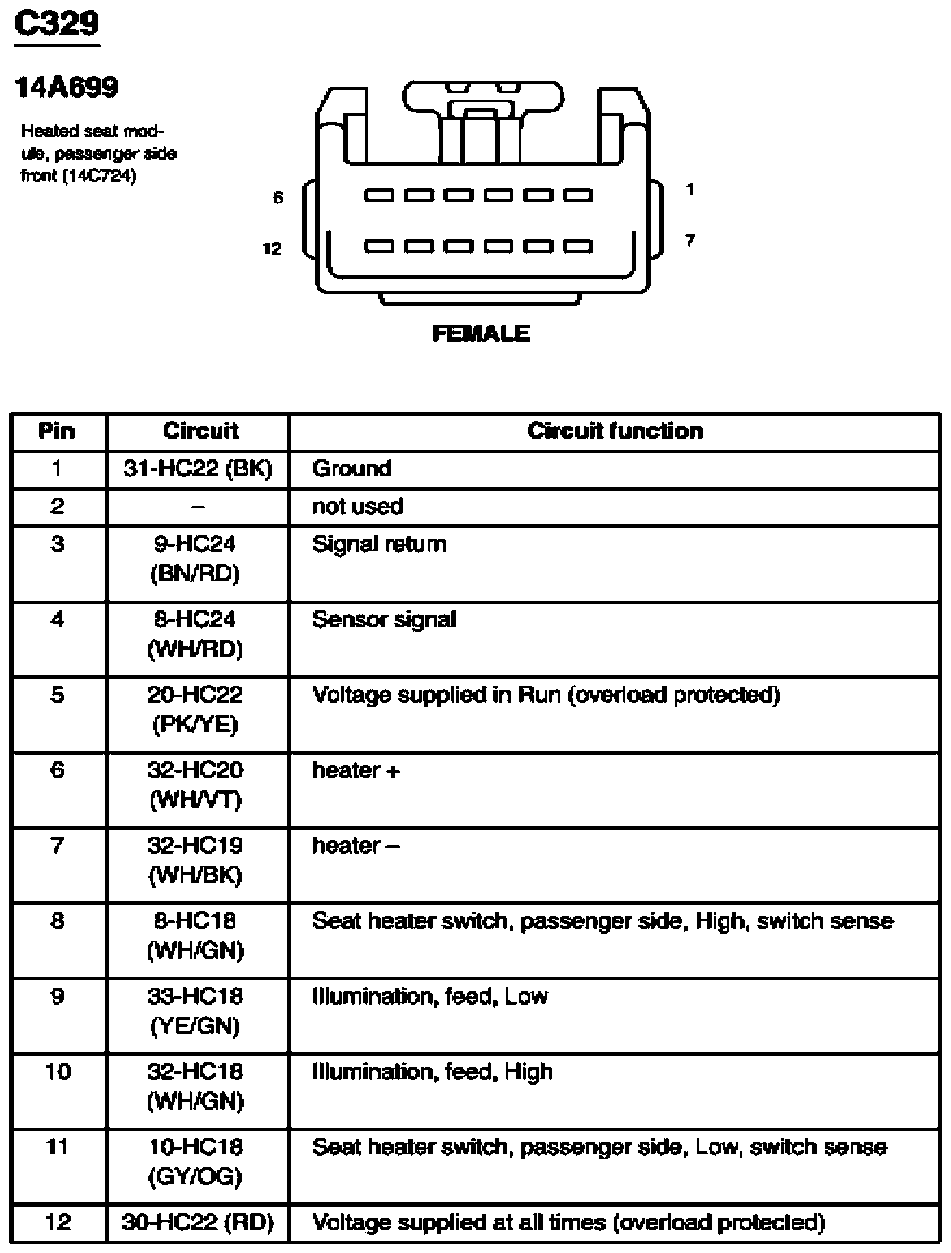

Fig 162: Heated Seat Module, Passenger Side Front Connector End View (C329)
G07839845Courtesy of FORD MOTOR CO.
Fig 163: Seat Adjust Switch, Passenger Side Front Connector End View (C330)
G07839846Courtesy of FORD MOTOR CO.
Fig 164: Seat Cushion Heater, Right Front Connector End View (C334)
G07839847Courtesy of FORD MOTOR CO.
Fig 165: Seat Back Heater, Right Front Connector End View (C335)
G07839848Courtesy of FORD MOTOR CO.

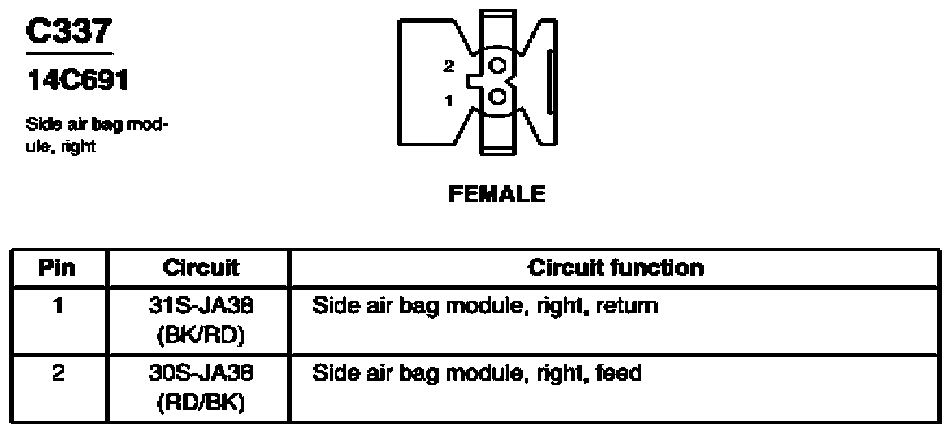

Fig 166: Side Air Bag Module, Right Connector End View (C337)
G07839849Courtesy of FORD MOTOR CO.

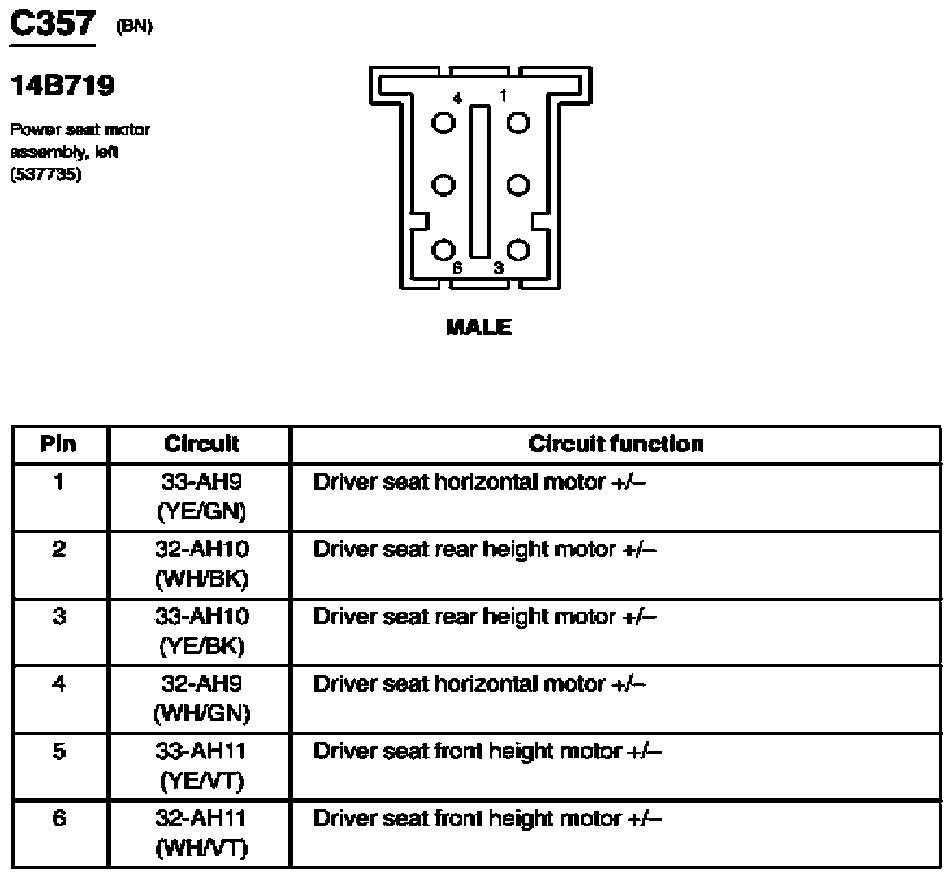

Fig 167: Power Seat Motor Assembly, Left Connector End View (C357)
G07839850Courtesy of FORD MOTOR CO.

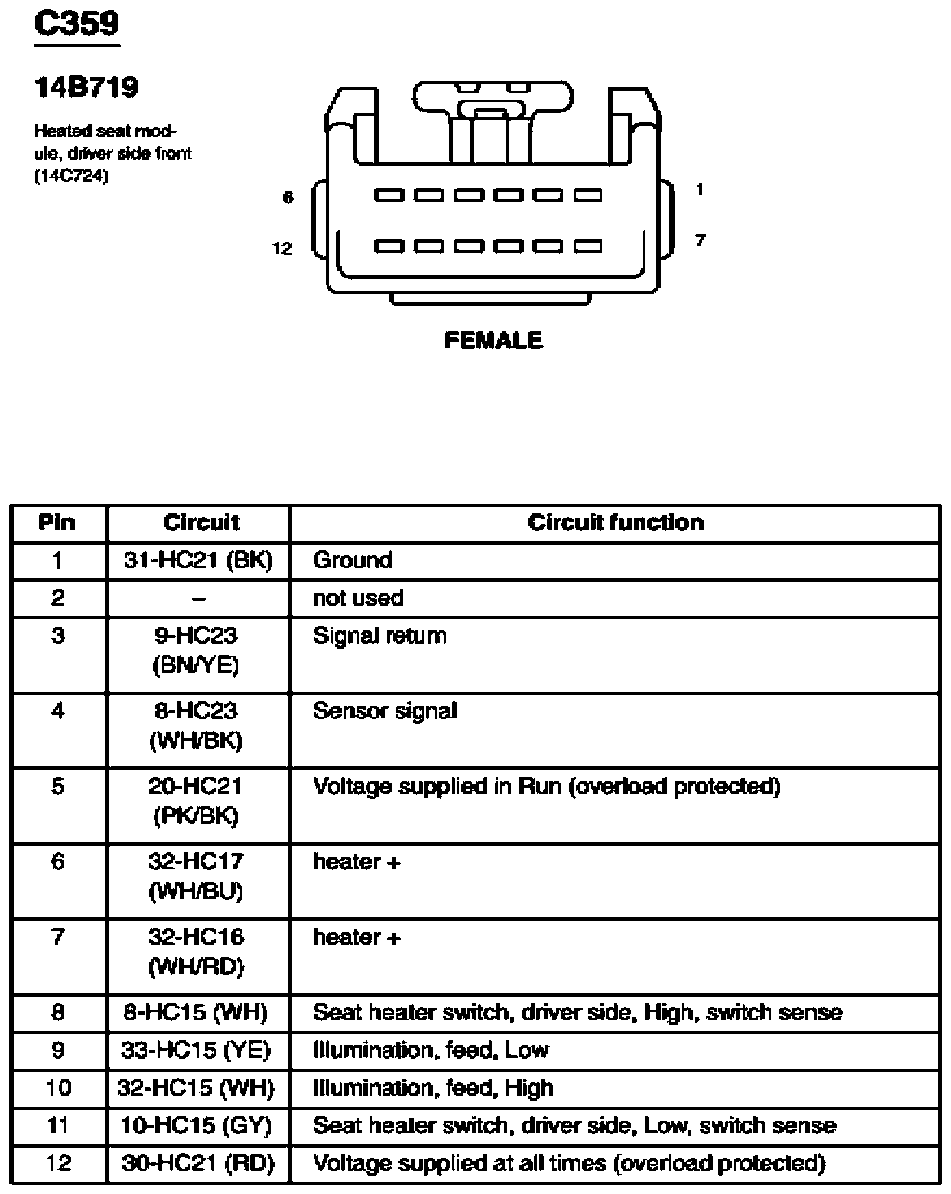

Fig 168: Heated Seat Module, Driver Side Front Connector End View (C359)
G07839851Courtesy of FORD MOTOR CO.
Fig 169: Seat Adjust Switch, Driver Side Front Connector End View (C360)
G07839852Courtesy of FORD MOTOR CO.
Fig 170: Seat Cushion Heater, Left Front Connector End View (C364)
G07839853Courtesy of FORD MOTOR CO.
Fig 171: Seat Back Heater, Left Front Connector End View (C365)
G07839854Courtesy of FORD MOTOR CO.

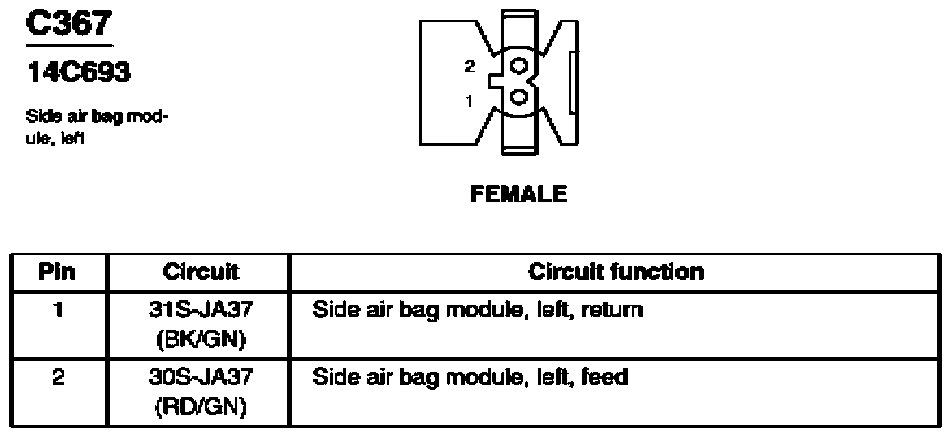

Fig 172: Side Air Bag Module, Left Connector End View (C367)
G07839855Courtesy of FORD MOTOR CO.
Fig 173: Electronic Hidden Antenna Module (EHAM) Connector End View (C387)
G07839856Courtesy of FORD MOTOR CO.
Fig 174: Speaker, Left Rear Connector End View (C395)
G07839857Courtesy of FORD MOTOR CO.

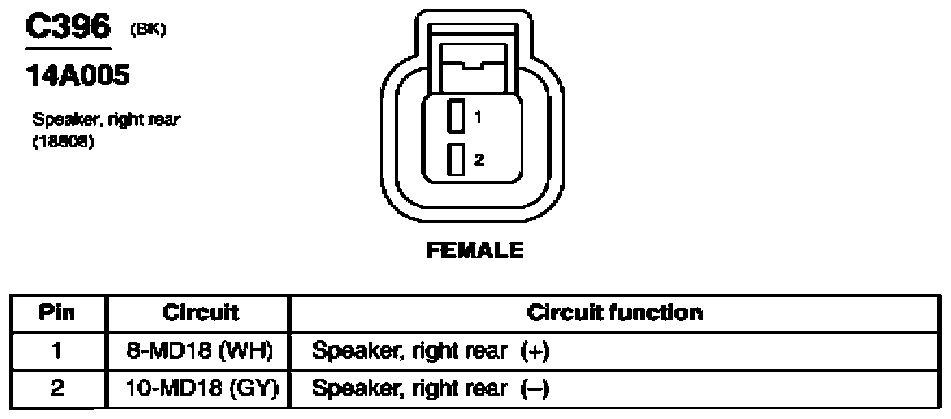

Fig 175: Speaker, Right Rear Connector End View (C396)
G07839858Courtesy of FORD MOTOR CO.
Fig 176: Rear Window Defrost Grid Connector End View (C402a)
G07839859Courtesy of FORD MOTOR CO.

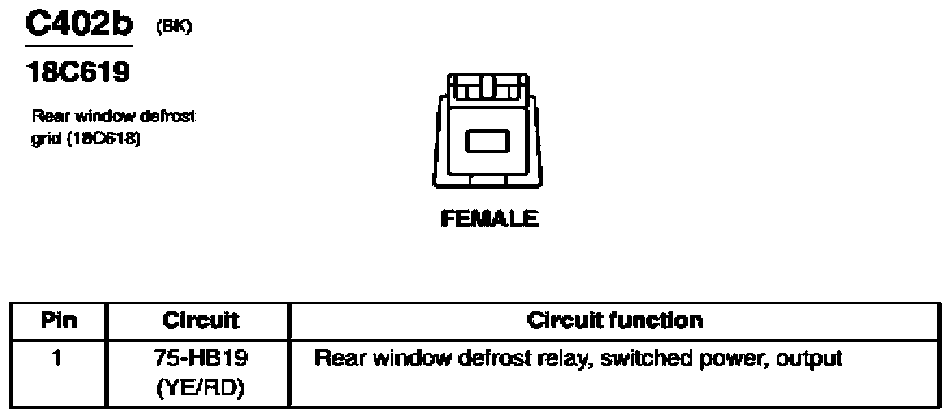

Fig 177: Rear Window Defrost Grid Connector End View (C402b)
G07839860Courtesy of FORD MOTOR CO.
Fig 178: Inline Connector End View (C405)
G07839861Courtesy of FORD MOTOR CO.

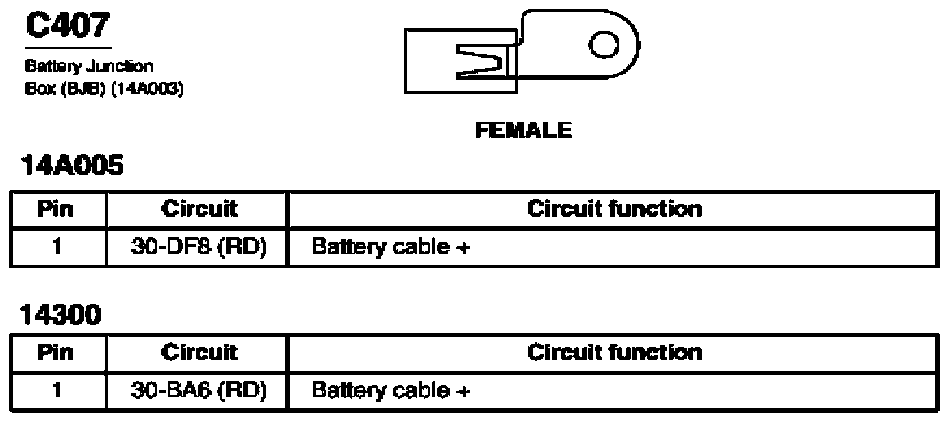

Fig 179: Battery Junction Box (BJB) Connector End View (C407)
G07839862Courtesy of FORD MOTOR CO.

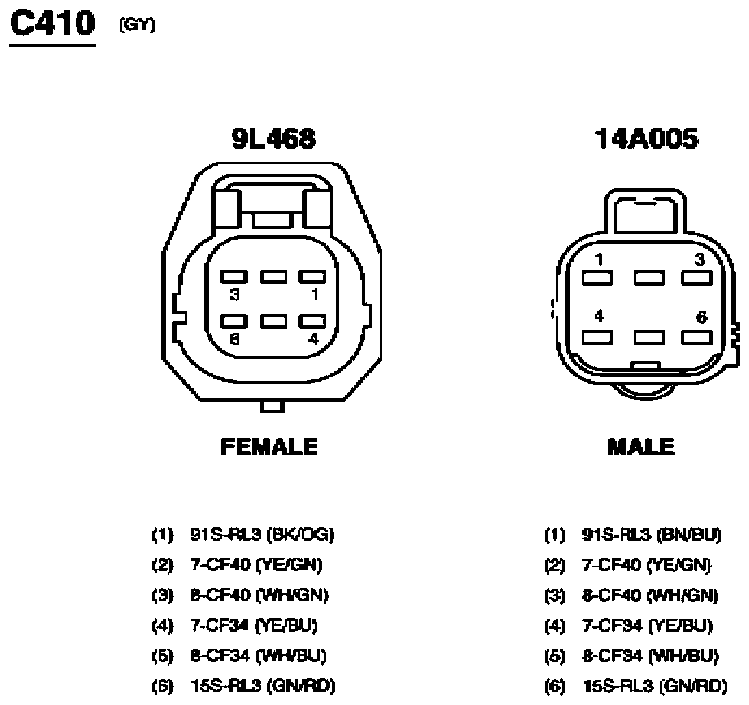

Fig 180: Inline Connector End View (C410)
G07839863Courtesy of FORD MOTOR CO.
Fig 181: Inline Connector End View (C411)
G07839864Courtesy of FORD MOTOR CO.
Fig 182: Lamp Assembly, Left Rear Connector End View (C414)
G07839865Courtesy of FORD MOTOR CO.

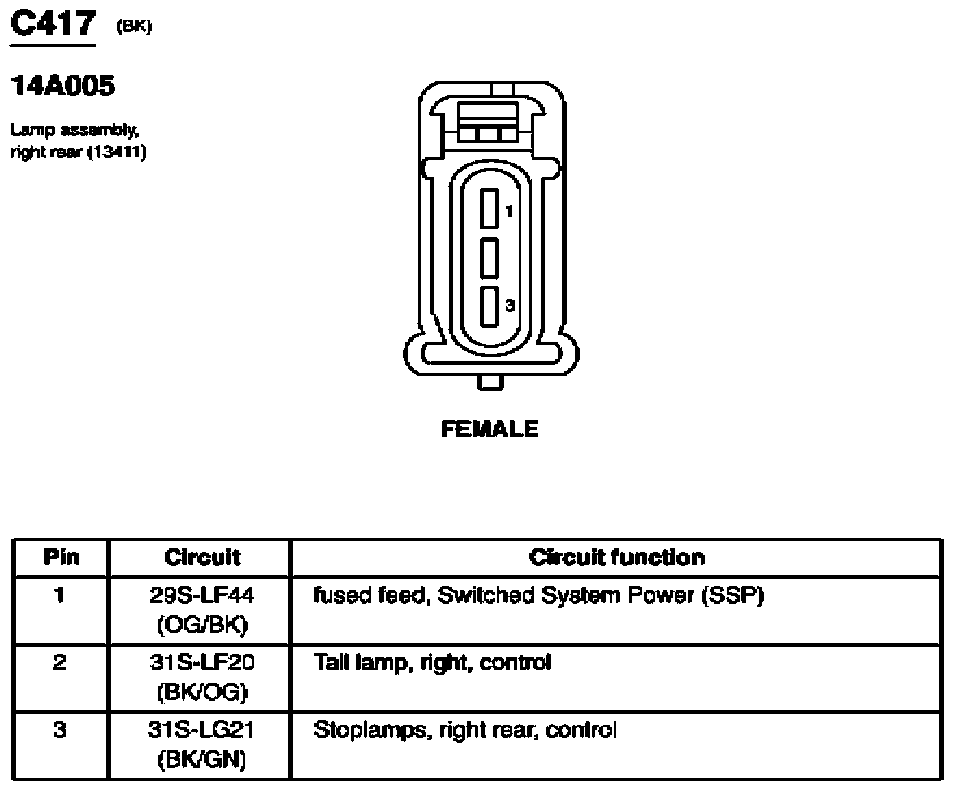

Fig 183: Lamp Assembly, Right Rear Connector End View (C417)
G07839866Courtesy of FORD MOTOR CO.
Fig 184: Front Electronic Module (FEM) Connector End View (C420a)
G07839867Courtesy of FORD MOTOR CO.

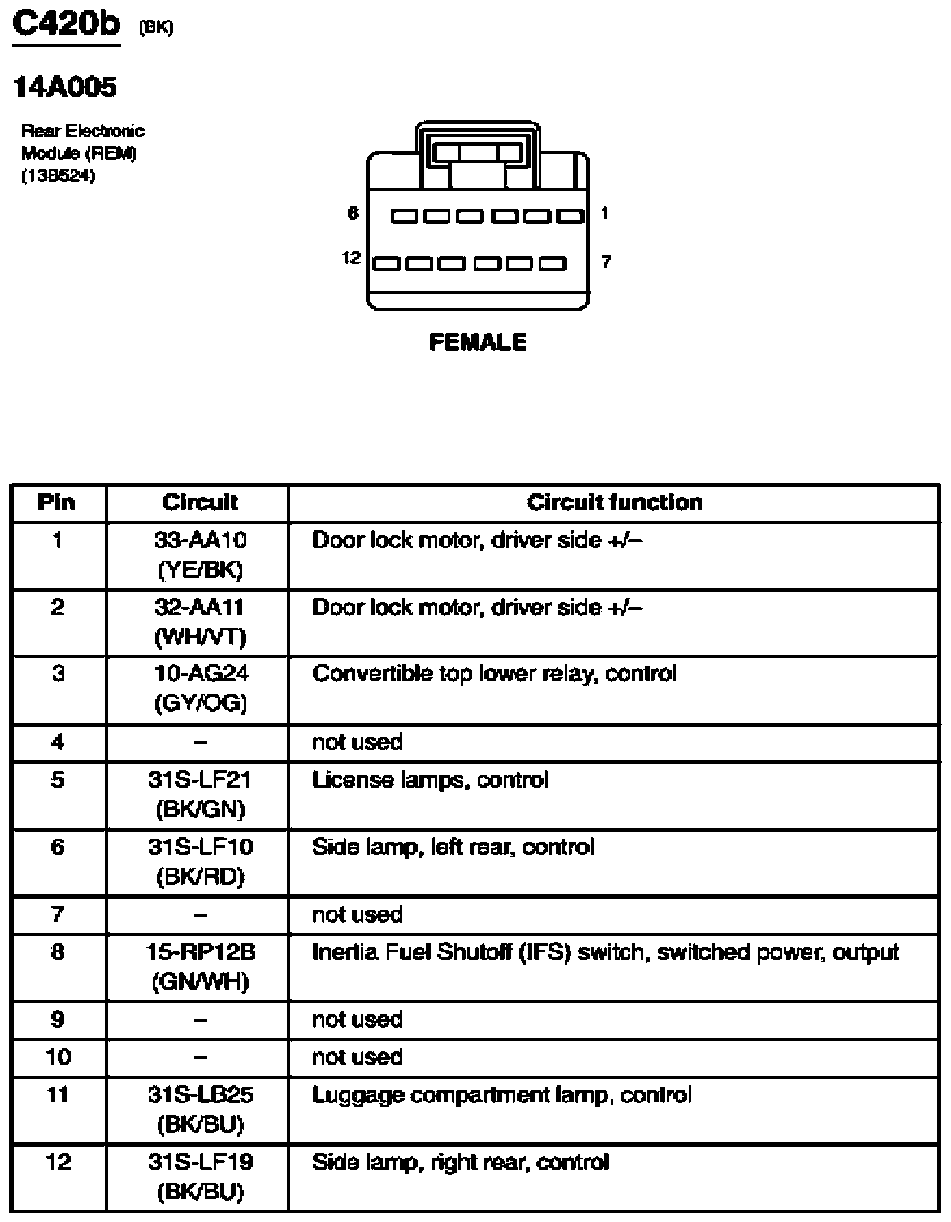

Fig 185: Rear Electronic Module (REM) Connector End View (C420b)
G07839868Courtesy of FORD MOTOR CO.

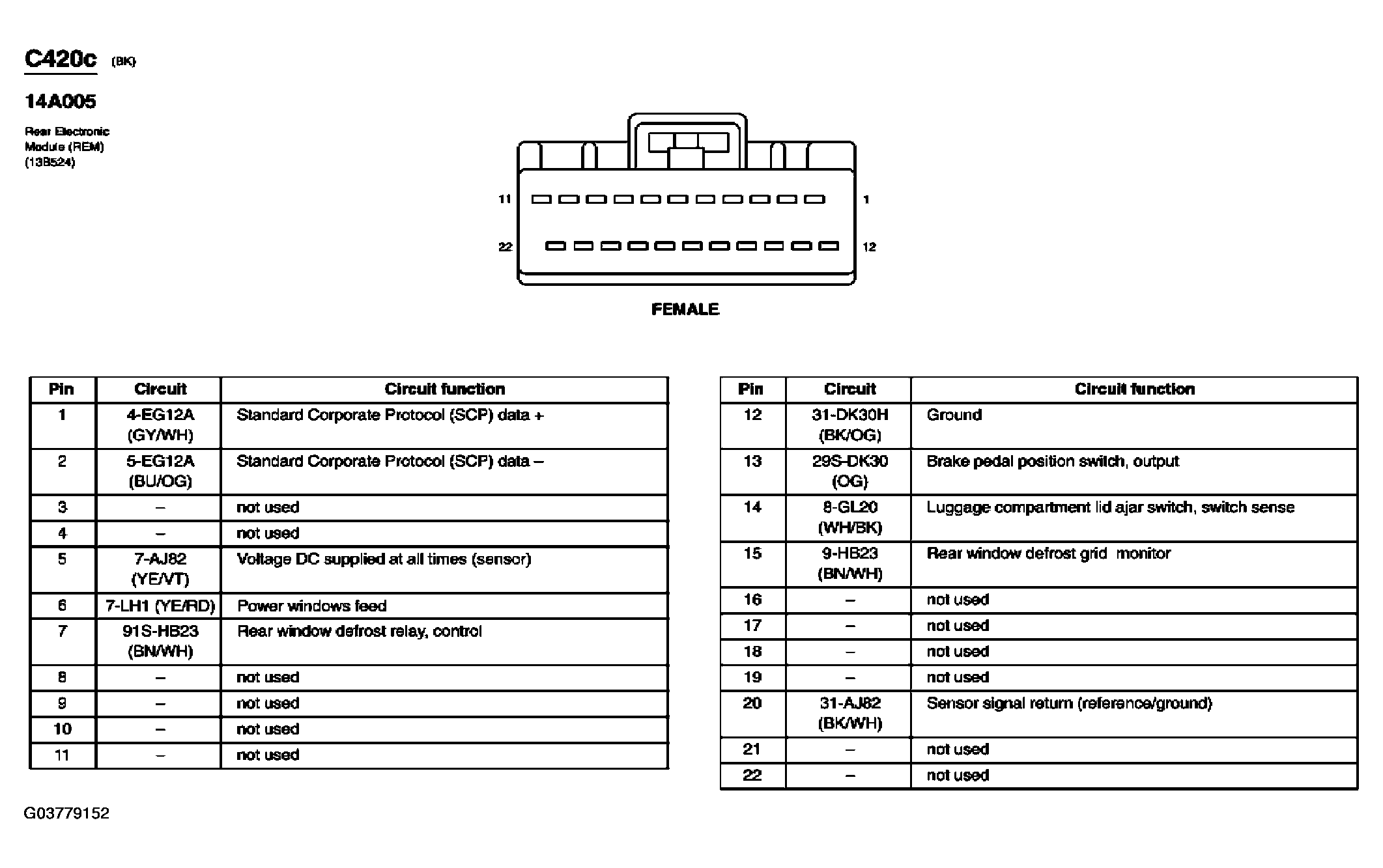

Fig 186: Rear Electronic Module (REM) Connector End View (C420c)
G03779152Courtesy of FORD MOTOR CO.
Fig 187: Rear Electronic Module (REM) Connector End View (C420d)
G03779153Courtesy of FORD MOTOR CO.
Fig 188: Rear Electronic Module (REM) Connector End View (C420e)
G03779154Courtesy of FORD MOTOR CO.
Fig 189: Rear Electronic Module (REM) Connector End View (C420f)
G03779155Courtesy of FORD MOTOR CO.
Fig 190: Rear Window Defrost Grid Connector End View (C421)
G07839869Courtesy of FORD MOTOR CO.
Fig 191: Wheel Speed Sensor, Right Rear Connector End View (C426)
G07839870Courtesy of FORD MOTOR CO.

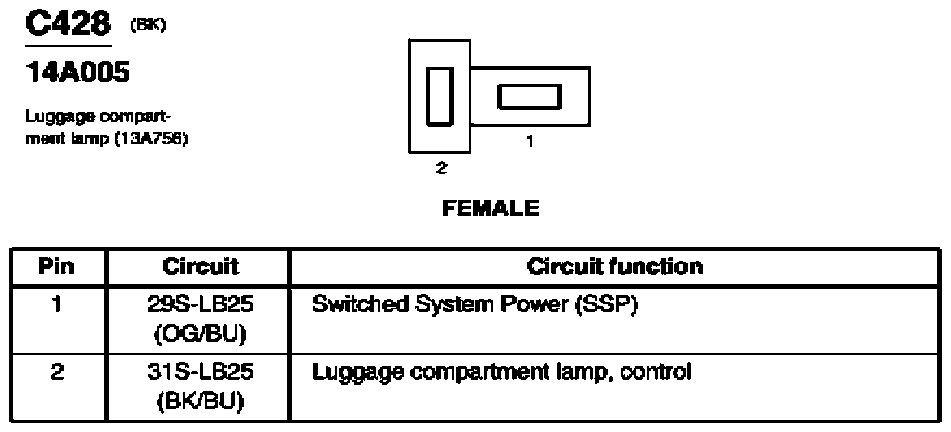

Fig 192: Luggage Compartment Lamp Connector End View (C428)
G07839871Courtesy of FORD MOTOR CO.

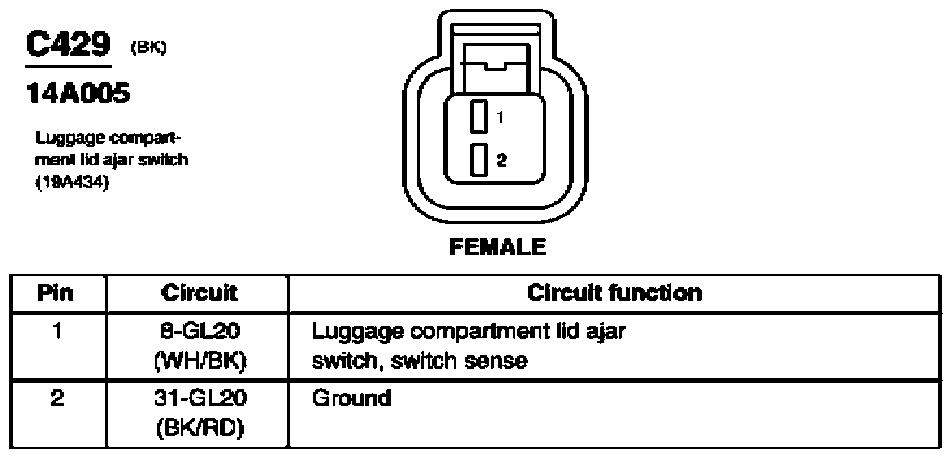

Fig 193: Luggage Compartment Lid Ajar Switch Connector End View (C429)
G07839872Courtesy of FORD MOTOR CO.

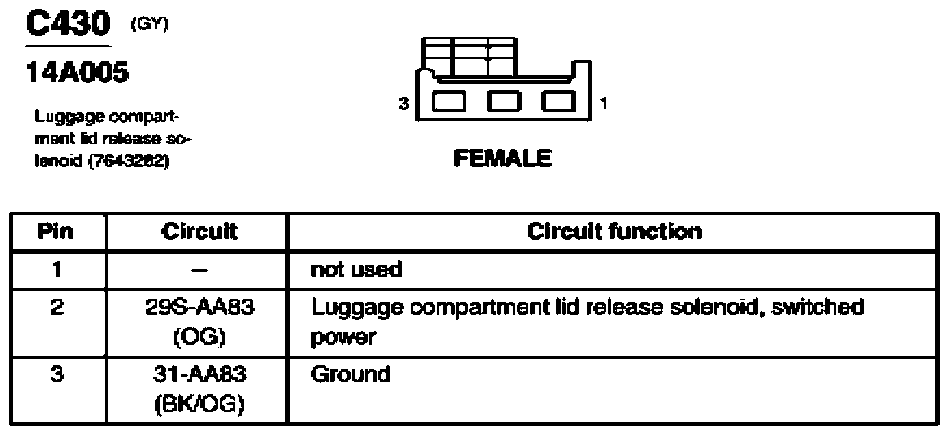

Fig 194: Luggage Compartment Lid Release Solenoid Connector End View (C430)
G07839873Courtesy of FORD MOTOR CO.

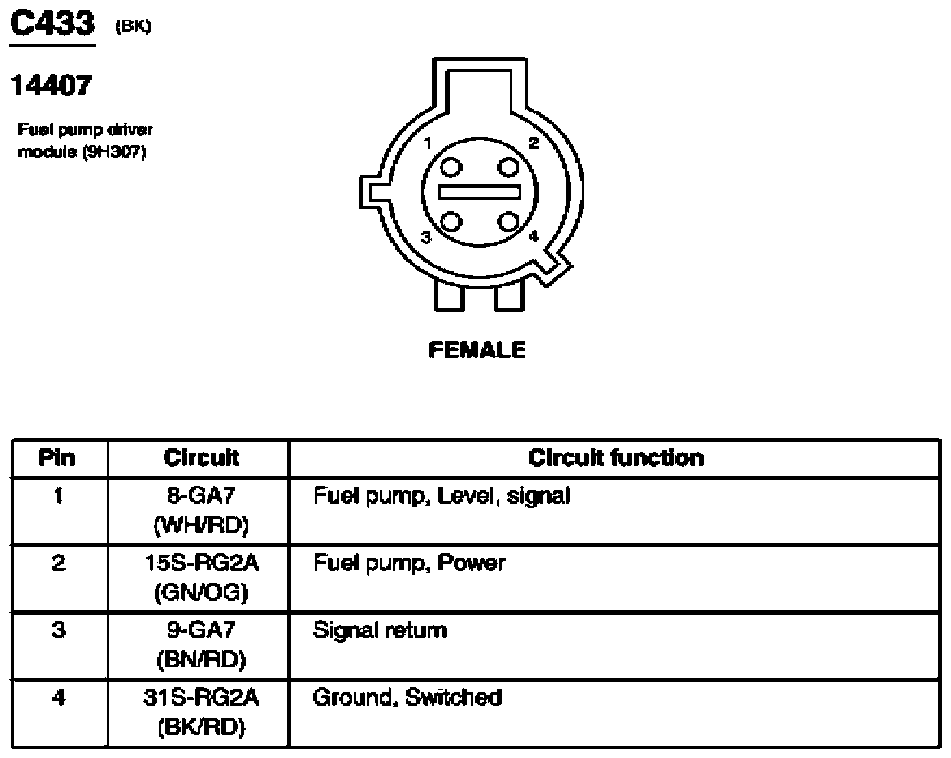

Fig 195: Fuel Pump Driver Module Connector End View (C433)
G07839874Courtesy of FORD MOTOR CO.

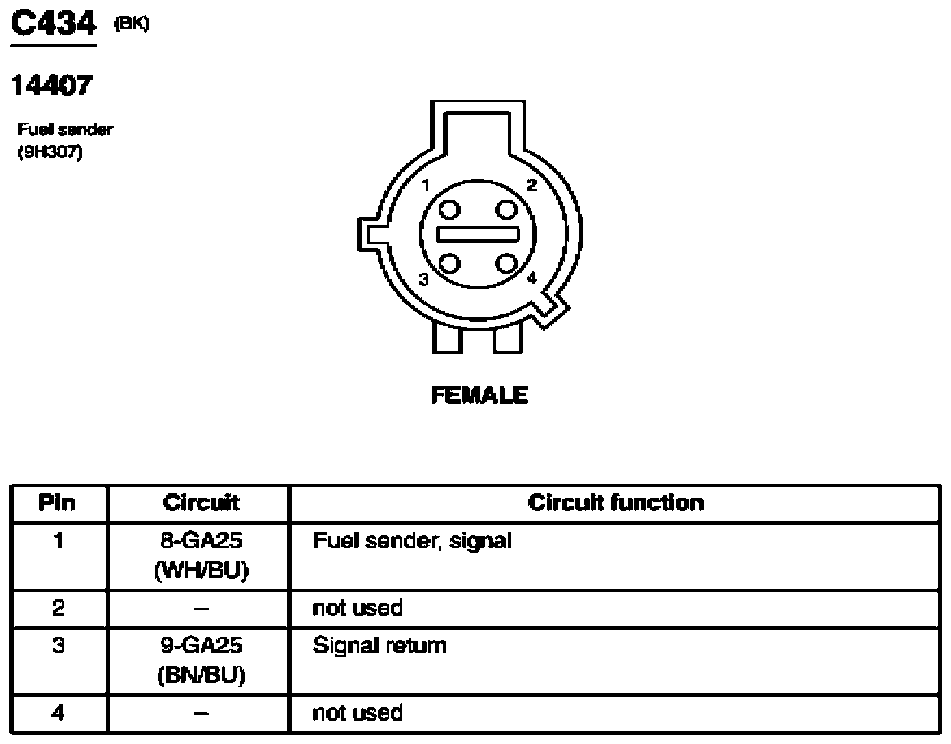

Fig 196: Fuel Sender Connector End View (C434)
G07839875Courtesy of FORD MOTOR CO.
Fig 197: Fuel Tank Pressure Transducer Sensor Connector End View (C435)
G07839876Courtesy of FORD MOTOR CO.

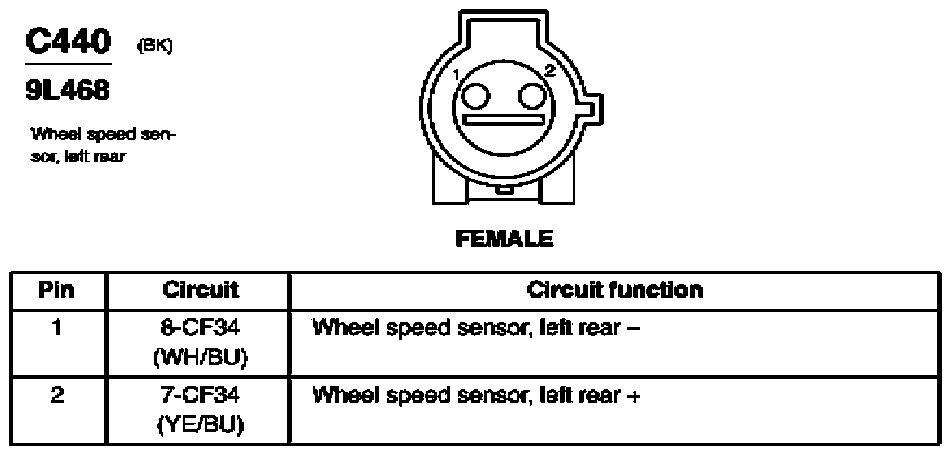

Fig 198: Wheel Speed Sensor, Left Rear Connector End View (C440)
G07839877Courtesy of FORD MOTOR CO.

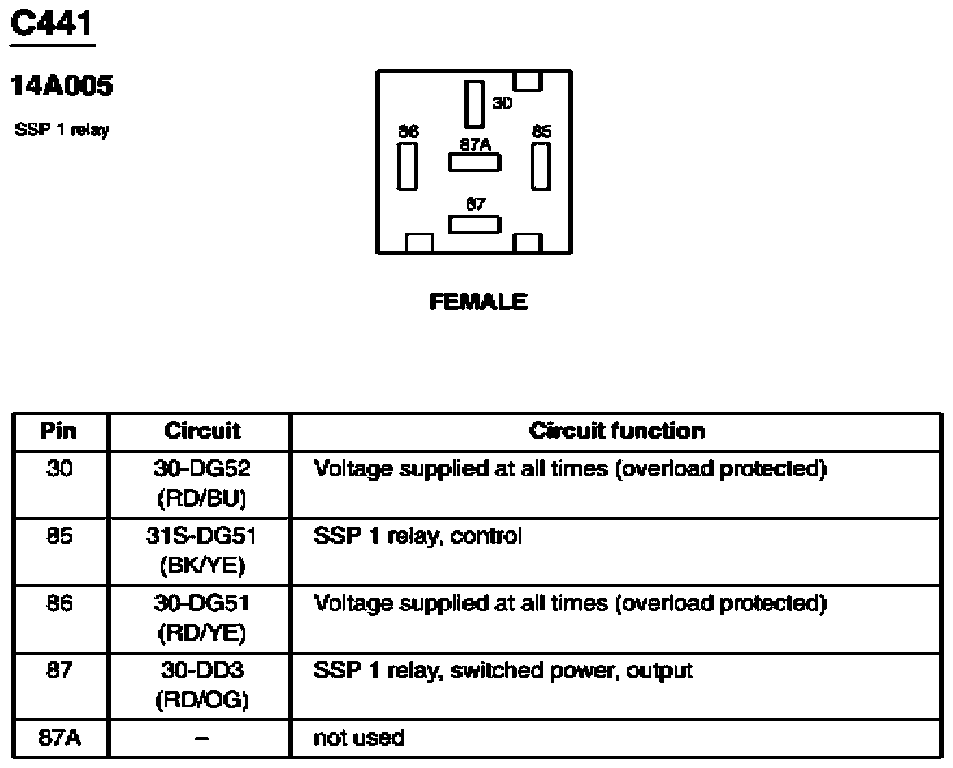

Fig 199: SSP 1 Relay Connector End View (C441)
G07839878Courtesy of FORD MOTOR CO.

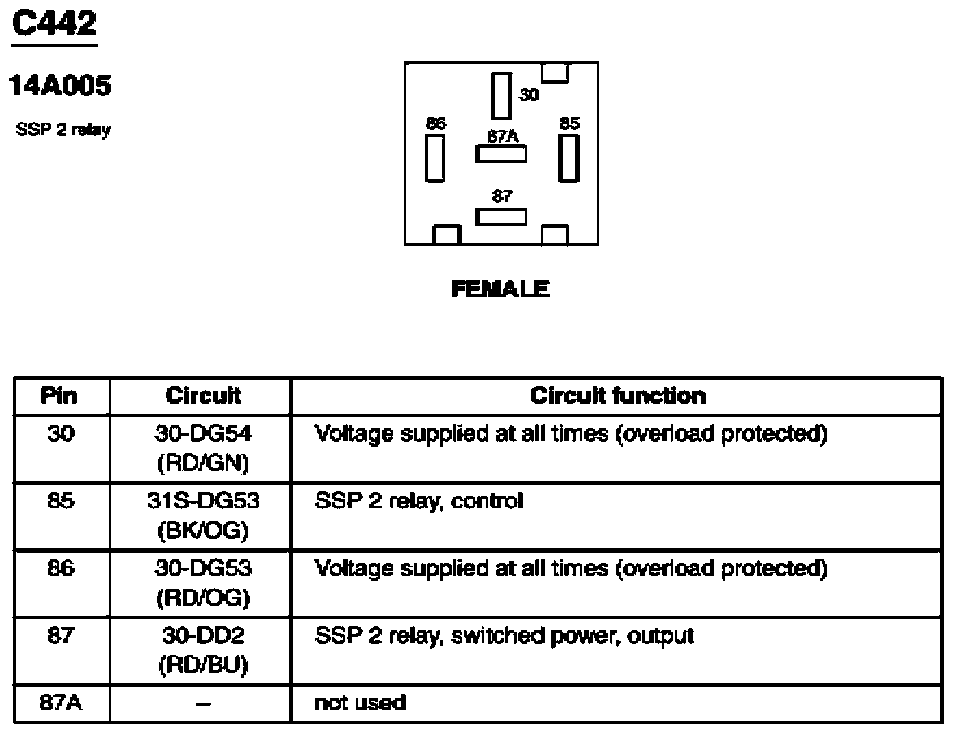

Fig 200: SSP 2 Relay Connector End View (C442)
G07839879Courtesy of FORD MOTOR CO.

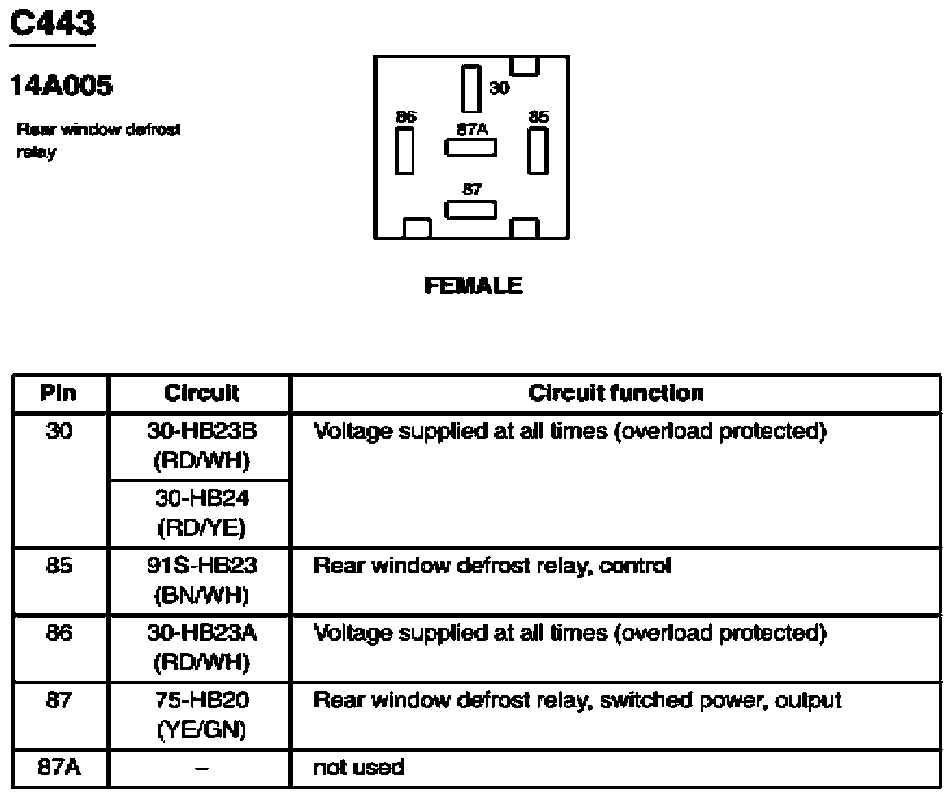

Fig 201: Rear Window Defrost Relay Connector End View (C443)
G07839880Courtesy of FORD MOTOR CO.
Fig 202: SSP 3 Relay Connector End View (C444)
G07839881Courtesy of FORD MOTOR CO.
Fig 203: SSP 4 Relay Connector End View (C445)
G07839882Courtesy of FORD MOTOR CO.
Fig 204: Fuel Pump Relay Connector End View (C446)
G07839883Courtesy of FORD MOTOR CO.

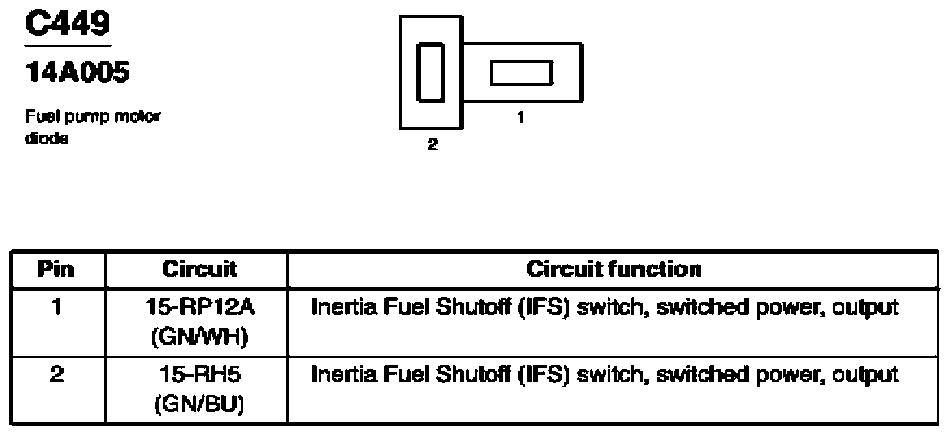

Fig 205: Fuel Pump Motor Diode Connector End View (C449)
G07839884Courtesy of FORD MOTOR CO.

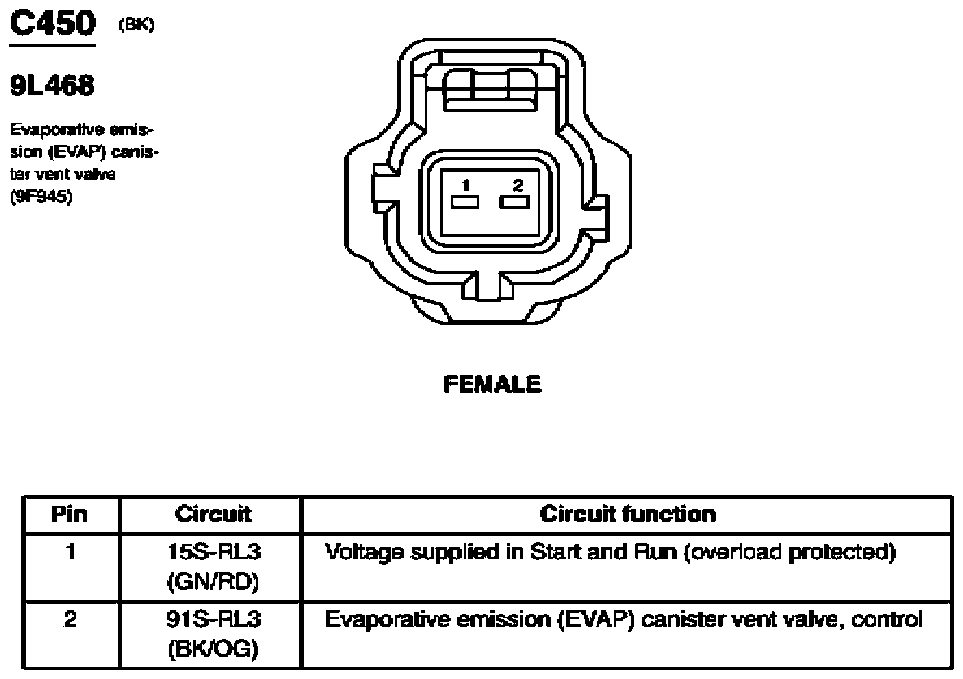

Fig 206: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
G07839885Courtesy of FORD MOTOR CO.

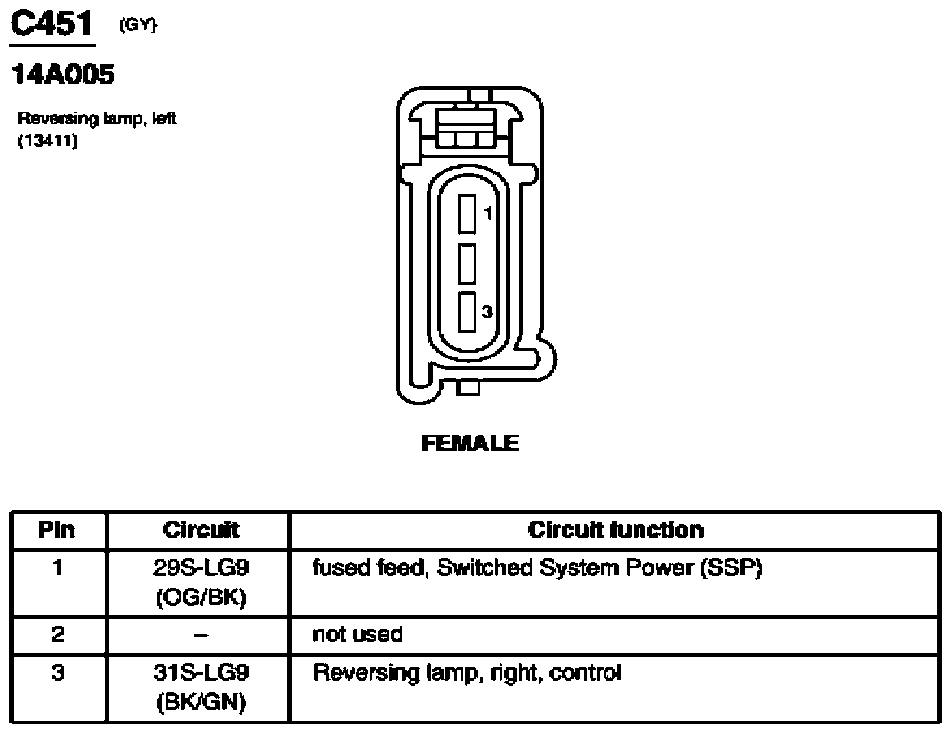

Fig 207: Reversing Lamp, Left Connector End View (C451)
G07839886Courtesy of FORD MOTOR CO.
Fig 208: Reversing Lamp, Right Connector End View (C461)
G07839887Courtesy of FORD MOTOR CO.

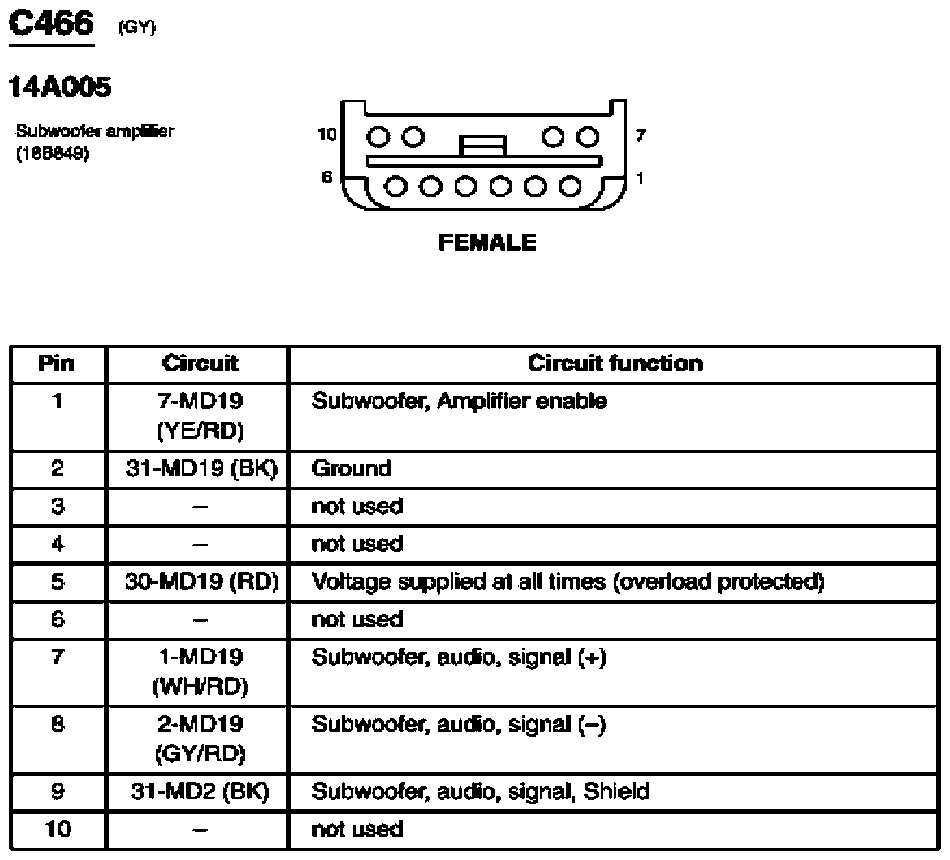

Fig 209: Subwoofer Amplifier Connector End View (C466)
G07839888Courtesy of FORD MOTOR CO.
Fig 210: High Mounted Stoplamp Connector End View (C475)
G07839889Courtesy of FORD MOTOR CO.

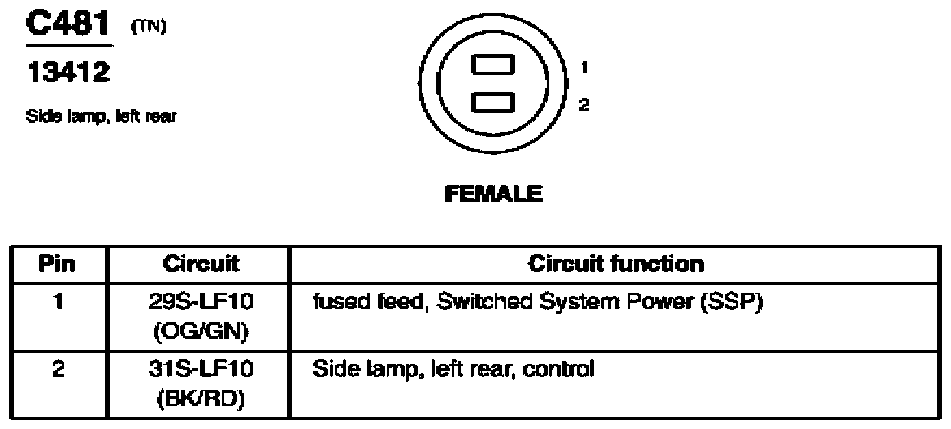

Fig 211: Side Lamp, Left Rear Connector End View (C481)
G07839890Courtesy of FORD MOTOR CO.

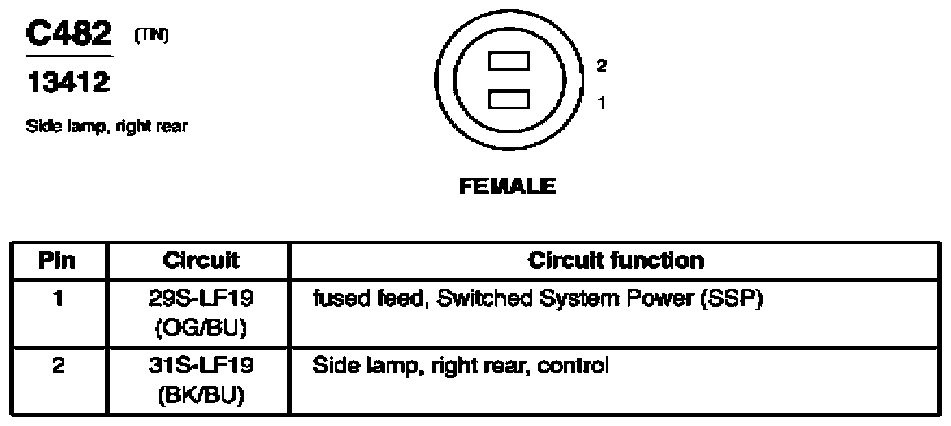

Fig 212: Side Lamp, Right Rear Connector End View (C482)
G07839891Courtesy of FORD MOTOR CO.
Fig 213: License Lamps Connector End View (C490)
G07839892Courtesy of FORD MOTOR CO.
Fig 214: Master Window Adjust Switch Connector End View (C504)
G07839893Courtesy of FORD MOTOR CO.
Fig 215: Door Lock Switch, Driver Side Connector End View (C505)
G07839894Courtesy of FORD MOTOR CO.

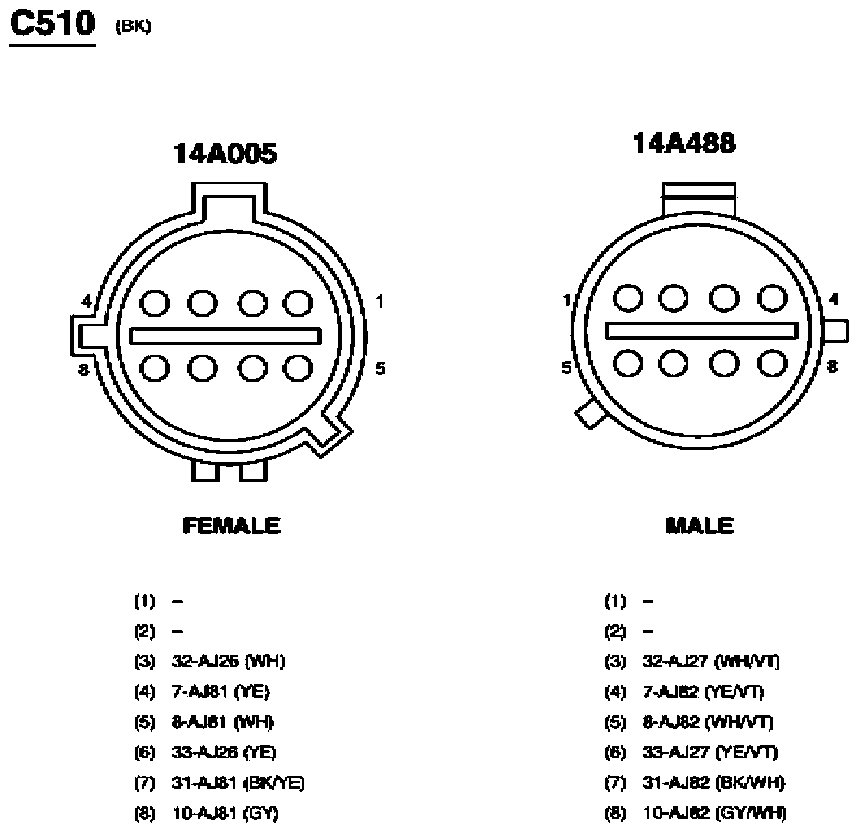

Fig 216: Inline Connector End View (C510)
G07839895Courtesy of FORD MOTOR CO.
Fig 217: Perimeter Anti-Theft Reset Switch Connector End View (C515)
G07839896Courtesy of FORD MOTOR CO.

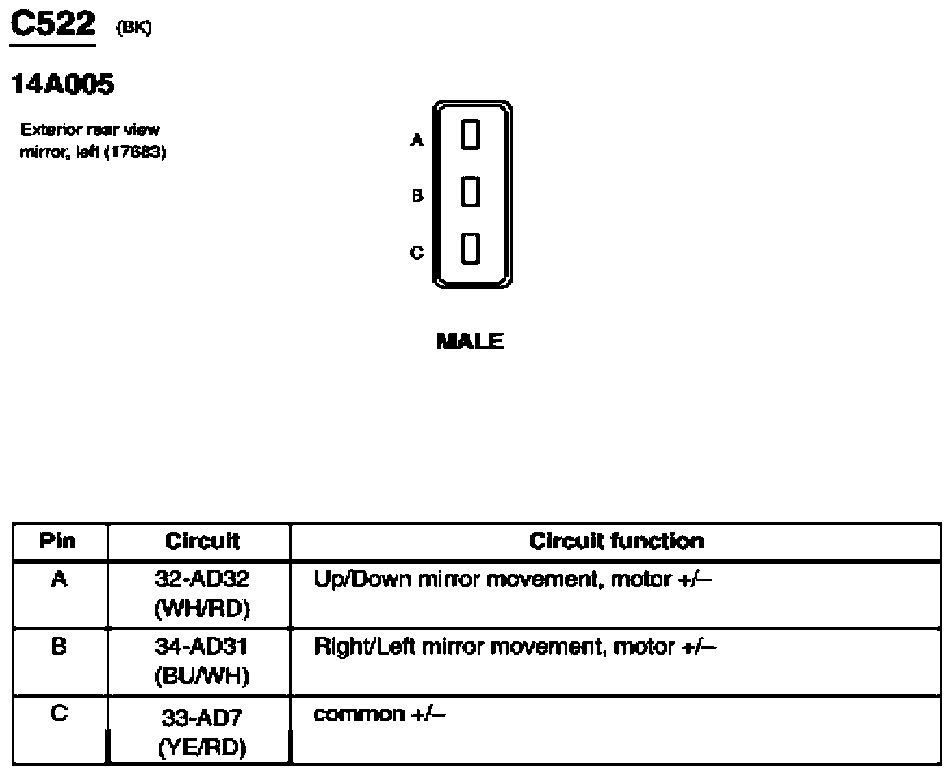

Fig 218: Exterior Rear View Mirror, Left Connector End View (C522)
G07839897Courtesy of FORD MOTOR CO.

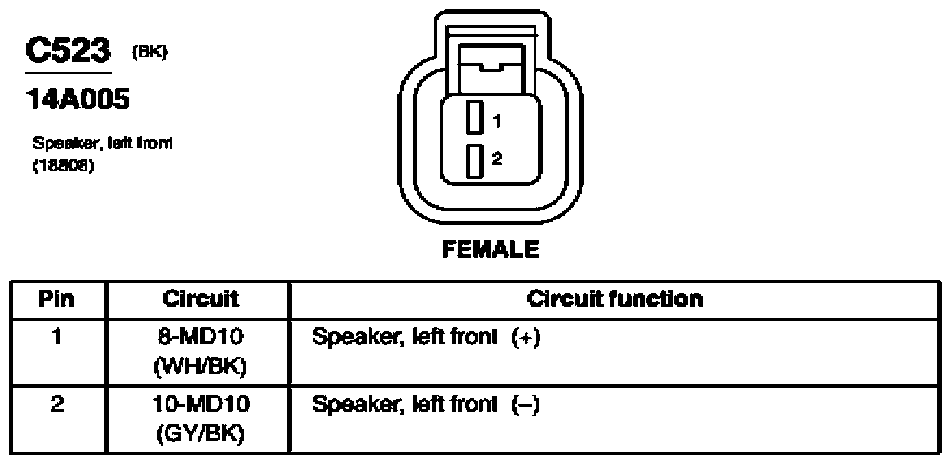

Fig 219: Speaker, Left Front Connector End View (C523)
G07839898Courtesy of FORD MOTOR CO.

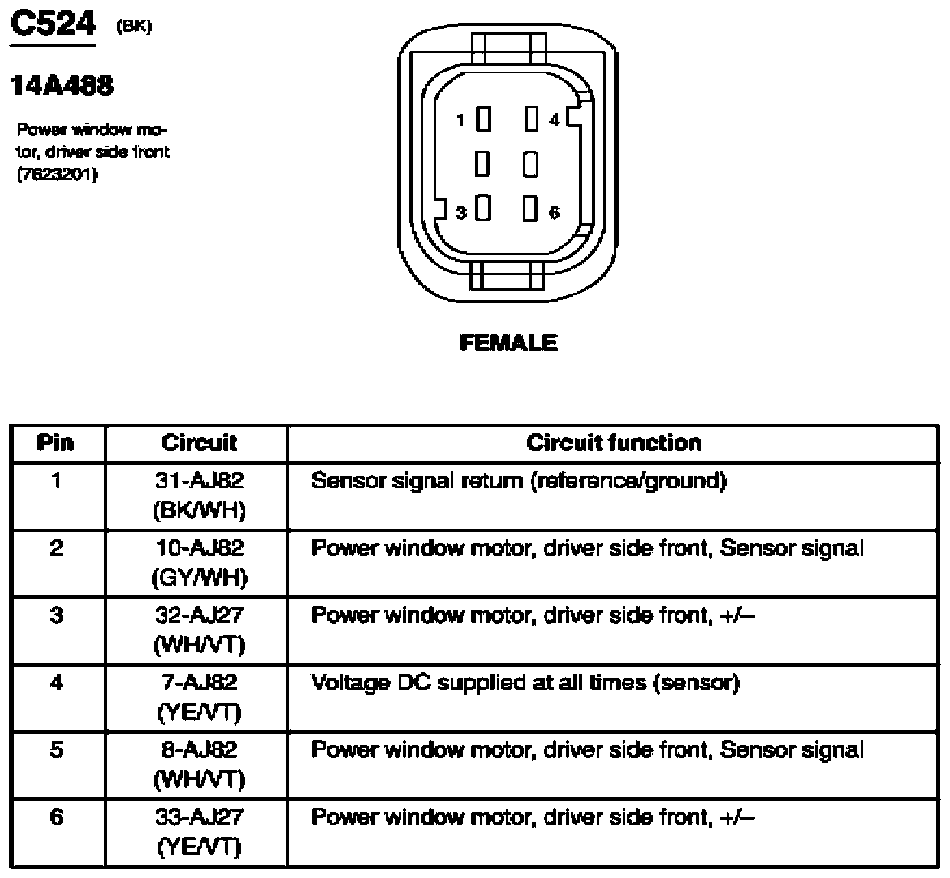

Fig 220: Power Window Motor, Driver Side Front Connector End View (C524)
G07839899Courtesy of FORD MOTOR CO.
Fig 221: Door Lock Unit, Driver Side Front Connector End View (C525)
G07839900Courtesy of FORD MOTOR CO.

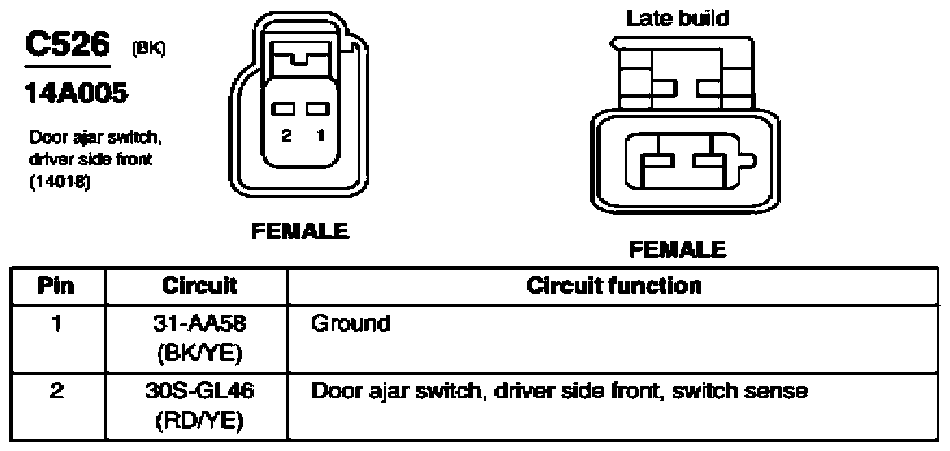

Fig 222: Door Ajar Switch, Driver Side Front Connector End View (C526)
G07839901Courtesy of FORD MOTOR CO.
Fig 223: Luggage Compartment Lid Release Switch Connector End View (C534)
G07839902Courtesy of FORD MOTOR CO.
Fig 224: Exterior Rear View Mirror, Right Connector End View (C601)
G07839903Courtesy of FORD MOTOR CO.

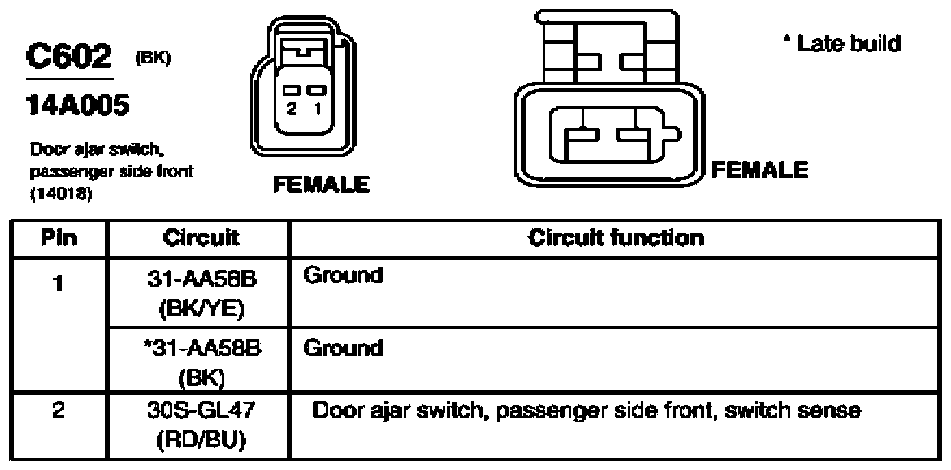

Fig 225: Door Ajar Switch, Passenger Side Front Connector End View (C602)
G07839904Courtesy of FORD MOTOR CO.

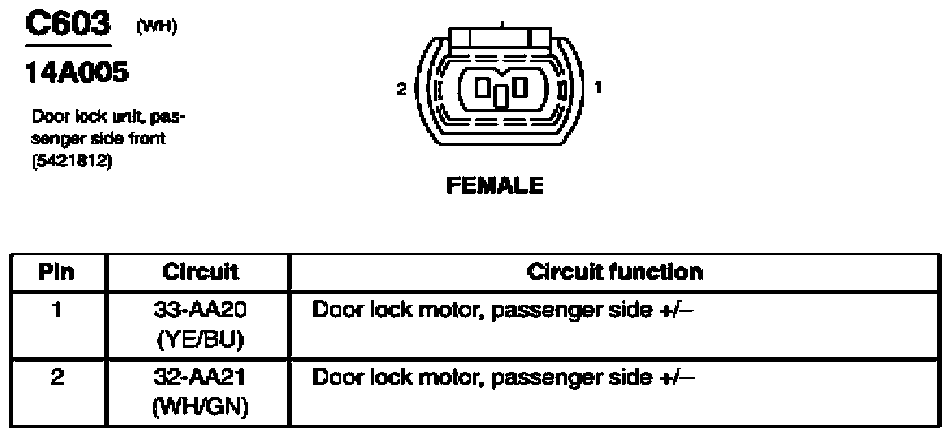

Fig 226: Door Lock Unit, Passenger Side Front Connector End View (C603)
G07839905Courtesy of FORD MOTOR CO.
Fig 227: Window Adjust Switch, Passenger Side Connector End View (C604)
G07839906Courtesy of FORD MOTOR CO.
Fig 228: Door Lock Switch, Passenger Side Connector End View (C605)
G07839907Courtesy of FORD MOTOR CO.
Fig 229: Power Window Motor, Passenger Side Front Connector End View (C608)
G07839908Courtesy of FORD MOTOR CO.

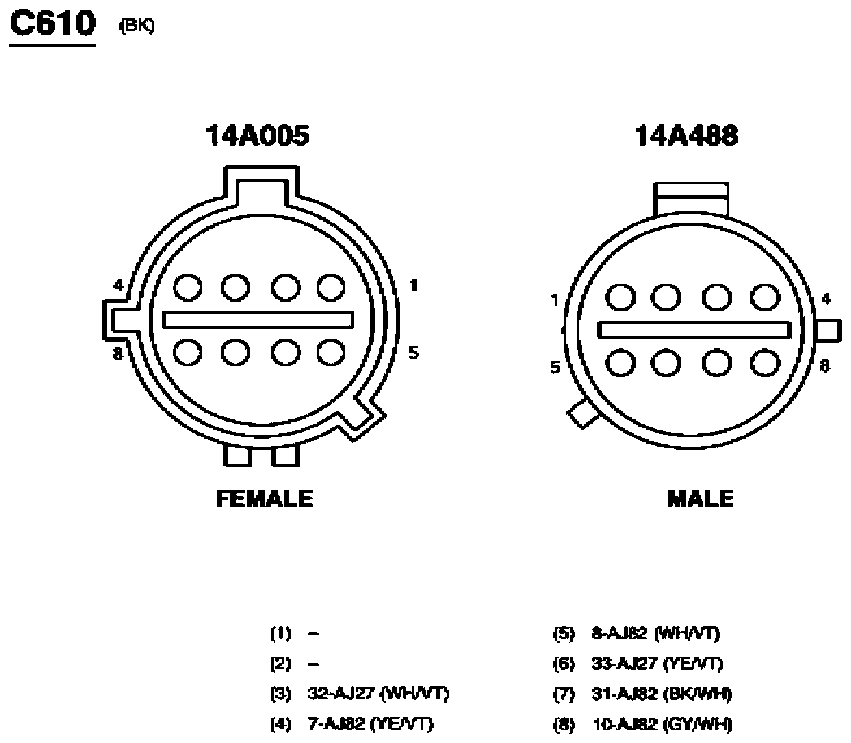

Fig 230: Inline Connector End View (C610)
G07839909Courtesy of FORD MOTOR CO.

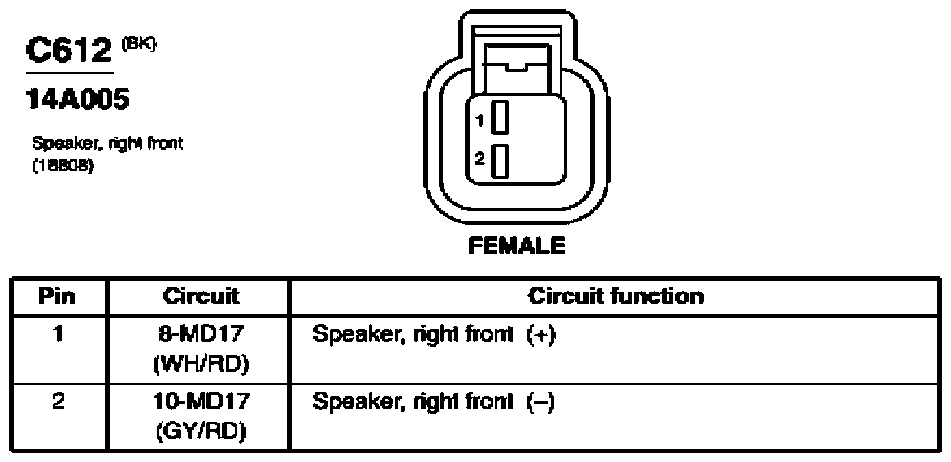

Fig 231: Speaker, Right Front Connector End View (C612)
G07839910Courtesy of FORD MOTOR CO.
Fig 232: Interior/Map Lamps Assembly, Front Connector End View (C929)
G07839911Courtesy of FORD MOTOR CO.

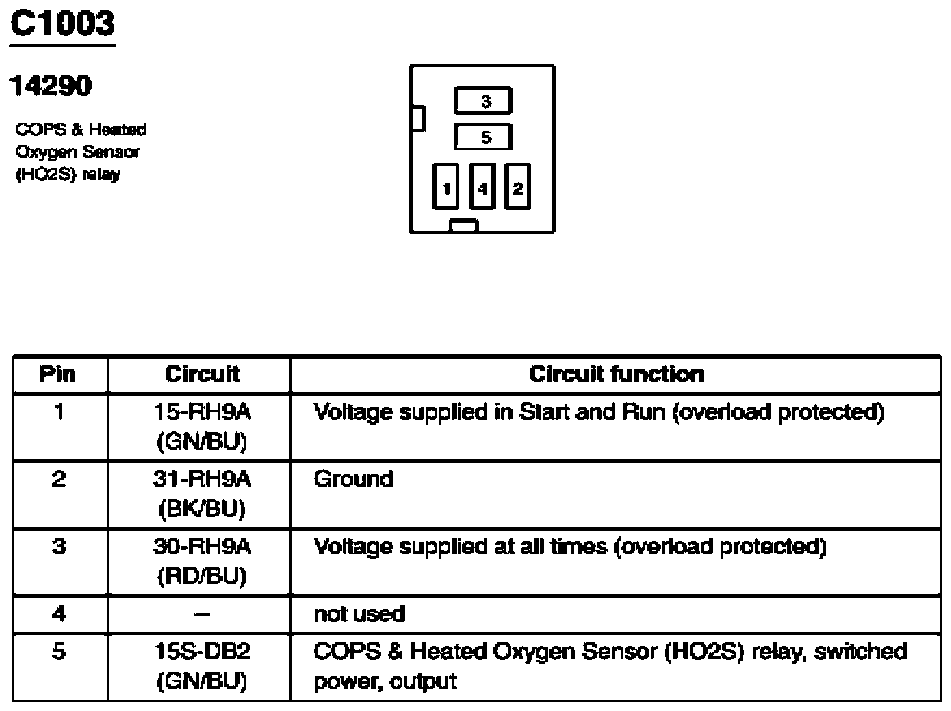

Fig 233: COPS & Heated Oxygen Sensor (HO2S) Relay Connector End View (C1003)
G07839912Courtesy of FORD MOTOR CO.
Fig 234: Auxiliary Coolant Pump Relay Connector End View (C1005)
G07839913Courtesy of FORD MOTOR CO.
Fig 235: Horn Relay Connector End View (C1006)
G07839914Courtesy of FORD MOTOR CO.
Fig 236: A/C Clutch Relay Connector End View (C1008)
G07839915Courtesy of FORD MOTOR CO.

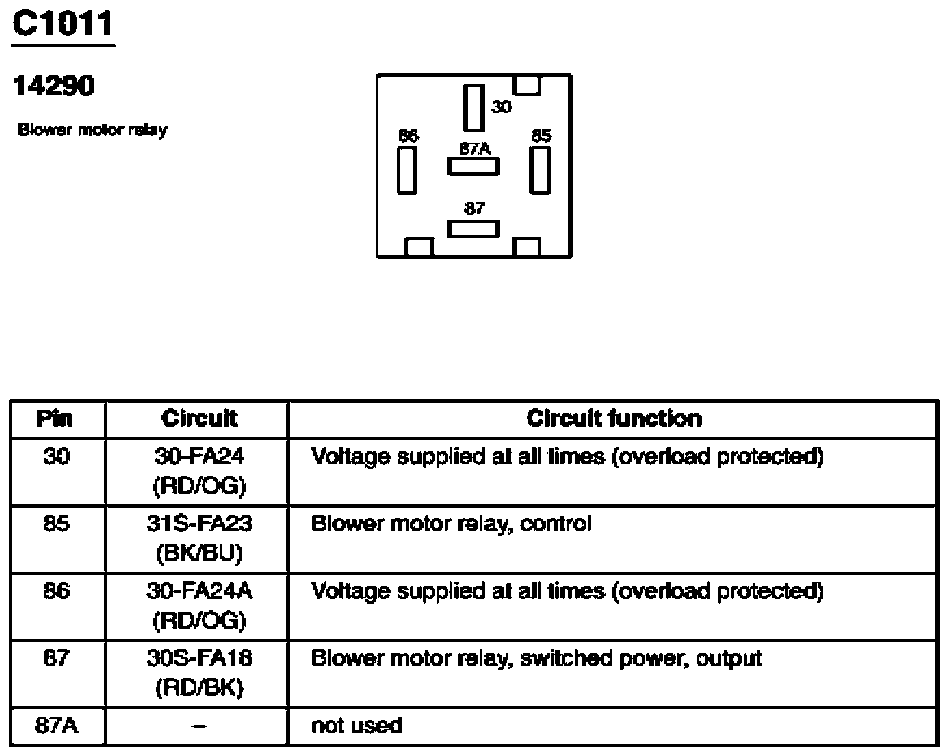

Fig 237: Blower Motor Relay Connector End View (C1011)
G07839916Courtesy of FORD MOTOR CO.

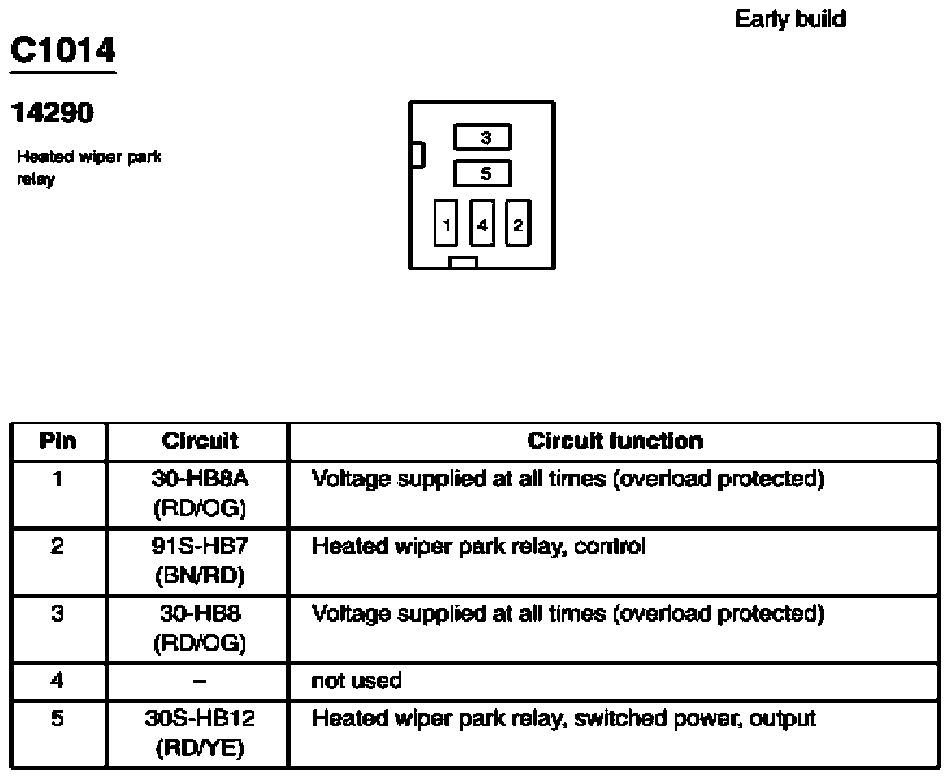

Fig 238: Heated Wiper Park Relay Connector End View (C1014)
G07839917Courtesy of FORD MOTOR CO.

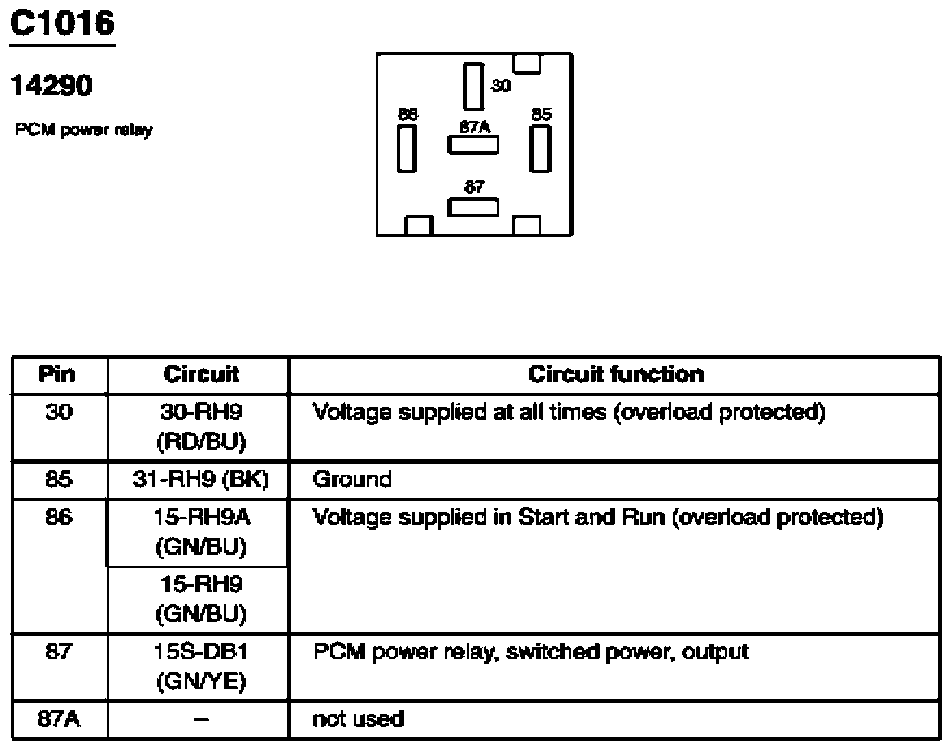

Fig 239: PCM Power Relay Connector End View (C1016)
G07839918Courtesy of FORD MOTOR CO.

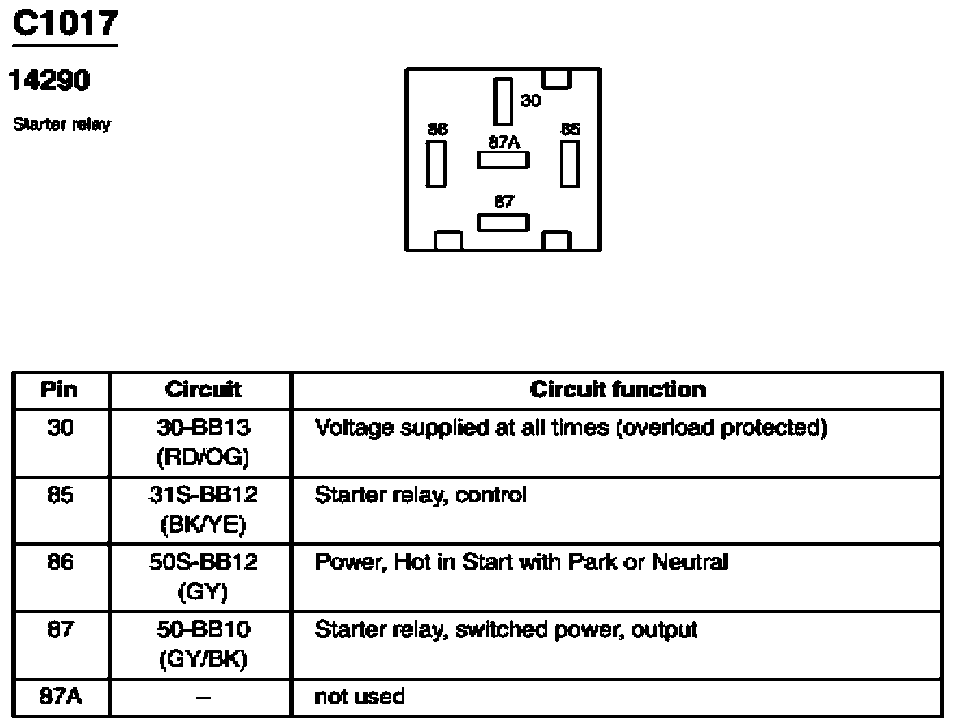

Fig 240: Starter Relay Connector End View (C1017)
G07839919Courtesy of FORD MOTOR CO.

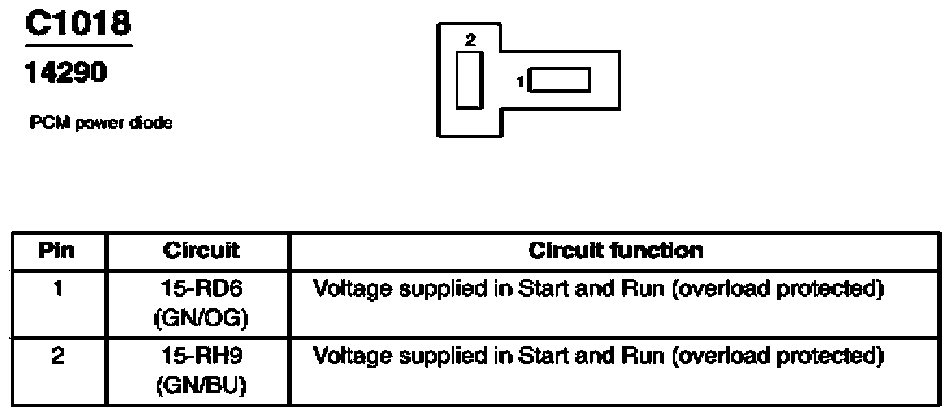

Fig 241: PCM Power Diode Connector End View (C1018)
G07839920Courtesy of FORD MOTOR CO.
Fig 242: Headlamp, Left Connector End View (C1021)
G07839921Courtesy of FORD MOTOR CO.
Fig 243: Park/Turn Lamp, Left Front Connector End View (C1023)
G07839922Courtesy of FORD MOTOR CO.

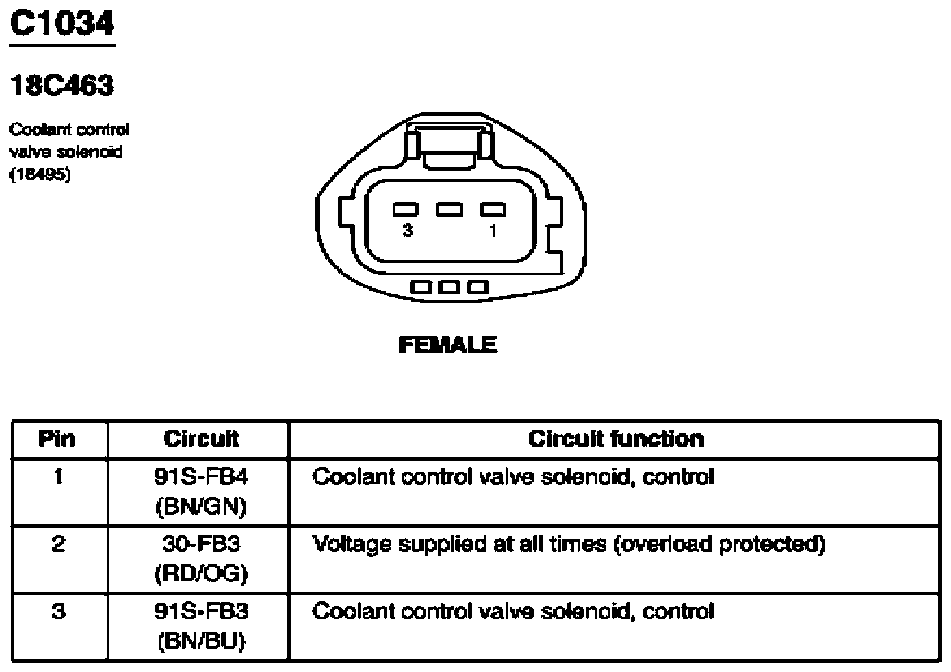

Fig 244: Coolant Control Valve Solenoid Connector End View (C1034)
G07839923Courtesy of FORD MOTOR CO.

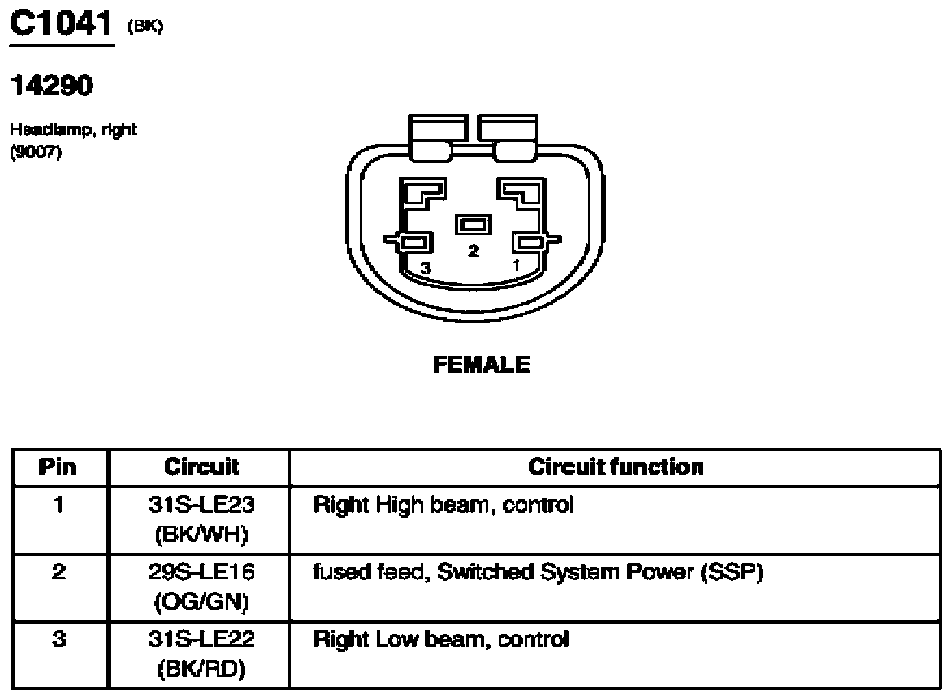

Fig 245: Headlamp, Right Connector End View (C1041)
G07839924Courtesy of FORD MOTOR CO.

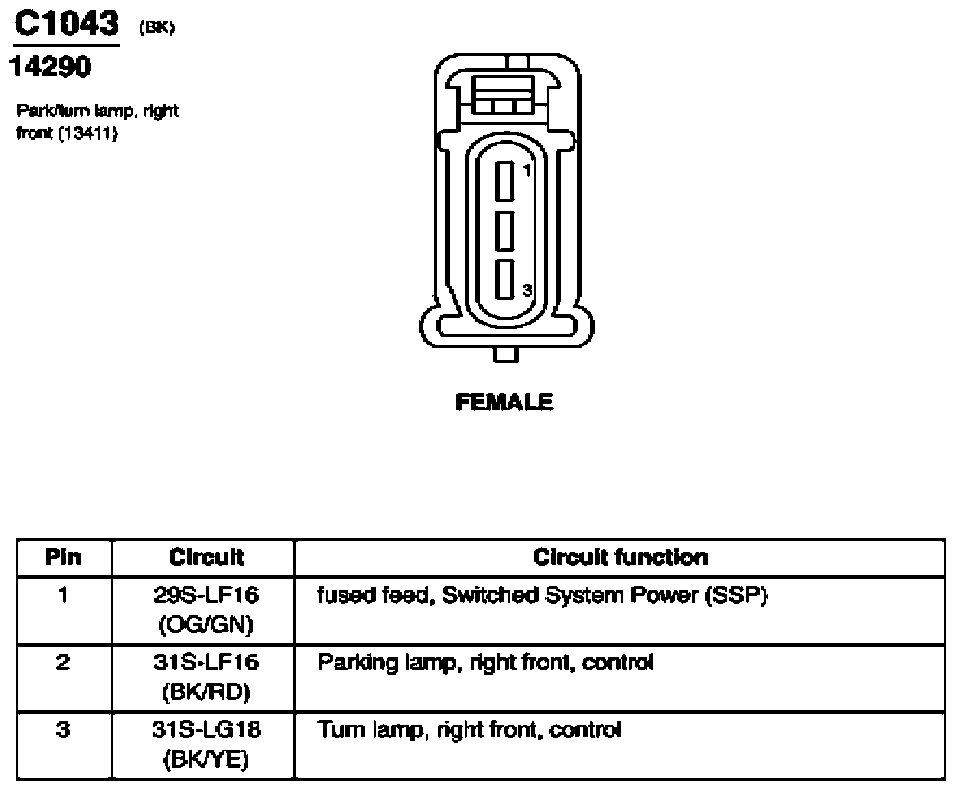

Fig 246: Park/Turn Lamp, Right Front Connector End View (C1043)
G07839925Courtesy of FORD MOTOR CO.
Fig 247: Engine Cooling Fan Motor Connector End View (C1048a)
G07839926Courtesy of FORD MOTOR CO.

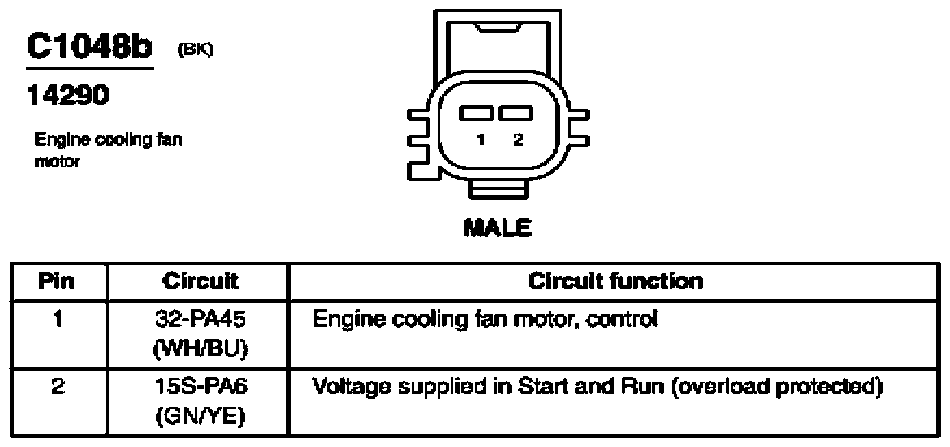

Fig 248: Engine Cooling Fan Motor Connector End View (C1048b)
G07839927Courtesy of FORD MOTOR CO.

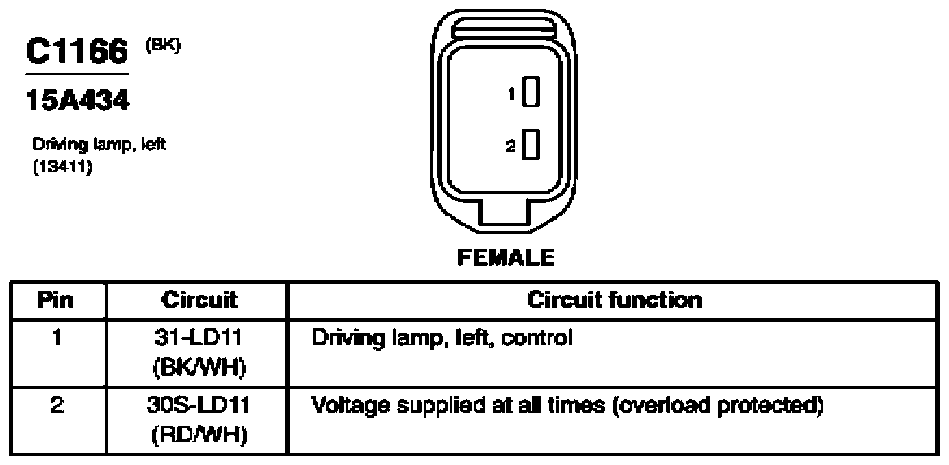

Fig 249: Driving Lamp, Left Connector End View (C1166)
G07839928Courtesy of FORD MOTOR CO.
Fig 250: Driving Lamp, Right Connector End View (C1167)
G07839929Courtesy of FORD MOTOR CO.

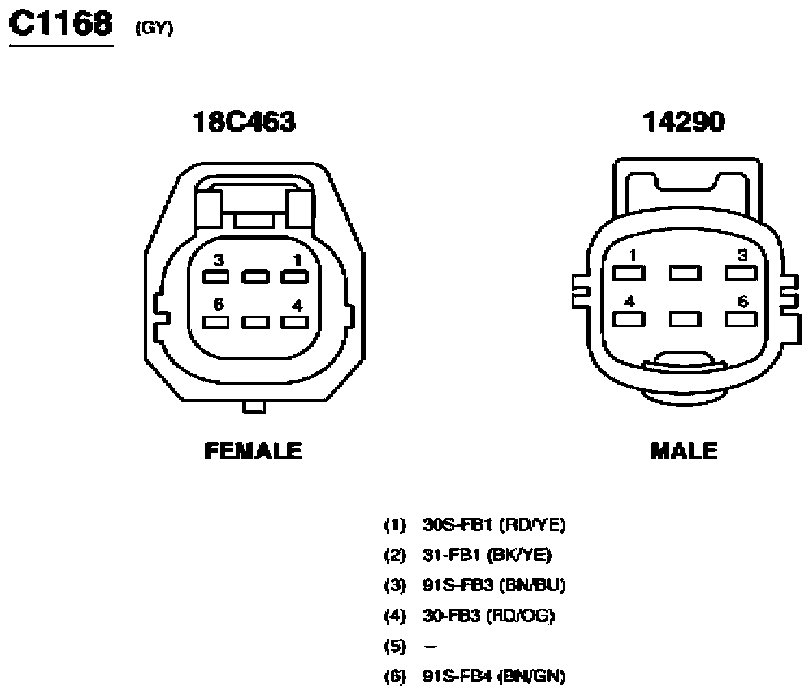

Fig 251: Inline Connector End View (C1168)
G07839930Courtesy of FORD MOTOR CO.

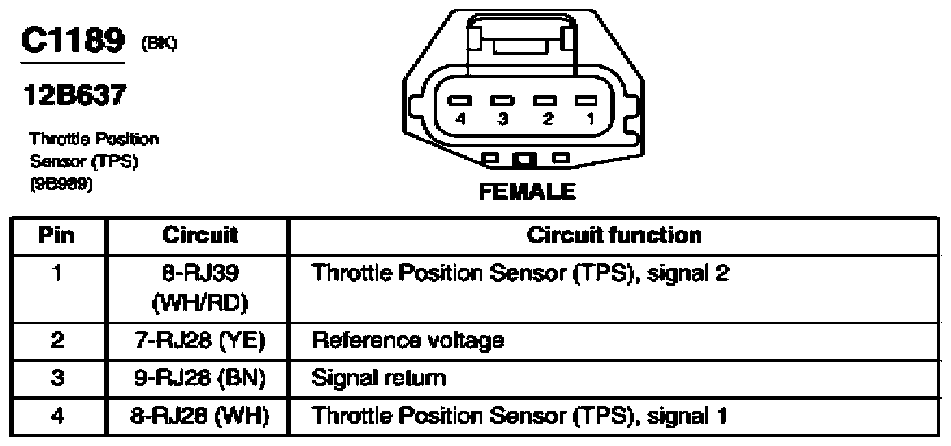

Fig 252: Throttle Position Sensor (TPS) Connector End View (C1189)
G07839931Courtesy of FORD MOTOR CO.
Fig 253: Fuel Rail Temperature Sensor Connector End View (C1257)
G07839932Courtesy of FORD MOTOR CO.
Fig 254: A/C Pressure Transducer Sensor Connector End View (C1260)
G07839933Courtesy of FORD MOTOR CO.

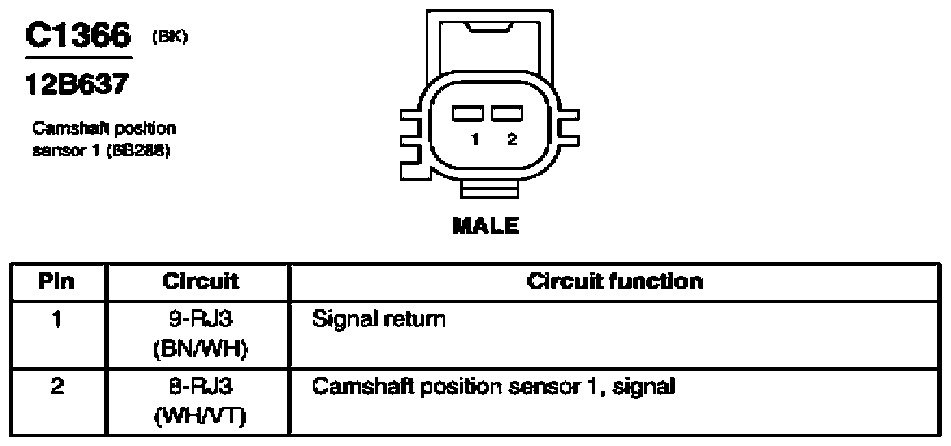

Fig 255: Camshaft Position Sensor 1 Connector End View (C1366)
G07839934Courtesy of FORD MOTOR CO.
Fig 256: Camshaft Position Sensor 2 Connector End View (C1367)
G07839935Courtesy of FORD MOTOR CO.
Fig 257: Electronic Throttle Control (ETC) Motor Connector End View (C1368)
G07839936Courtesy of FORD MOTOR CO.
Fig 258: Variable Valve Timing Solenoid 1 Connector End View (C1369)
G07839937Courtesy of FORD MOTOR CO.

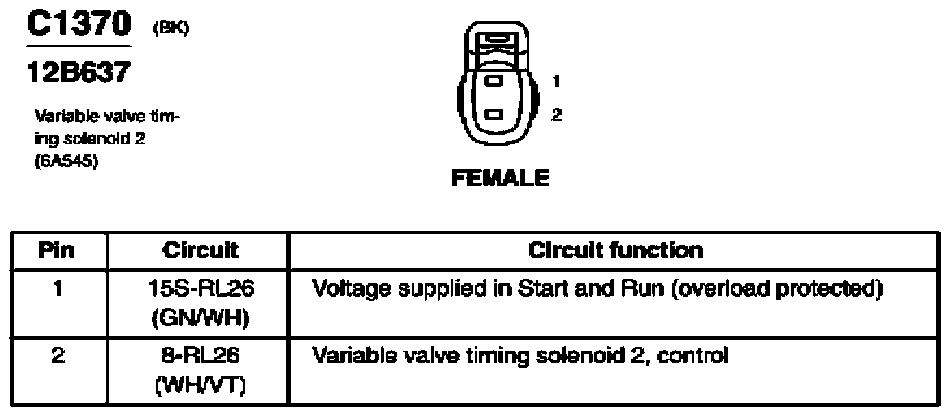

Fig 259: Variable Valve Timing Solenoid 2 Connector End View (C1370)
G07839938Courtesy of FORD MOTOR CO.
Fig 260: Brake Shift Interlock Connector End View (C2008)
G07839939Courtesy of FORD MOTOR CO.

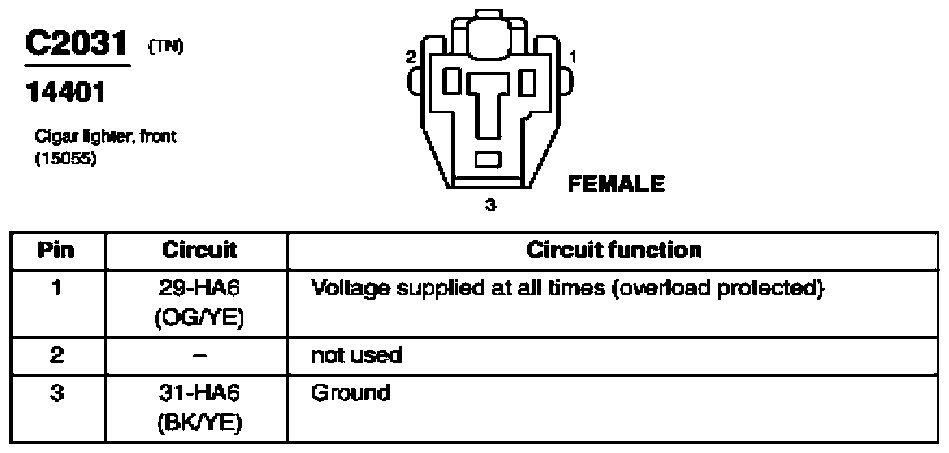

Fig 261: Cigar Lighter, Front Connector End View (C2031)
G07839940Courtesy of FORD MOTOR CO.

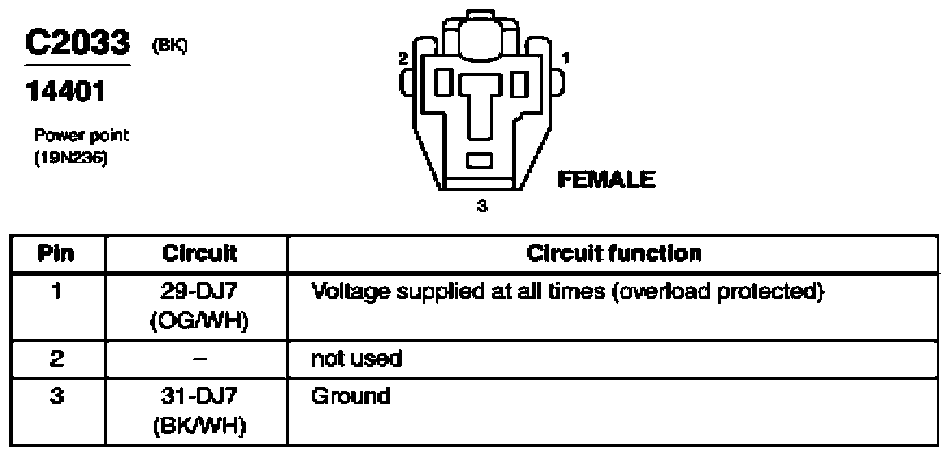

Fig 262: Power Point Connector End View (C2033)
G07839941Courtesy of FORD MOTOR CO.
Fig 263: Passenger Air Bag Deactivation (PAD) Switch Connector End View (C2099)
G07839942Courtesy of FORD MOTOR CO.
Fig 264: Convertible Top Switch Connector End View (C2138)
G07839943Courtesy of FORD MOTOR CO.

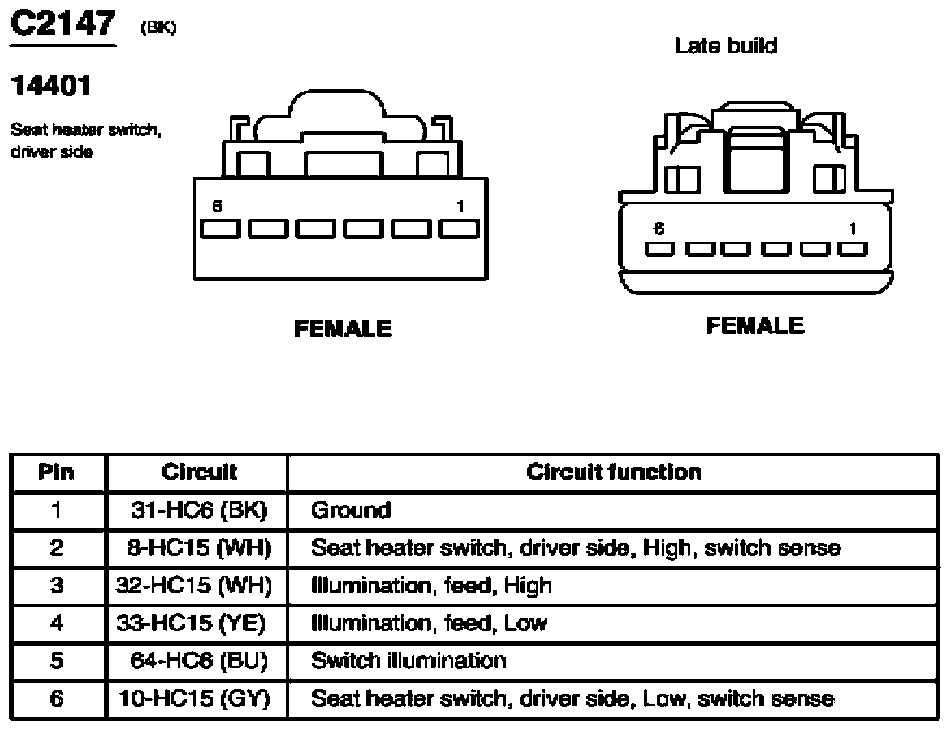

Fig 265: Seat Heater Switch, Driver Side Connector End View (C2147)
G07839944Courtesy of FORD MOTOR CO.
Fig 266: Seat Heater Switch, Passenger Side Connector End View (C2148)
G07839945Courtesy of FORD MOTOR CO.
Fig 267: Heated Wiper Park Connector End View (C2152a)
G07839946Courtesy of FORD MOTOR CO.
Fig 268: Heated Wiper Park Connector End View (C2152b)
G07839947Courtesy of FORD MOTOR CO.
Fig 269: Radio Capacitor Connector End View (C2243)
G07839948Courtesy of FORD MOTOR CO.

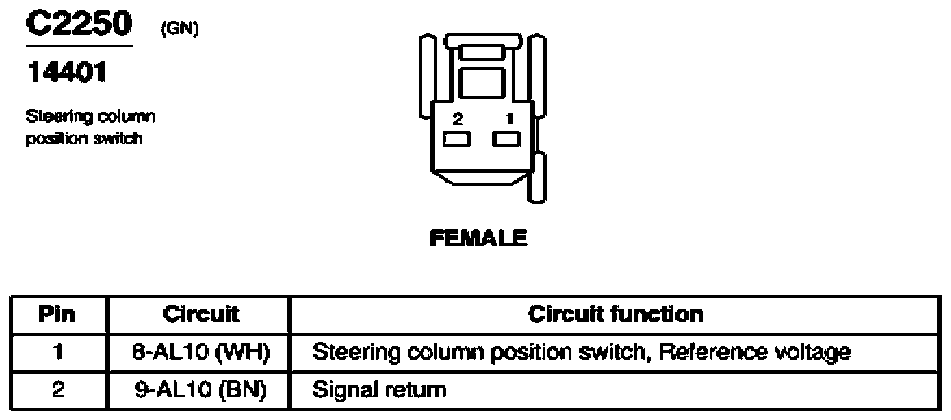

Fig 270: Steering Column Position Switch Connector End View (C2250)
G07839949Courtesy of FORD MOTOR CO.
Fig 271: Electronic Throttle Control (ETC) Module Connector End View (C2251)
G07839950Courtesy of FORD MOTOR CO.
Fig 272: Driver Safety Belt Retractor Pretensioner Connector End View (C3014)
G07839951Courtesy of FORD MOTOR CO.
Fig 273: Power Seat Motor Assembly, Right Connector End View (C3015)
G07839952Courtesy of FORD MOTOR CO.

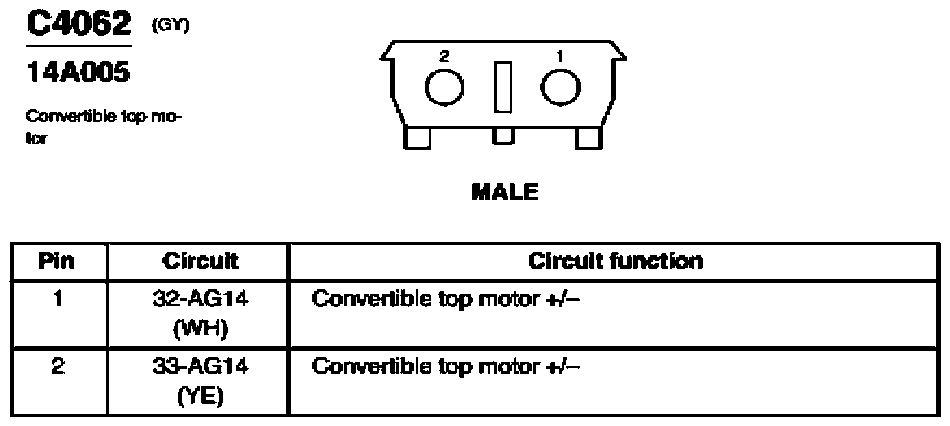

Fig 274: Convertible Top Motor Connector End View (C4062)
G07839953Courtesy of FORD MOTOR CO.

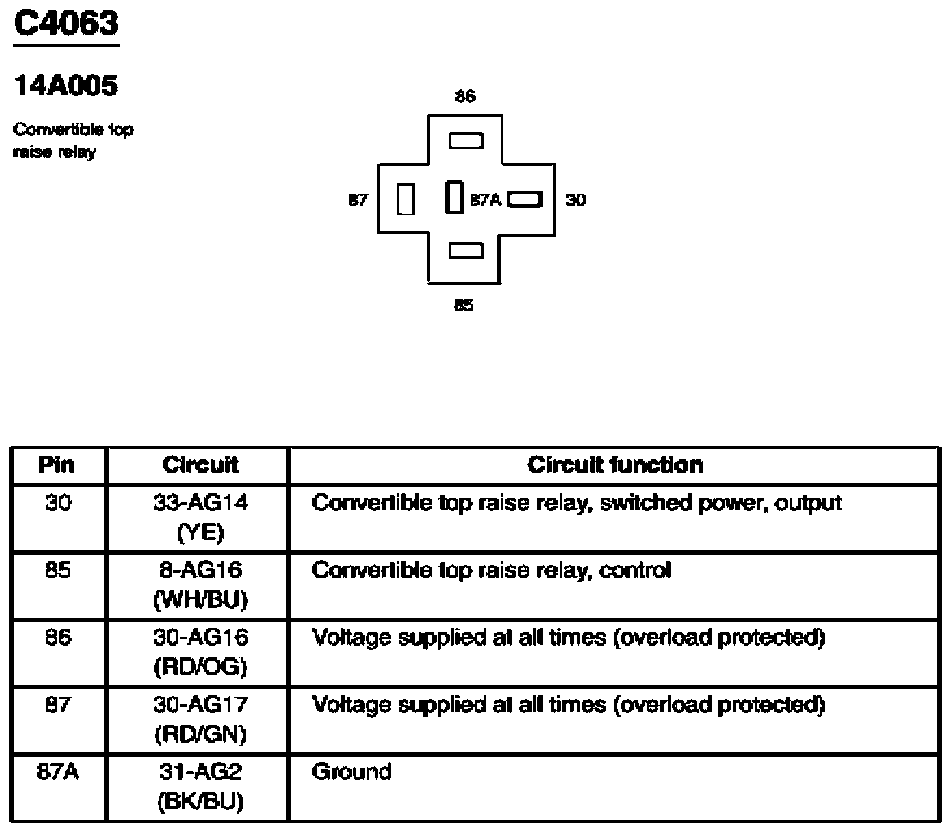

Fig 275: Convertible Top Raise Relay Connector End View (C4063)
G07839954Courtesy of FORD MOTOR CO.
Fig 276: Convertible Top Lower Relay Connector End View (C4064)
G07839955Courtesy of FORD MOTOR CO.
Fig 277: Mega Fuse Connector End View (C4066a)
G07839956Courtesy of FORD MOTOR CO.

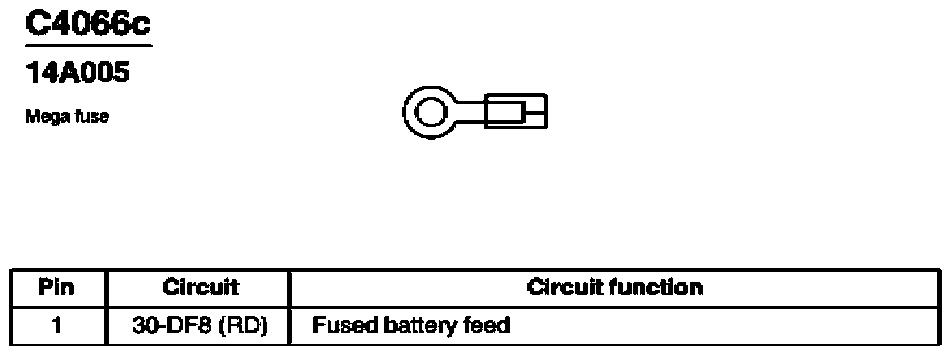

Fig 278: Mega Fuse Connector End View (C4066c)
G07839957Courtesy of FORD MOTOR CO.

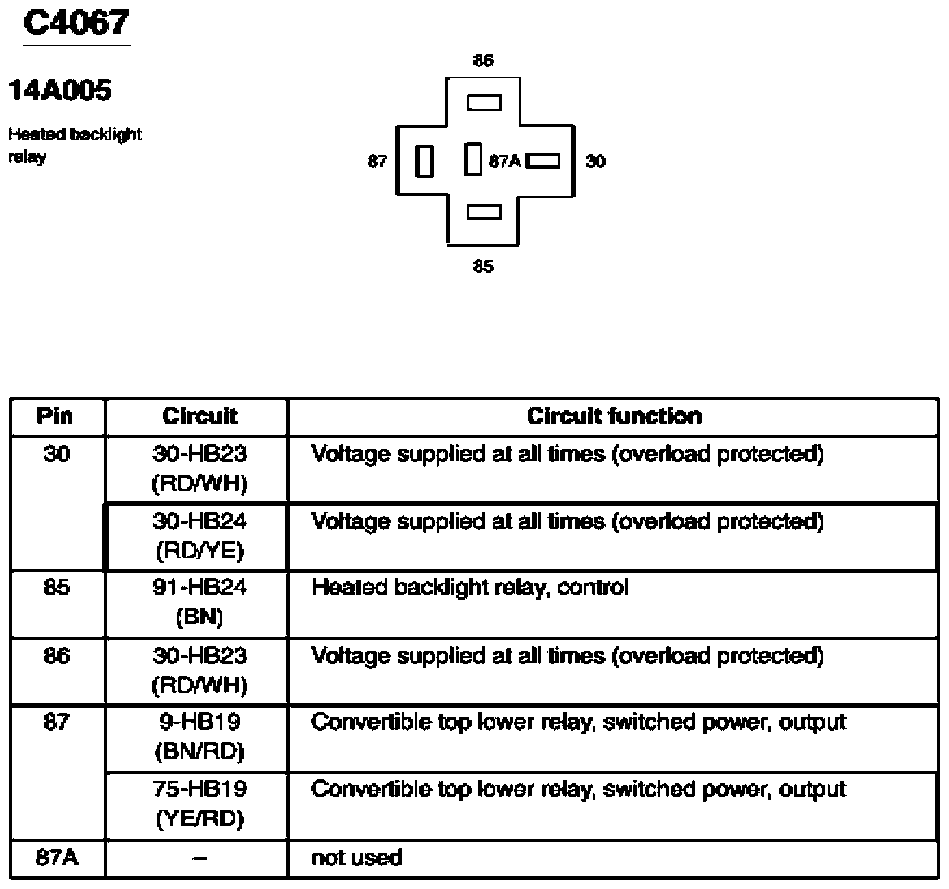

Fig 279: Heated Backlight Relay Connector End View (C4067)
G07839958Courtesy of FORD MOTOR CO.
Fig 280: Subwoofer, Left Connector End View (C4068)
G07839959Courtesy of FORD MOTOR CO.
Fig 281: Subwoofer, Right Connector End View (C4069)
G07839960Courtesy of FORD MOTOR CO.
Fig 282: Battery Connector End View (C4070a)
G07839961Courtesy of FORD MOTOR CO.

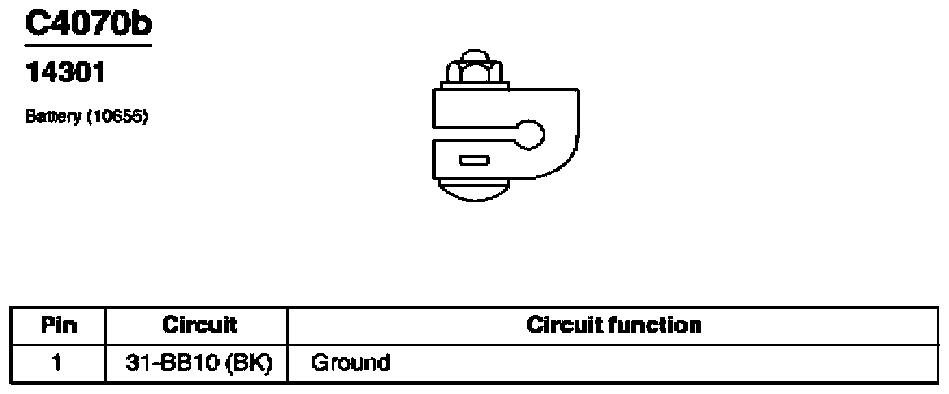

Fig 283: Battery Connector End View (C4070b)
G07839962Courtesy of FORD MOTOR CO.

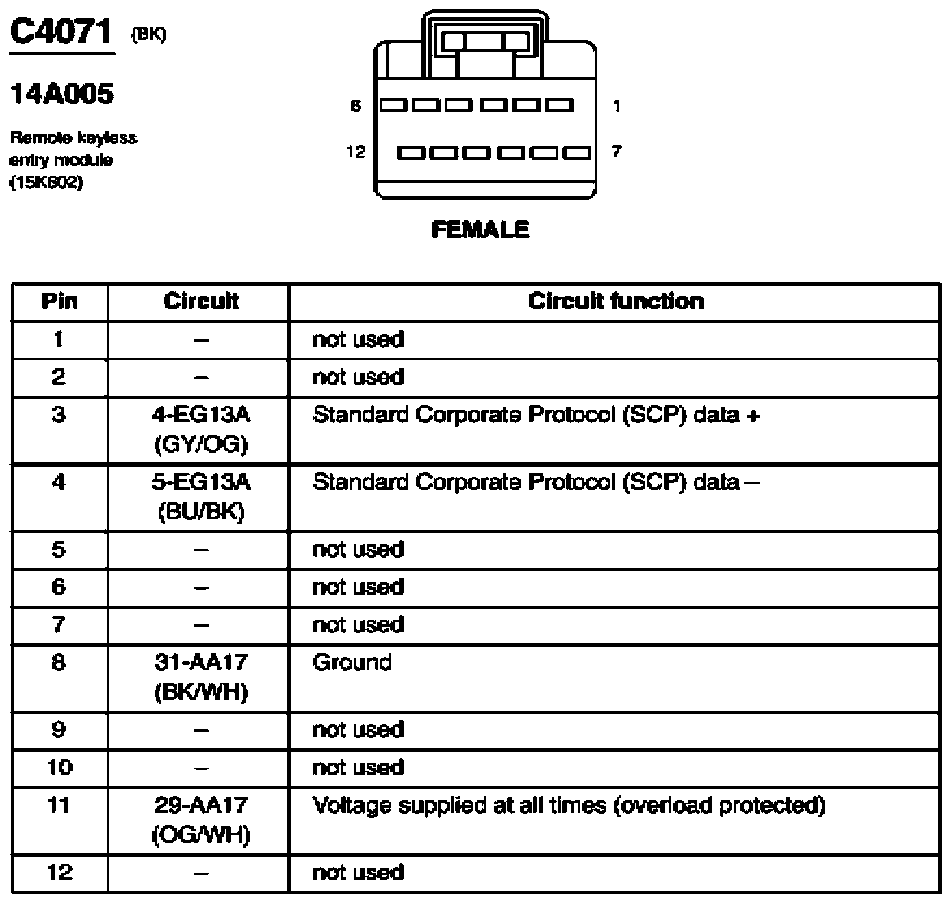

Fig 284: Remote Keyless Entry Module Connector End View (C4071)
G07839963Courtesy of FORD MOTOR CO.
