Throttle Body: Installation

Install a new throttle body gasket, the throttle body, and the four bolts.
- Tighten the bolts in two stages.
  - Stage 1: Tighten to 9 Nm (80 lb-in).
  - Stage 2: Rotate an additional 90 degrees.

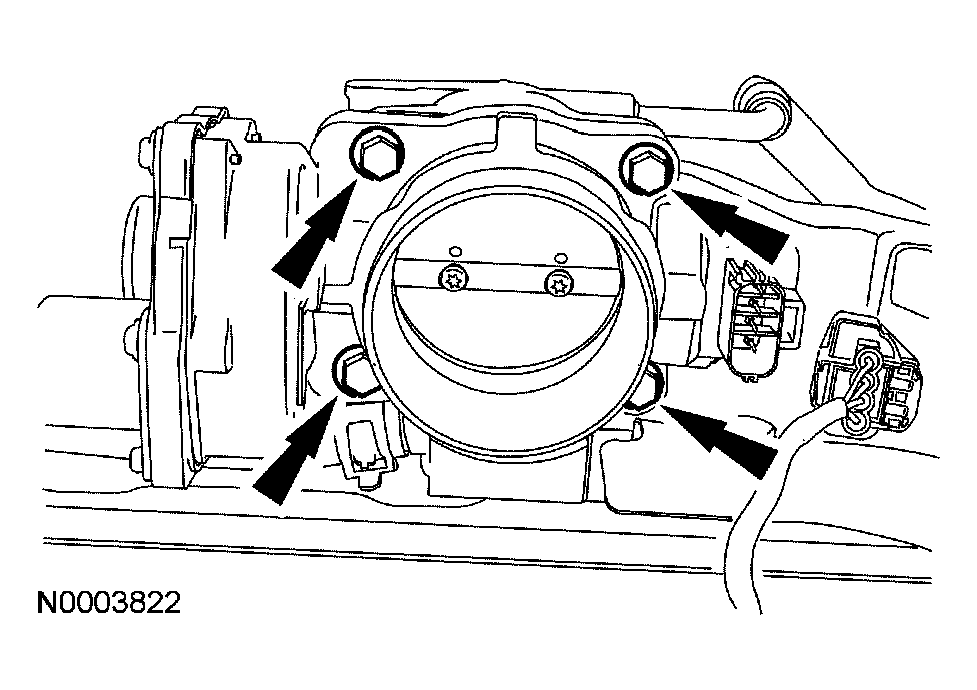

    Fig 1: Installing A New Throttle Body Gasket Throttle Body
    Courtesy of FORD MOTOR CO.
Connect the TAC and the TP sensor electrical connectors.

Fig 2: Locating Throttle Control And Throttle Position (TP) Sensor Electrical Connectors
Courtesy of FORD MOTOR CO.
Install the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
