Section 14 (Component Testing)
>>
Component Testing
>>
Window adjust switch, passenger side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Window adjust switch, passenger side
WARNING:
This page is about a different car, the 2004 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

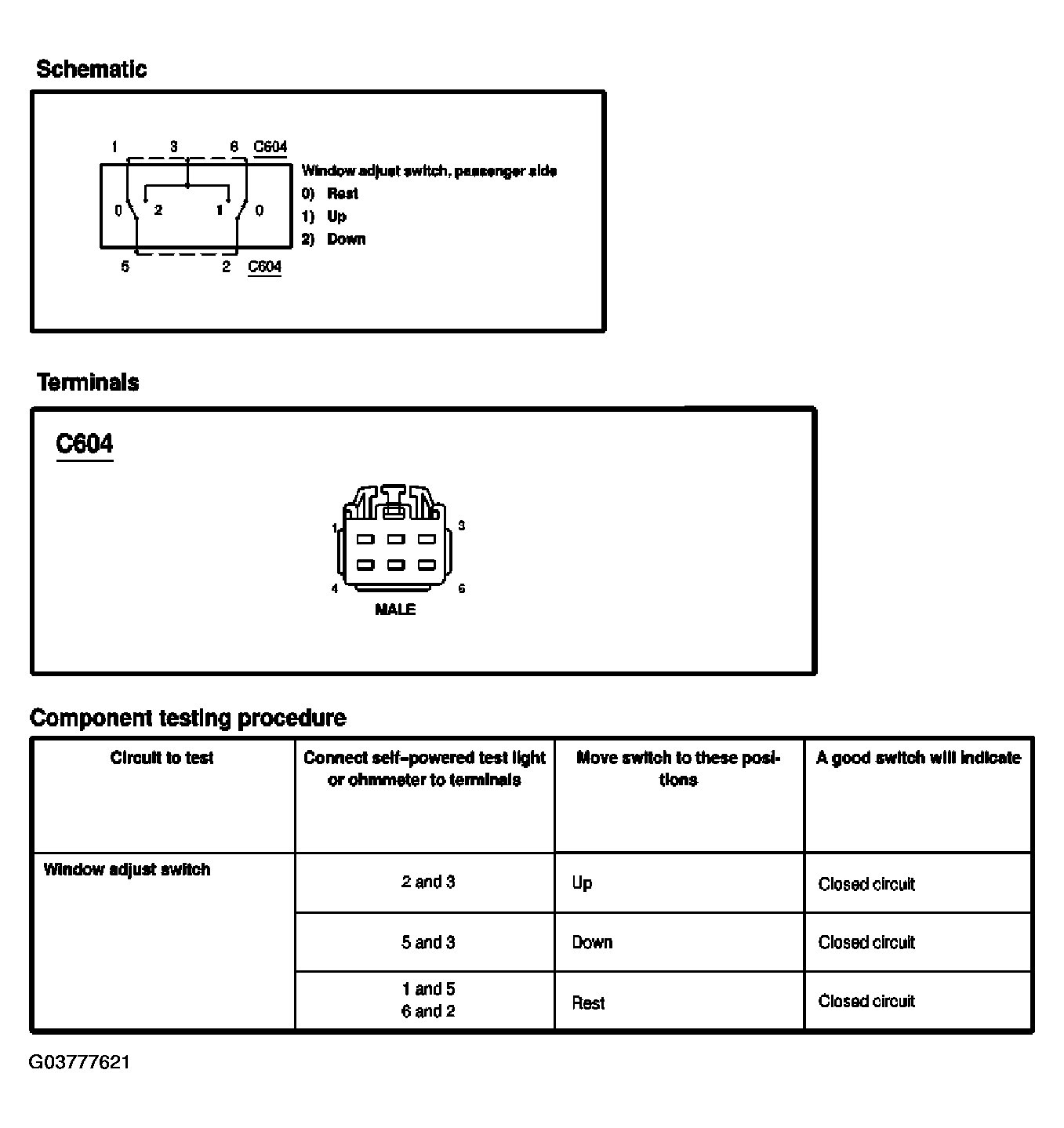

Fig 1: Testing Window Adjust Switch, Passenger Side
Courtesy of FORD MOTOR CO.
