Multifunction switch (13K359): Schematic

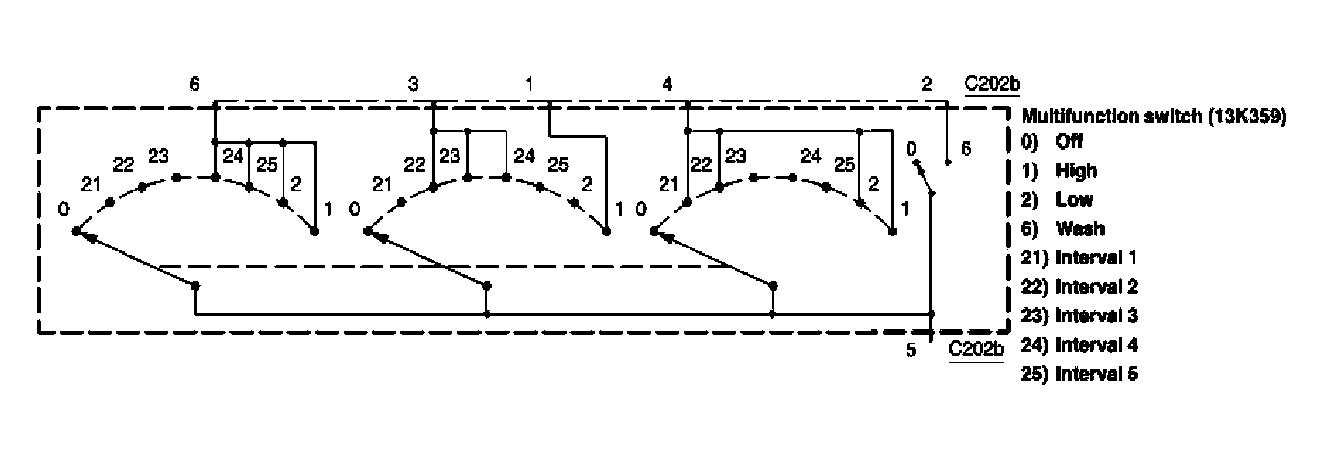

Fig 1: Multifunction Switch (13K359) - Schematic
G03982576Courtesy of FORD MOTOR CO.

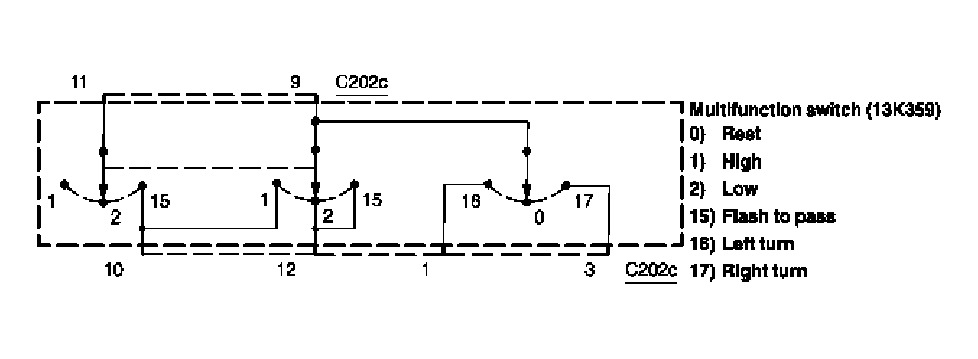

Fig 1: Multifunction Switch (13K359) - Schematic
G03982578Courtesy of FORD MOTOR CO.

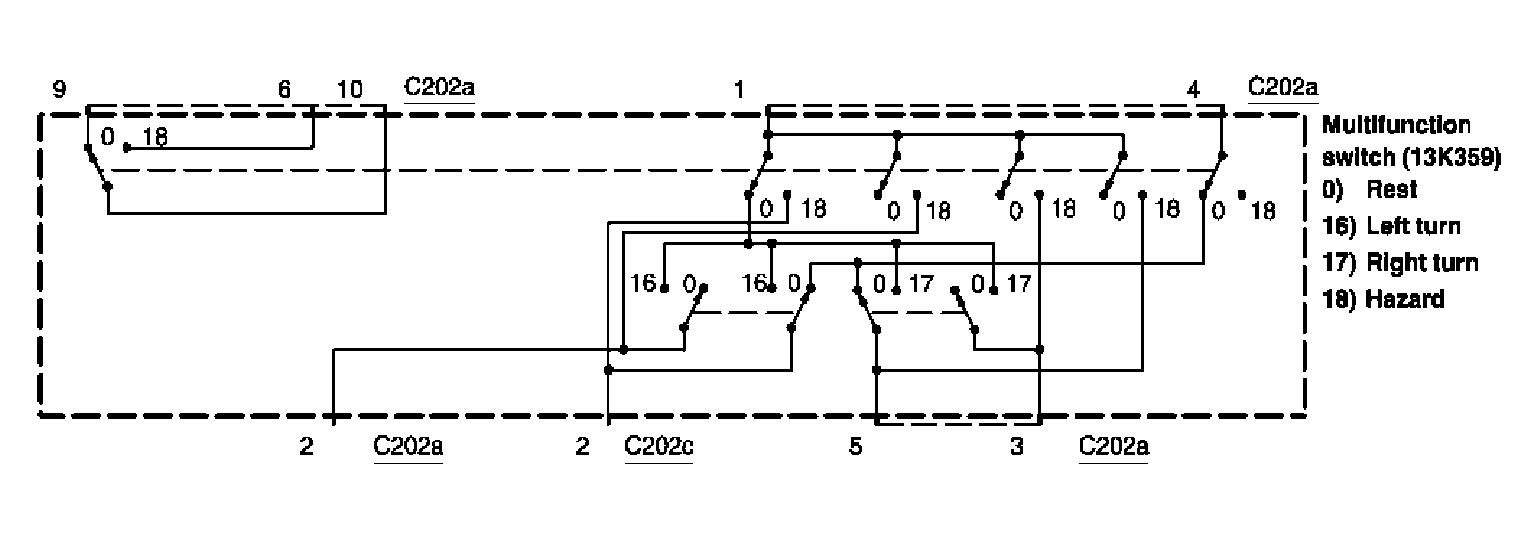

Fig 1: Multifunction Switch (13K359) - Schematic
G03982580Courtesy of FORD MOTOR CO.
