System Specifications

Crankshaft Pulley
Stage 1: Tighten to 90 Nm (66 ft. lbs.).
Stage 2: Loosen 360 degrees.
Stage 3: Tighten to 50 Nm (37 ft. lbs.).
Stage 4: Tighten an additional 90 degrees.

Timing chain hydraulic tensioner bolts 25 Nm (18 ft. lbs.)

Part 1:

Part 2:

Part 3:

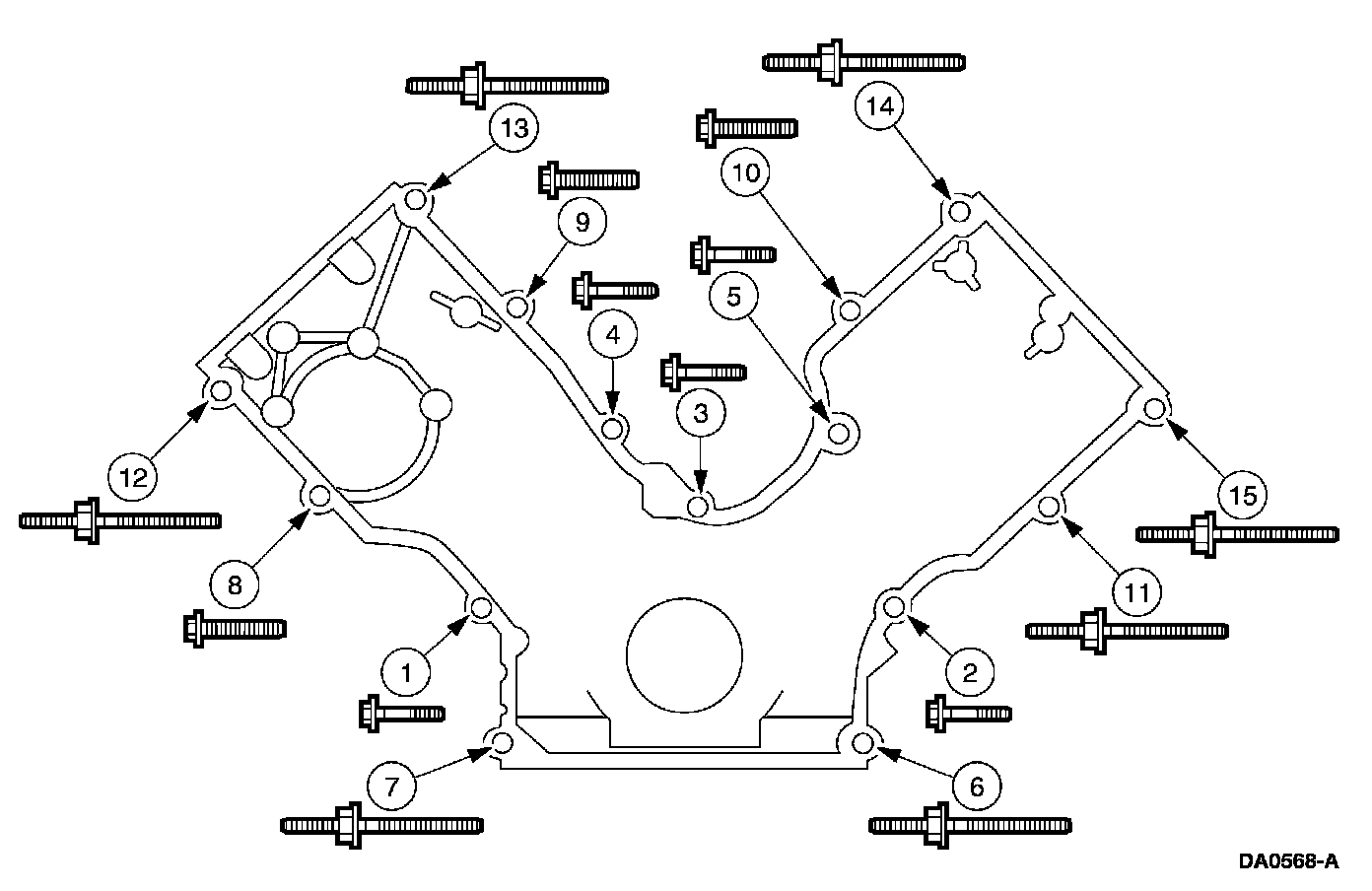

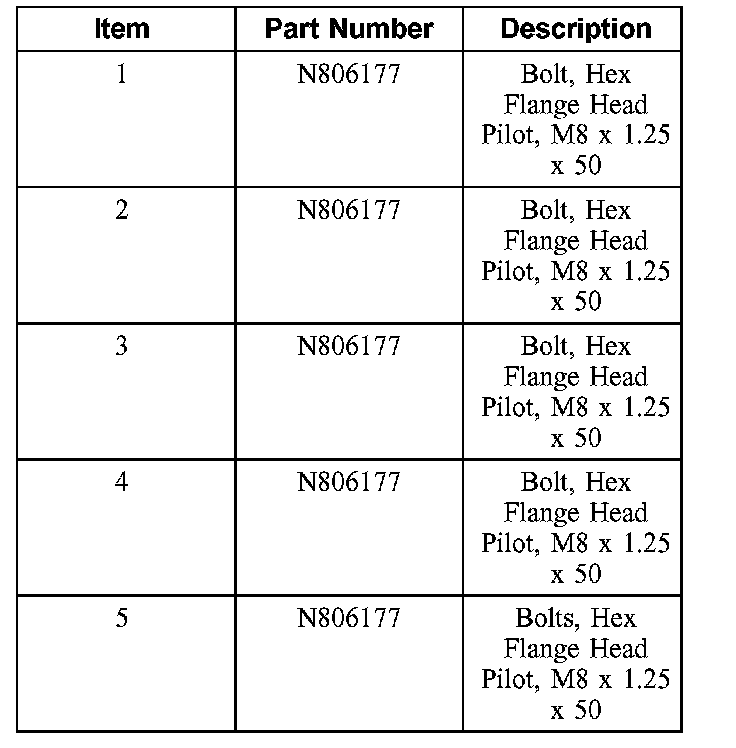

Engine front cover bolts (1-5) 25 Nm (18 ft. lbs.)

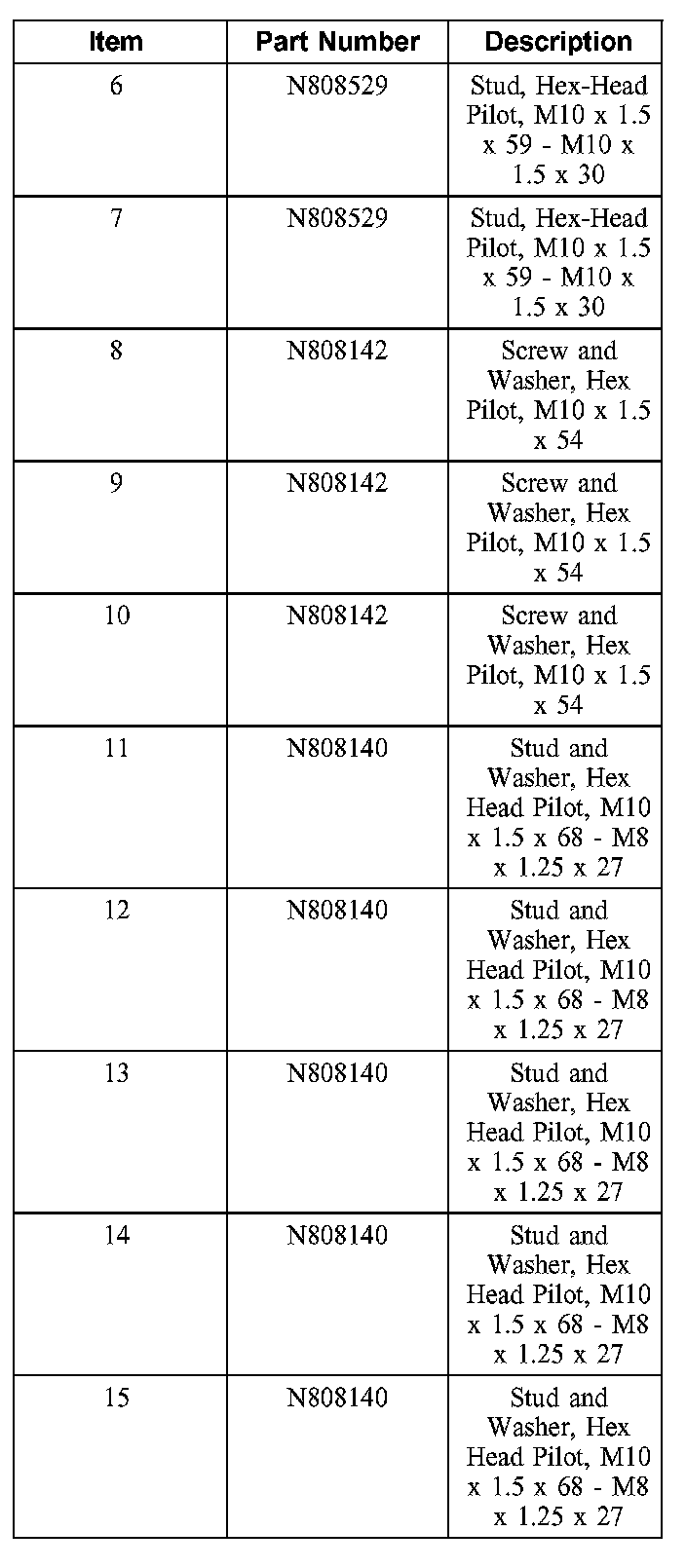

Engine front cover bolts (6- 15) 48 Nm (35 ft. lbs.)
