Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF) SENSOR







Special Tool(s)

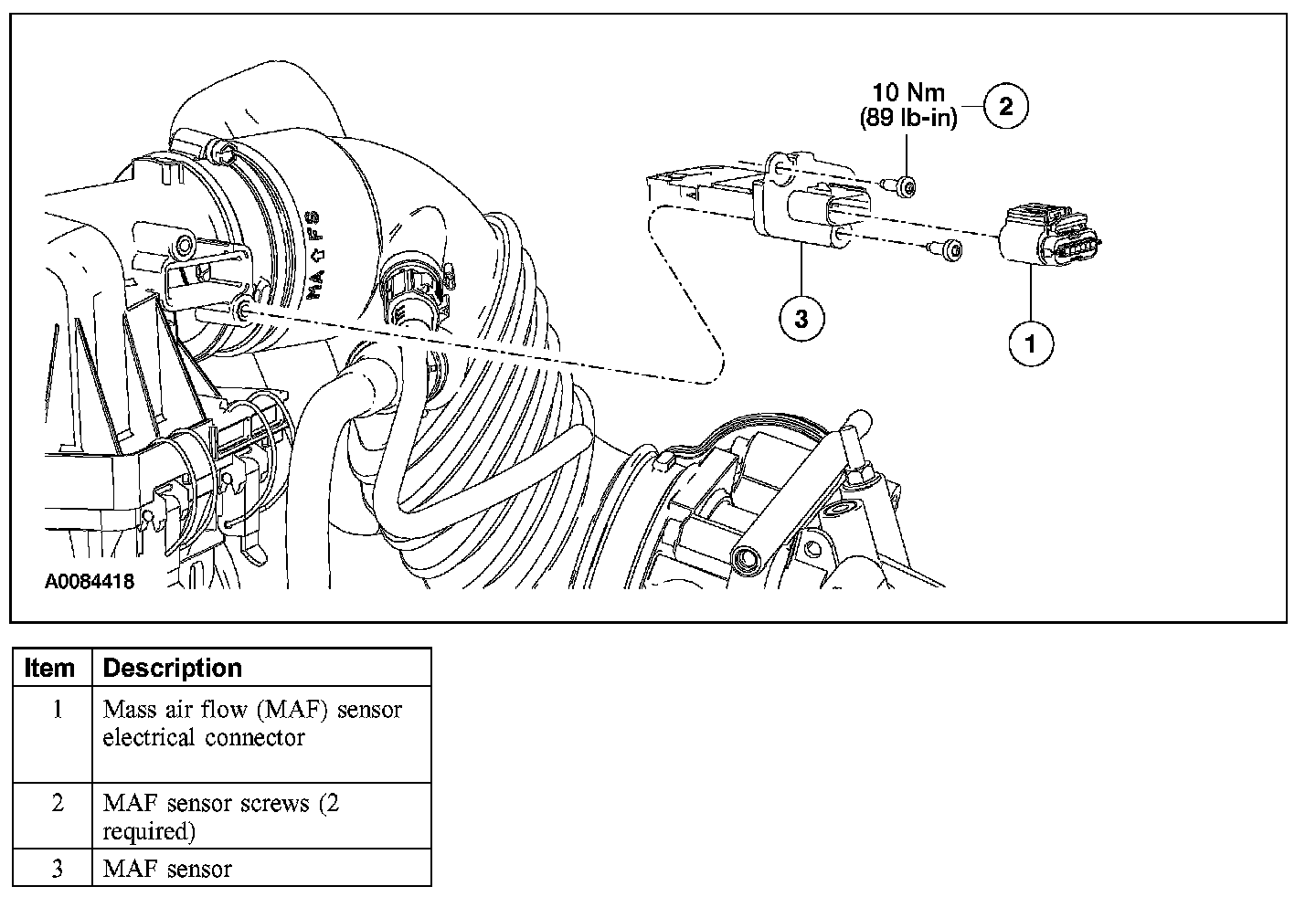

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the mass air flow (MAF) sensor electrical connector.
3. Remove the 2 screws and the MAF sensor.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
