Engine Control Module: Service and Repair

POWERTRAIN CONTROL MODULE (PCM)

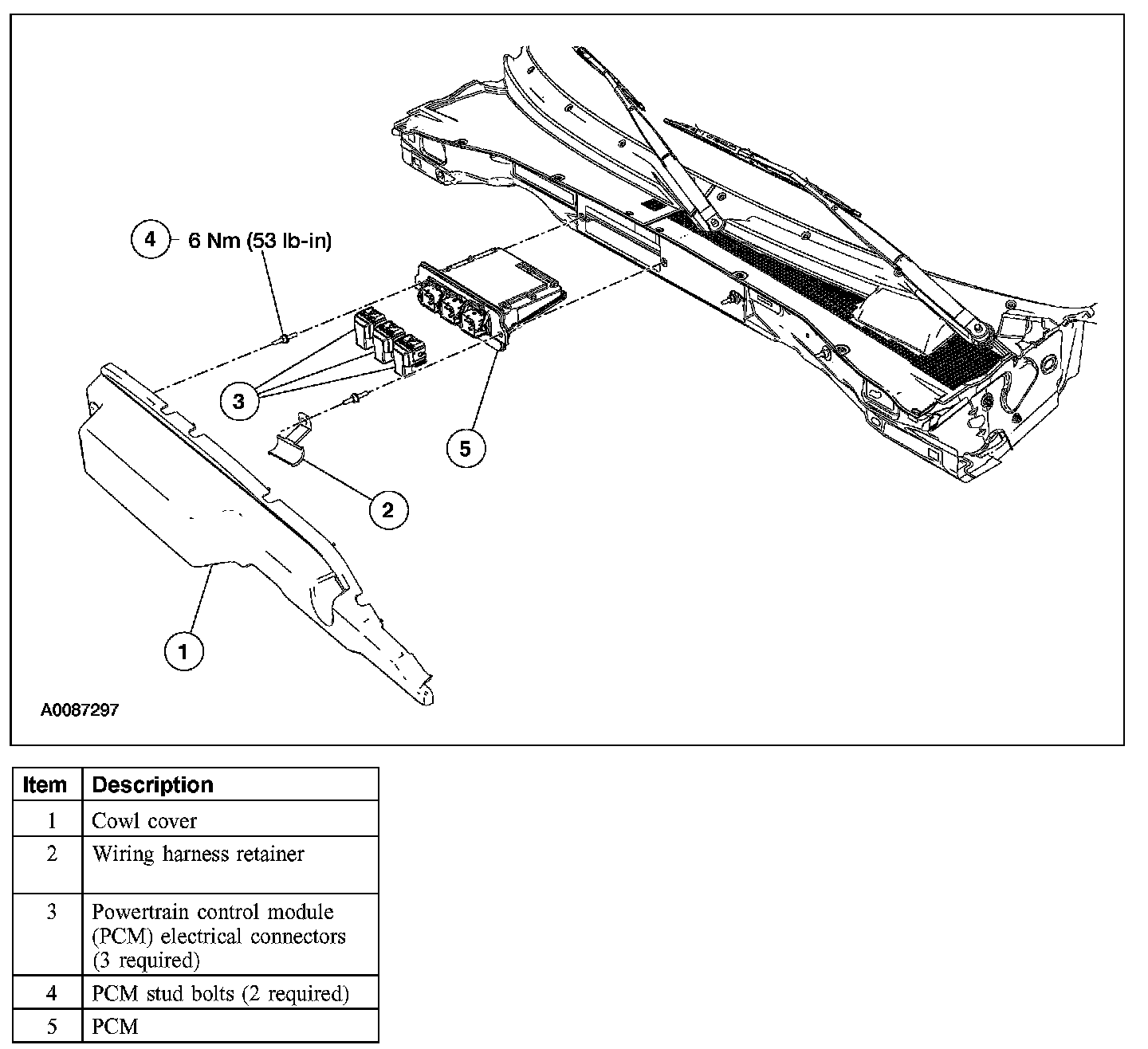

Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the cowl cover.
3. Remove the wiring harness retainer from the PCM stud bolt.
4. Disconnect the 3 PCM electrical connectors.
5. Remove the 2 stud bolts and the PCM.
- To install, tighten to 6 Nm (53 lb-in).

6. To install, reverse the removal procedure.
