Cruise Control Switch: Service and Repair

SPEED CONTROL SWITCH

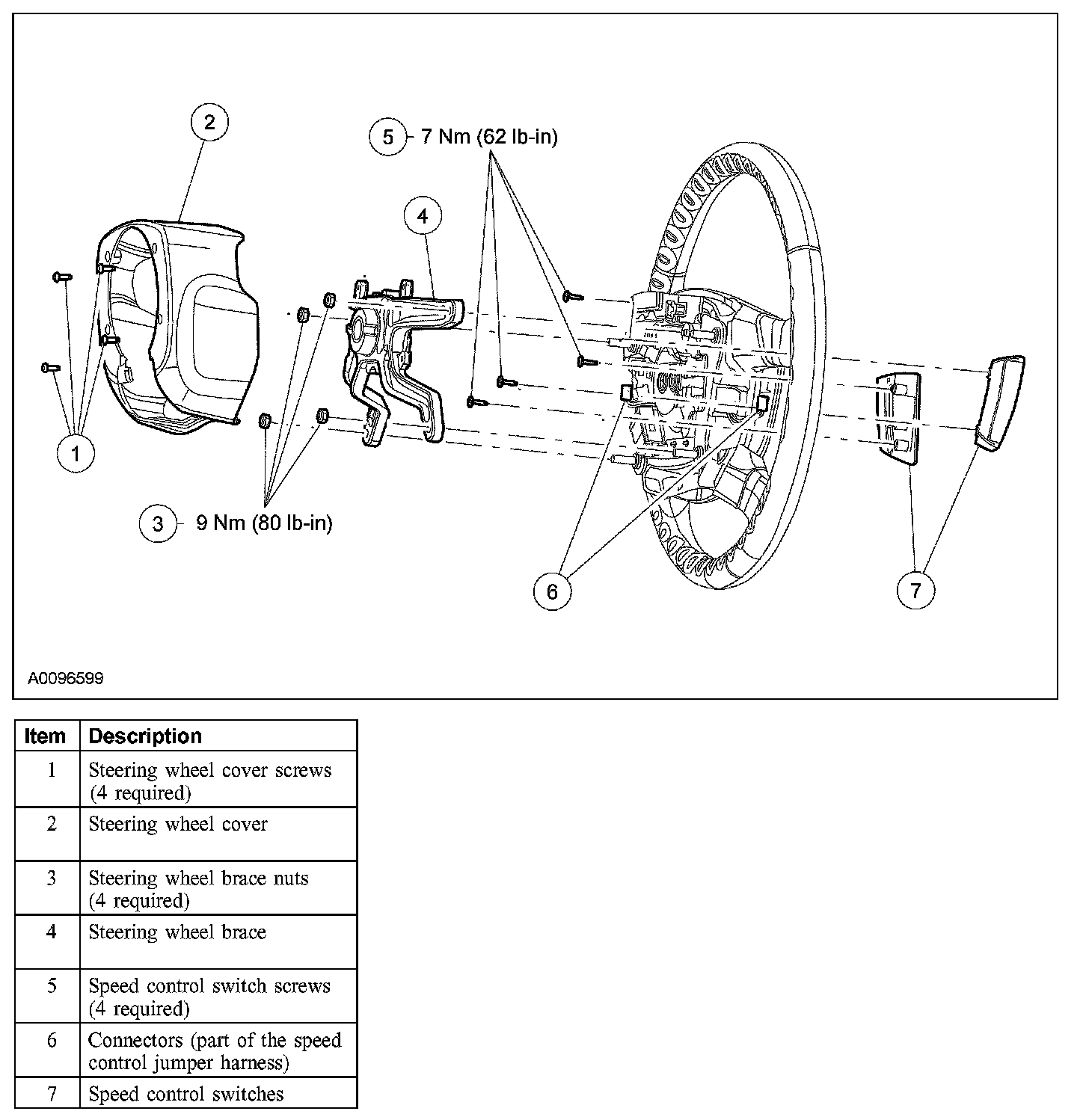

Removal and Installation
1. Remove the driver air bag module.
2. Remove the 4 steering wheel cover screws and the steering wheel cover.
3. Remove the 4 steering wheel brace nuts and the steering wheel brace.
- To install, tighten to 9 Nm (80 lb-in)

4. Disconnect the electrical connectors.
5. Remove the 4 speed control switch screws and the speed control switches.
- To install, tighten to 7 Nm (62 lb-in).

6. To install, reverse the removal procedure.
