Timing Components

Valve Train Components-Exploded View

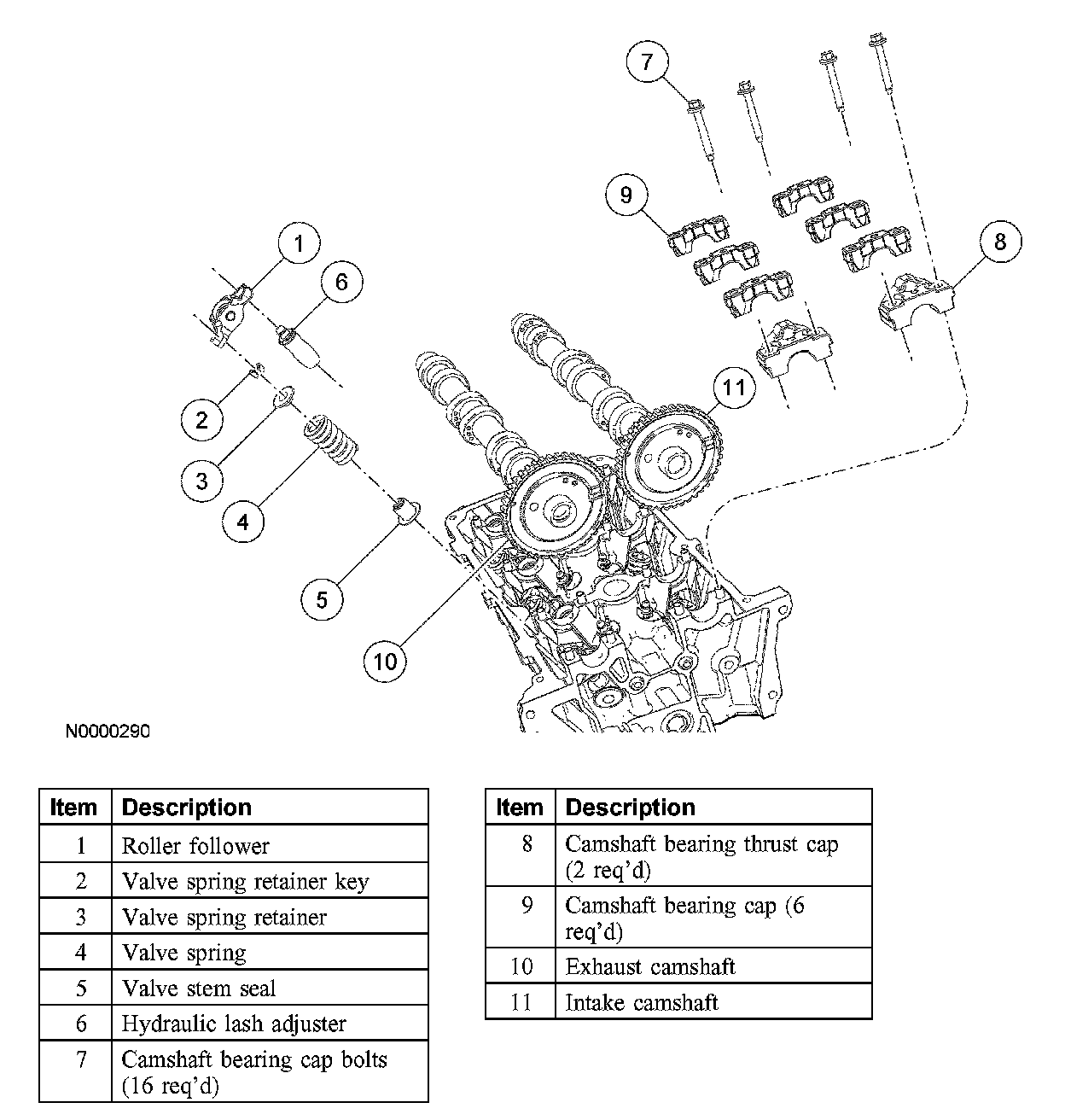

Valve Train Components - LH

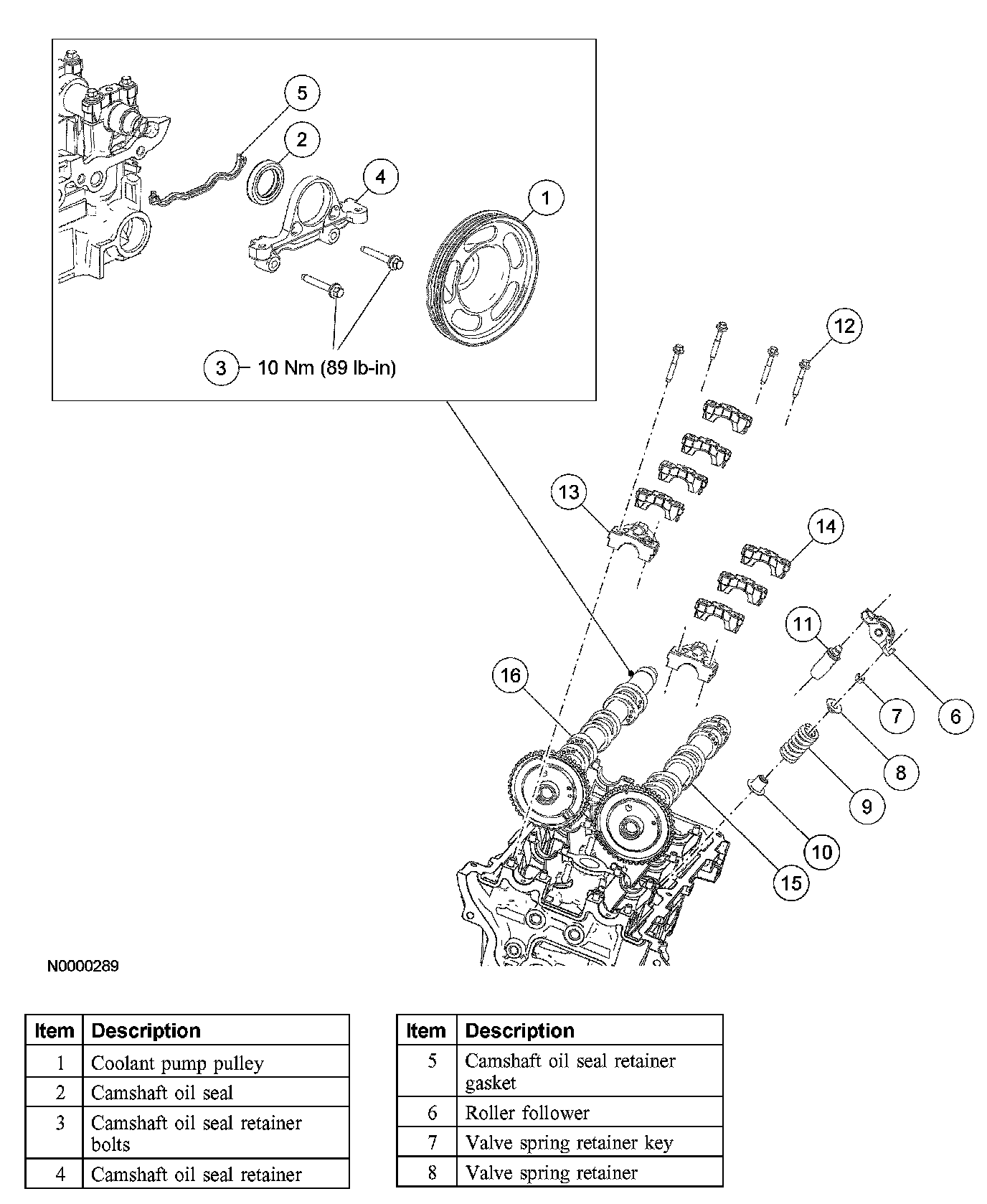

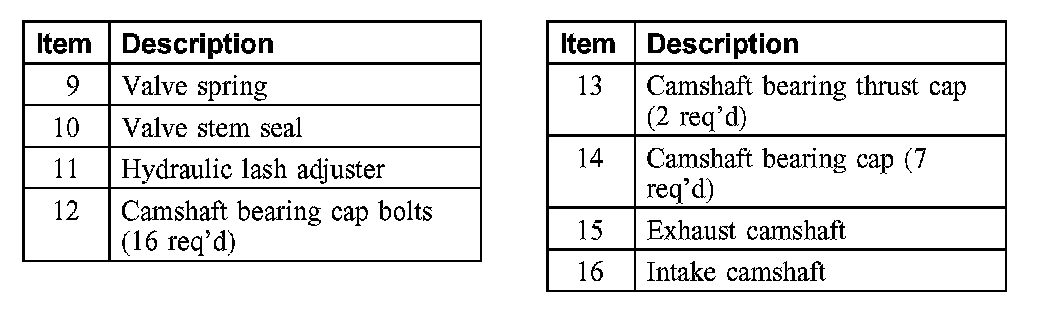

Valve Train Components - RH
