Oil Pan, Engine

Oil pan-to-transaxle bolts 40 Nm (30 ft. lbs.)





Oil pan bolts

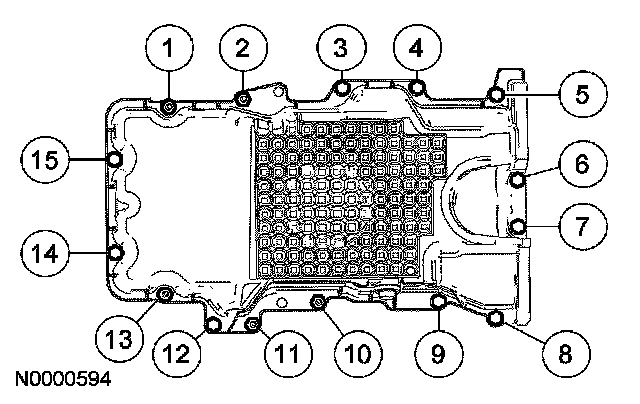

Tighten in the sequence shown to 25 Nm (18 ft. lbs.).

Oil pan baffle nuts
To install tighten the oil pan baffle nuts in two stages.
Stage 1: Tighten to 5 Nm (44 inch lbs.).
Stage 2: Tighten an additional 45 degrees.
