Speed Control Deactivator Switch C277

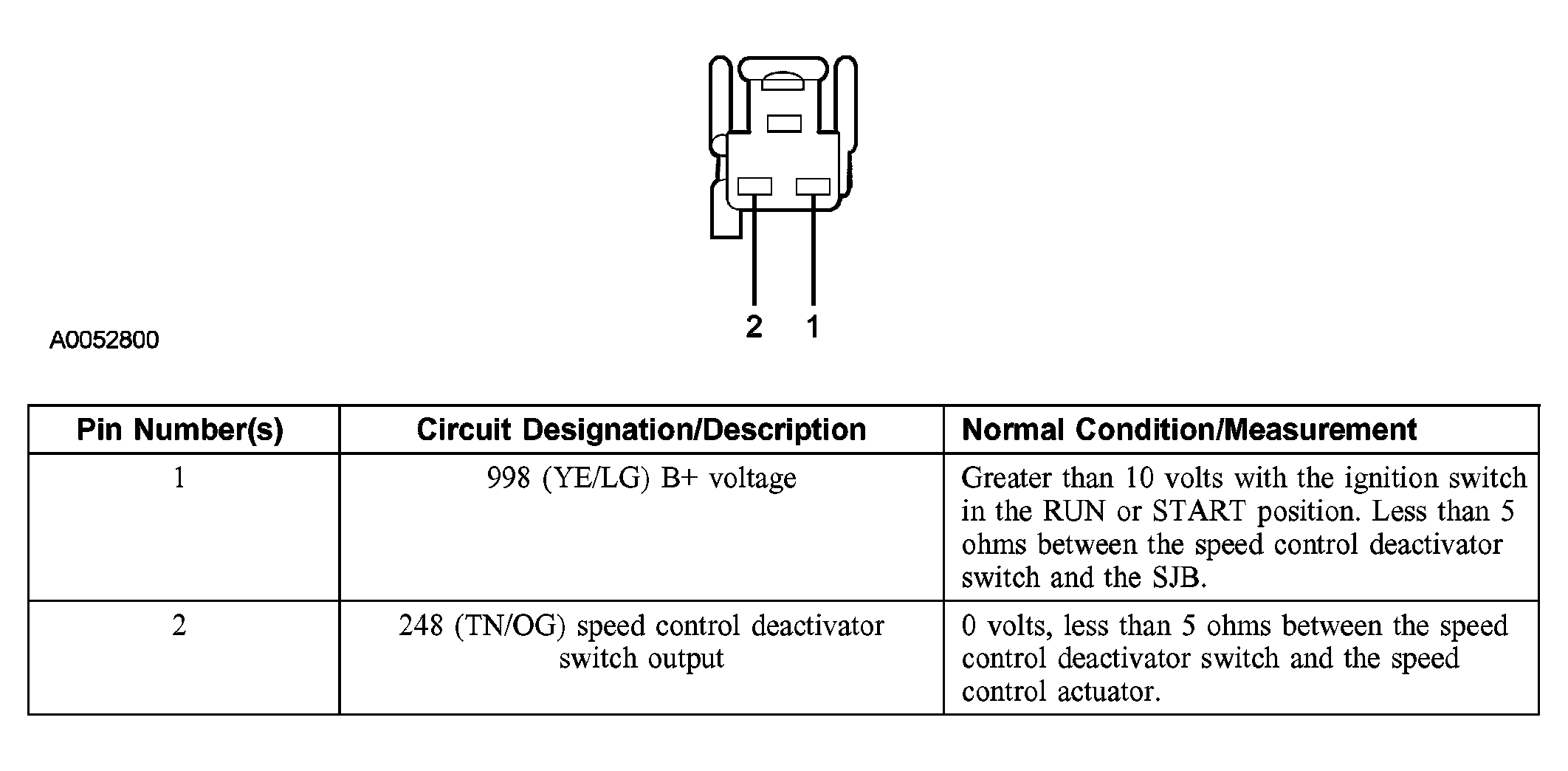

Fig 1: Connector Circuit Reference - Speed Control Deactivator Switch C277
G03902082Courtesy of FORD MOTOR CO.
