Multifunction Switch C2081

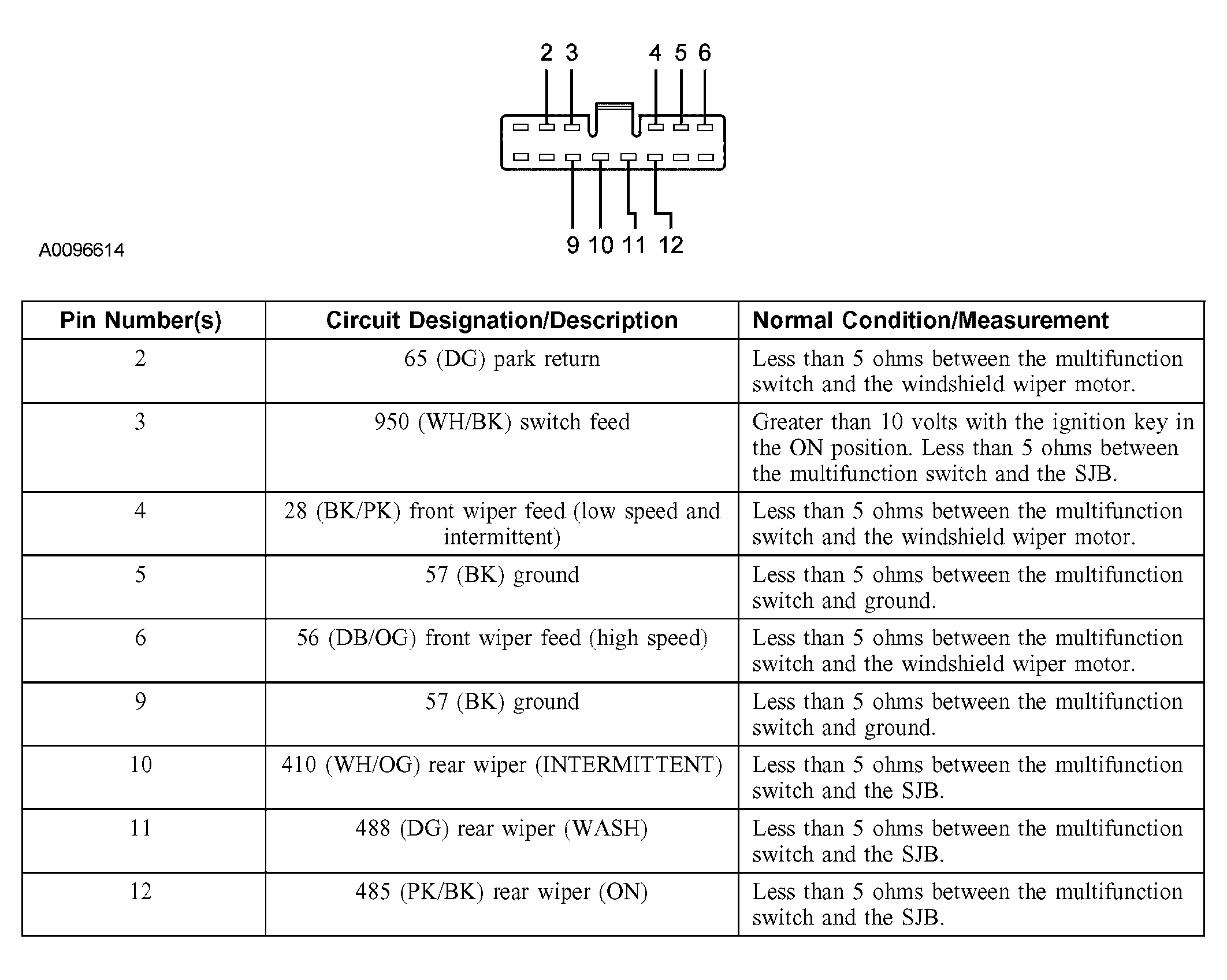

Fig 1: Identifying Connector Terminals Multifunction Switch C2081
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
