Wiper and Washer System - Exploded View, Front

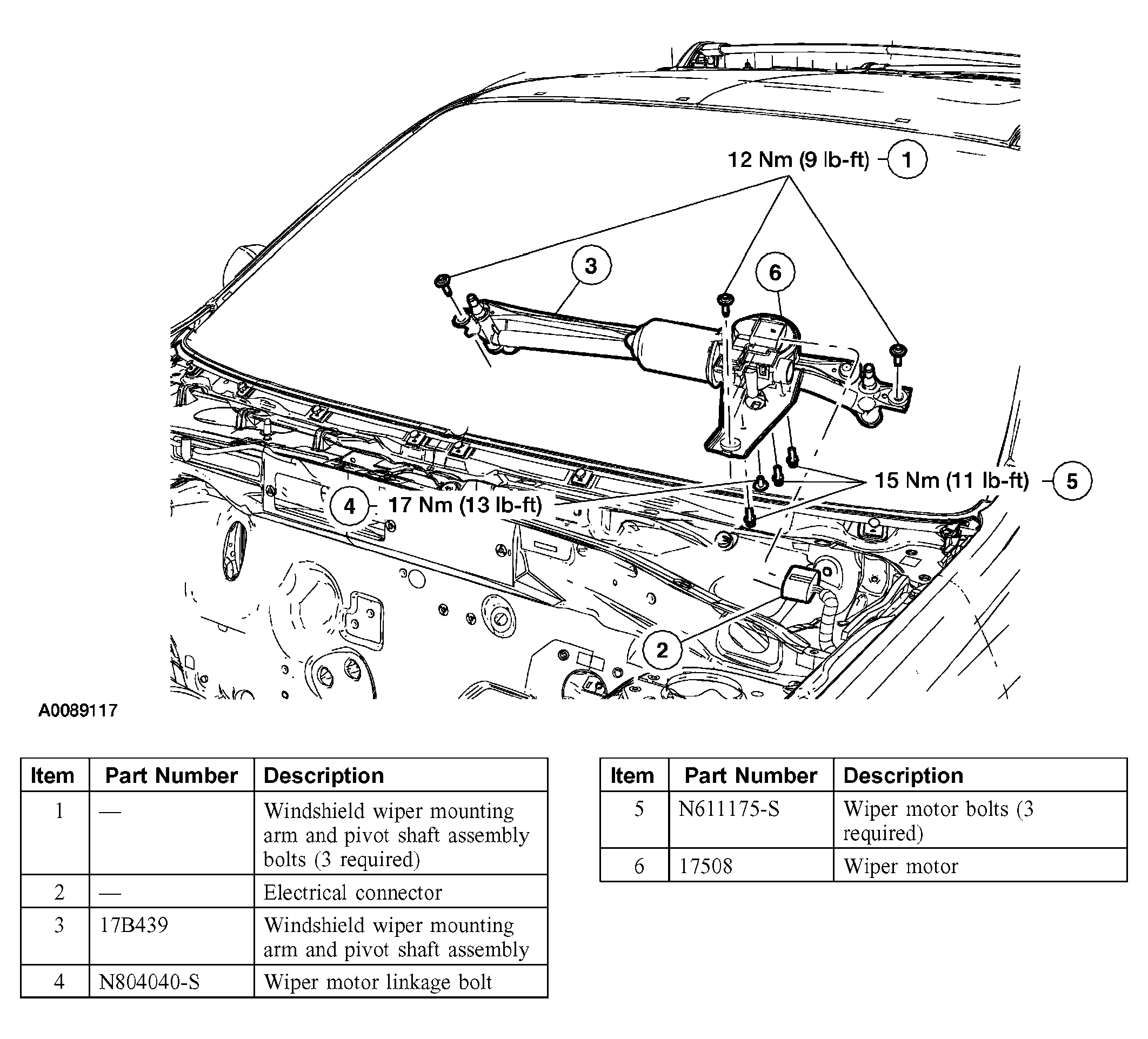

Fig 1: Exploded View Of Wiper And Washer System Front With Torque Specifications
G03903511Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the GENERAL PROCEDURES .
