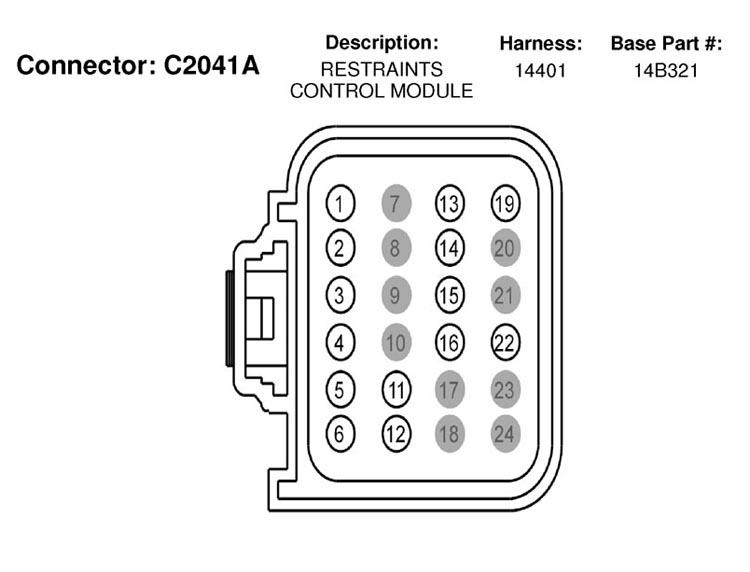

Restraints Control Module Connector End View (C2041A)
C2041A CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 614 (GY-OG) | 20 | Driver air bag feed monitor 1 | |
| 2 | 615 (GY-WH) | 20 | Driver air bag return 1 | |
| 3 | 607 (LB-OG) | 20 | Passenger air bag feed monitor 1 | |
| 4 | 616 (PK-BK) | 20 | Passenger air bag return 1 | |
| 5 | 1516 (YE-WH) | 20 | Driver air bag feed monitor 2 | |
| 6 | 1517 (RD-OG) | 20 | Driver air bag return 2 | |
| 7 | * | * | not used | |
| 8 | * | * | not used | |
| 9 | * | * | not used | |
| 10 | * | * | not used | |
| 11 | 70 (LB-WH) | 20 | ISO Bus | |
| 12 | 1654 (OG-YE) | 20 | Voltage supplied at all times (overload protected) | Early production |
| 12 | 937 (RD-WH) | 20 | Voltage supplied in Start and Run (overload protected) | |
| 13 | 1518 (BK-WH) | 20 | Passenger air bag feed monitor 2 | |
| 14 | 1519 (LG-RD) | 20 | Passenger air bag return 2 | |
| 15 | 608 (BK-YE) | 20 | Air bag indicator control | |
| 16 | 1203 (BK-LB) | 20 | Ground | |
| 17 | * | * | not used | |
| 18 | * | * | not used | |
| 19 | 1632 (TN-LB) | 20 | Passenger air bag deactivation indicator control | |
| 20 | * | * | not used | |
| 21 | * | * | not used | |
| 22 | 1083 (LB-PK) | 20 | Air bag tone driver | |
| 23 | * | * | not used | |
| 24 | * | * | not used |
