Powertrain Control Module C175e

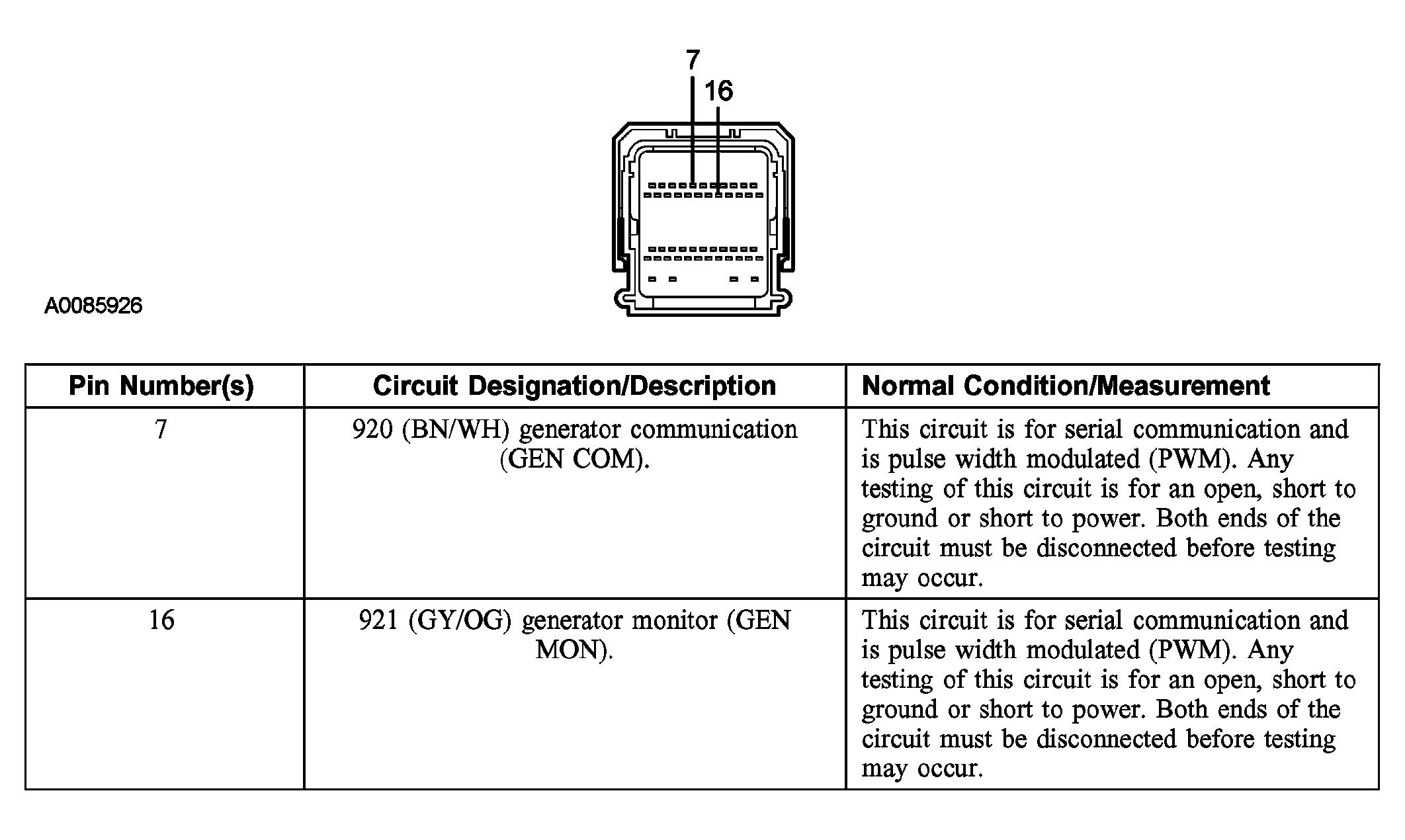

Fig 1: Identifying Powertrain Control Module Connector Pins C175E
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
