Coil On Plug (COP)

The COP ignition operates similar to a standard coil pack ignition except each plug has one coil per plug. COP has 3 different modes of operation: engine crank, engine running, and CMP failure mode effects management (FMEM).

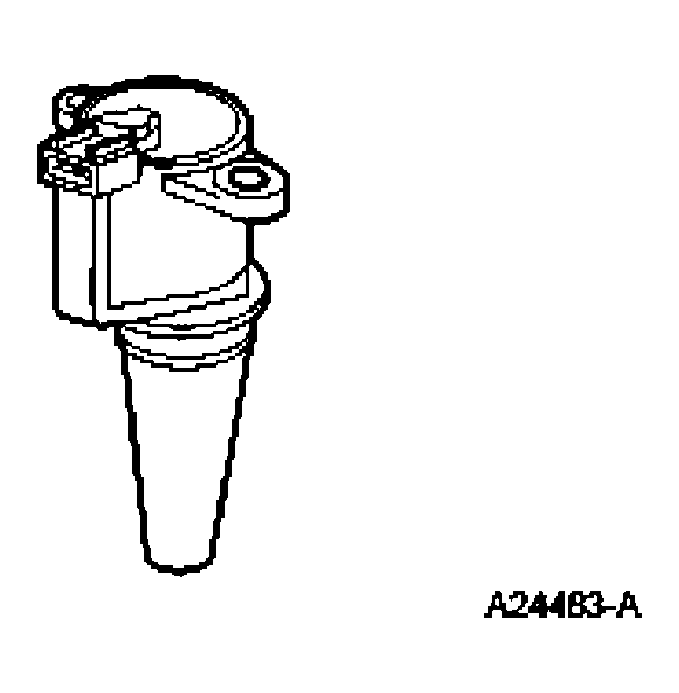

Fig 1: Identifying Coil On Plug (COP)
G04024165Courtesy of FORD MOTOR CO.
