Pinpoint Test JD: Crankshaft Position (CKP) Sensor: Introduction: Notes

WARNING: CROWN VICTORIA POLICE INTERCEPTOR VEHICLES EQUIPPED WITH FIRE SUPPRESSION SYSTEM, REFER TO FIRE SUPPRESSION SYSTEM FOR IMPORTANT SAFETY WARNINGS. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

This pinpoint test is intended to diagnose the following:

Crankshaft Position (CKP) Sensor (6C135).
Harness Circuits: CKP(+) and CKP(-)
Powertrain control module (PCM) (12A650)

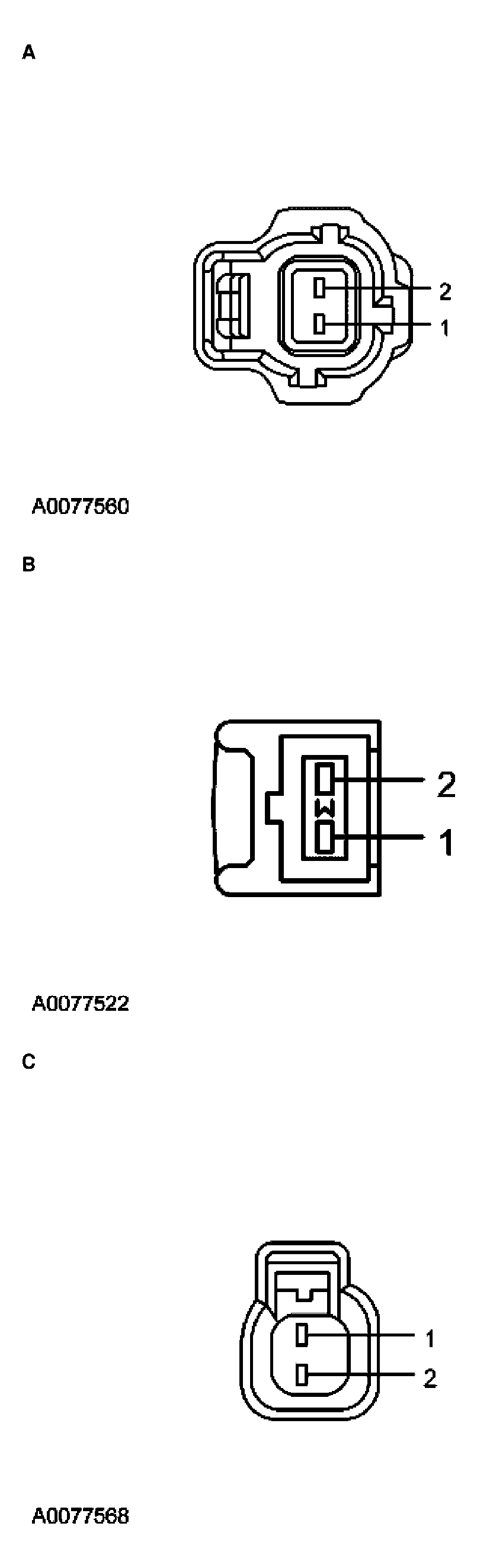

Fig 1: Crankshaft Position (CKP) Sensor Connector (1 to 2)

Courtesy of FORD MOTOR CO.

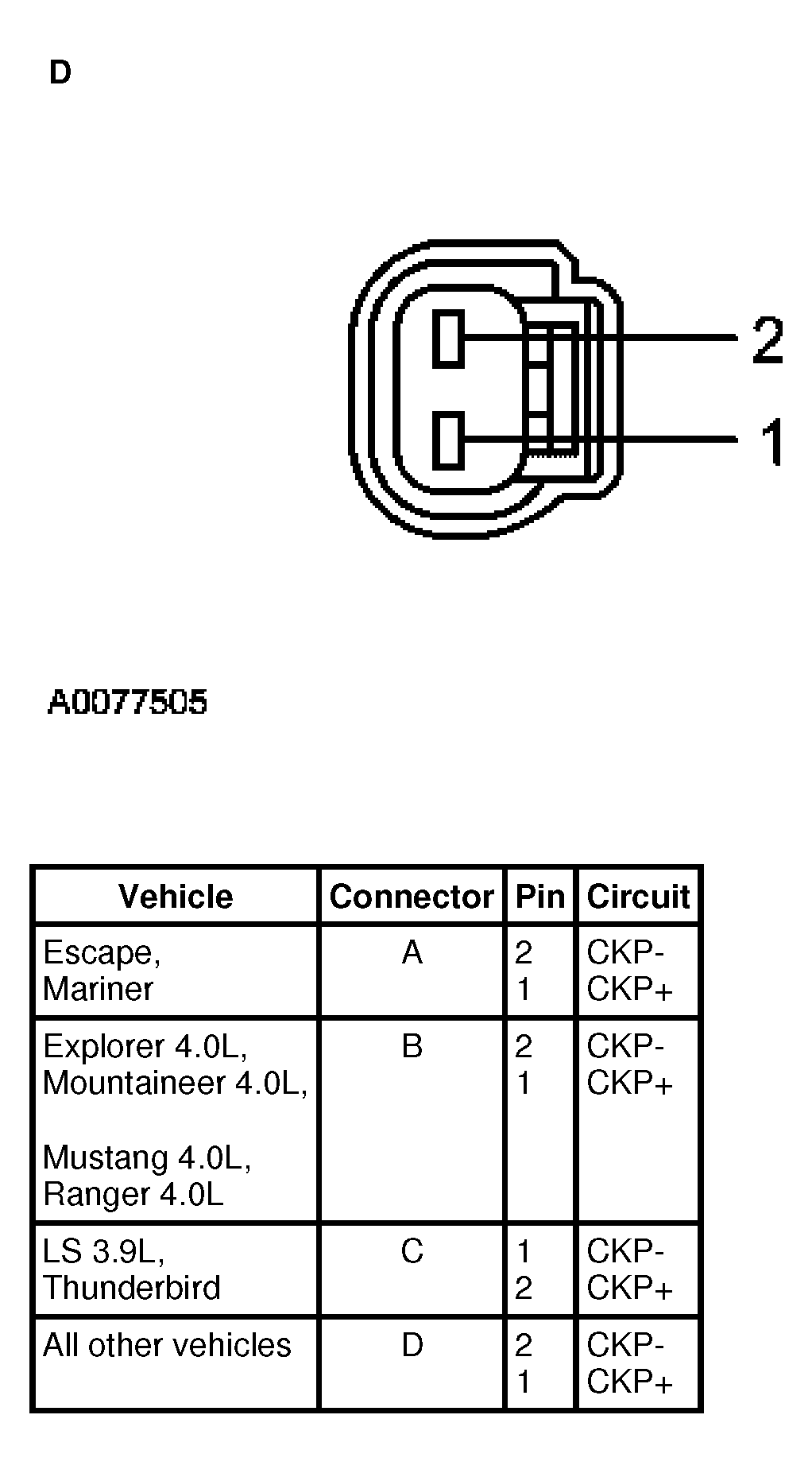

Fig 2: Crankshaft Position (CKP) Sensor Connector (2 to 2)

Courtesy of FORD MOTOR CO.
