Pinpoint Test TA: Clutch Pedal Position (CPP) Switch: Introduction: Notes

This pinpoint test is intended to diagnose the following:

• CPP(11A152/7C534).
• Harness circuits: CPP / CPP BT and SIGRTN.
• Powertrain control module (PCM) (12A650).

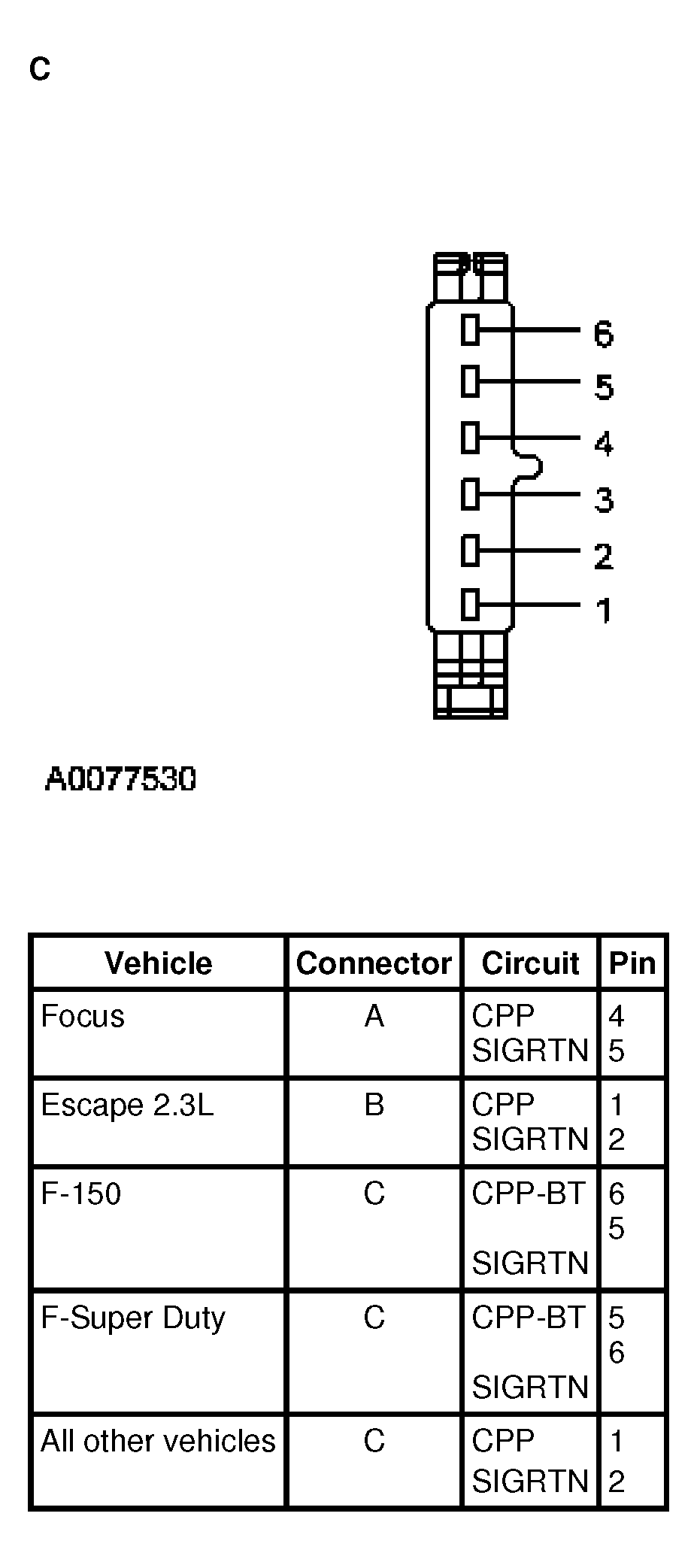

  Fig 1: Clutch Pedal Position (CPP) Connector (1 Of 2)

  Courtesy of FORD MOTOR CO.

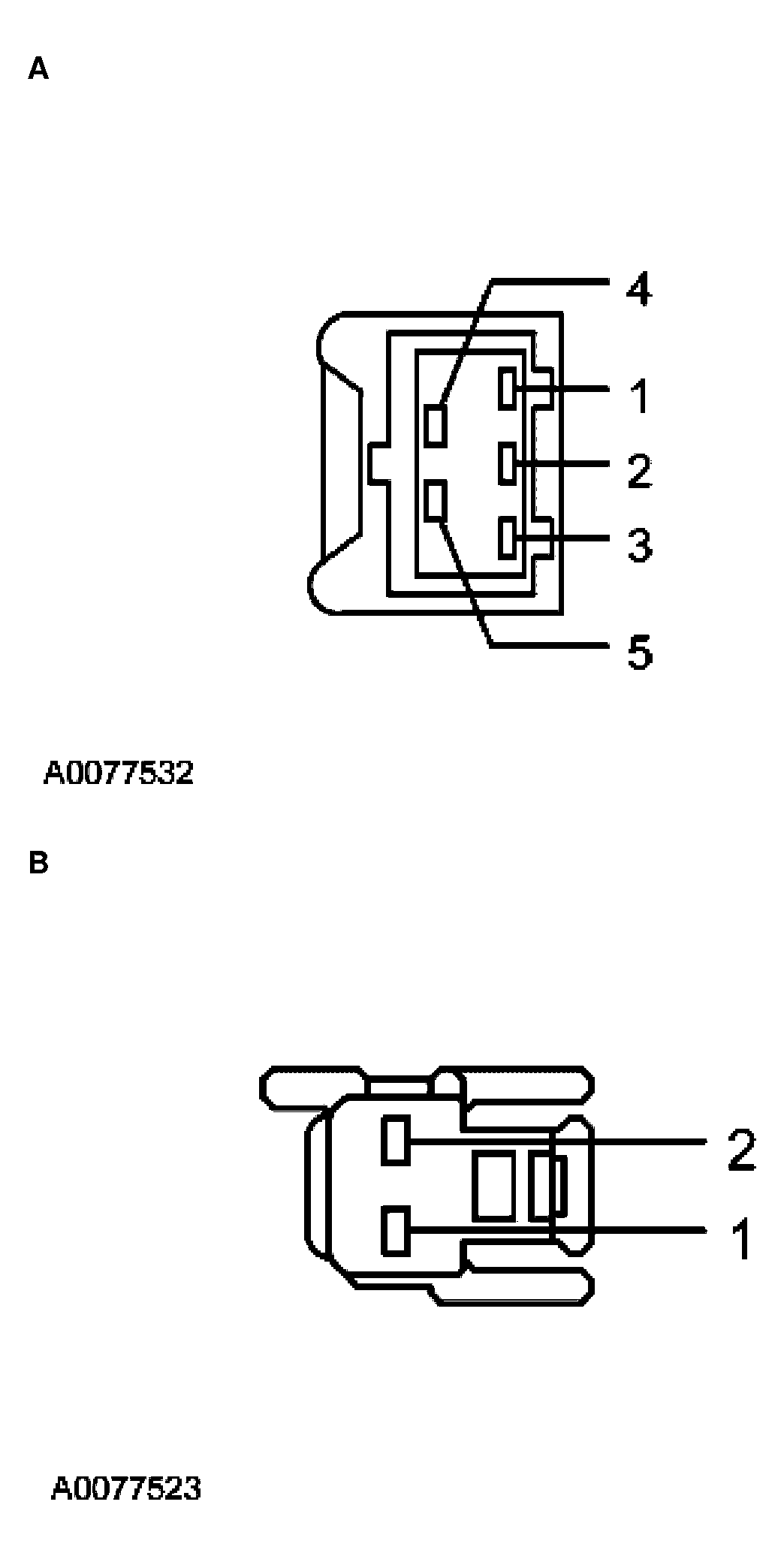

  Fig 2: Clutch Pedal Position (CPP) Connector (2 Of 2)

  Courtesy of FORD MOTOR CO.
