Powertrain Control Module (PCM) C175b
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Powertrain Control Module (PCM) C175b

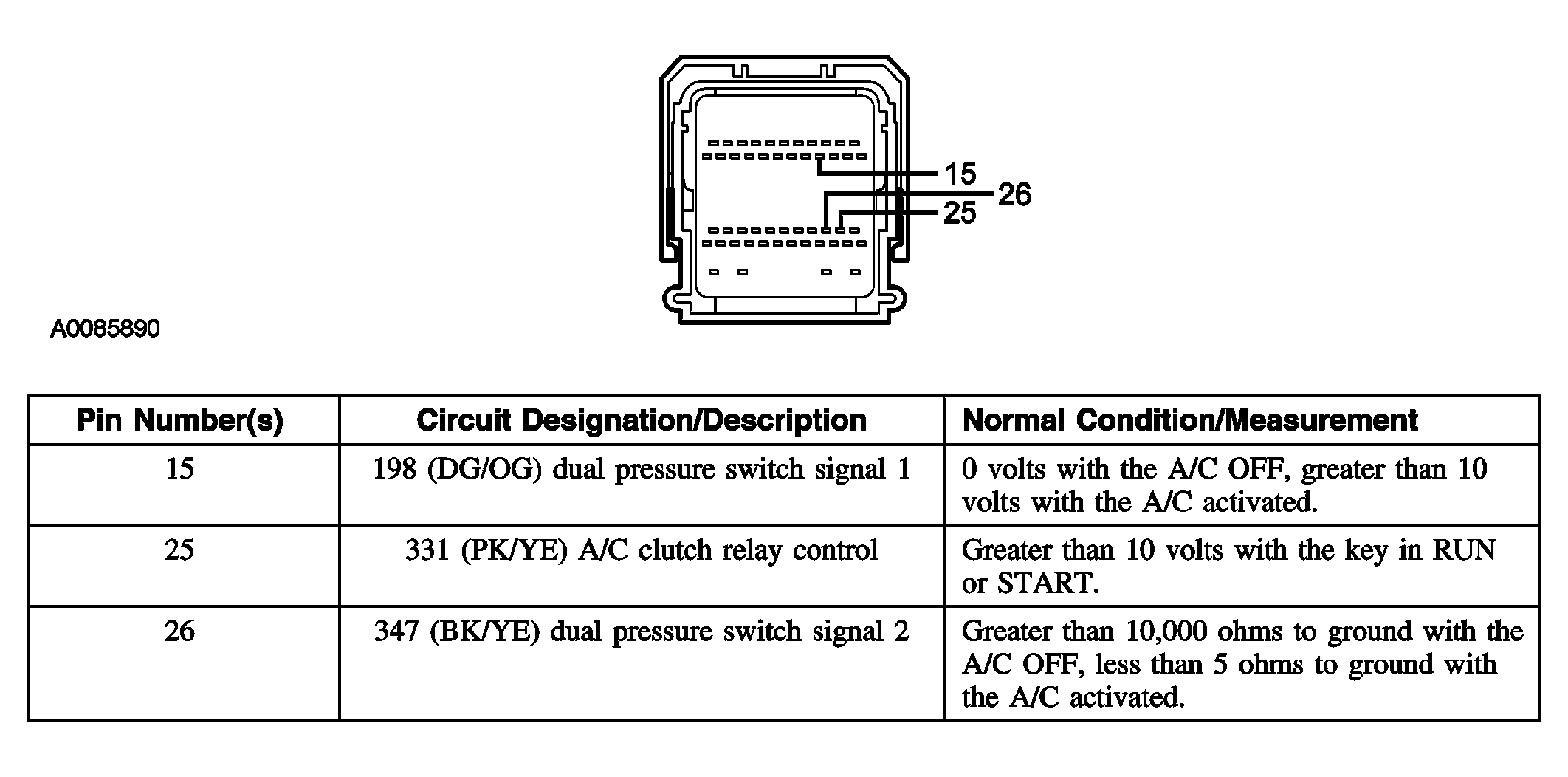

Fig 1: Connector Circuit Reference - Powertrain Control Module (PCM) C175b
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
