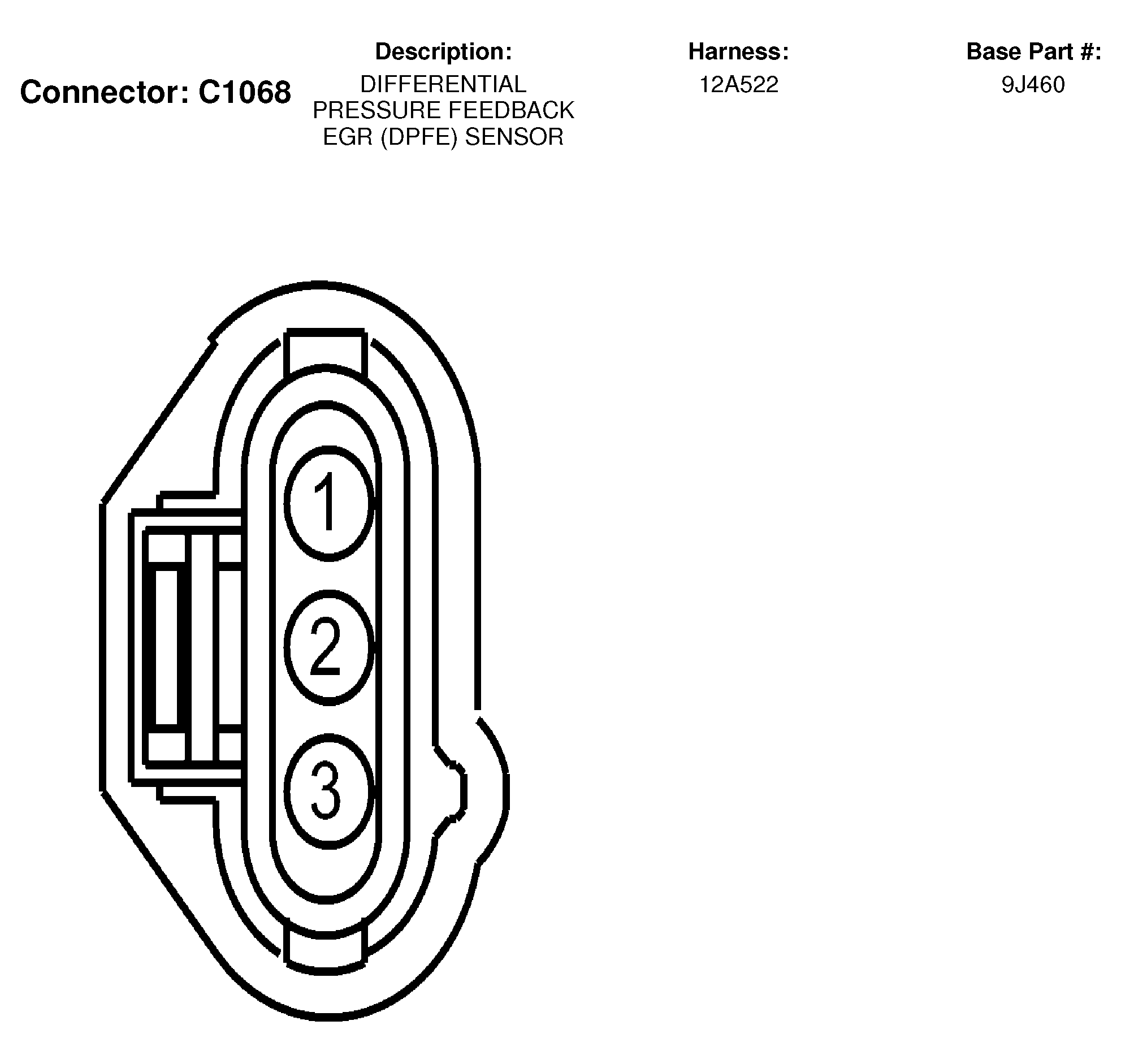

Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)
Courtesy of FORD MOTOR CO. C1068 CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
1833 (GY-RD) |
20 |
Differential Pressure Feedback EGR (DPFE) sensor signal |
|
| 2 |
359 (GY-RD) |
20 |
Signal return |
|
| 3 |
351 (BR-WH) |
20 |
Reference voltage |
|
