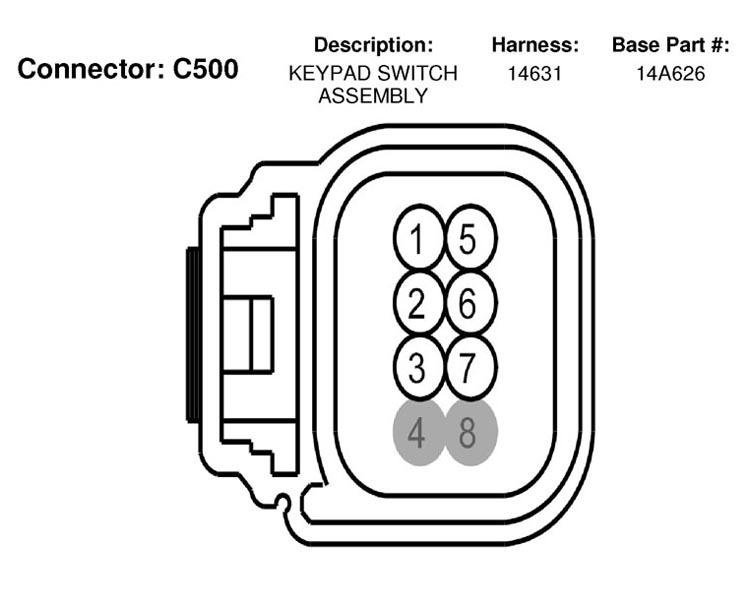

Keypad Switch Assembly Connector End View (C500)
C500 CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 78 (LB-YE) | 20 | Keypad button 5/6 output | |
| 2 | 66 (LB) | 20 | Keypad illumination | |
| 3 | 79 (LG-RD) | 20 | Keypad button 7/8 output | |
| 4 | * | * | not used | |
| 5 | 570 (BK-WH) | 20 | Ground | |
| 6 | 570 (BK-WH) | 20 | Ground | |
| 7 | 121 (YE-BK) | 20 | Keypad button 9/0 output | |
| 8 | * | * | not used |
