Side Air Curtain Module, Driver Connector End View (C3055)

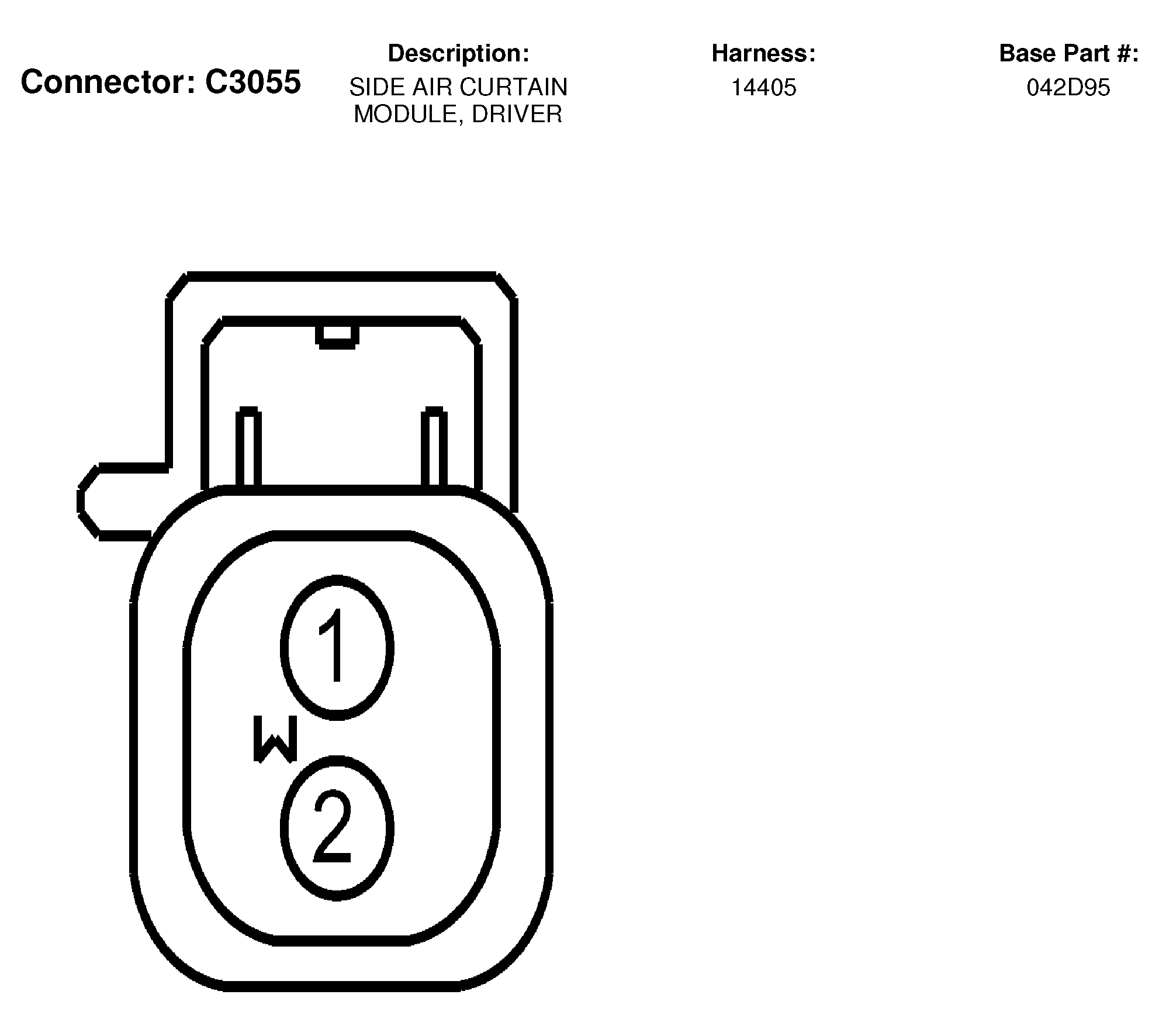

Fig 1: Side Air Curtain Module, Driver Connector End View (C3055)
G03993415Courtesy of FORD MOTOR CO.
C3055 CONNECTOR SPECIFICATION

Pin Circuit Gauge Circuit Function Qualifier
1 1633 (BK-OG) 20 Driver side curtain feed
2 1634 (RD-PK) 20 Driver side curtain return
