Connector Circuit Reference

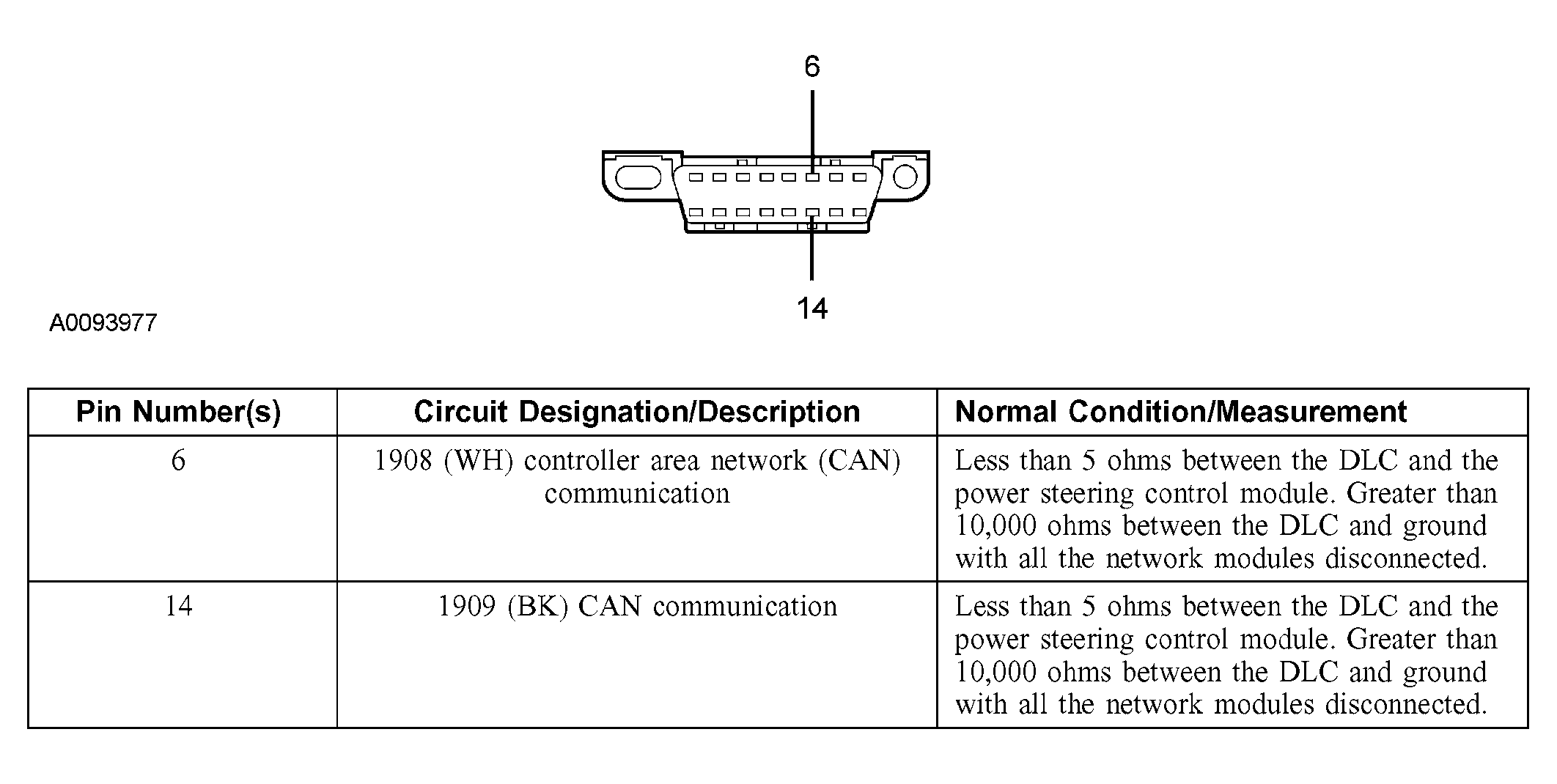

Fig 1: Identifying Data Link Connector (DLC) C251
G03897558Courtesy of FORD MOTOR CO.

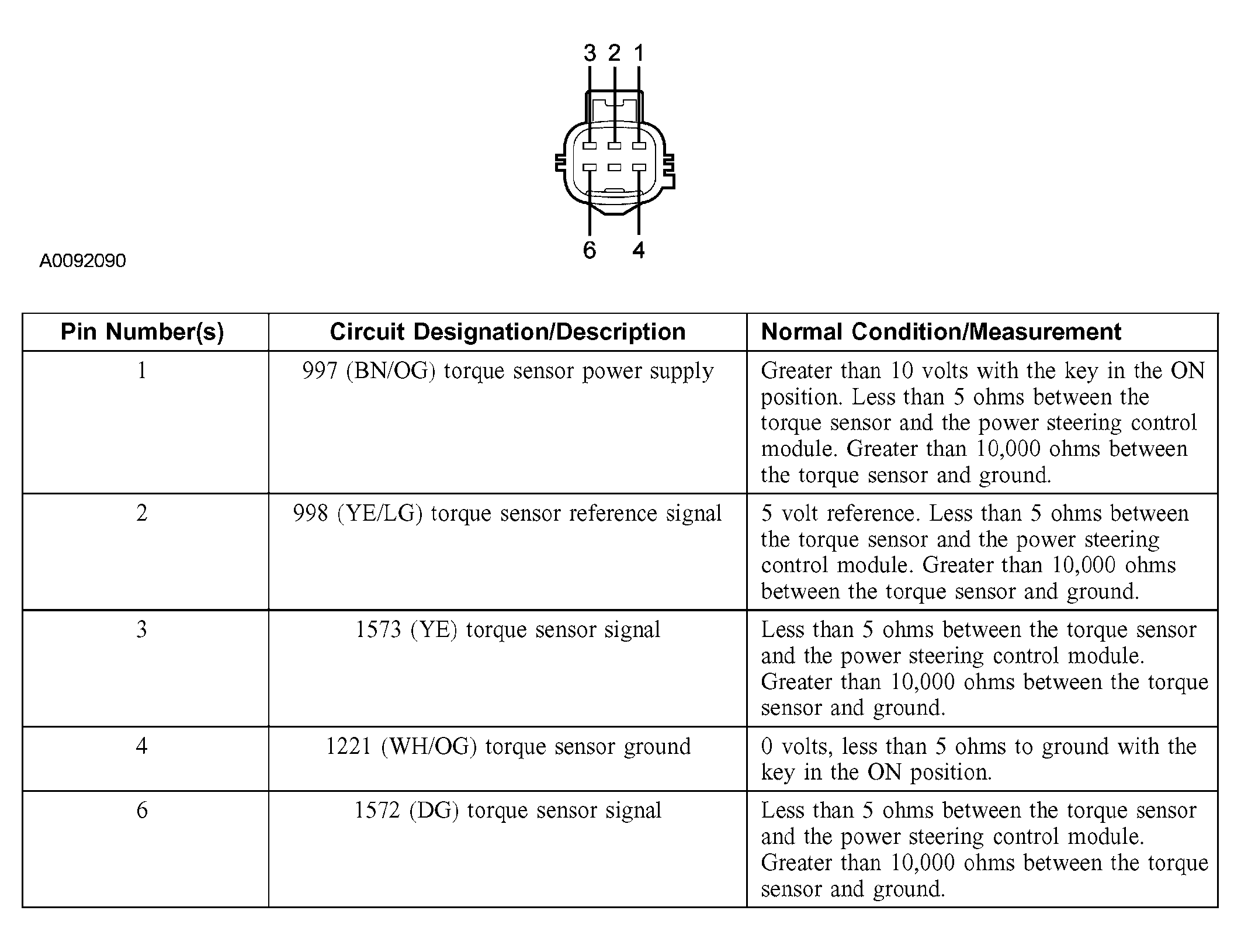

Fig 2: Identifying Torque Sensor C1460
G03897559Courtesy of FORD MOTOR CO.

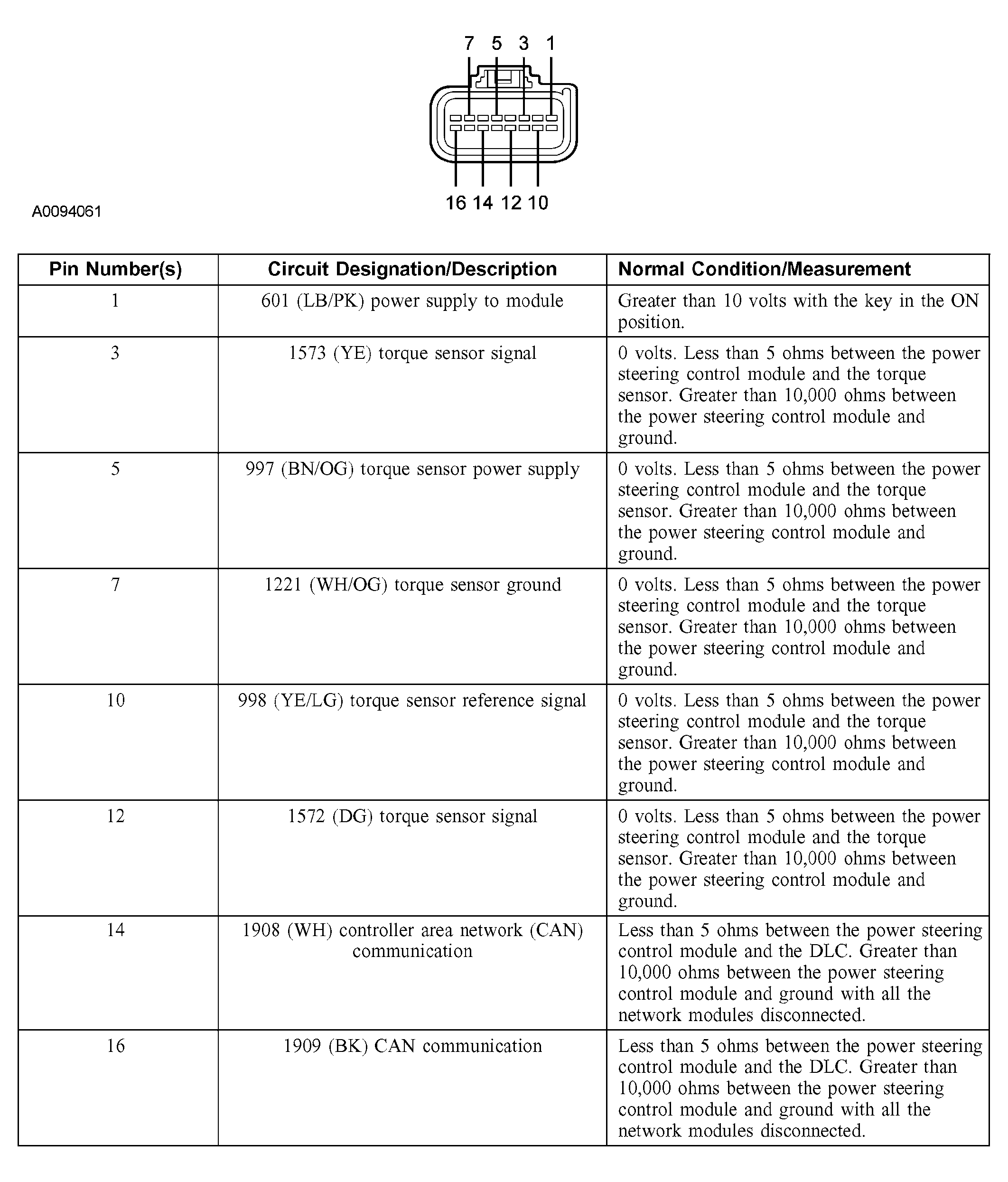

Fig 3: Identifying Power Steering Control Module C1463a
G03897560Courtesy of FORD MOTOR CO.
Fig 4: Identifying Power Steering Control Module C1463b
G03897561Courtesy of FORD MOTOR CO.

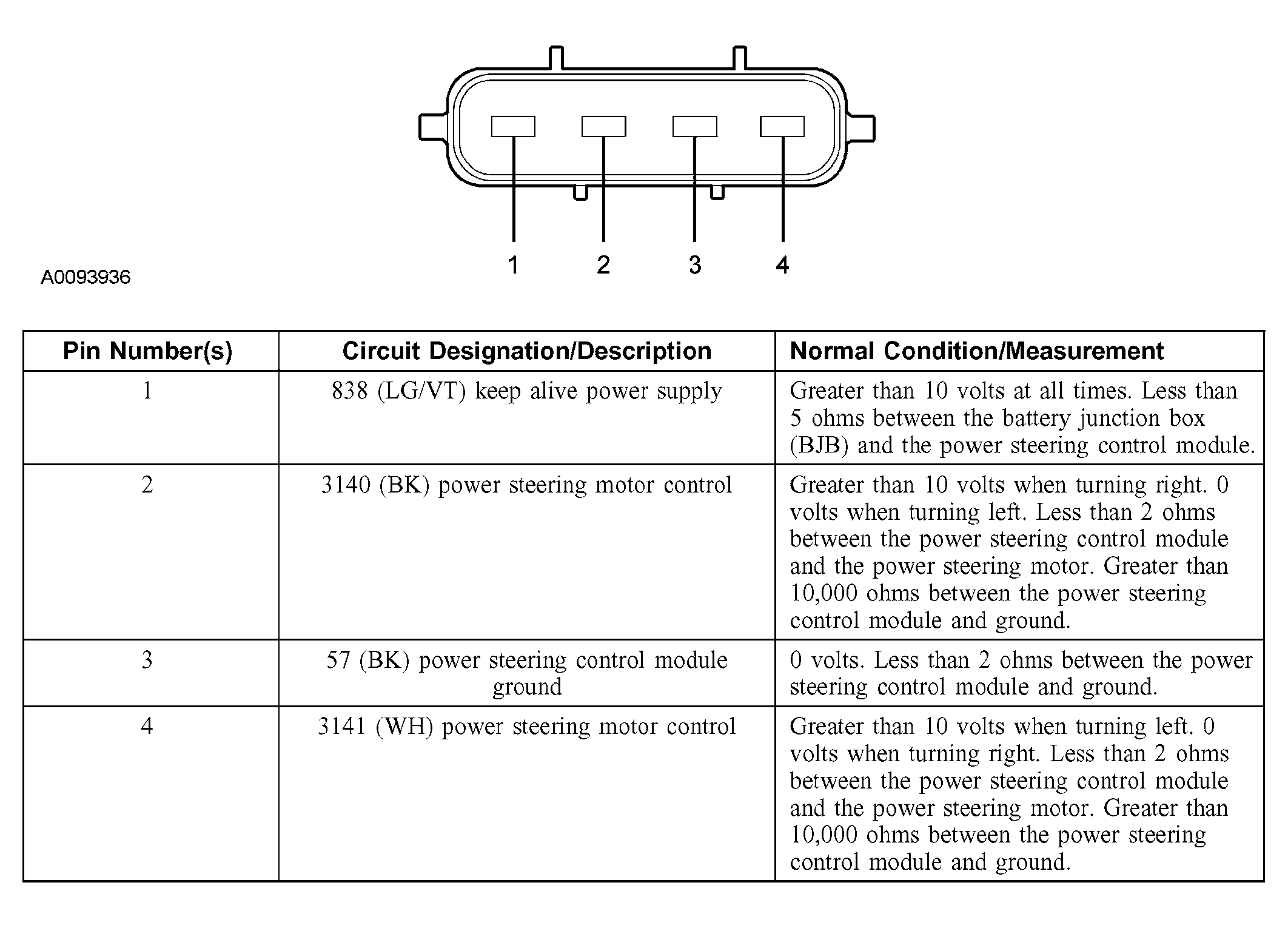

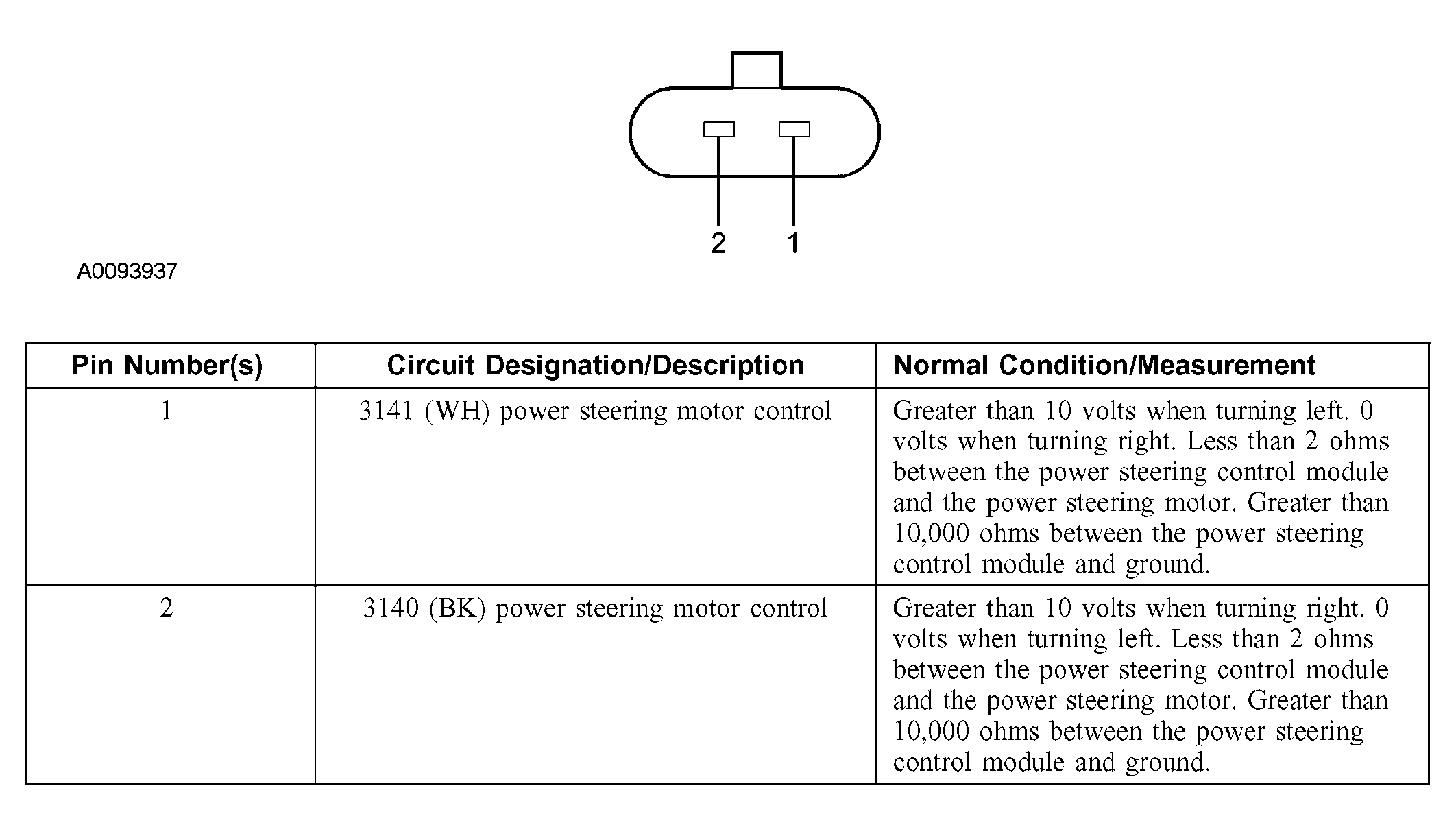

Fig 5: Identifying Power Steering Motor C1467a
G03897562Courtesy of FORD MOTOR CO.
