Wiper/washer switch: Schematic

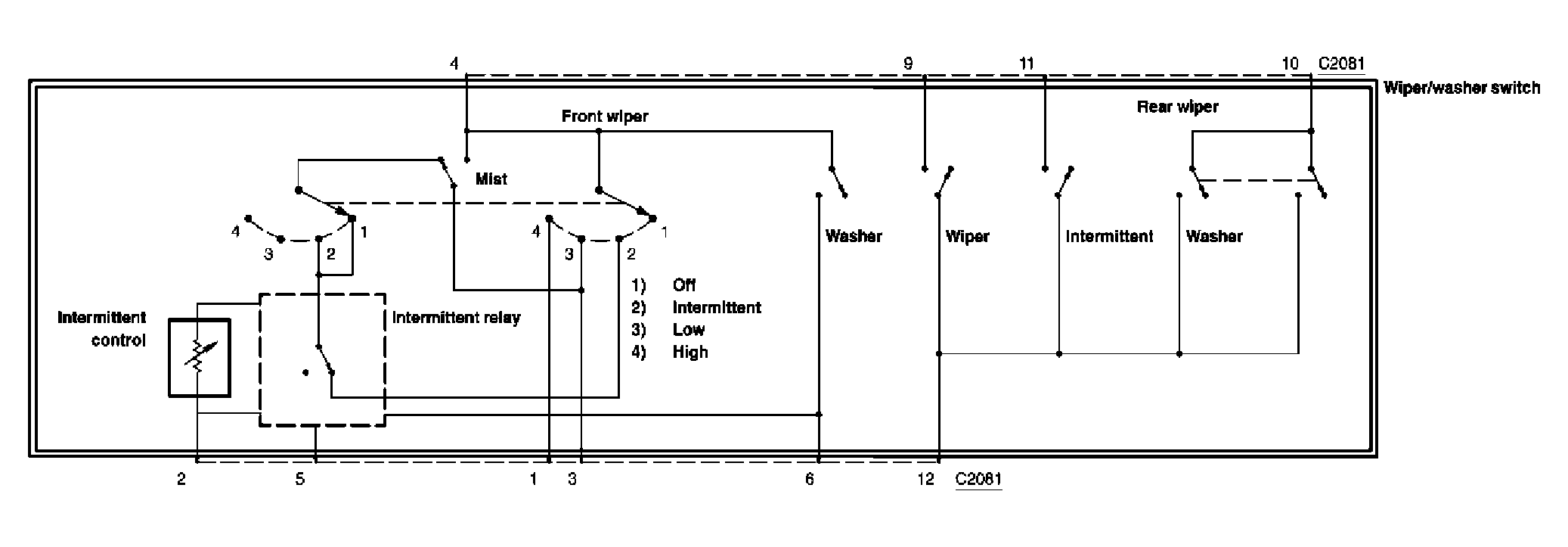

Fig 1: Wiper/Washer Switch - Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
