Window Glass - Liftgate: Notes

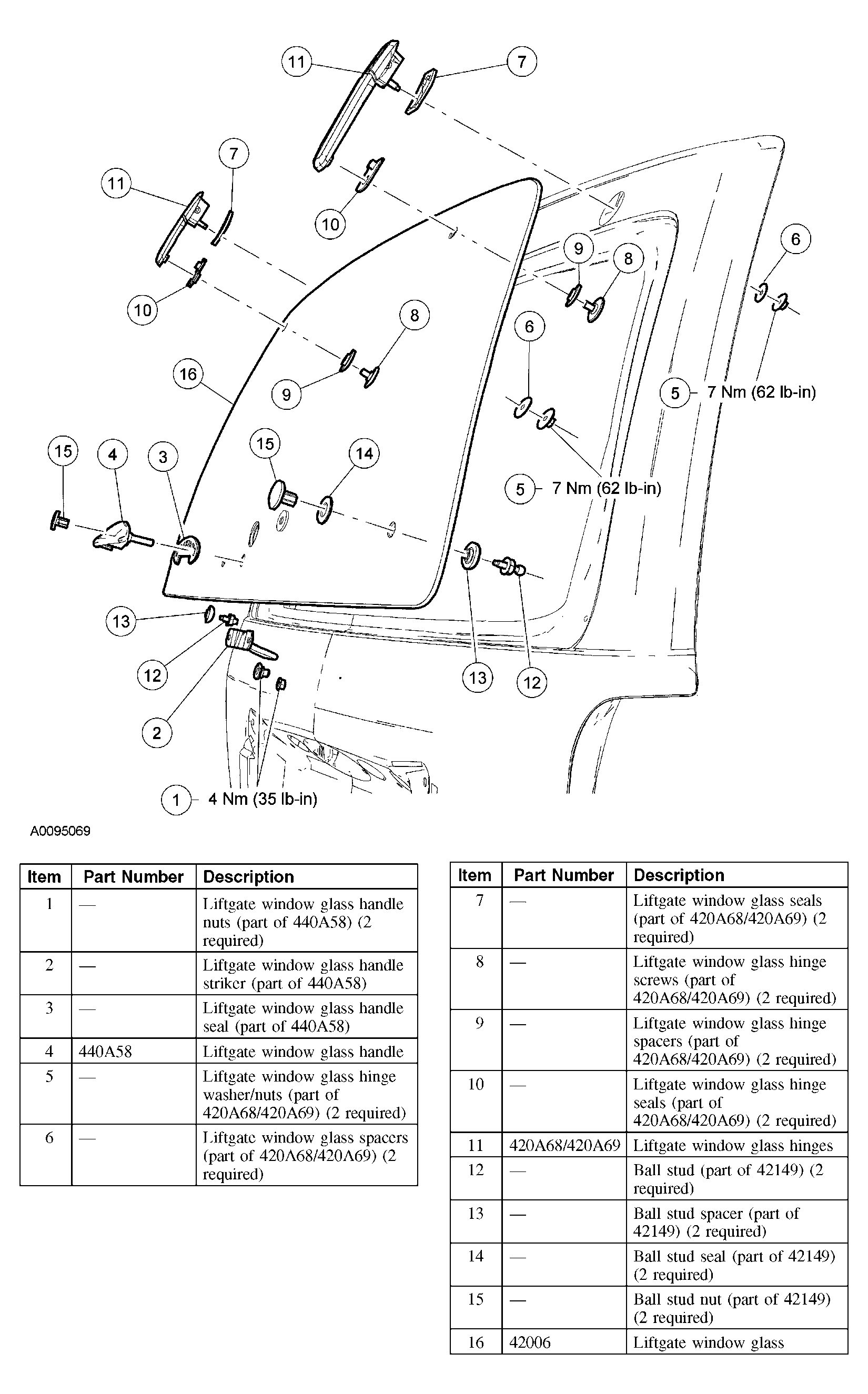

Fig 1: Exploded View Of Window Glass - Liftgate
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
