Transaxle Front Support Insulator: Notes

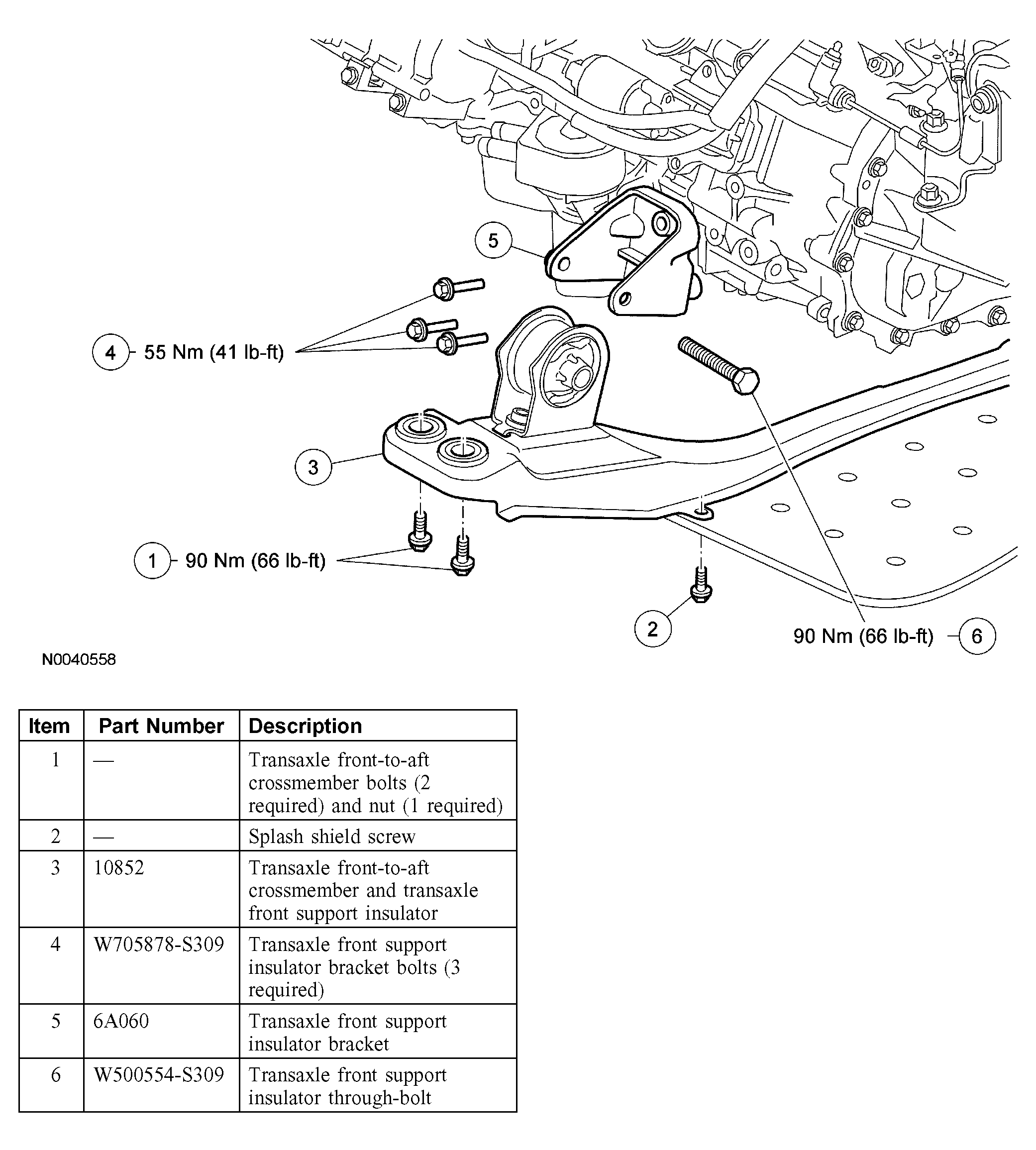

Fig 1: Transaxle Front Support Insulator With Torque Specifications
G03901736Courtesy of FORD MOTOR CO.
