Steering Linkage - Exploded View

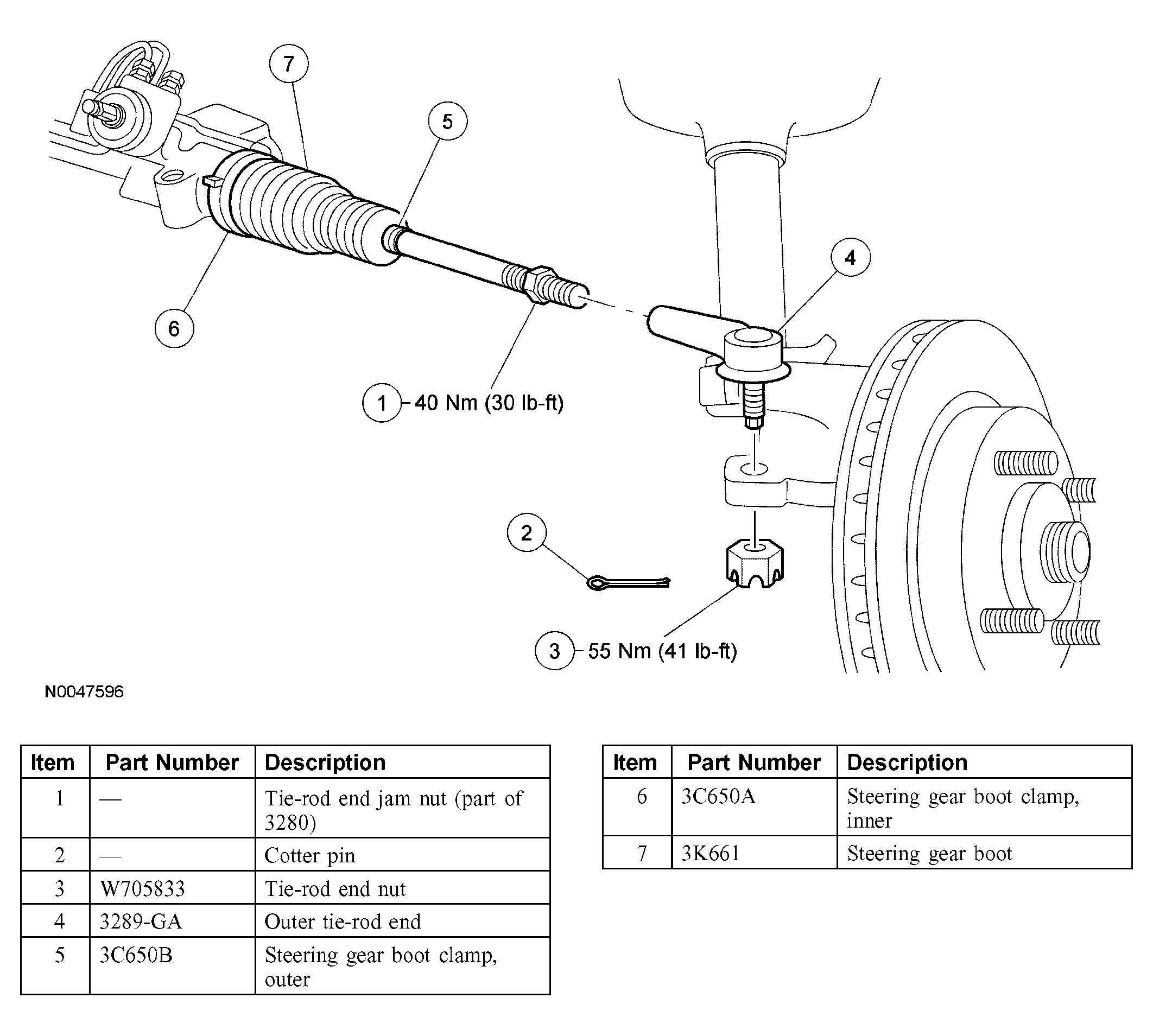

Fig 1: Exploded View Of Steering Linkage With Torque Specifications
G03897611Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
